Toyota YARIS antenna — Figure 8604

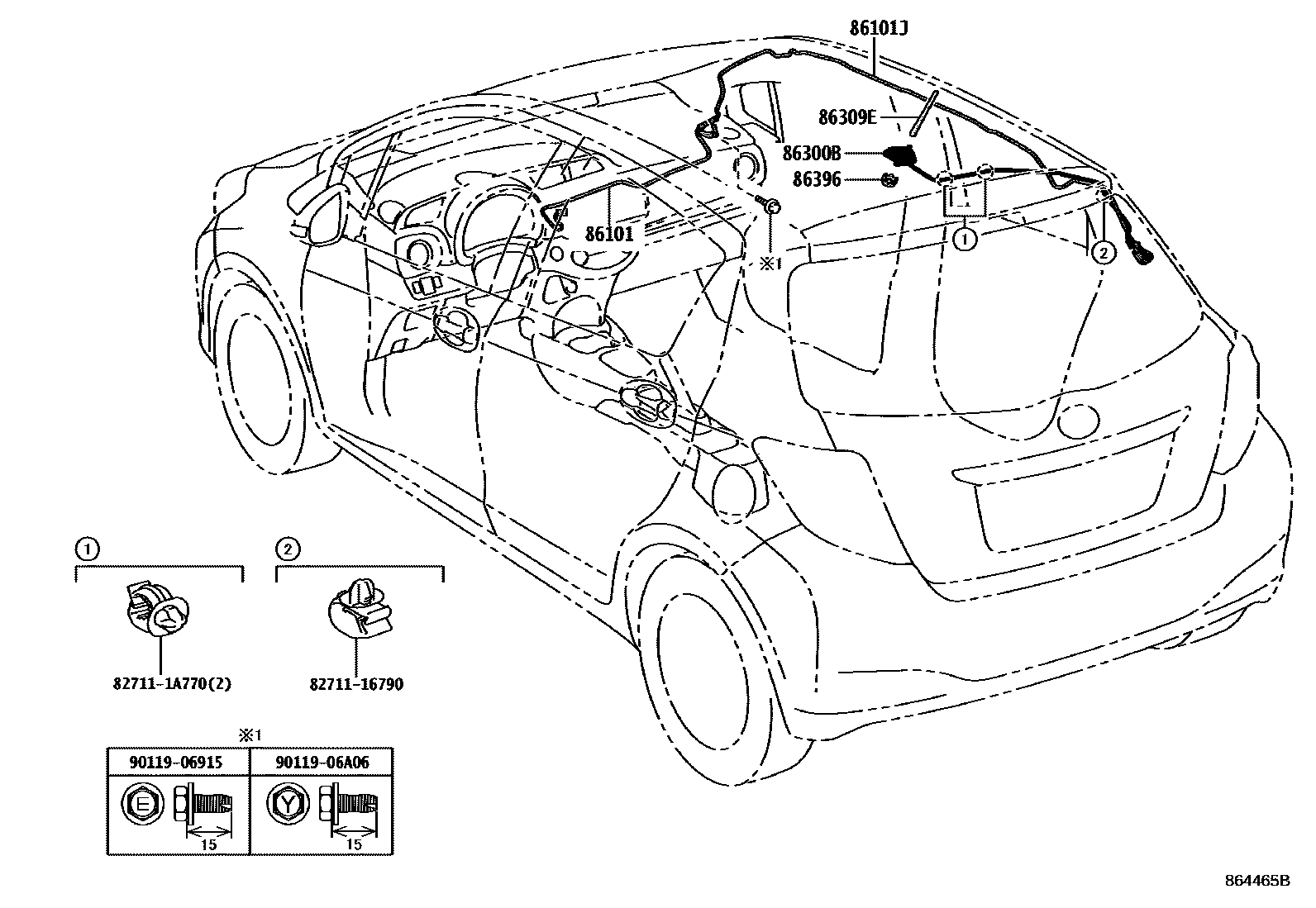

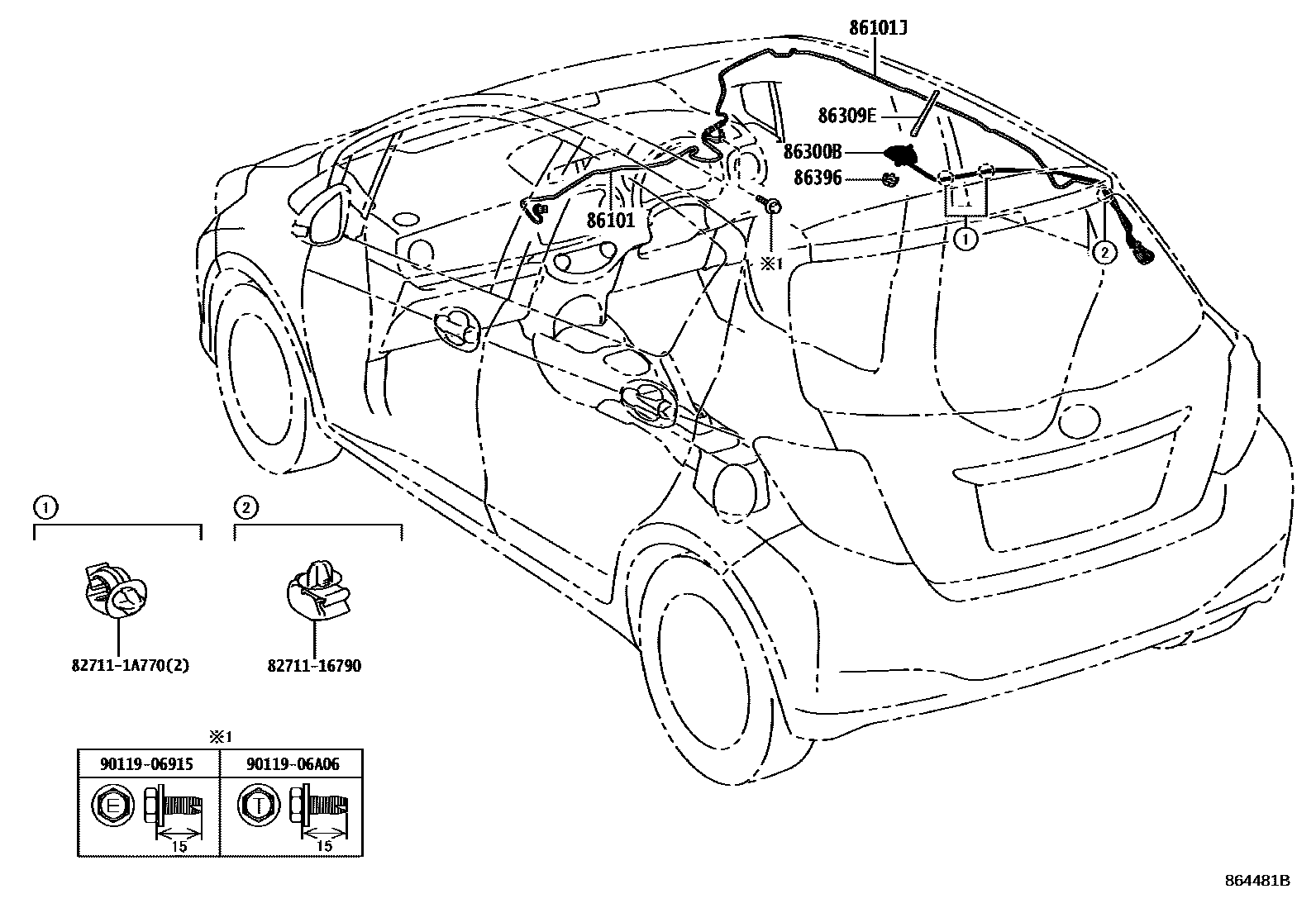

Toyota YARIS EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-52860 · 86101-52890 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-52830 |
| 86300B | No. 1 amplifier antenna assembly | 86300-52520 · 86300-52590 |
| 86309E | Roof antenna sub-assembly | 86309-42080 · 86309-47020 |
| 86396 | Antenna nut | 86396-47010 |
