Toyota YARIS 导航和前监视器显示屏 — Figure 8603

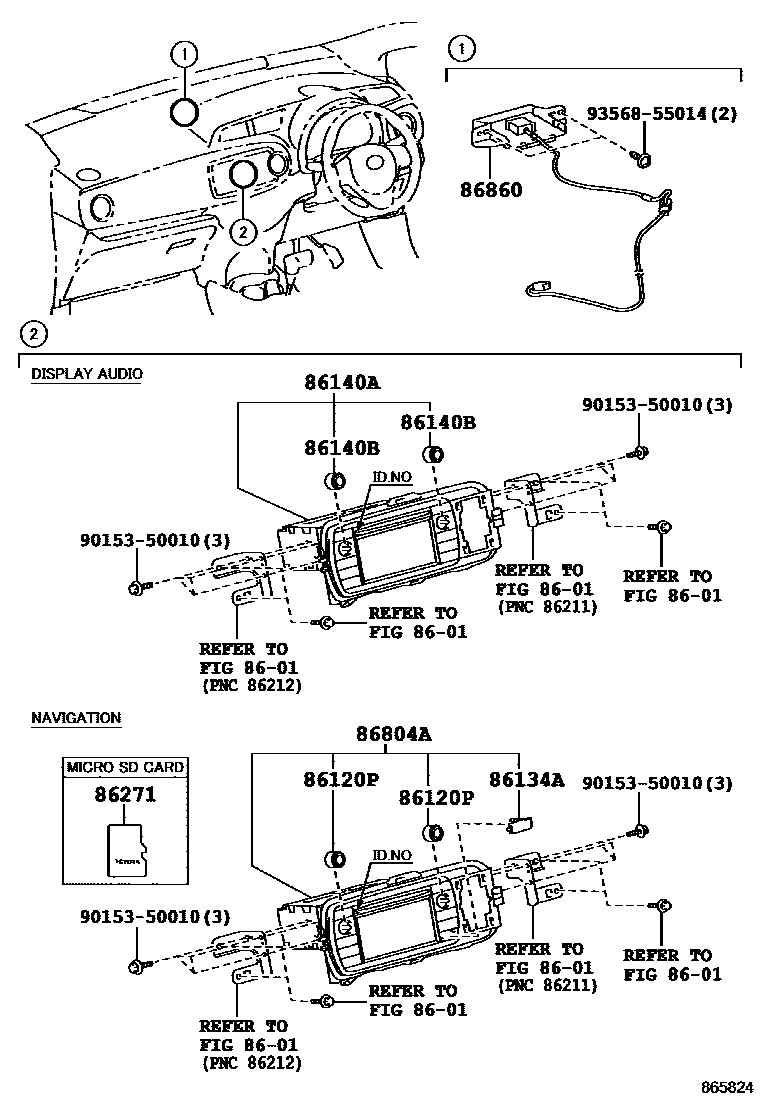

Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120P | Navigation receiver switch button | 90010-23047 |
| 86134A | Multifunctional display components | 86134-52040 |
| 86140A | Radio and display receiver assembly | 86140-52190 · 86140-52340 |
| 86140B | Radio and display receiver switch button | 90010-23047 |
| 86271 | CD | 86271-0E170 · 86271-0E171 · 86271-0E172 · 86271-0E173 · 86271-0E174 · 86271-0E175 · 86271-0E176 |
| 86804A | Navigation ECU sub-assembly | 86804-52010 · 86804-52060 |
| 86860 | Navigation antenna assembly | 86860-52210 |
