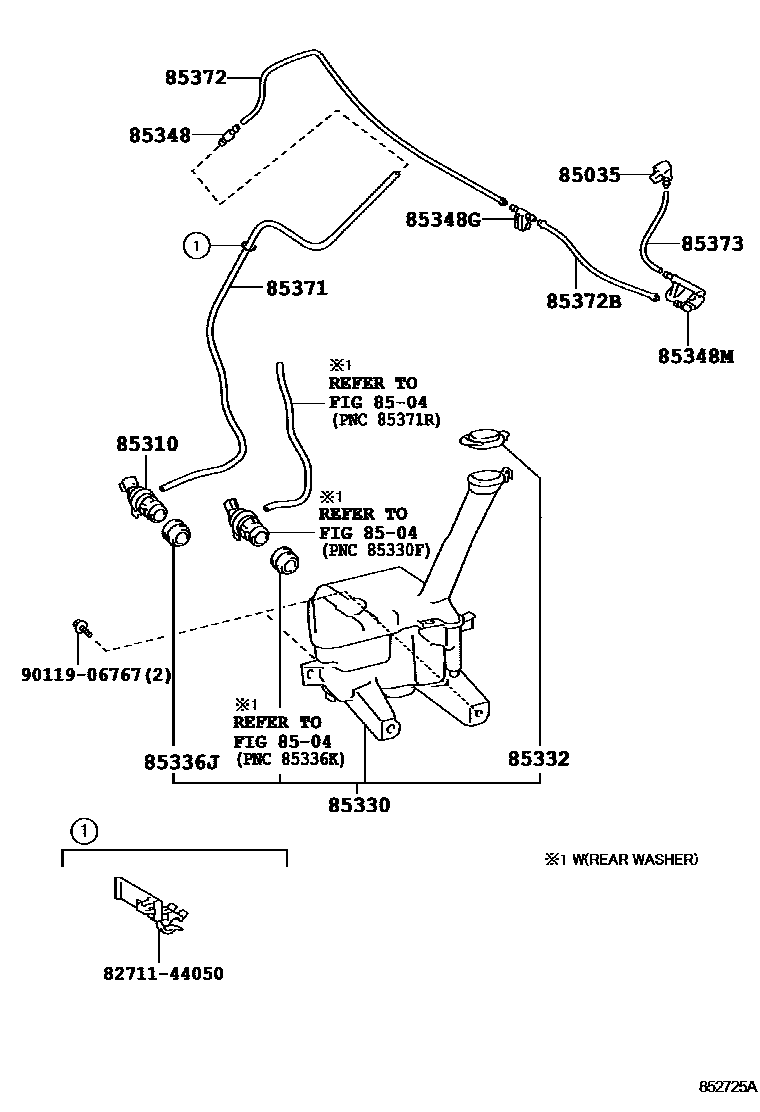

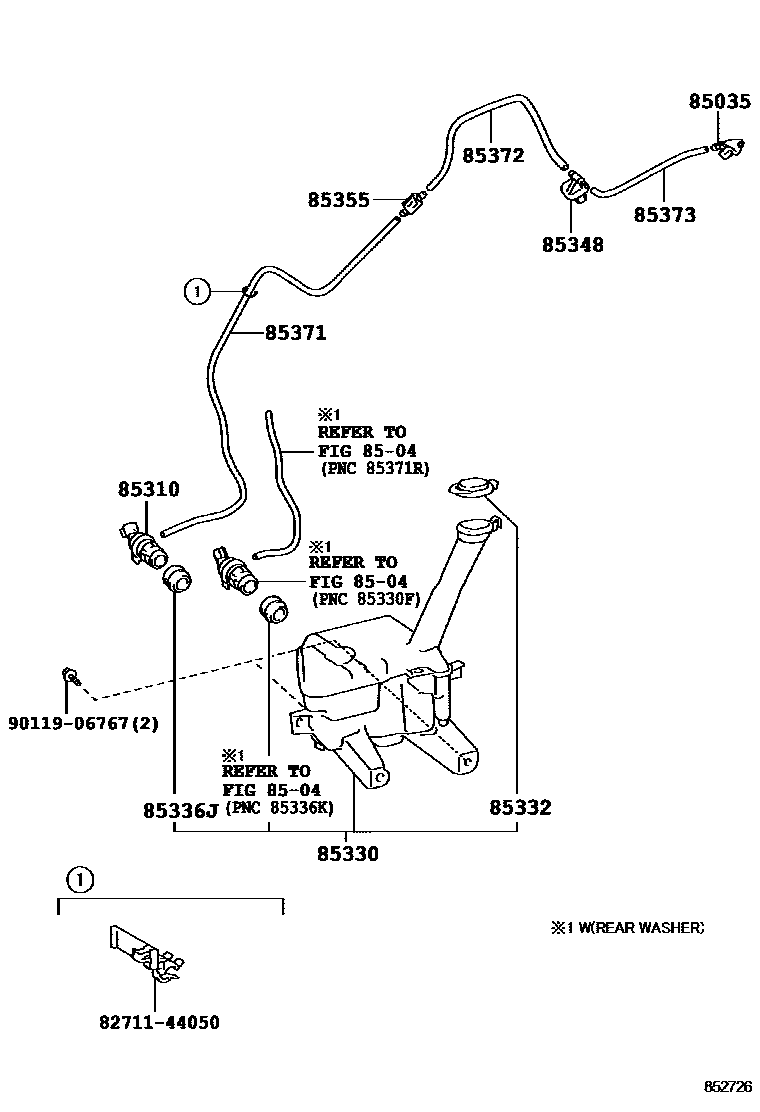

Toyota YARIS 挡风玻璃清洗器 — Figure 8503
Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-52360 · 85381-52361 · 85381-52370 · 85381-52371 · 85381-52460 · 85381-52461 |
| 85310 | Windshield washer motor and pump assembly | 85330-21010 |
| 85330 | Windshield washer fluid tank assembly | 85315-52300 · 85315-52330 |
| 85332 | Windshield washer fluid tank cap | 85316-10270 |
| 85336J | Cleaning fluid tank protection device | 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 · 85375-52190 · 85375-52441 |
| 85348G | Windshield washer hose connector No. 2 | 85371-52070 |
| 85348M | No. 3 windshield washer hose connector | 85385-52200 |
| 85355 | Windshield washer hose valve | 85321-26020 |
