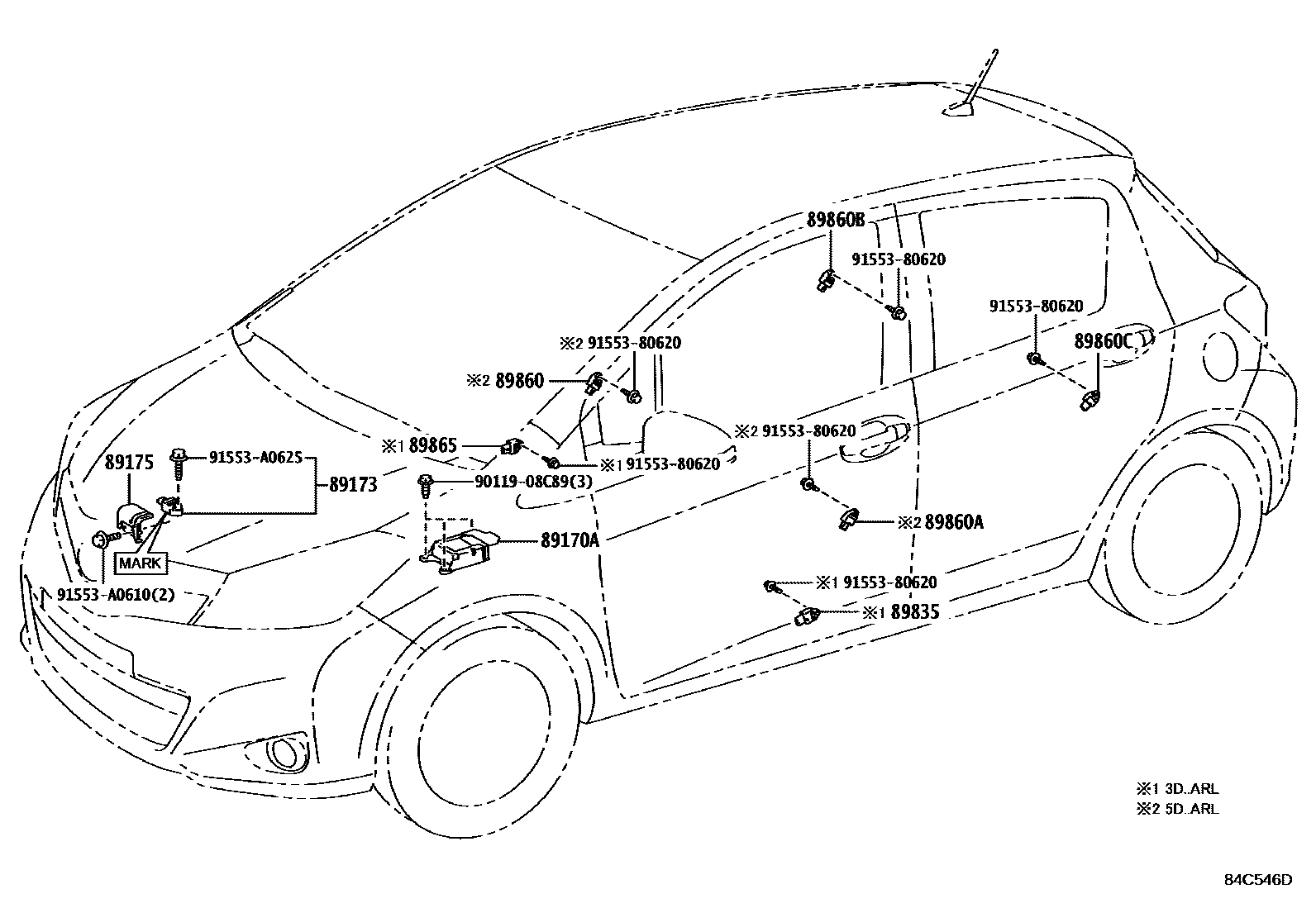

Toyota YARIS 空气囊 — Figure 8421
Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-52G80 · 89170-52G90 · 89170-52J00 · 89170-52J10 · 89170-52M30 · 89170-52M50 · 89170-52M60 · 89170-52N50 |
| 89173 | front airbag sensor | 89173-59265 · 89173-79015 |
| 89175 | air bag sensor bracket | 89175-52020 |
| 89835 | Left door side air bag sensor | 89831-48020 · 89831-52040 |
| 89860 | Right side airbag sensor assembly | 89831-52020 · 89831-52090 |
| 89860A | Left side air bag sensor assembly | 89831-52020 · 89831-52090 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-52020 · 89831-52090 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-52020 · 89831-52090 |
| 89865 | Right door side air bag sensor | 89831-48020 · 89831-52040 |
