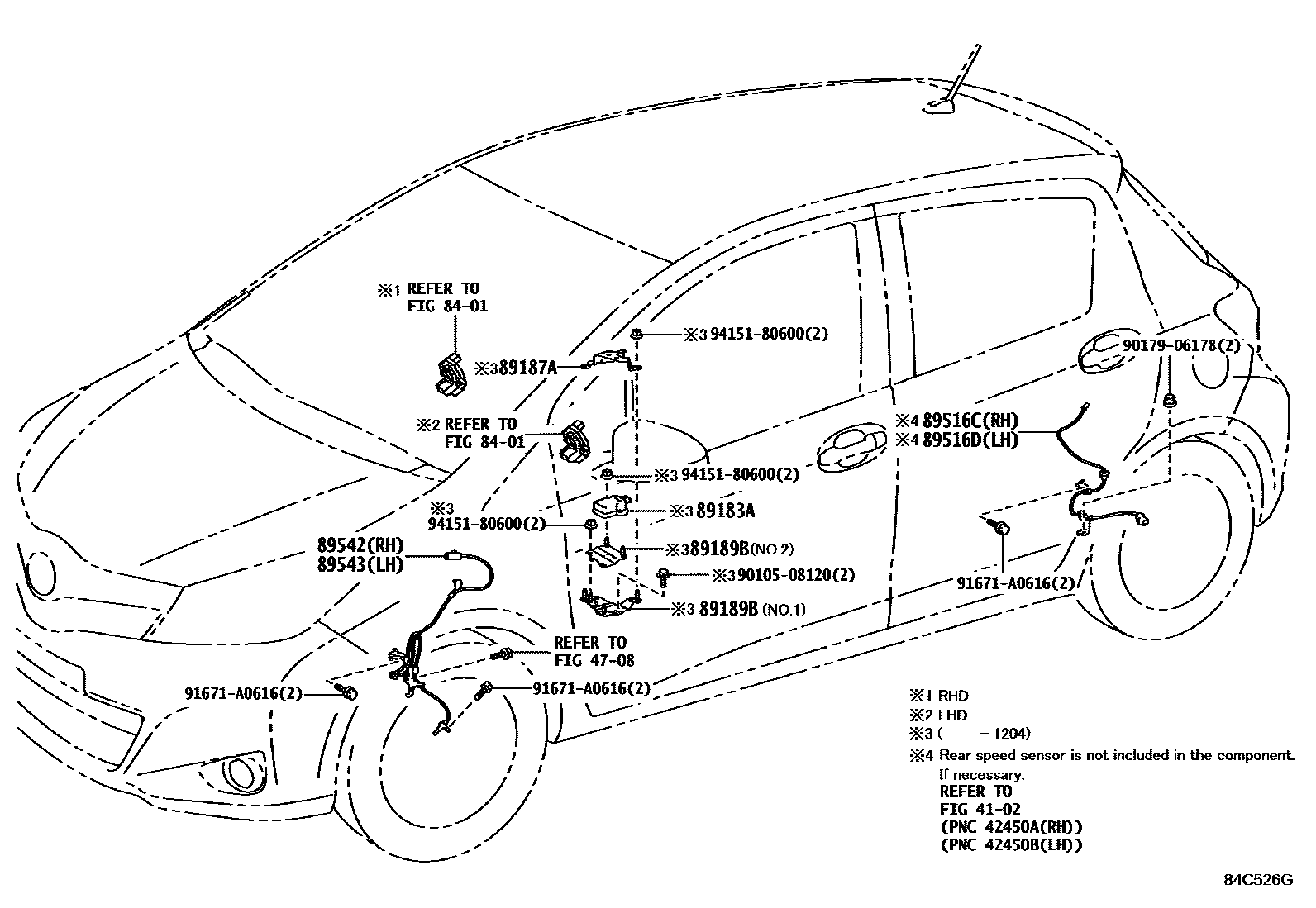

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89183A | Yaw rate sensor | 89183-48030 |
| 89187A | Yaw rate sensor protective cover | 89187-52030 |
| 89189B | Yaw rate sensor bracket | 89189-52010 · 89189-52020 |
| 89516C | Right anti-skid control sensor harness | 89516-52130 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-52140 |
| 89542 | Right front wheel speed sensor | 89542-52090 |
| 89543 | Left front wheel speed sensor | 89543-52090 |
