Toyota YARIS 超速档和电子控制变速器 — Figure 8410

Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 2 PNC and OE references.

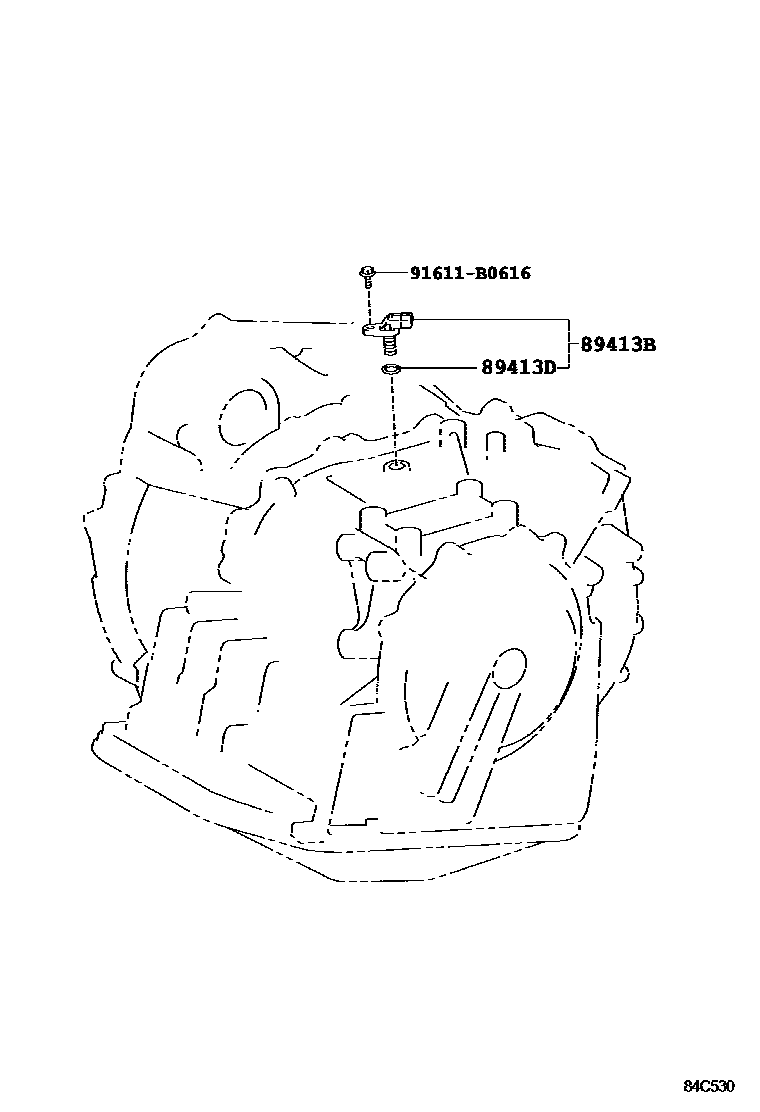

Toyota YARIS 超速档和电子控制变速器 EPC diagram — 84C530
超速档和电子控制变速器 — 84C530 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
89413BTransmission speed sensor89413-32010 · 89413-32011
89413DO-ring (for transmission speed sensor)90301-11008
