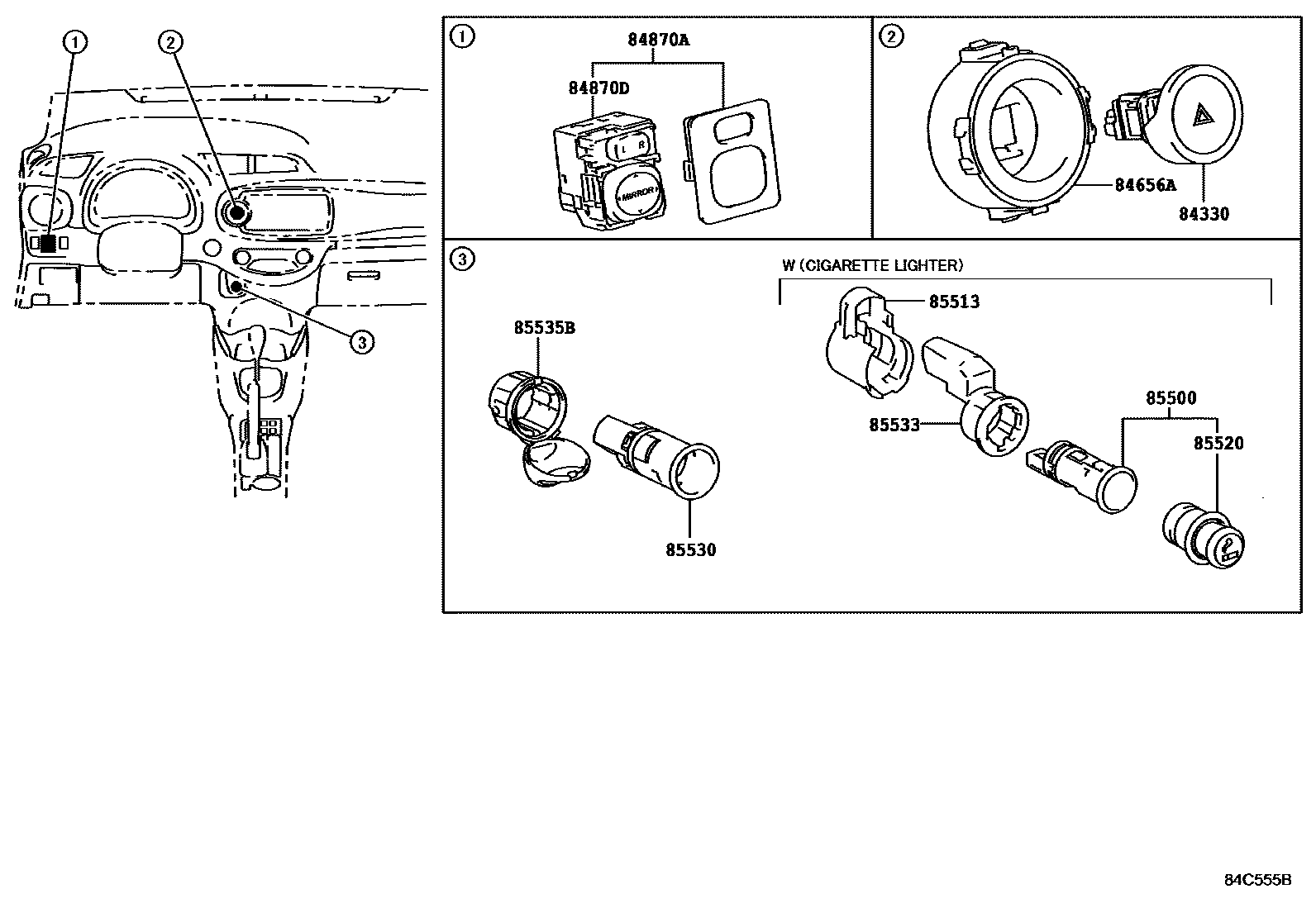

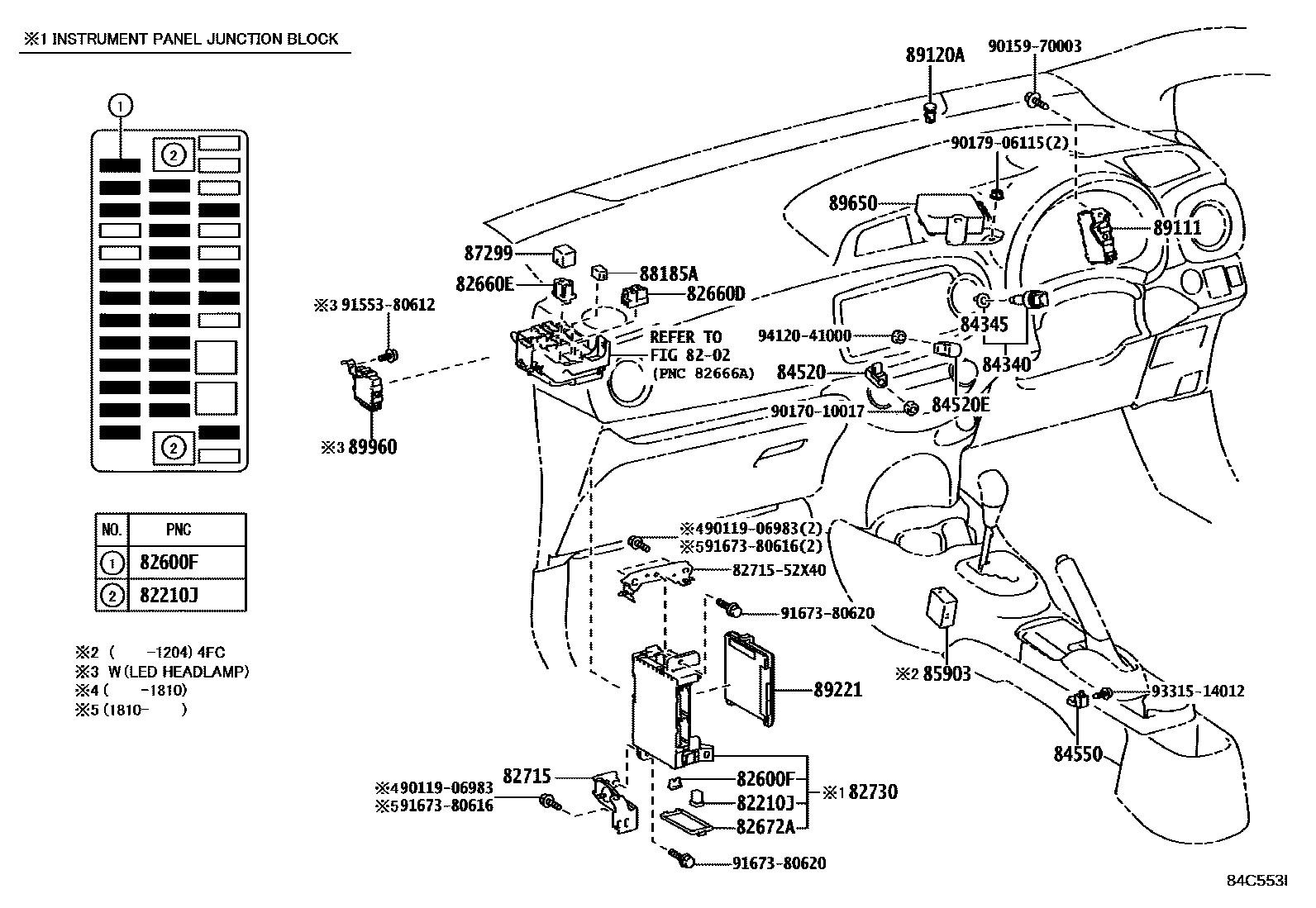

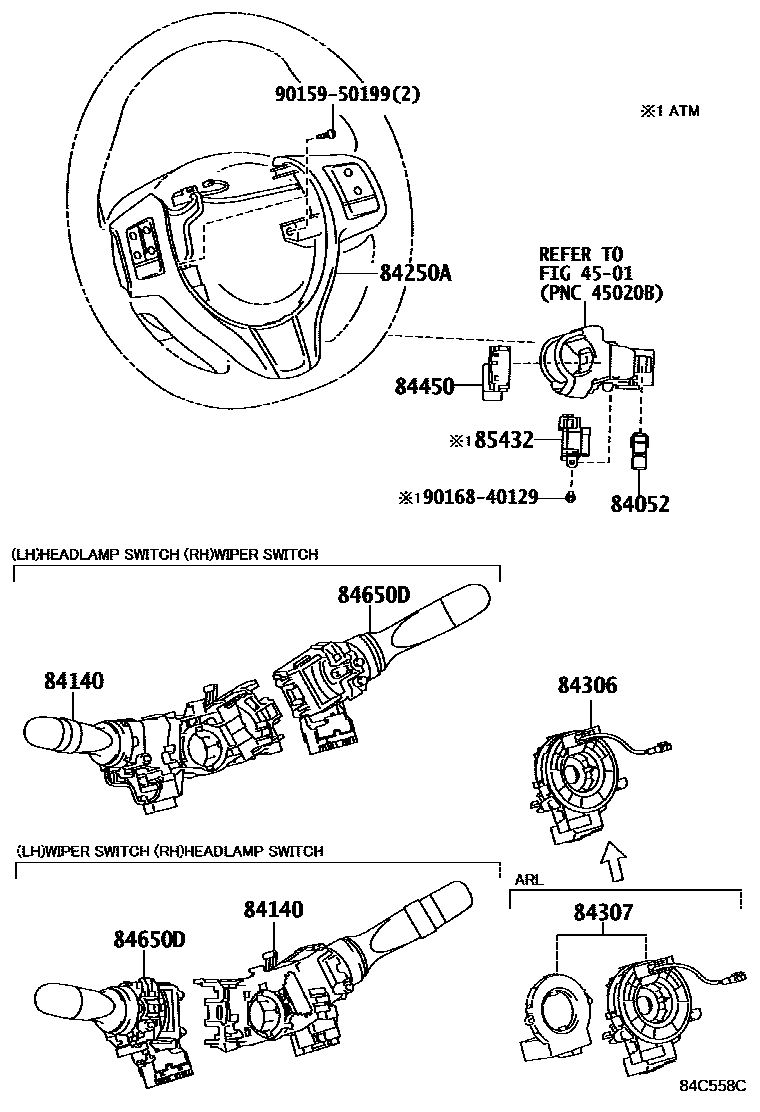

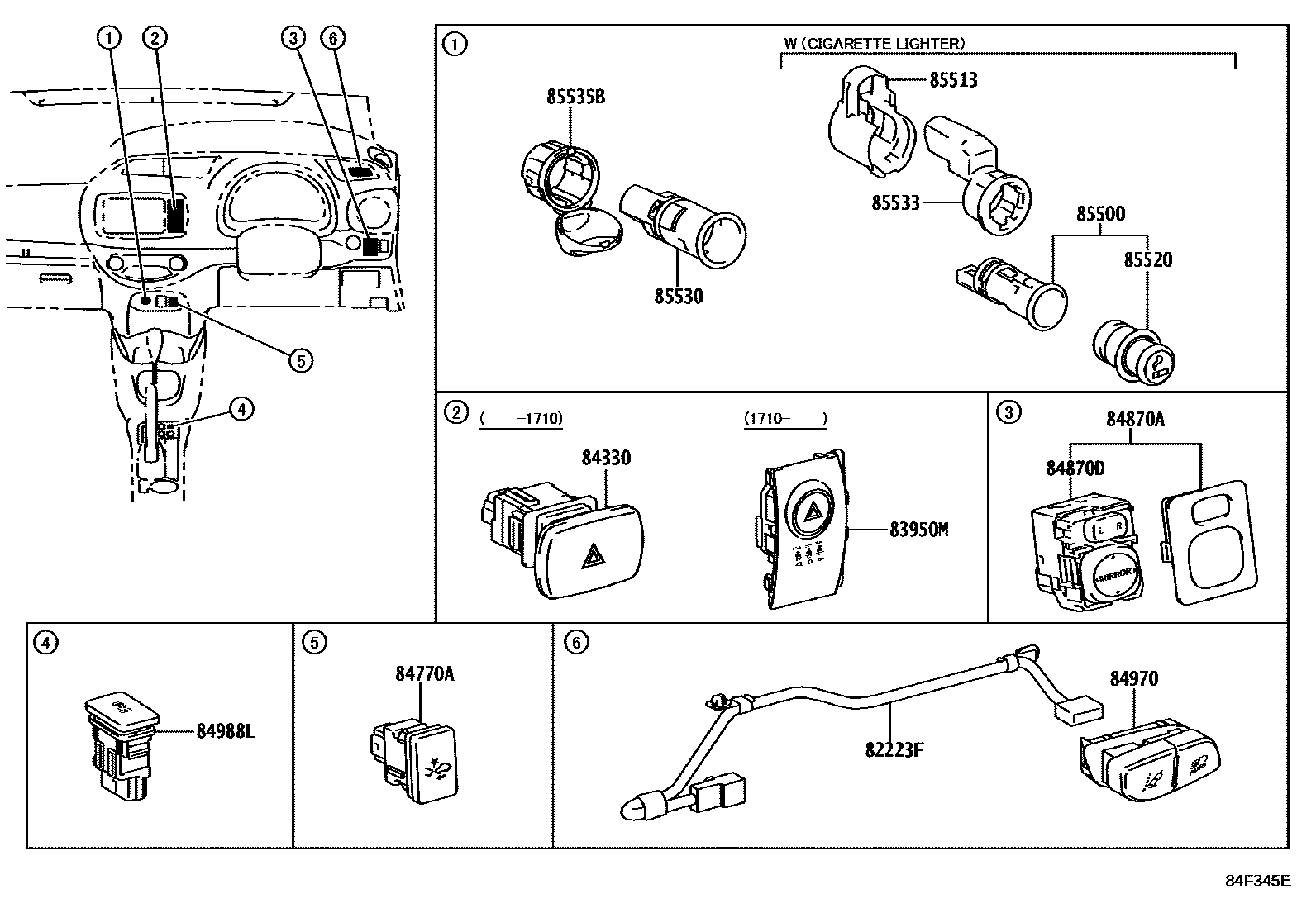

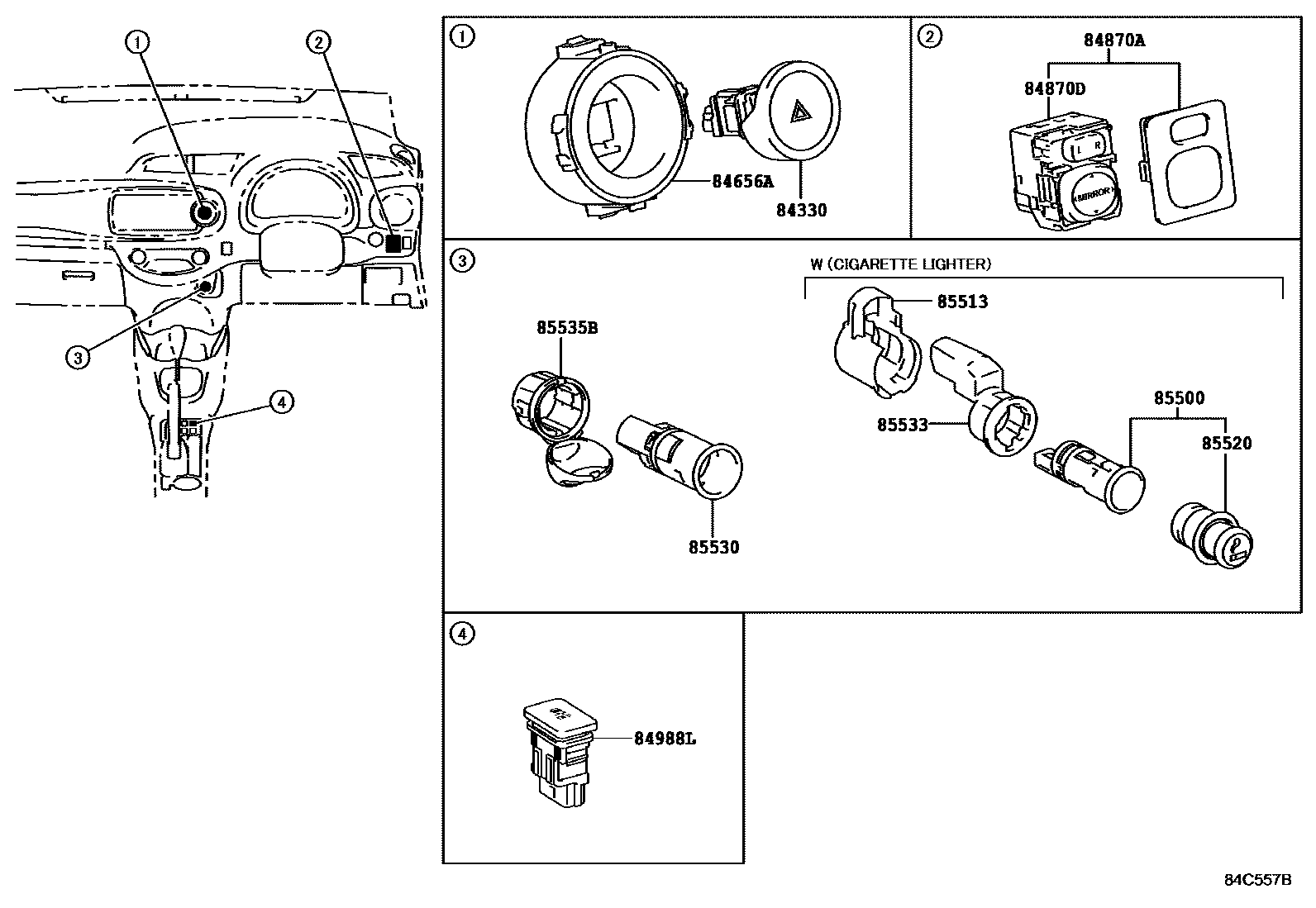

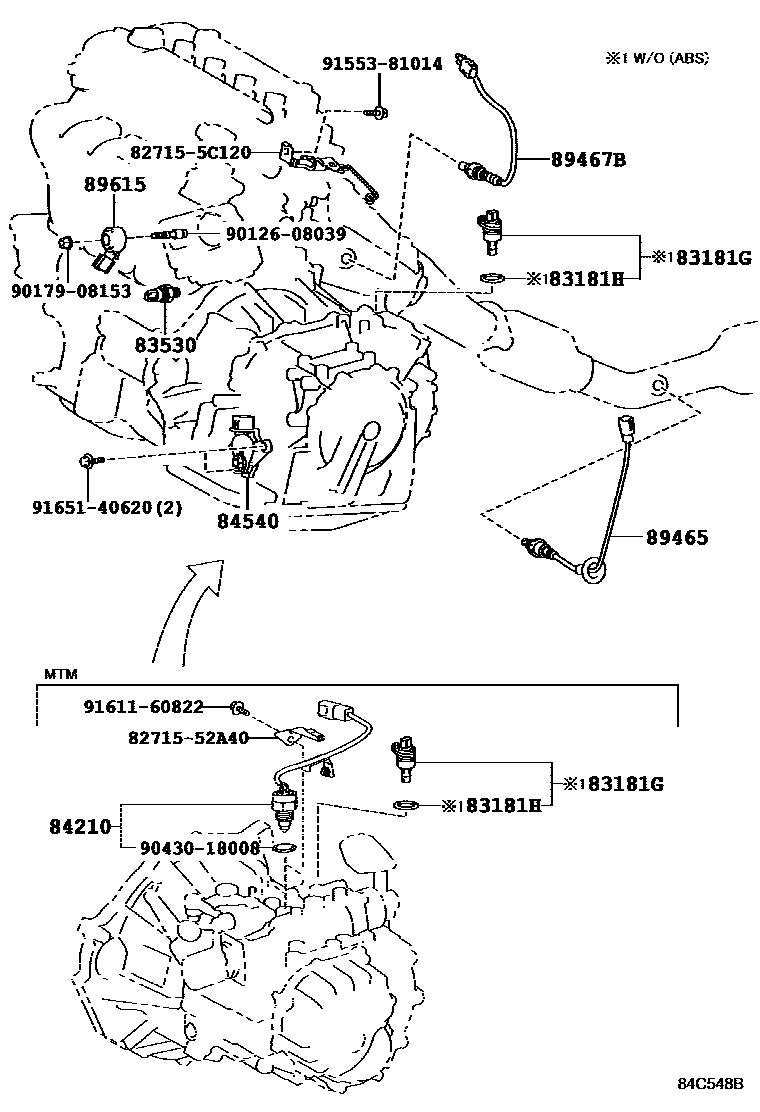

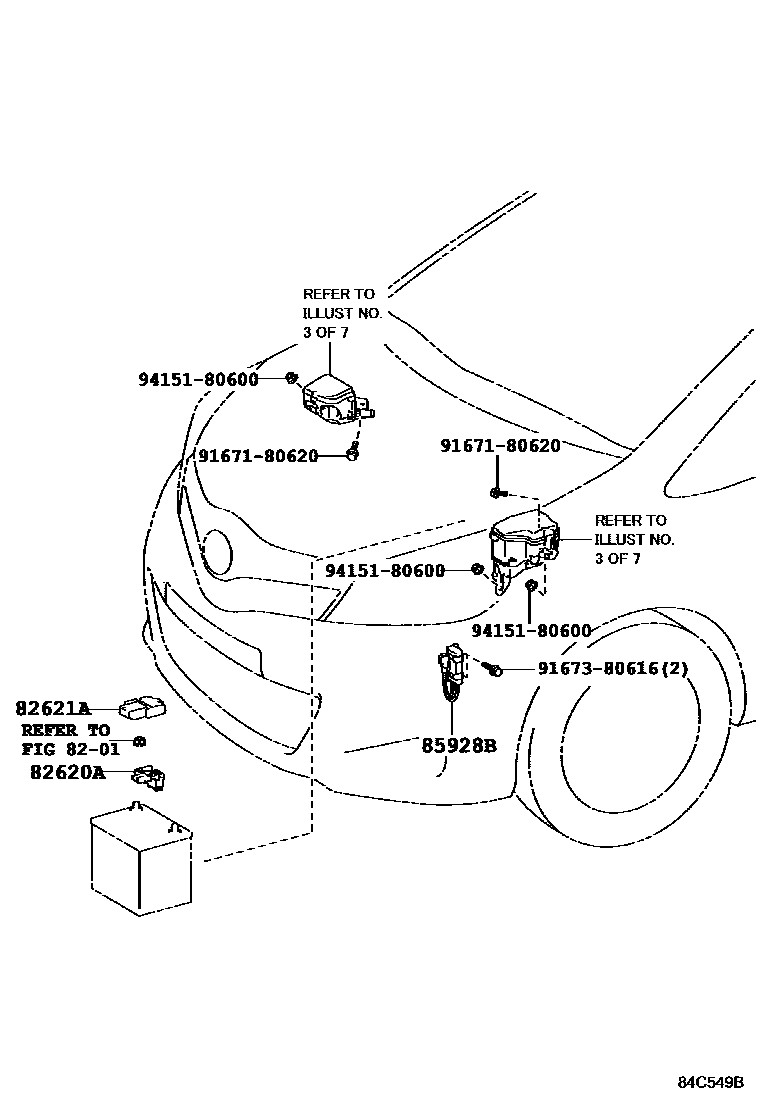

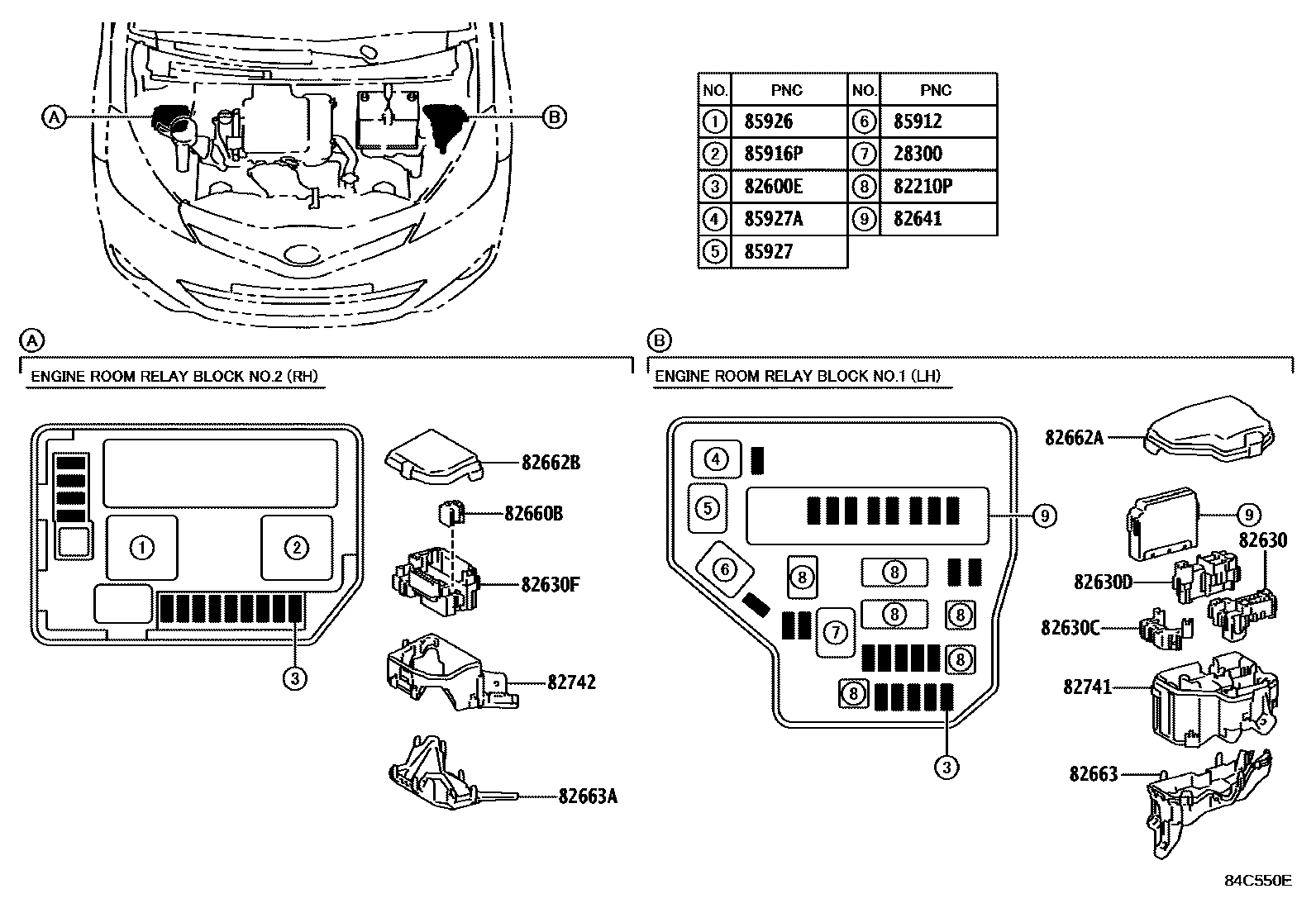

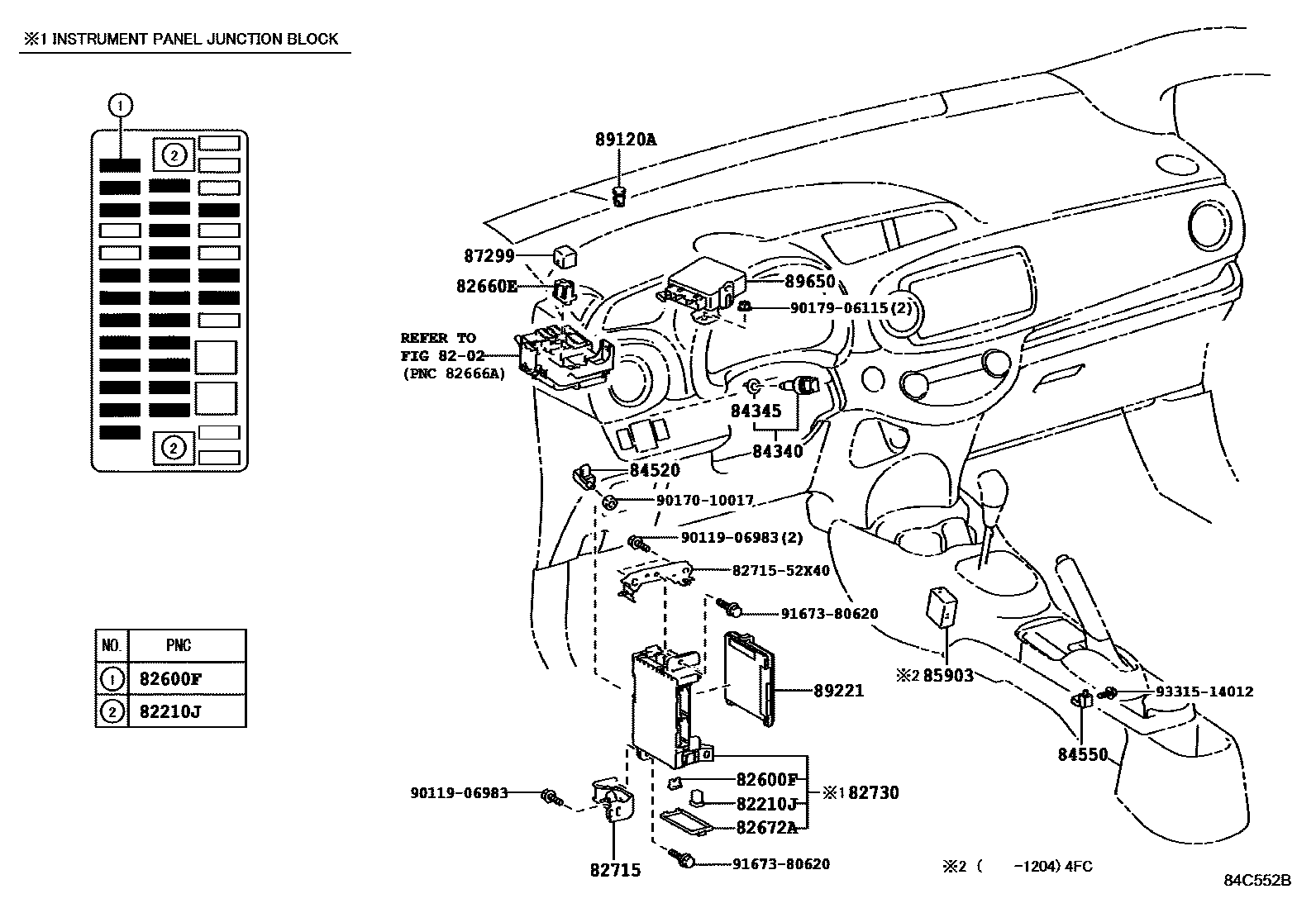

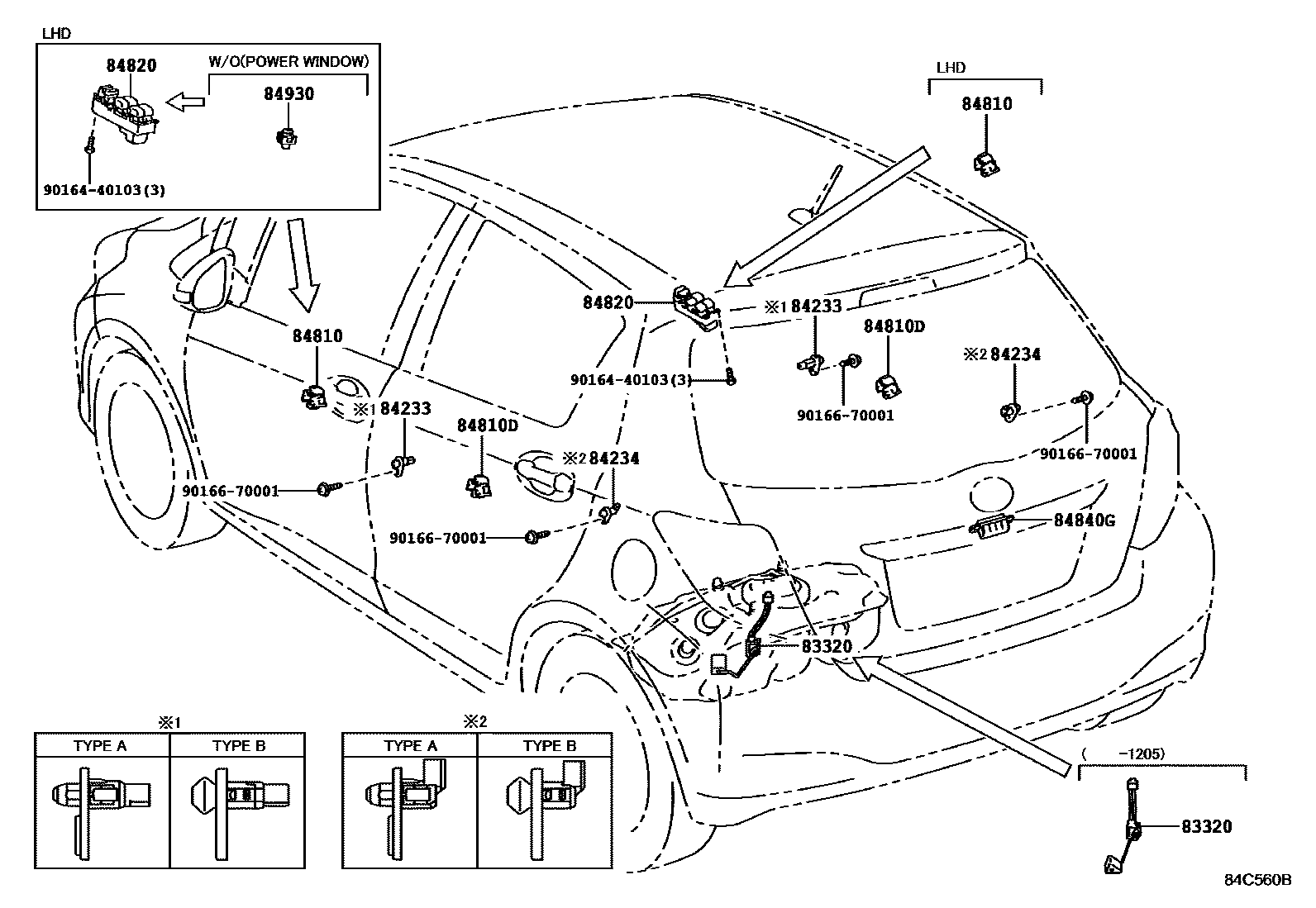

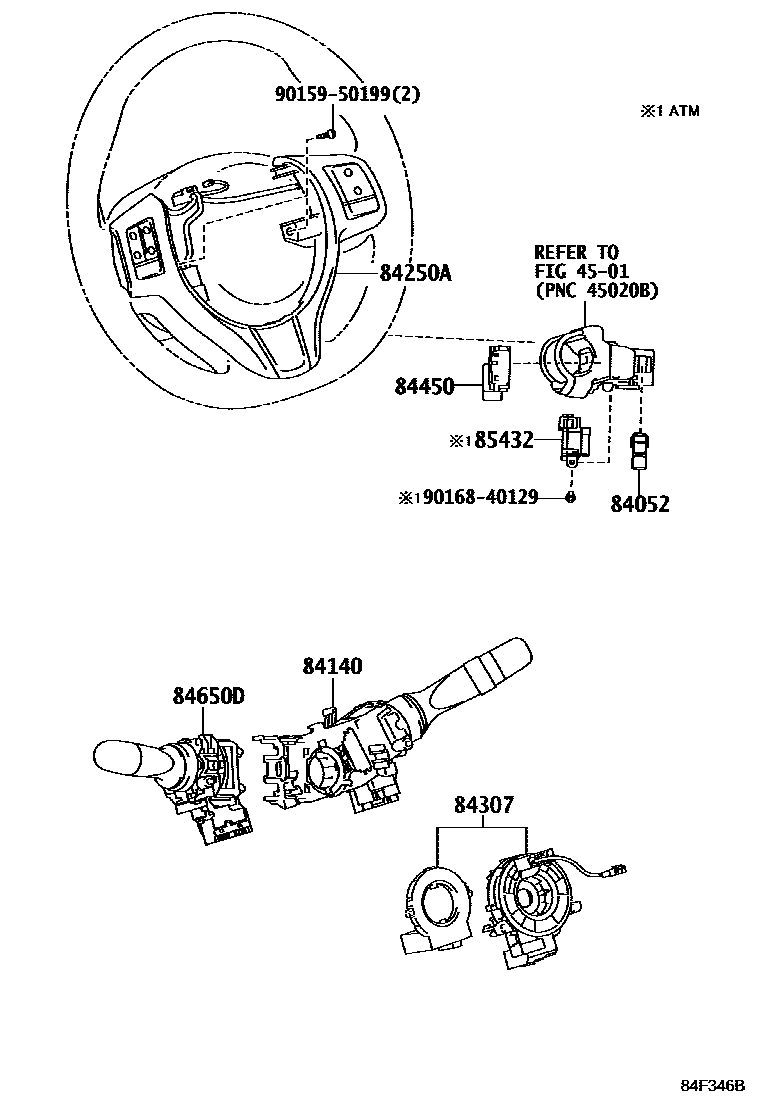

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 11 images and 81 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 82210J | fuse | 90982-08295 · 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08296 · 90982-08300 · 90982-08305 |
| 82223F | switch harness | 82223-52090 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82620A | Fuse box assembly | 82620-52070 |
| 82621A | Fuse cover | 82621-52140 |
| 82630 | Fuse holder assembly | 82631-52010 |
| 82630C | Fuse holder assembly | 82631-52020 |
| 82630D | fuse holder | 82631-52030 |
| 82630F | fuse holder | 82631-52040 |
| 82641 | Integrated relay No. 1 | 82641-52020 · 82641-52040 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660D | Relay assembly | 82620-44040 |
| 82660E | Relay assembly | 82660-52100 |
| 82662A | No. 1 relay box upper cover | 82662-52480 · 82662-52860 · 82662-52861 |
| 82662B | No. 2 relay box upper cover | 82662-52660 · 82662-52661 · 82662-52880 · 82662-52881 |
| 82663 | Relay box lower cover | 82663-52080 |
| 82663A | No. 2 relay box lower cover | 82663-52090 |
| 82672A | Junction box cover | 82672-52010 · 82672-52011 · 82672-52140 |
| 82715 | Wire harness clamp bracket | 82715-52U70 · 82715-52X30 · 82715-52X50 |
| 82730 | Instrument panel junction box assembly | 82730-52K20 · 82730-52L60 · 82730-52L61 |
| 82741 | Engine room relay box | 82741-12130 · 82741-52070 |
| 82742 | Engine room No. 2 relay box | 82741-52080 |
| 83181G | speedometer sensor | 83181-12020 |
| 83181H | O-ring (for speedometer sensor) | 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-52230 · 83320-52270 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83950M | Warning light assembly | 83950-52240 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-12570 · 84140-42030 · 84140-42040 · 84140-42070 · 84140-47120 · 84140-47130 · 84140-47140 · 84140-48200 |
| 84210 | Reversing light switch assembly | 84210-52010 |
| 84233 | Door control light switch assembly (for front door) | 84231-52010 · 84231-52230 · 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52020 · 84231-53010 |
| 84306 | Spiral cable sub-assembly | 84306-12100 · 84306-52090 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-47060 · 84307-74020 |
| 84330 | Hazard warning signal switch assembly | 84332-52080 · 84332-52140 · 84332-52141 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-59005 · 84340-59015 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52020 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84520E | No. 2 clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-12A30 · 84652-52190 · 84652-52191 · 84652-52201 · 84652-52270 |
| 84656A | switch box | 84656-52070 |
| 84770A | Collision prediction system cancel switch assembly | 84770-52011 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-52430 · 84820-52440 · 84820-52450 · 84820-52460 |
| 84840G | Back door opener switch assembly | 84840-28020 · 84840-28030 |
| 84870A | Exterior rearview mirror switch assembly | 84870-34010 |
| 84870D | No. 2 exterior rearview mirror switch assembly | 84872-52030 |
| 84930 | Door control switch assembly | 84930-12250 |
| 84970 | Combination switch assembly | 84970-52051 |
| 84988L | VSC off switch | 84988-52080 · 84988-52081 |
| 85432 | Key interlock solenoid valve | 85432-52010 |
| 85500 | Cigarette lighter assembly | 85500-28080 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-42010 · 85530-52010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-26010 |
| 85535B | No. 1 power outlet cover | 85535-47020 · 85535-47021 · 85535-52051 |
| 85903 | Shift lock control ECU sub-assembly | 85903-52030 |
| 85912 | defogger relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-04010 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52030 · 85928-52032 |
| 87299 | heater relay | 90987-04010 |
| 88185A | Pre-collision safety system heater relay | 90987-02027 |
| 89111 | Network gateway ECU | 89100-52021 |
| 89120A | Automatic light control sensor | 89121-52010 |
| 89221 | Multi-channel network body ECU | 89220-52260 · 89220-52261 · 89220-52280 · 89220-52281 · 89220-52290 · 89220-52291 · 89220-52300 · 89220-52370 · 89220-52371 · 89220-52380 · 89220-52390 · 89220-52400 · 89220-52401 · 89220-52410 · 89220-52420 · 89220-52720 · 89220-52730 · 89220-52760 · 89220-52890 |
| 89465 | oxygen sensor | 89465-52370 · 89465-52750 · 89465-52760 |
| 89467B | air fuel ratio sensor | 89465-52380 · 89467-52170 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52690 · 89650-52720 · 89650-52721 · 89650-52731 · 89650-52732 · 89650-52750 · 89650-52751 · 89650-52770 · 89650-52771 · 89650-52D80 · 89650-52D90 · 89650-52D92 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-52550 · 89960-52610 |
