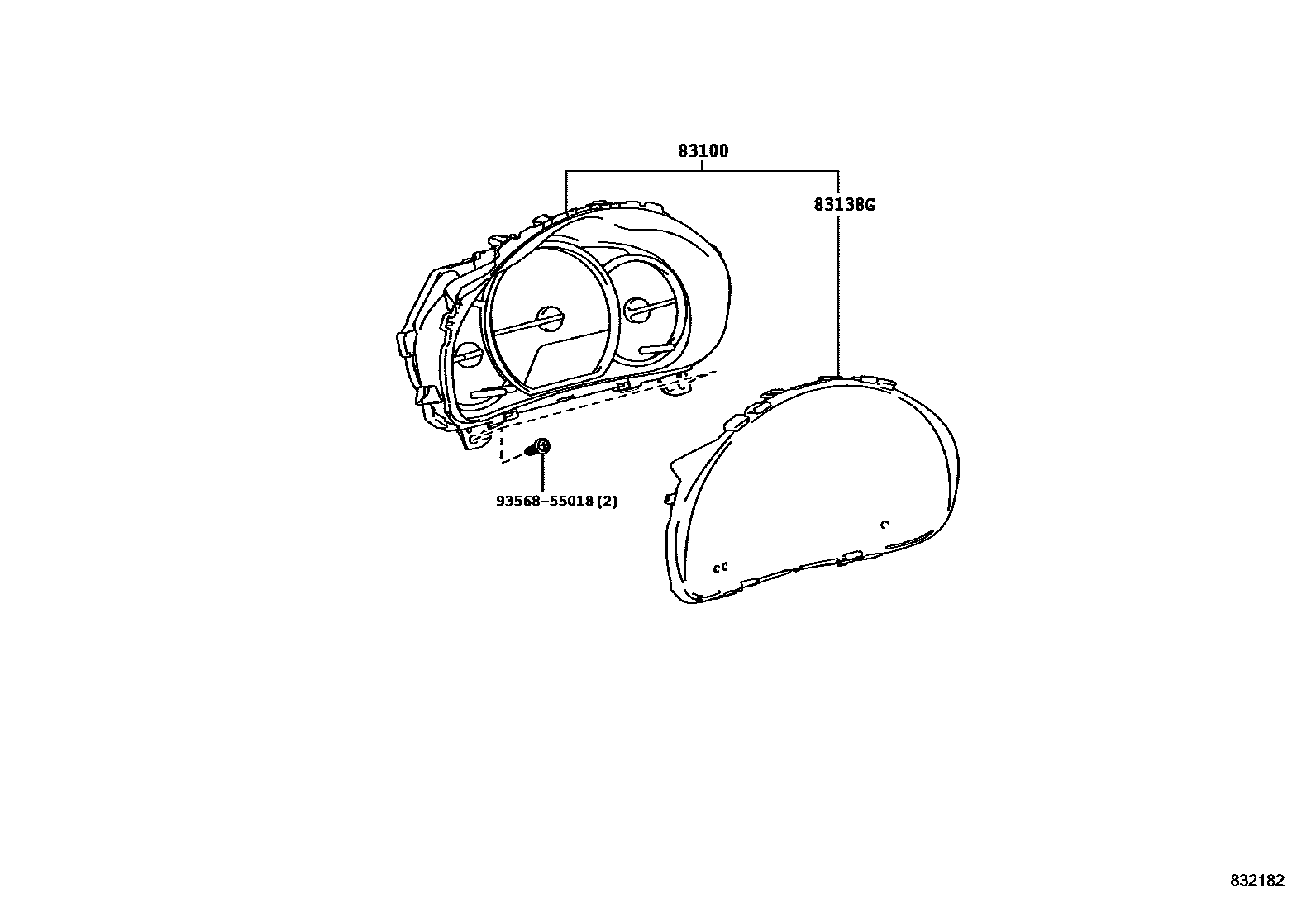

Toyota YARIS 仪表 — Figure 8301
Toyota YARIS EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-5CA20 · 83800-5CA30 · 83800-5CA40 · 83800-5CA50 · 83800-5CB10 · 83800-5CC10 · 83800-5CC20 · 83800-5CP50 · 83800-5CP90 · 83800-5CS70 · 83800-5CW80 |
| 83138G | Instrument cluster glass | 83852-5CB20 |
