Toyota YARIS 后组合灯 — Figure 8111

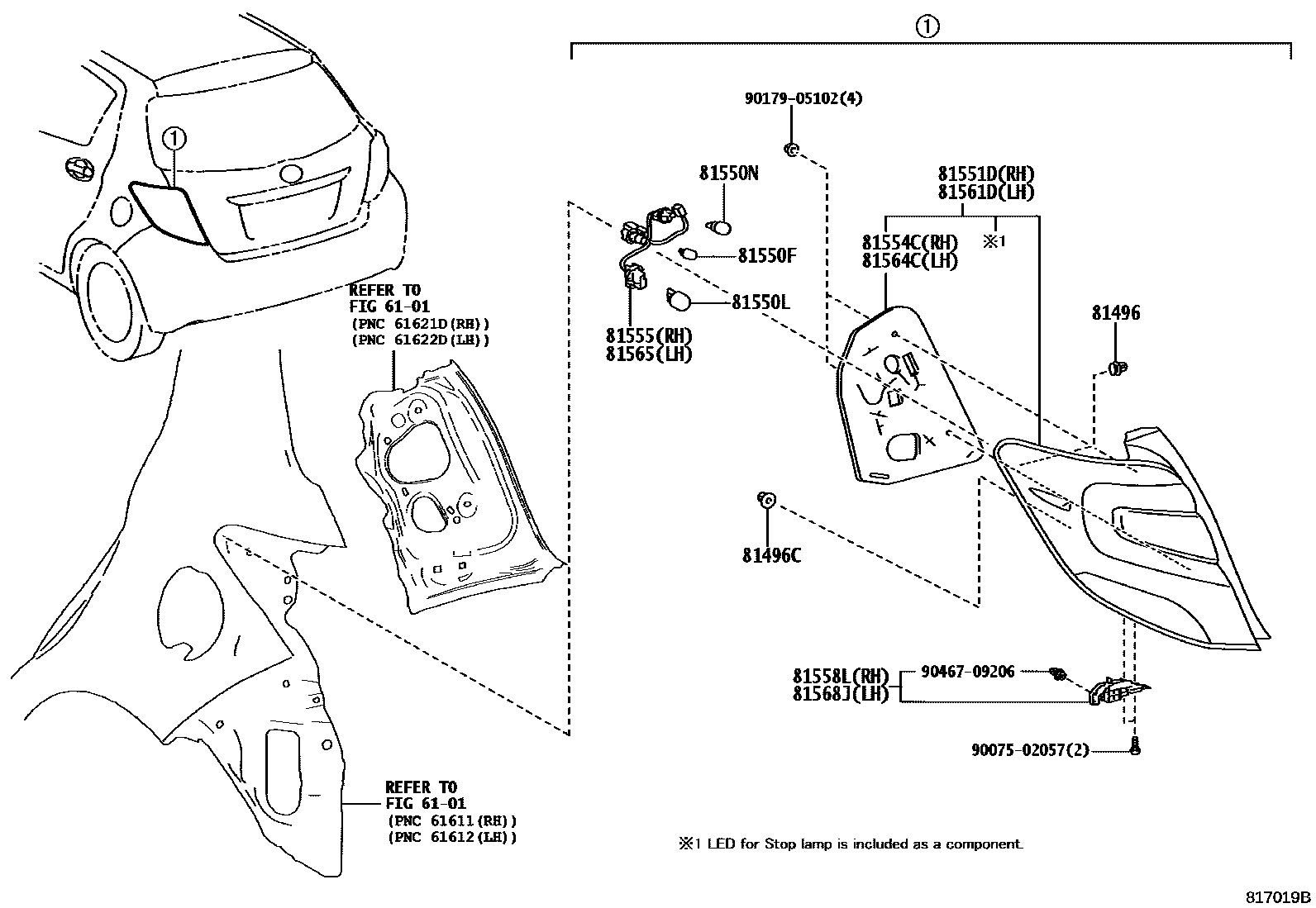

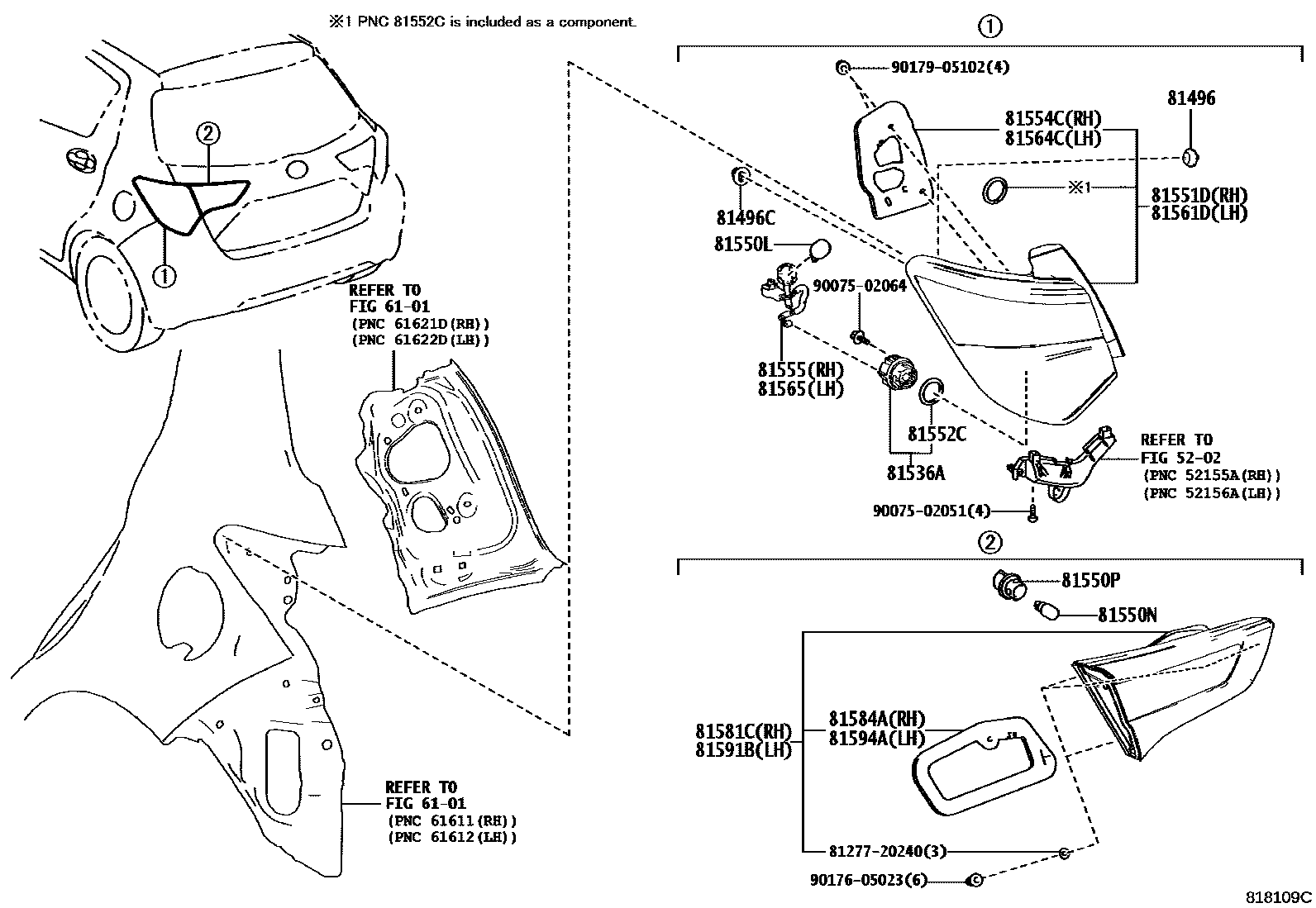

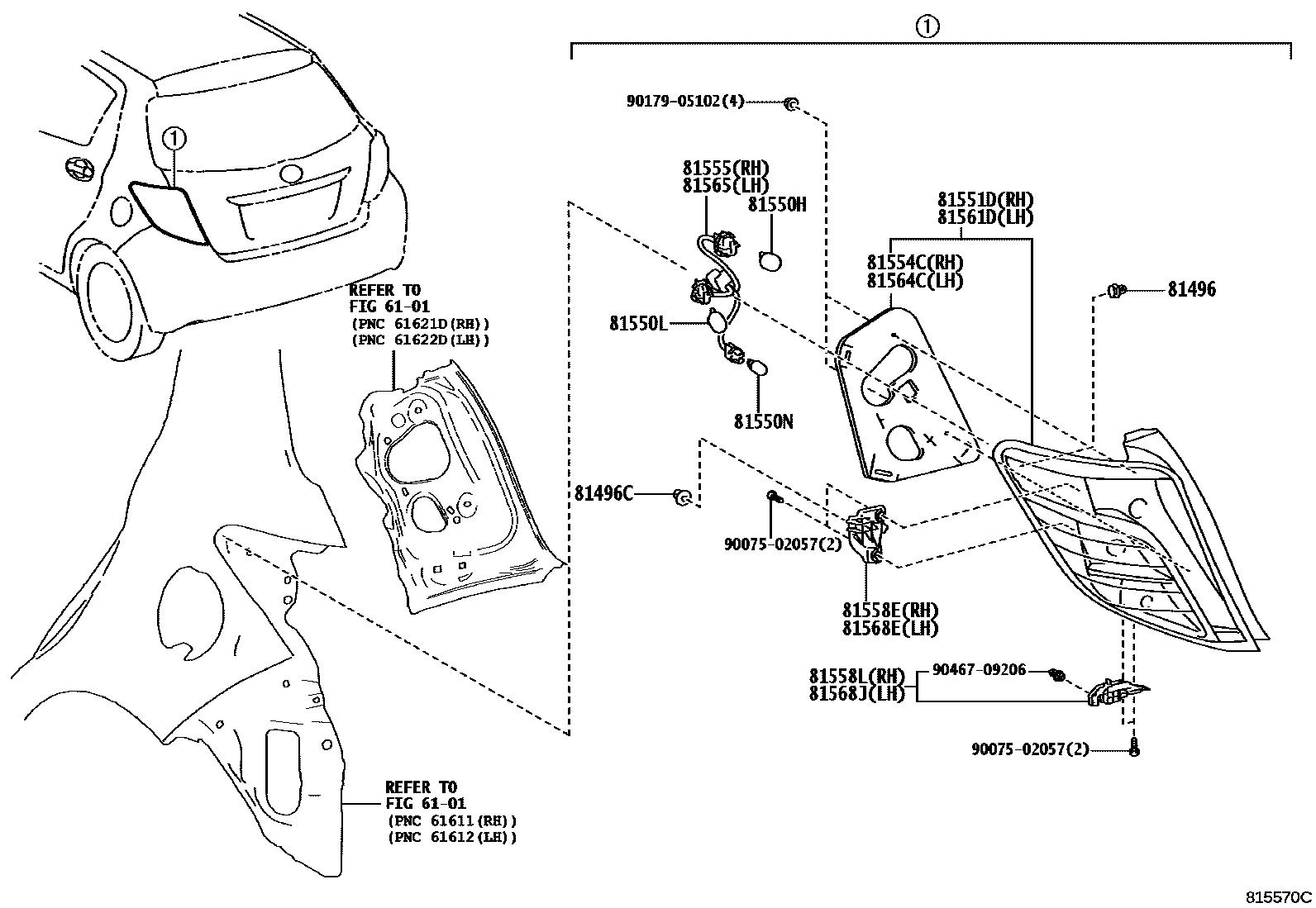

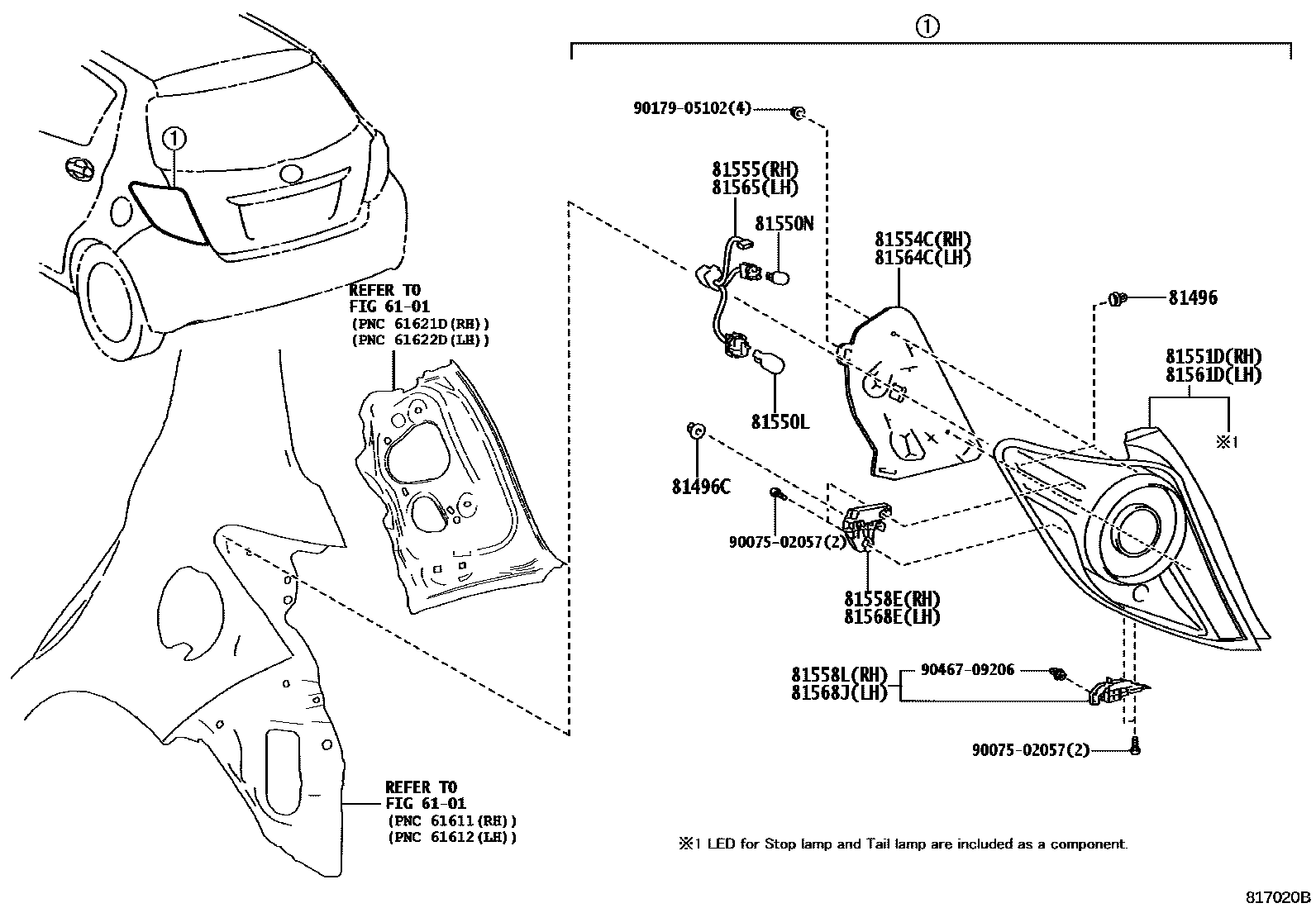

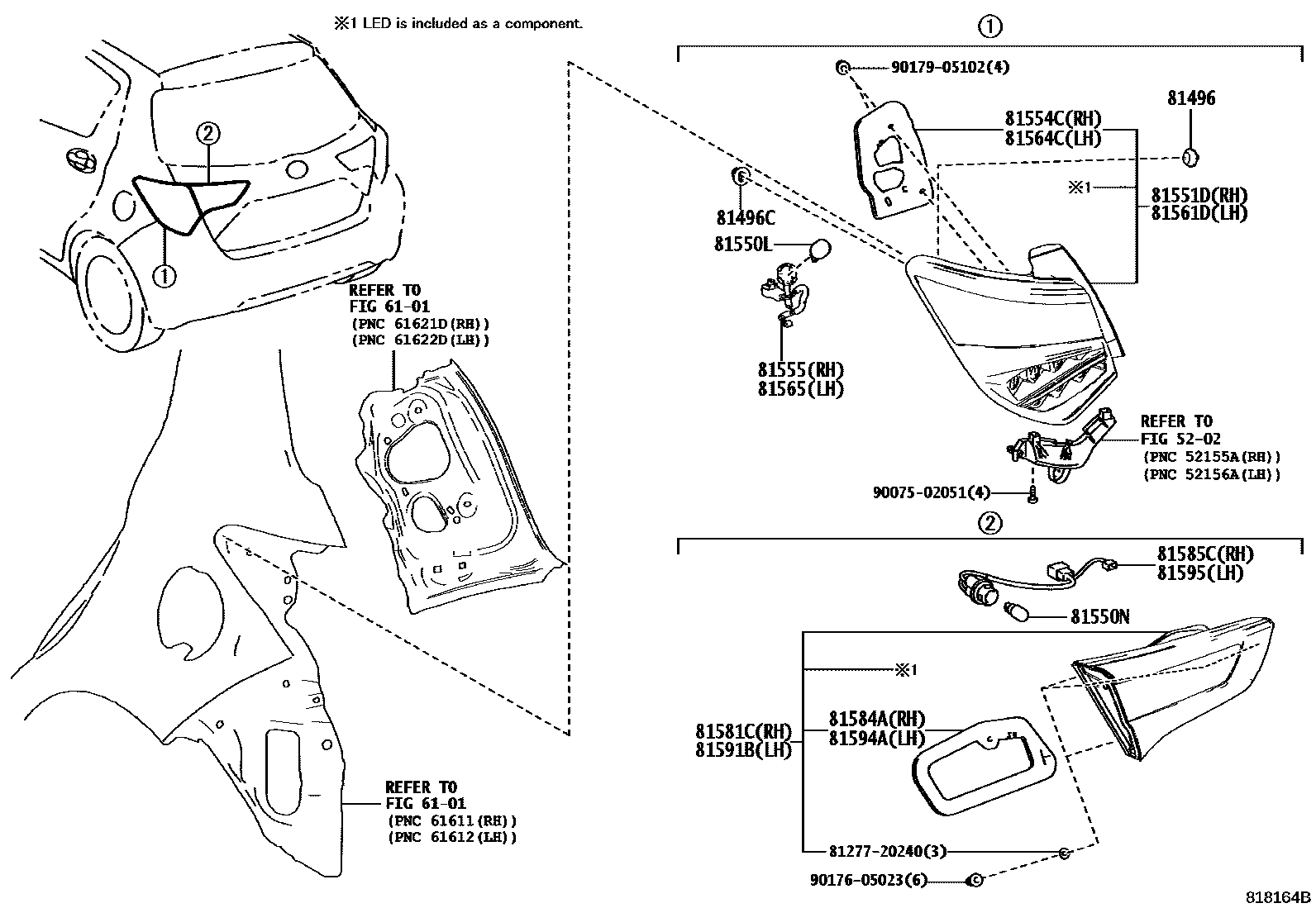

Toyota YARIS EPC diagram 8111, 后组合灯, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81536A | Rear LED combination light | 81536-52C80 |
| 81550F | tail light bulb | 99132-12050 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-60001 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-52810 · 81551-52B90 · 81551-52C00 · 81551-52D20 · 81551-52D21 · 81551-52D40 · 81551-52D41 |
| 81552C | Rear combination light gasket | 90075-68010 |
| 81554C | Right rear combination lamp lamp body seal | 81554-52810 · 81554-52841 · 81554-52B90 · 81554-52D20 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-52810 · 81555-52840 · 81555-52B90 · 81555-52D20 · 81555-52D40 |
| 81558E | Right rear combination lamp cover | 81558-52801 · 81558-52841 |
| 81558L | Right rear combination lamp protective cover | 81558-52810 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-52750 · 81561-52B20 · 81561-52B21 · 81561-52B30 · 81561-52B31 · 81561-52B90 · 81561-52C00 |
| 81564C | Left rear combination lamp body seal | 81564-52750 · 81564-52781 · 81564-52B20 · 81564-52B90 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-52810 · 81555-52840 · 81555-52B90 · 81565-52B20 · 81565-52B30 |
| 81568E | Left rear combination lamp cover | 81568-52741 · 81568-52781 |
| 81568J | Left rear combination lamp protective cover | 81568-52750 |
| 81581C | Right rear light lampshade and lamp body | 81581-52340 · 81581-52341 · 81581-52360 · 81581-52361 |
| 81584A | Right rear light gasket | 81584-52340 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-52360 |
| 81591B | Left rear light shade and body | 81591-52210 · 81591-52211 · 81591-52220 · 81591-52221 |
| 81594A | Left rear light gasket | 81594-52210 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-52360 |
