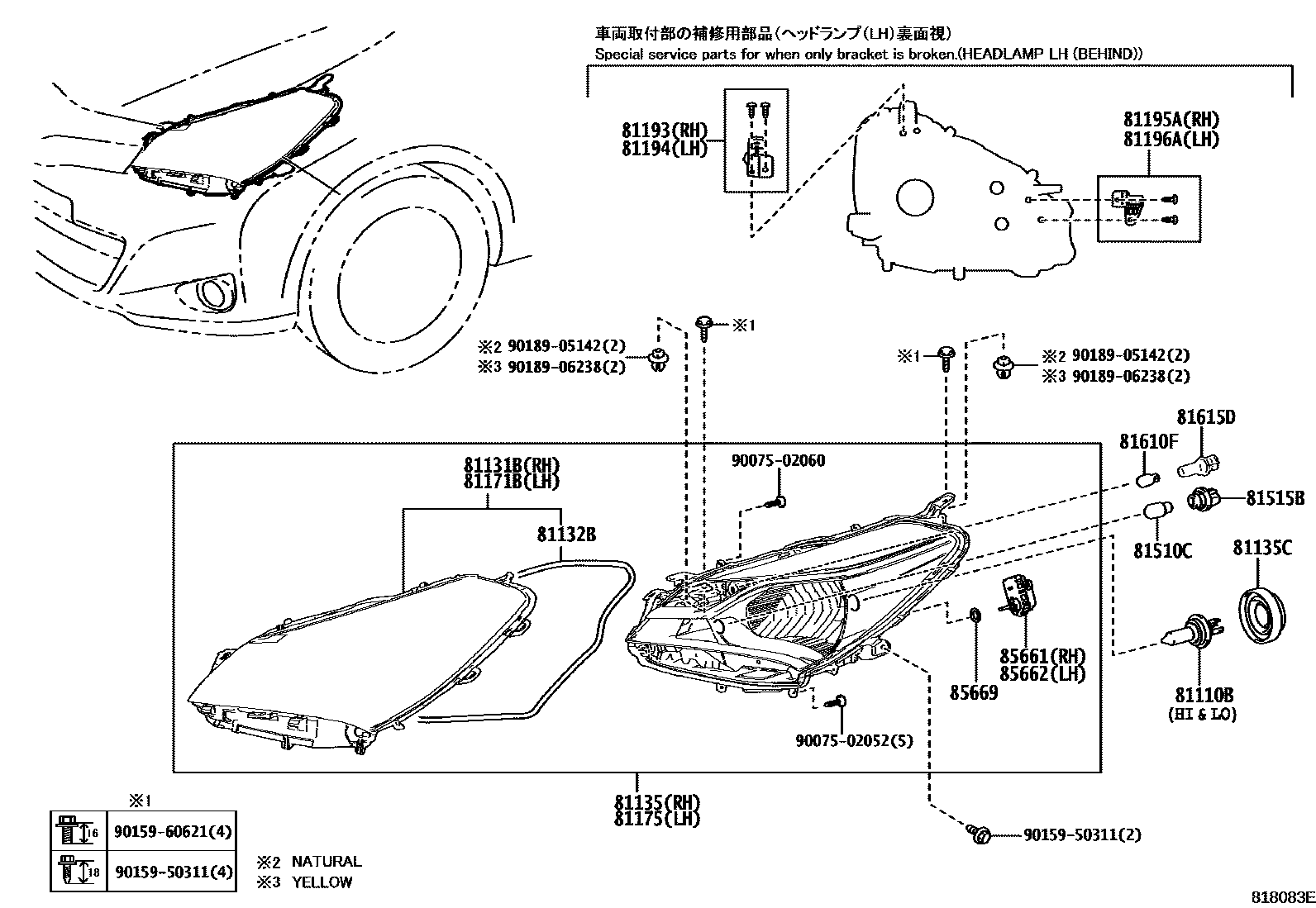

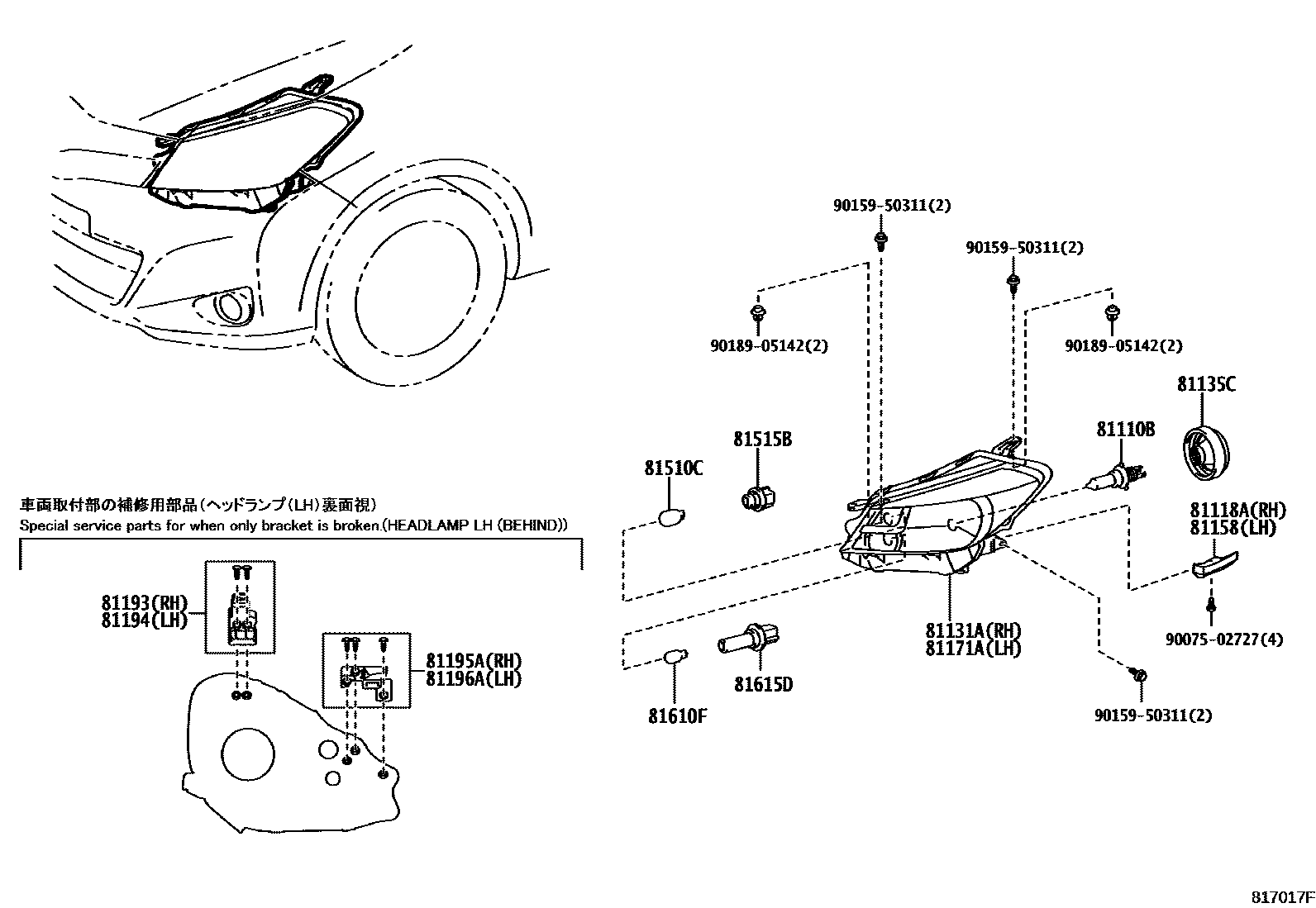

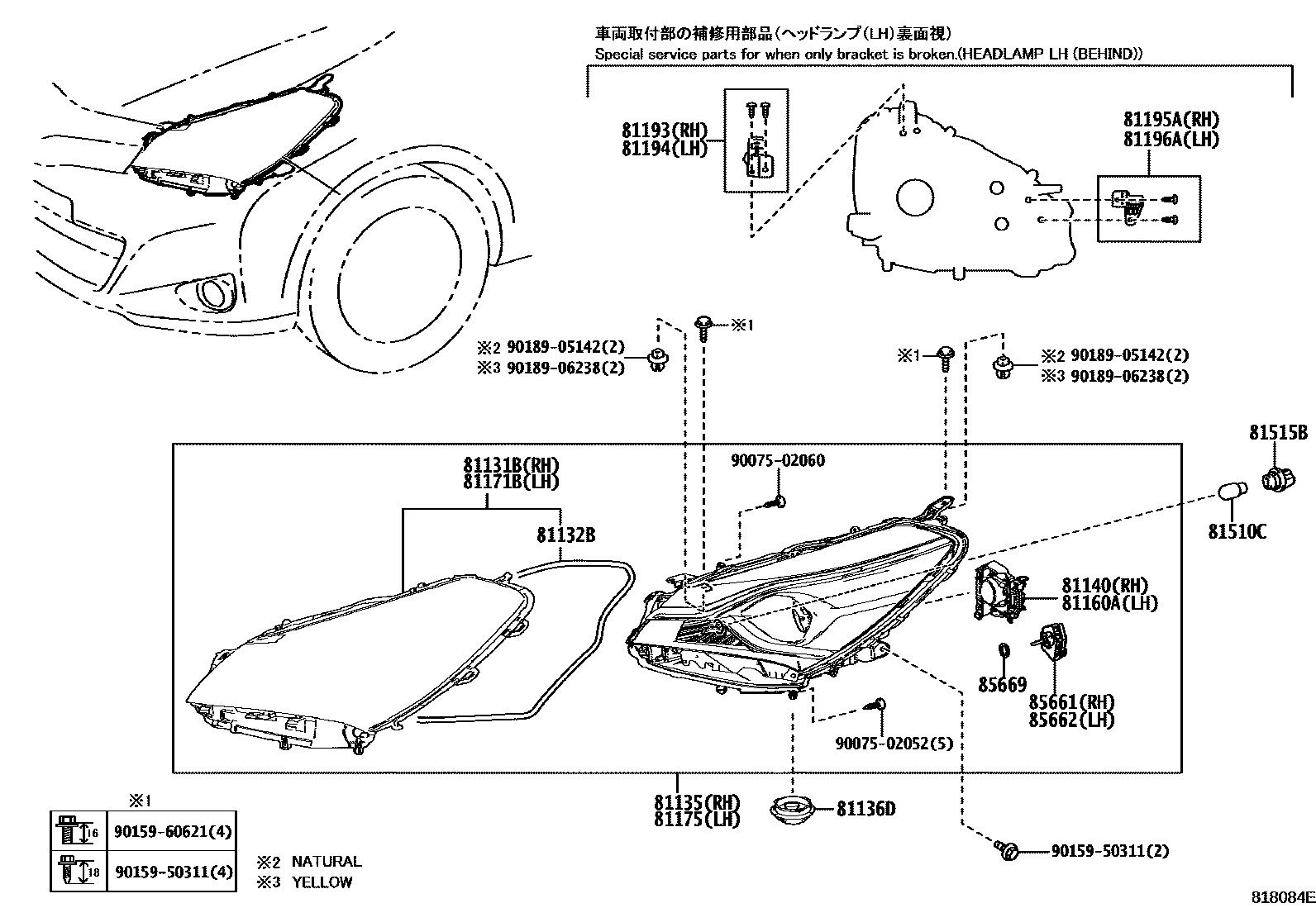

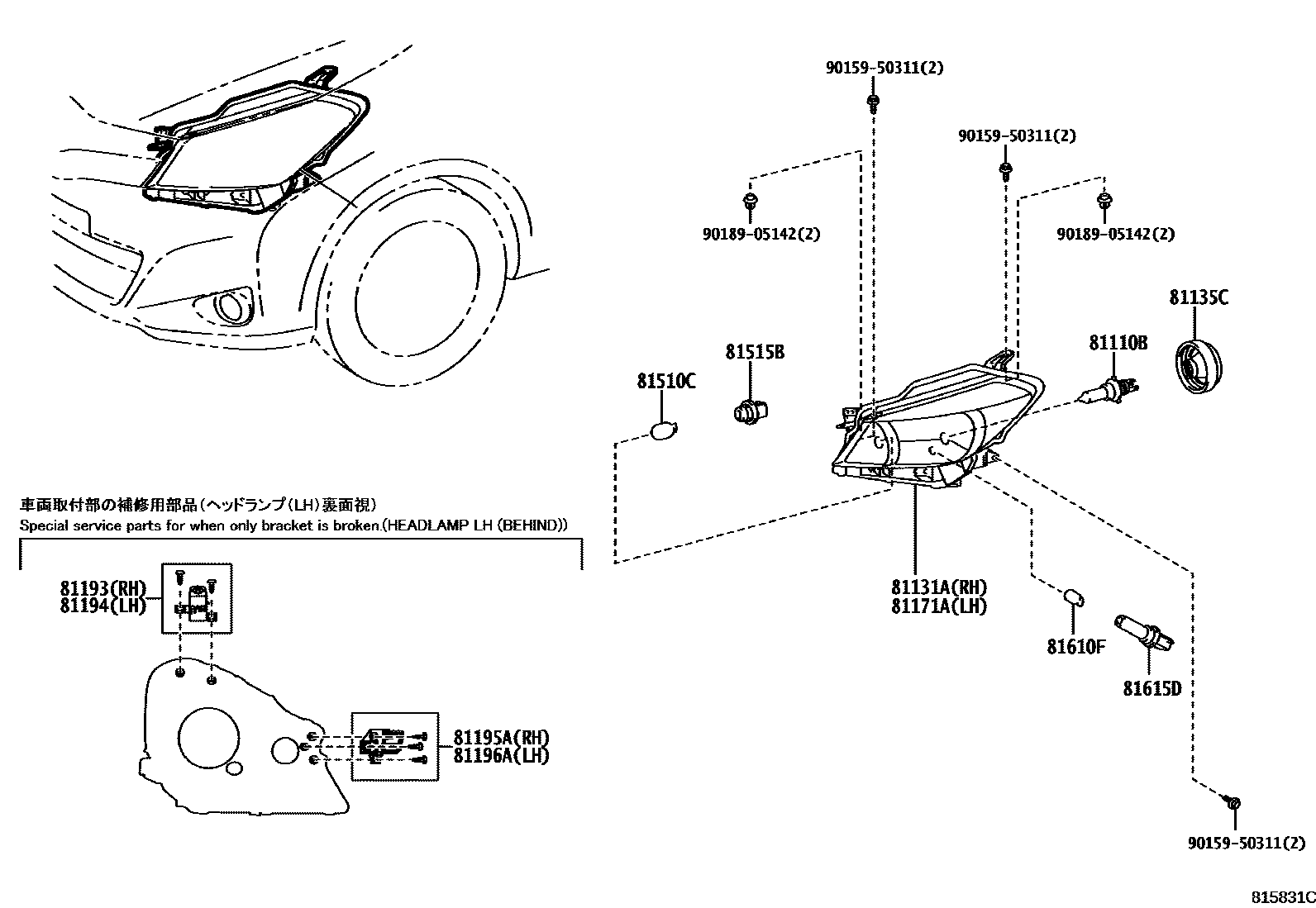

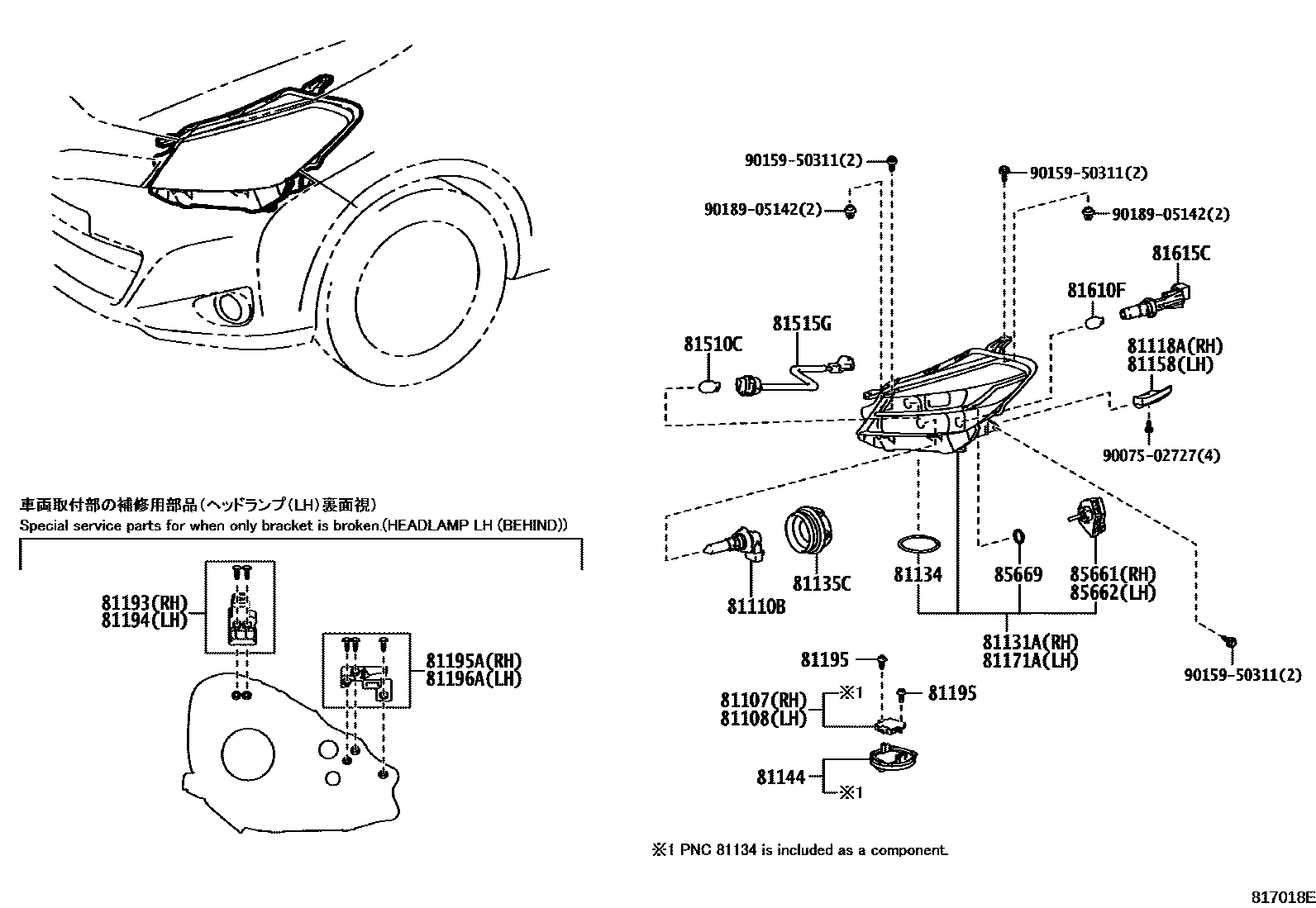

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-52J20 |
| 81108 | Left headlight control ECU sub-assembly | 81107-52J20 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 · 90981-13058 |
| 81118A | Right headlight bracket | 81118-52J40 |
| 81131A | Right headlight assembly | 81130-52D50 · 81130-52D70 · 81130-52E00 · 81130-52E10 · 81130-52J31 · 81145-52J40 |
| 81131B | Right headlight lampshade | 81131-52L40 · 81131-52L80 |
| 81132B | Headlight cover gasket | 81132-30E40 · 81132-50590 |
| 81134 | headlight gasket | 90075-23002 |
| 81135 | Right headlight assembly assembly | 81105-52L80 · 81130-52L90 |
| 81135C | No. 1 headlight rear cover | 90075-65002 · 90075-66004 |
| 81136D | headlight cover | 90075-66016 |
| 81140 | Right headlight LED assembly assembly | 81130-52L80 |
| 81144 | No. 1 headlight cover | 81135-52J20 |
| 81158 | Left headlight bracket | 81158-52J40 |
| 81160A | Left headlight LED assembly assembly | 81170-52L80 |
| 81171A | Left headlight assembly | 81170-52D50 · 81170-52D70 · 81170-52E00 · 81170-52E10 · 81170-52J31 · 81185-52J40 |
| 81171B | Left headlight lampshade | 81171-52L40 · 81171-52L80 |
| 81175 | Left headlight assembly assembly | 81106-52L80 · 81170-52L90 |
| 81193 | Right headlight upper protective ring | 81193-52200 · 81193-52260 · 81193-52290 |
| 81194 | Left headlight upper protective ring | 81194-52190 · 81194-52200 · 81194-52280 |
| 81195 | headlight screw | 90075-02051 |
| 81195A | Right headlight lower protection ring | 81195-52160 · 81195-52190 · 81195-52220 |
| 81196A | Left headlight lower protection ring | 81196-52160 · 81196-52170 · 81196-52200 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81515G | Front turn signal lamp holder and wiring harness | 81125-52J20 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615C | Width light lamp holder and wiring harness | 81125-48470 |
| 81615D | Width light lamp holder | 90075-60077 · 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-12020 |
| 85662 | Left headlight beam height adjustment motor | 85661-12020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
