Toyota YARIS accelerator pedal connecting rod — Figure 7801

Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 2 PNC and OE references.

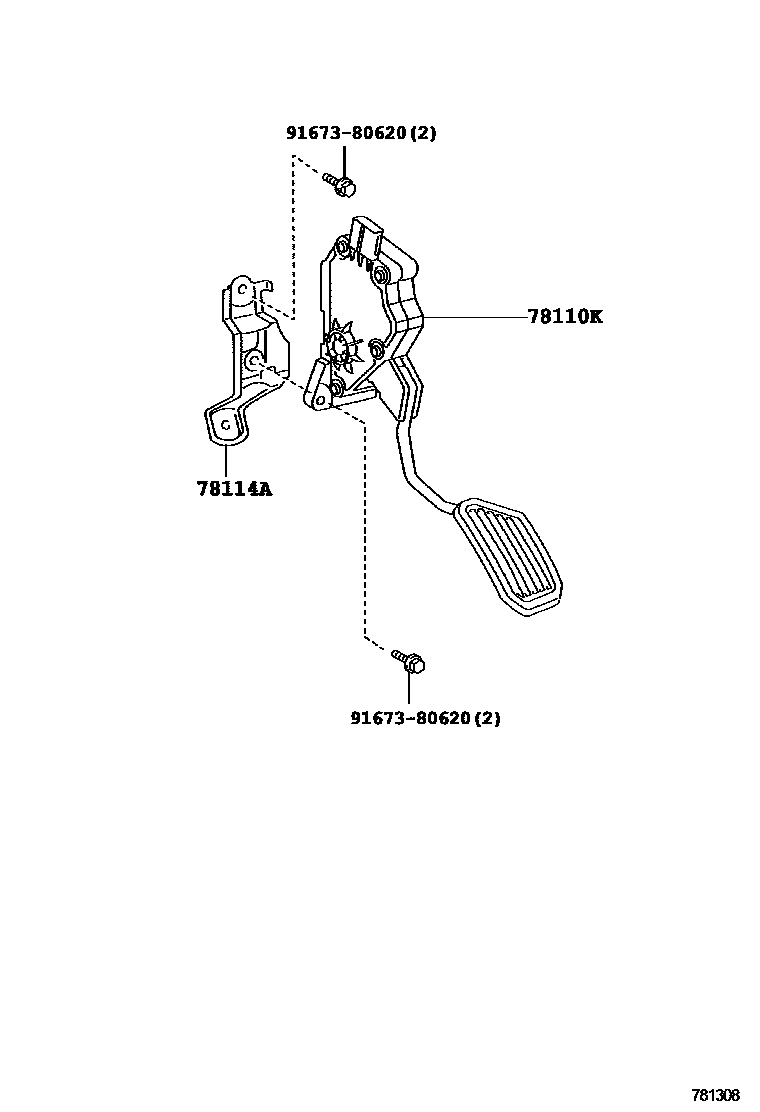

Toyota YARIS accelerator pedal connecting rod EPC diagram — 781308
accelerator pedal connecting rod — 781308 (201108 – 999999)
Toyota YARIS accelerator pedal connecting rod EPC diagram — 781346
accelerator pedal connecting rod — 781346 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal connecting rod assembly with sensor78110-52033 · 78110-52053 · 78110-52100 · 78110-52110 · 78110-52220
78114Aaccelerator pedal bracket78114-52020
