Toyota YARIS 后防护条 — Figure 7504

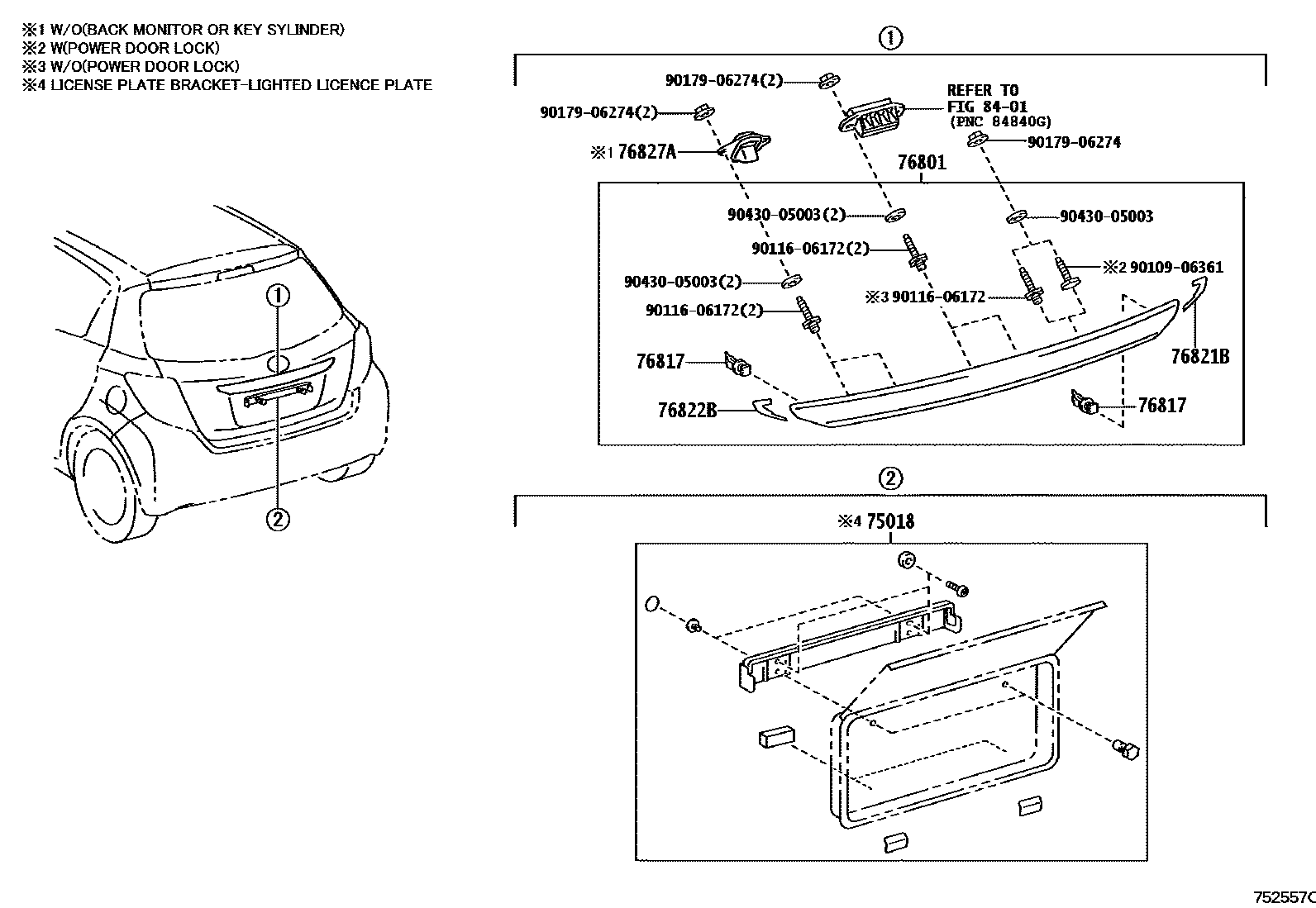

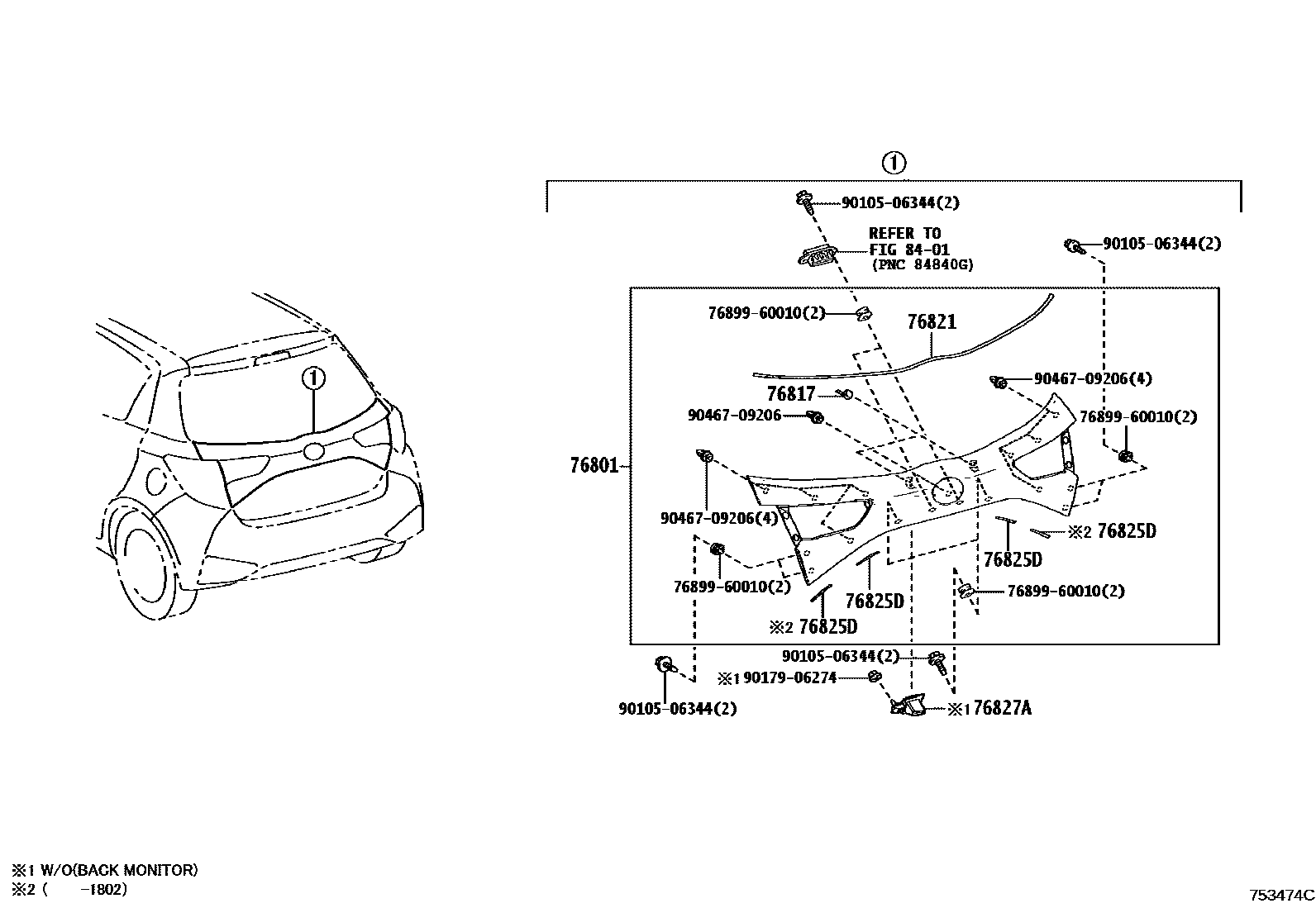

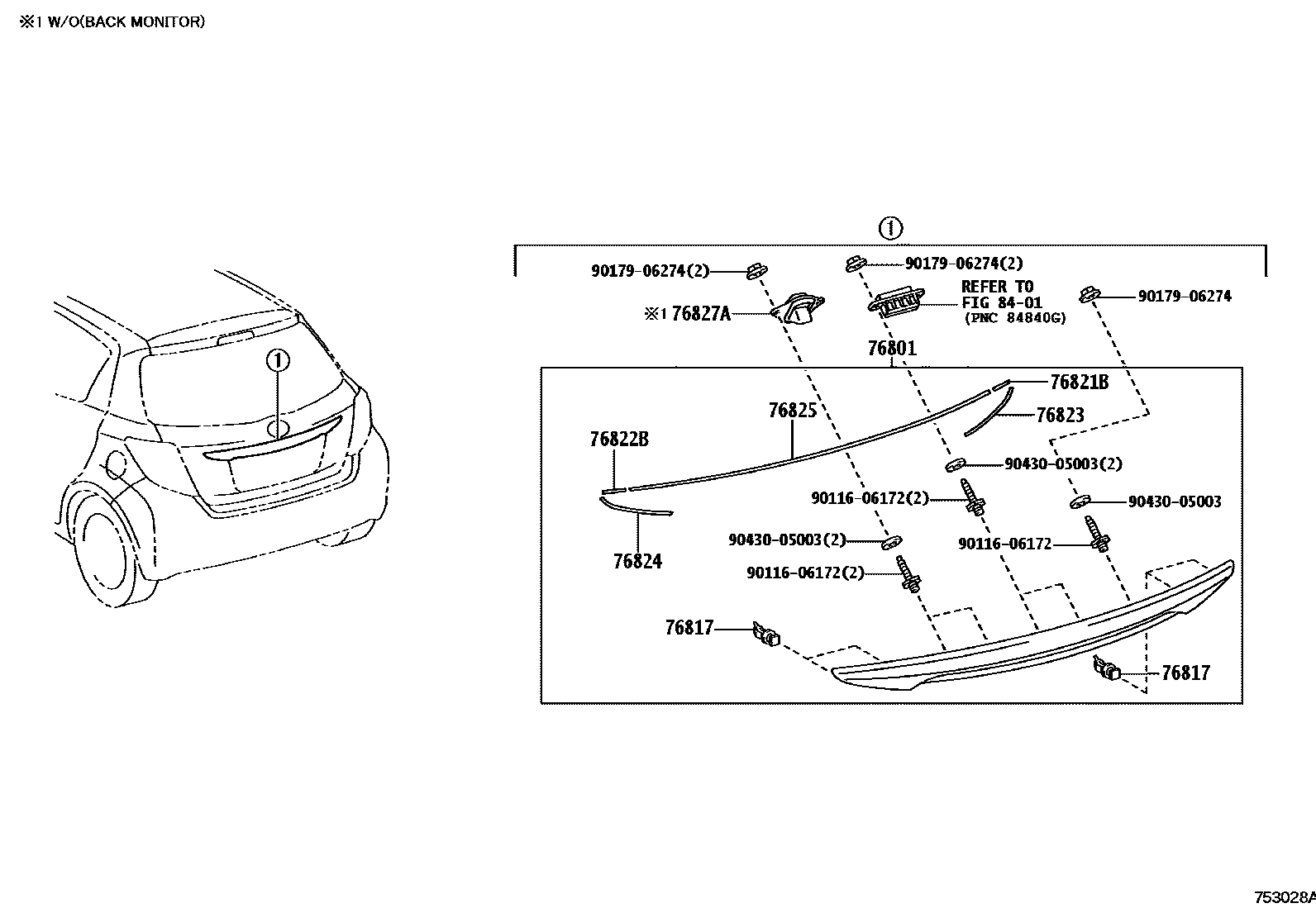

Toyota YARIS EPC diagram 7504, 后防护条, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75018 | Rear license plate frame sub-assembly | 75010-44020 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-52240 · 76801-52340 · 76801-52350 · 76801-52370 · 76801-52900 |
| 76817 | Rear door exterior decorative strip clip | 76813-52010 · 76817-12070 · 76817-50010 |
| 76821 | Protective cover for rear door trim strip | 76821-52190 |
| 76821B | Rear door right side decorative strip protective cover | 76821-52140 · 76821-52160 · 76821-52180 |
| 76822B | Rear door left side decorative strip protective cover | 76821-52180 · 76822-52070 · 76822-52080 |
| 76823 | Rear door right side decorative strip protective cover | 76822-52090 |
| 76824 | Rear door left side decorative strip protective cover | 76822-52090 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-52060 |
| 76825D | No. 1 protective cover for rear door exterior trim strip | 76825-52080 |
| 76827A | No. 2 rear door trim strip fixings | 76827-52020 · 76827-52040 |
