Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 15 PNC and OE references.

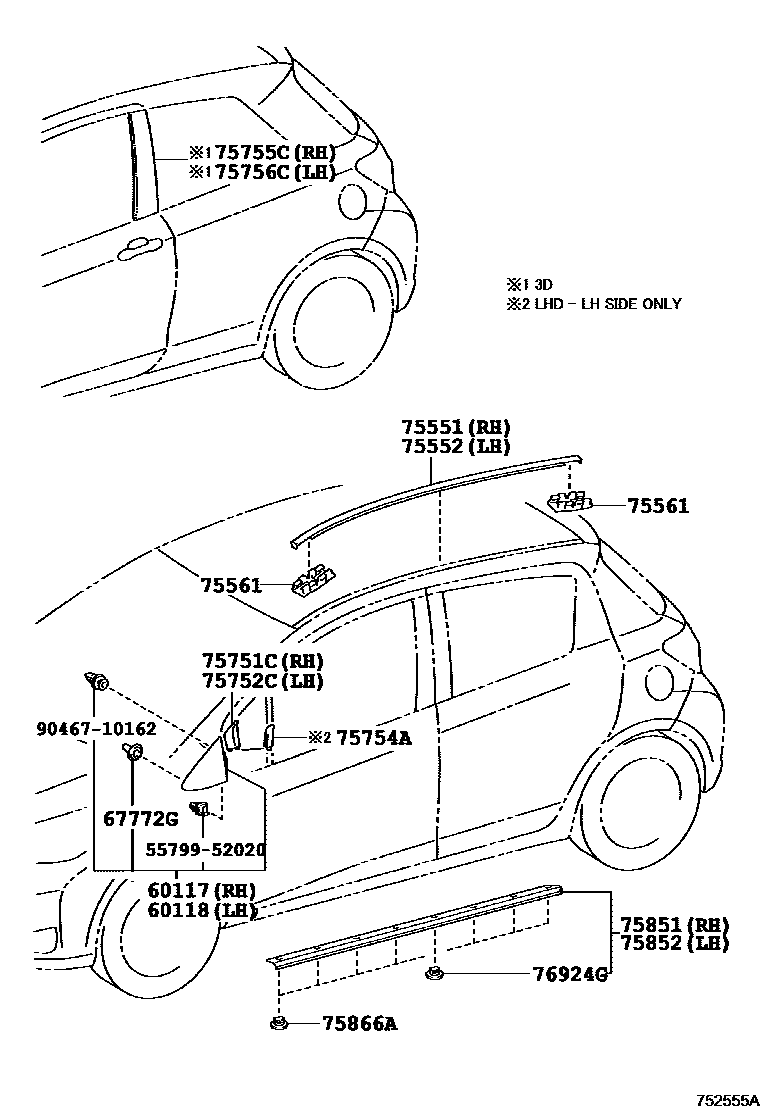

Toyota YARIS 侧防护条 EPC diagram — 752555A
侧防护条 — 752555A (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-52070
60118Left front pillar upper cover sub-assembly60118-52070
67772Gfront pillar cover67772-95J03
75551Drainage groove side decorative strip on the right side of the roof75551-52200
75552Drainage groove side decorative strip on the left side of the roof75552-52180
75561No. 1 roof drain channel side decorative strip clip75561-33030
75751CRight front door window frame front protective strip75751-52040
75752CLeft front door window frame front protective strip75752-52030
75754AProtective strip on left front door window frame75754-52010
75755CRight front door window frame rear protective strip75755-52050
75756CLeft front door window frame rear protective strip75756-52040
75851Right side door sill panel protective strip75851-52090
75852Left side door sill panel protective strip75852-52080
75866ADoor sill panel protective strip fixings76924-12040
76924GDoor sill panel protective strip fixings76924-12040
