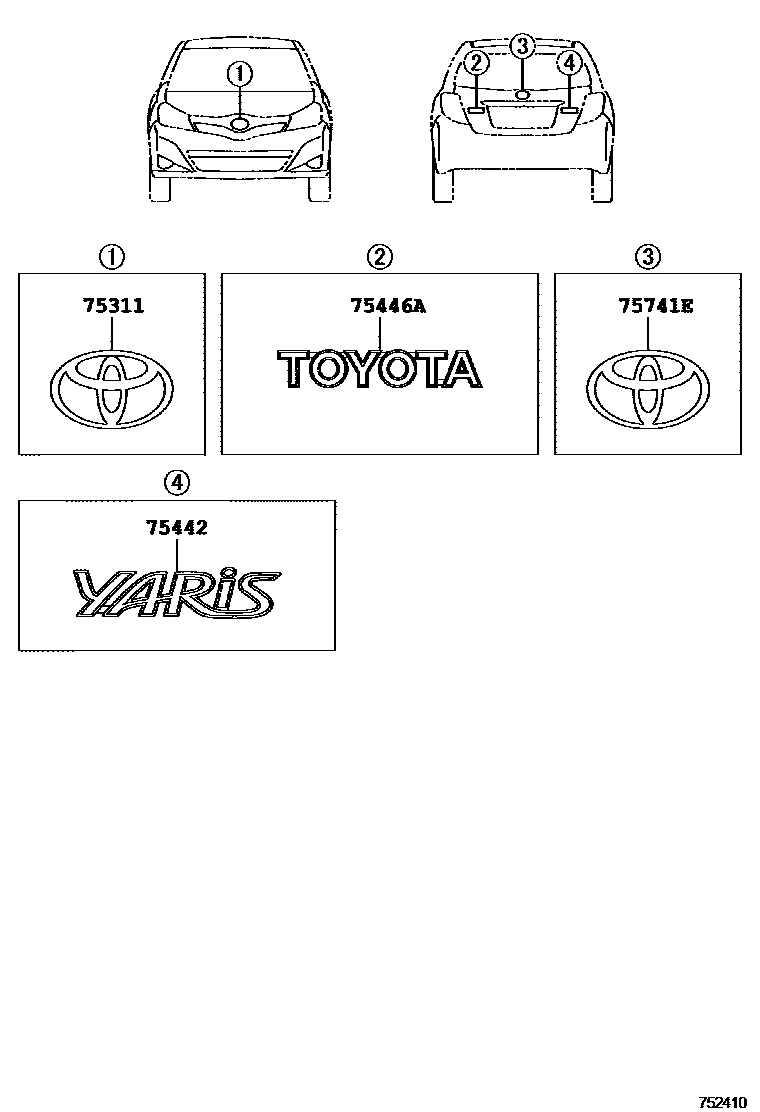

Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-12A10 |
| 75442 | Trunk door number plate No. 2 | 75442-52370 · 75442-52530 |
| 75446A | No. 6 nameplate on back door | 75446-52120 |
| 75741E | logo | 90975-02063 · 90975-02071 |
