Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

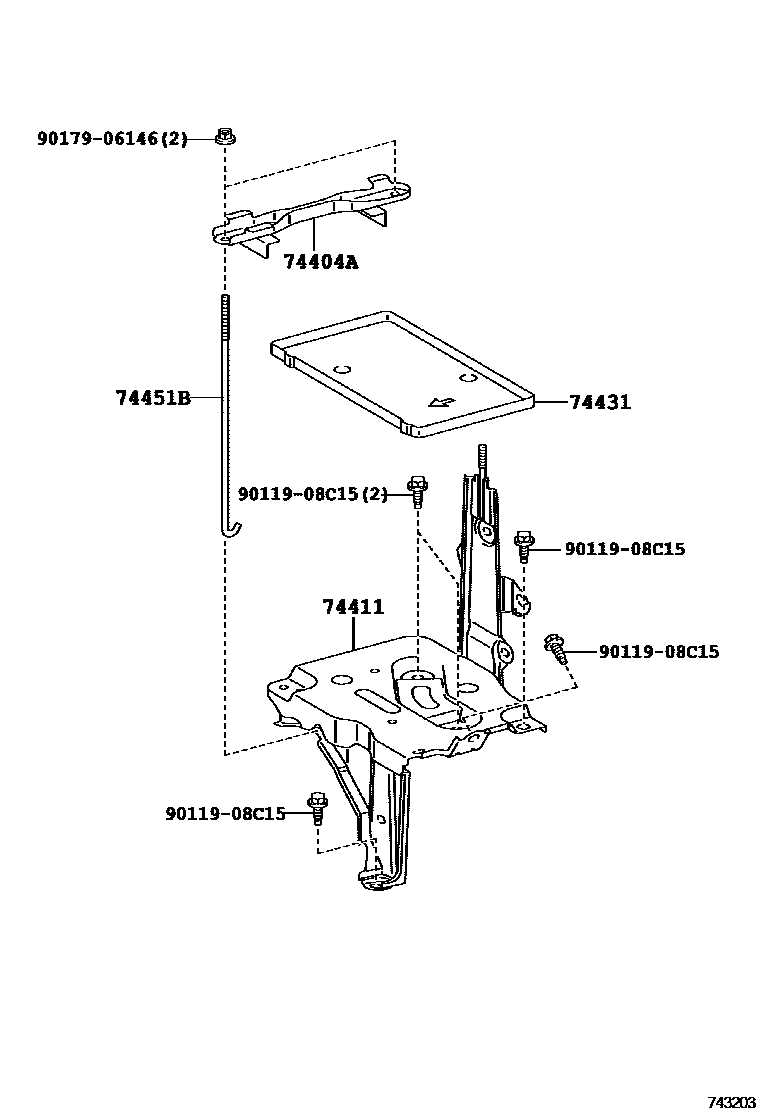

Toyota YARIS battery holder EPC diagram — 743203
battery holder — 743203 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-52110
74411battery holder74410-52051 · 74410-52060
74431battery tray74431-52101
74451BBattery clamp bolt74451-52070 · 74451-52071
