Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

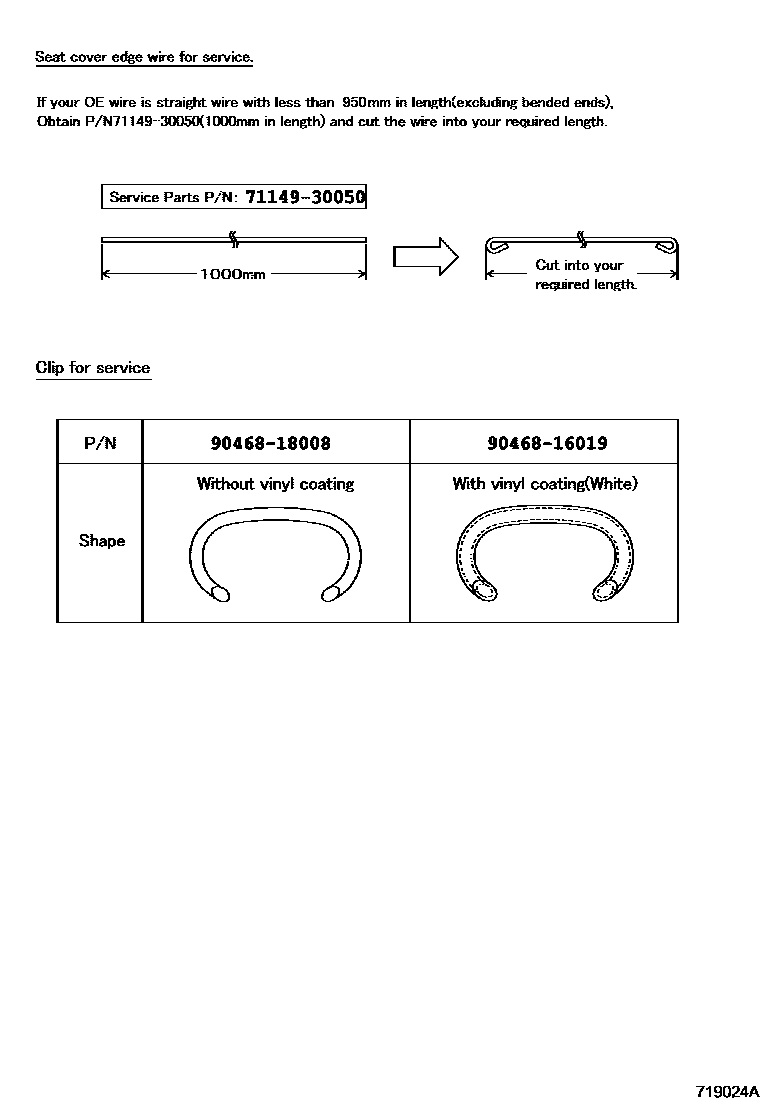

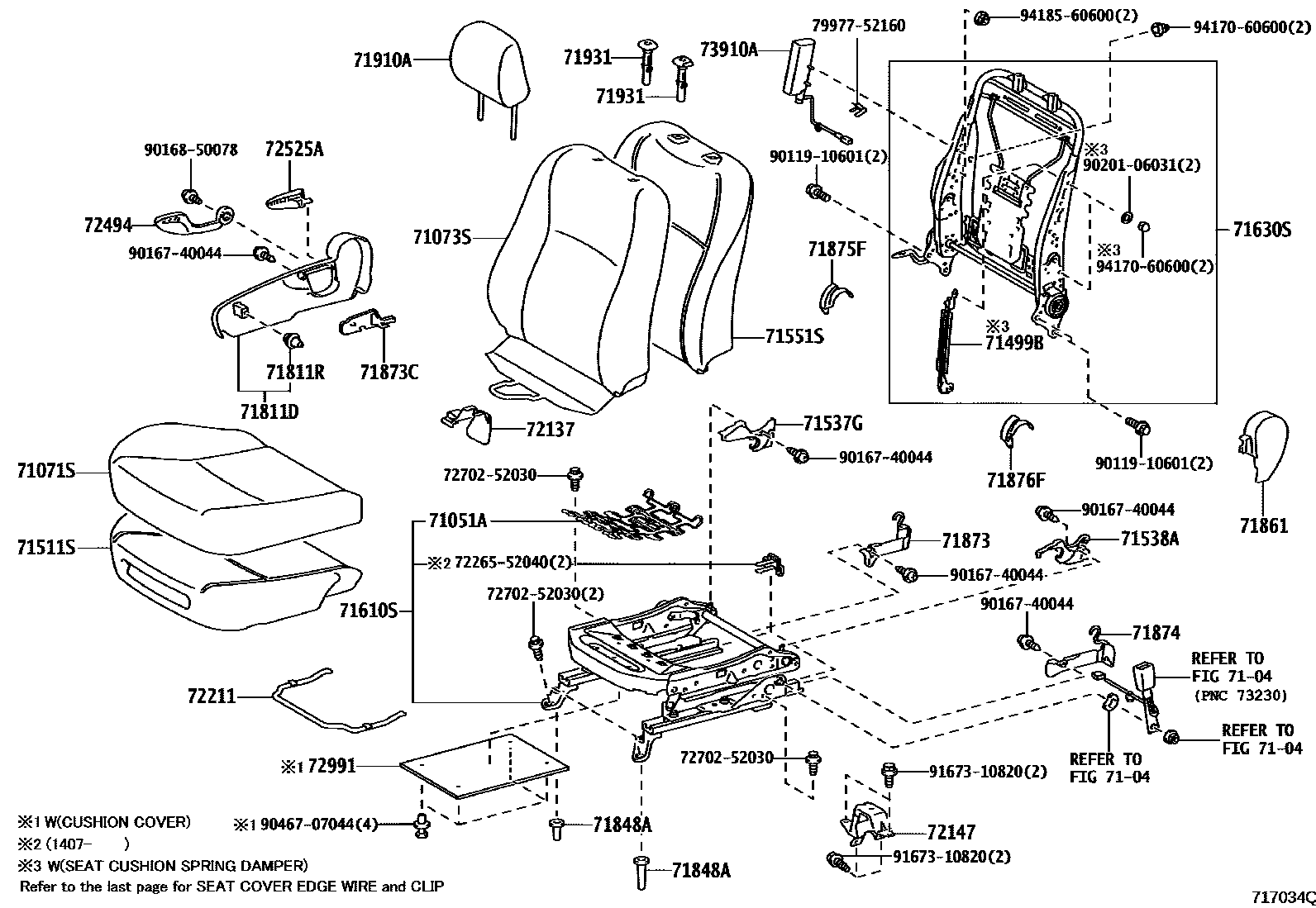

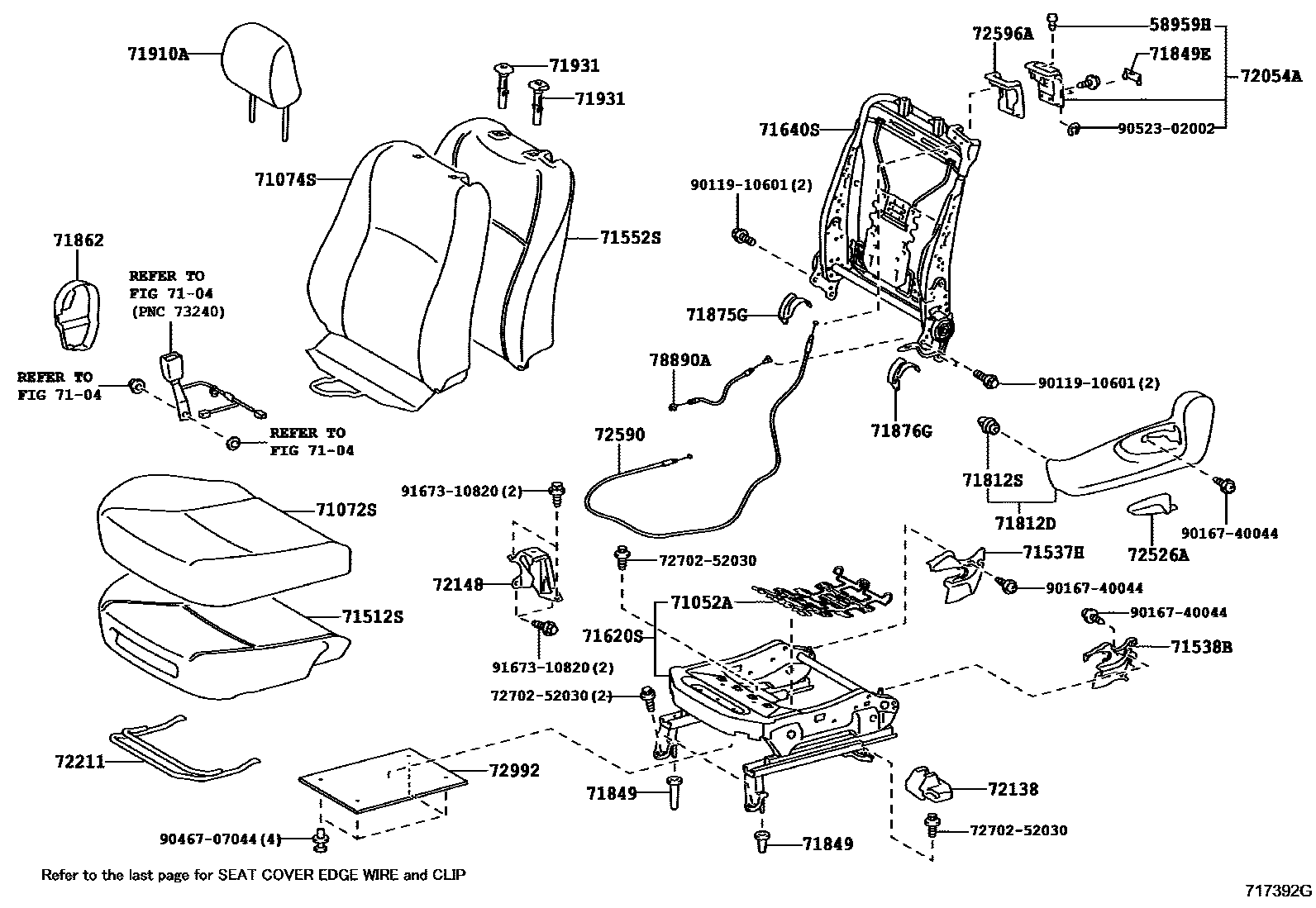

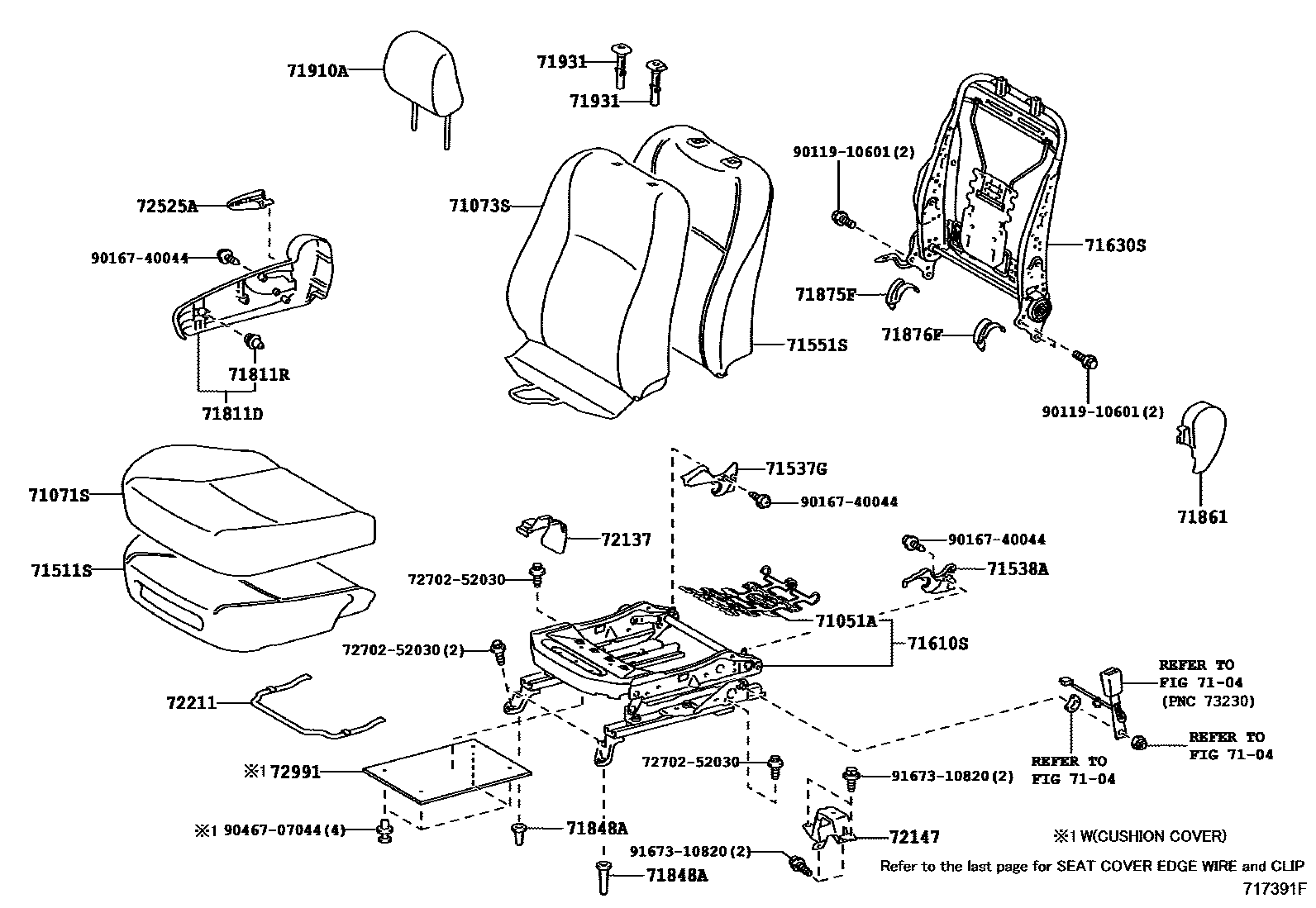

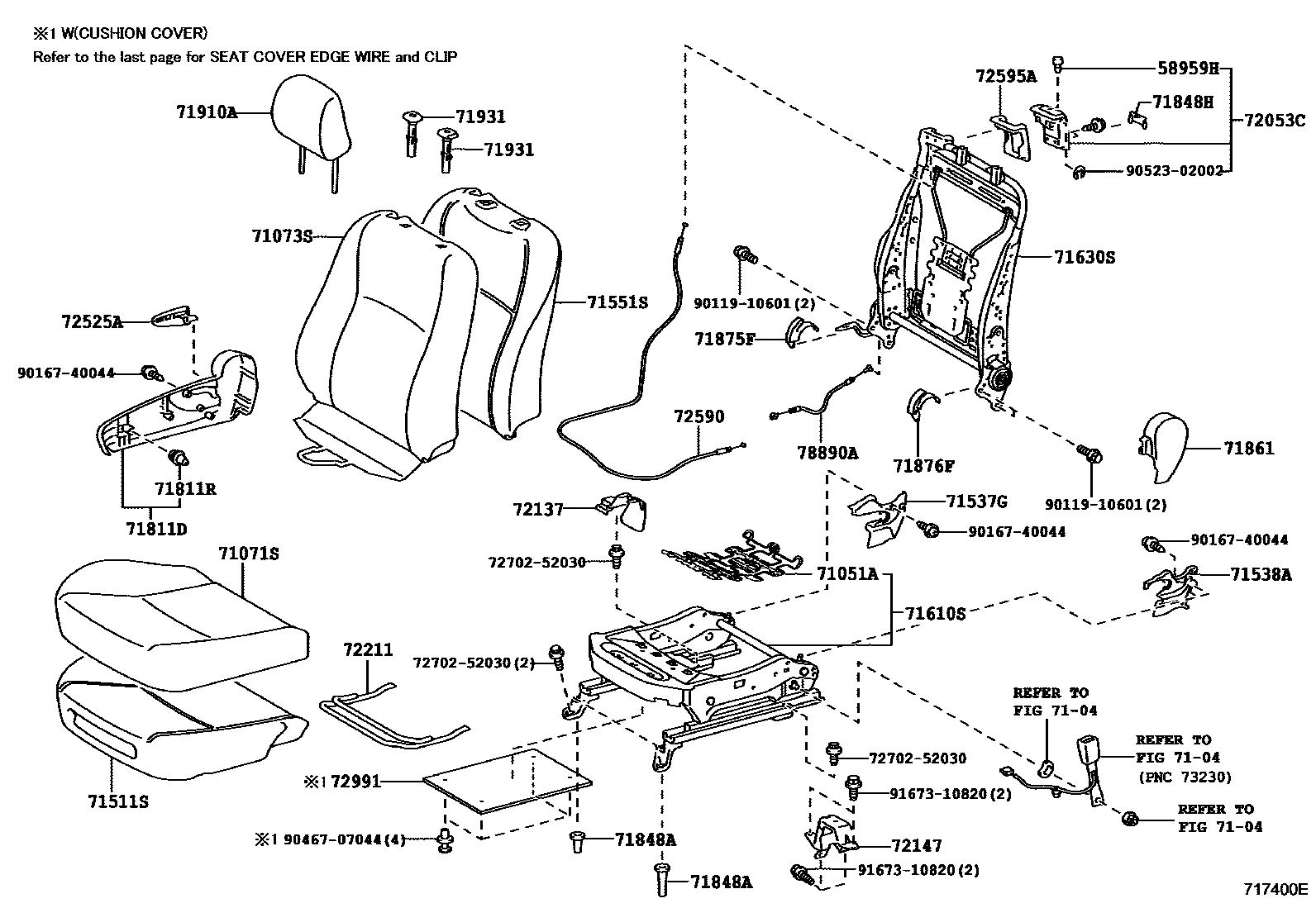

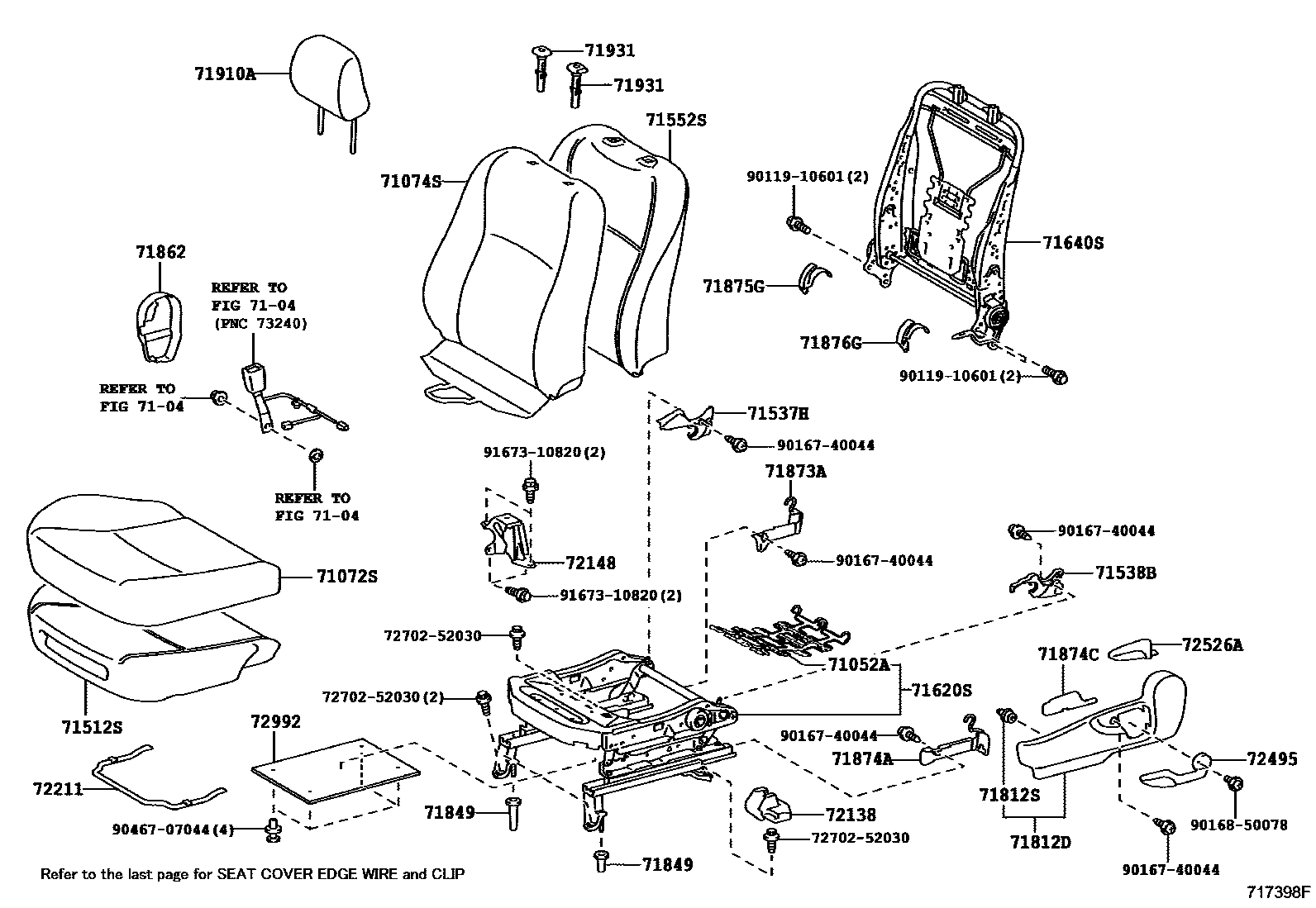

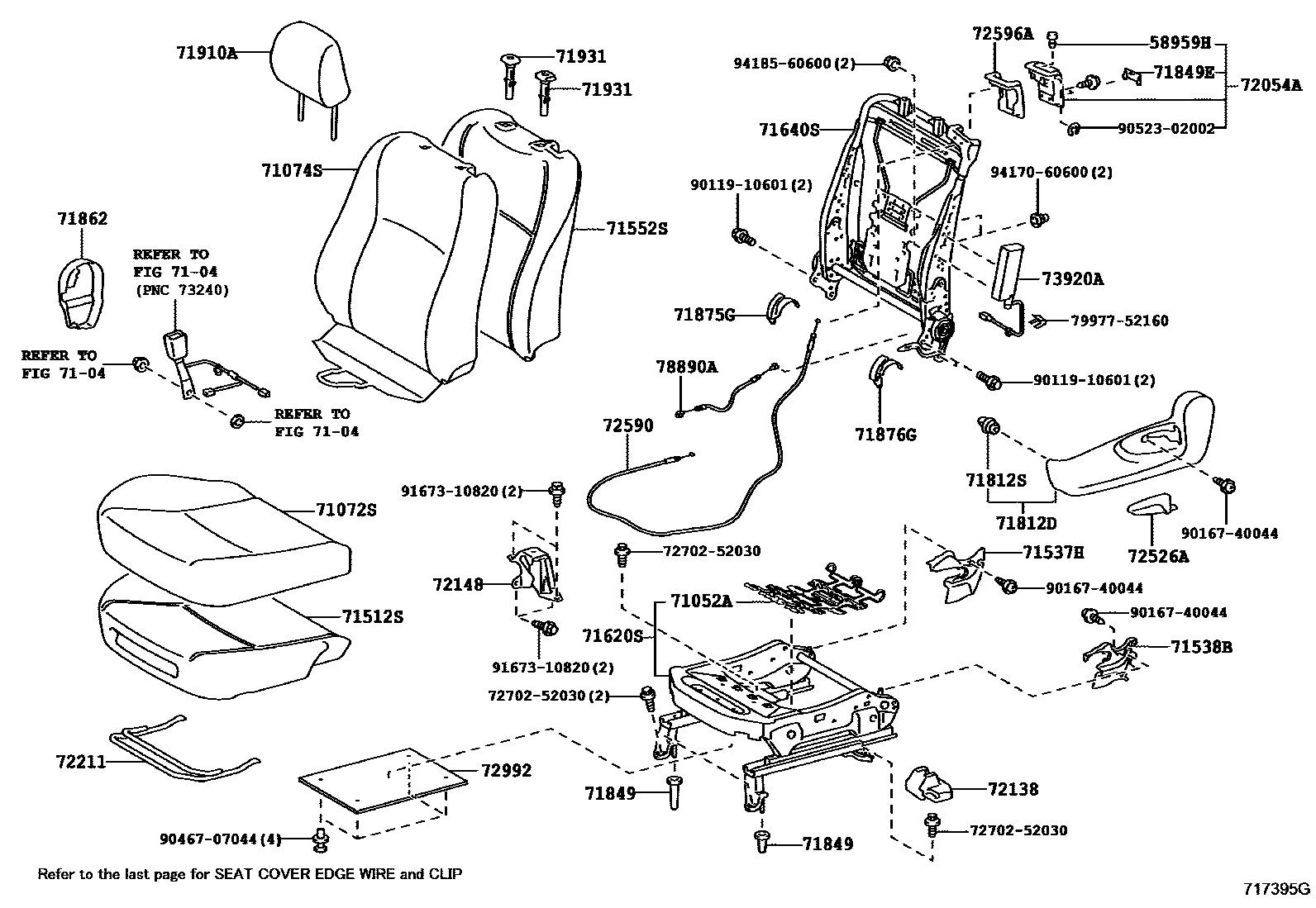

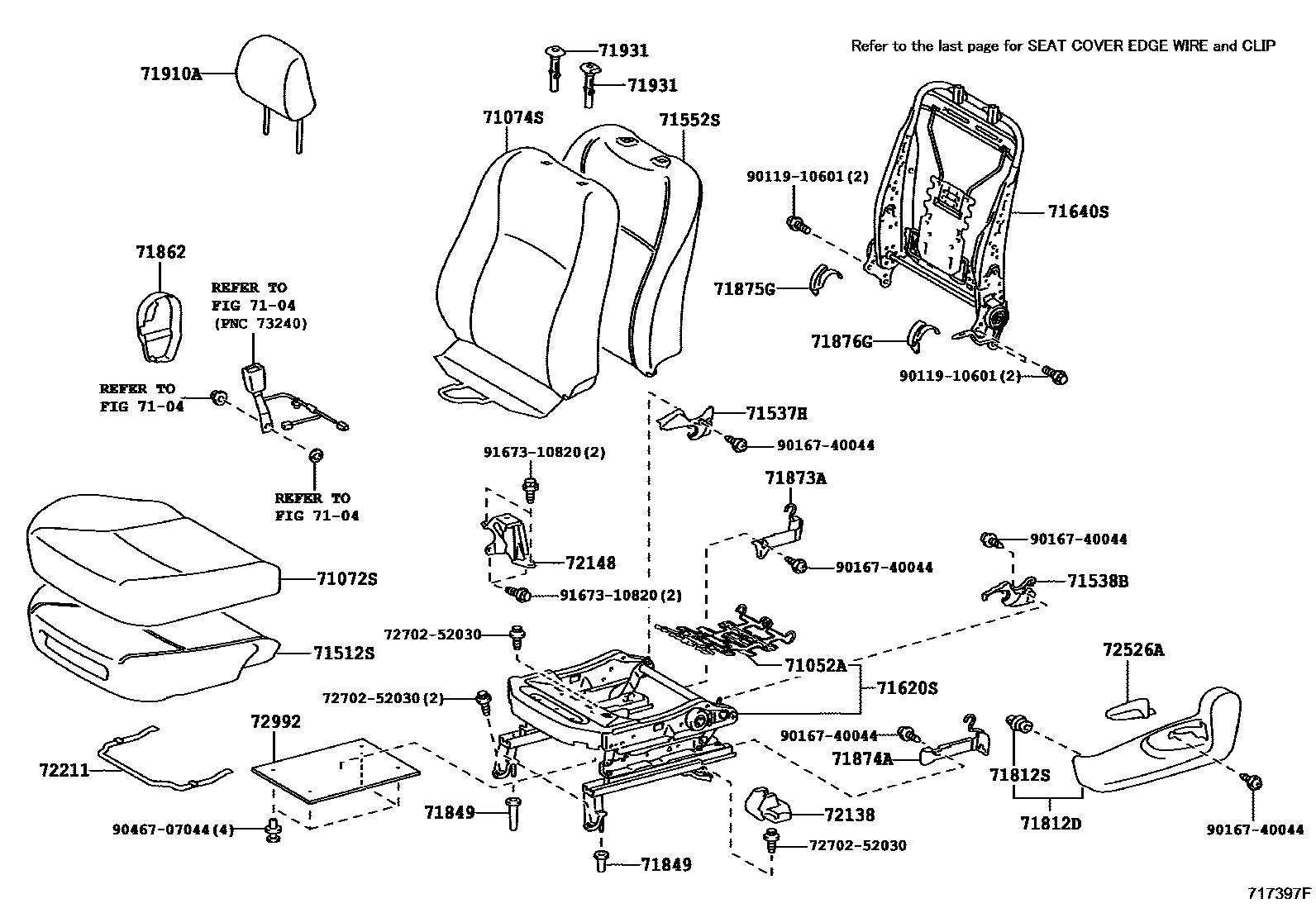

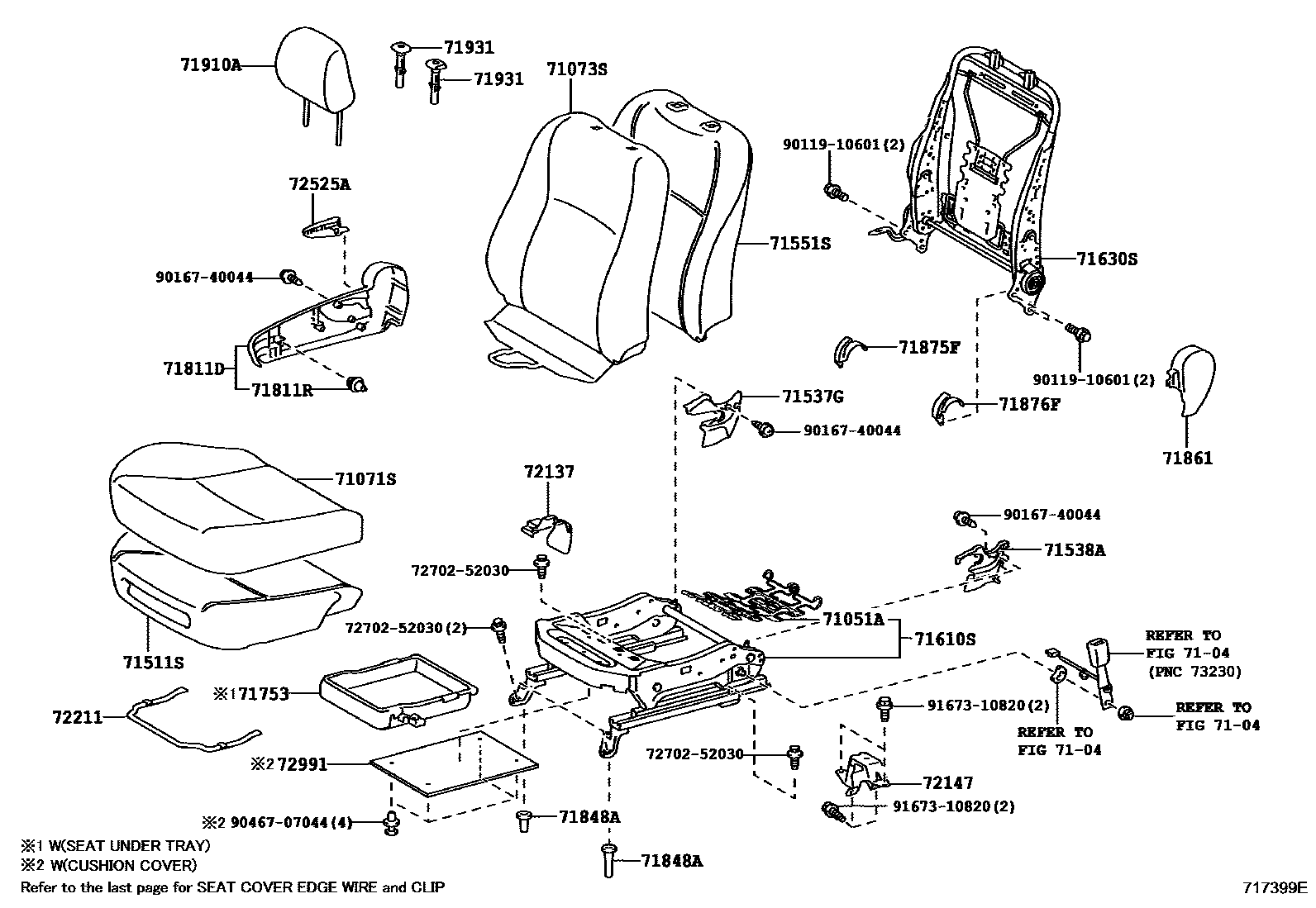

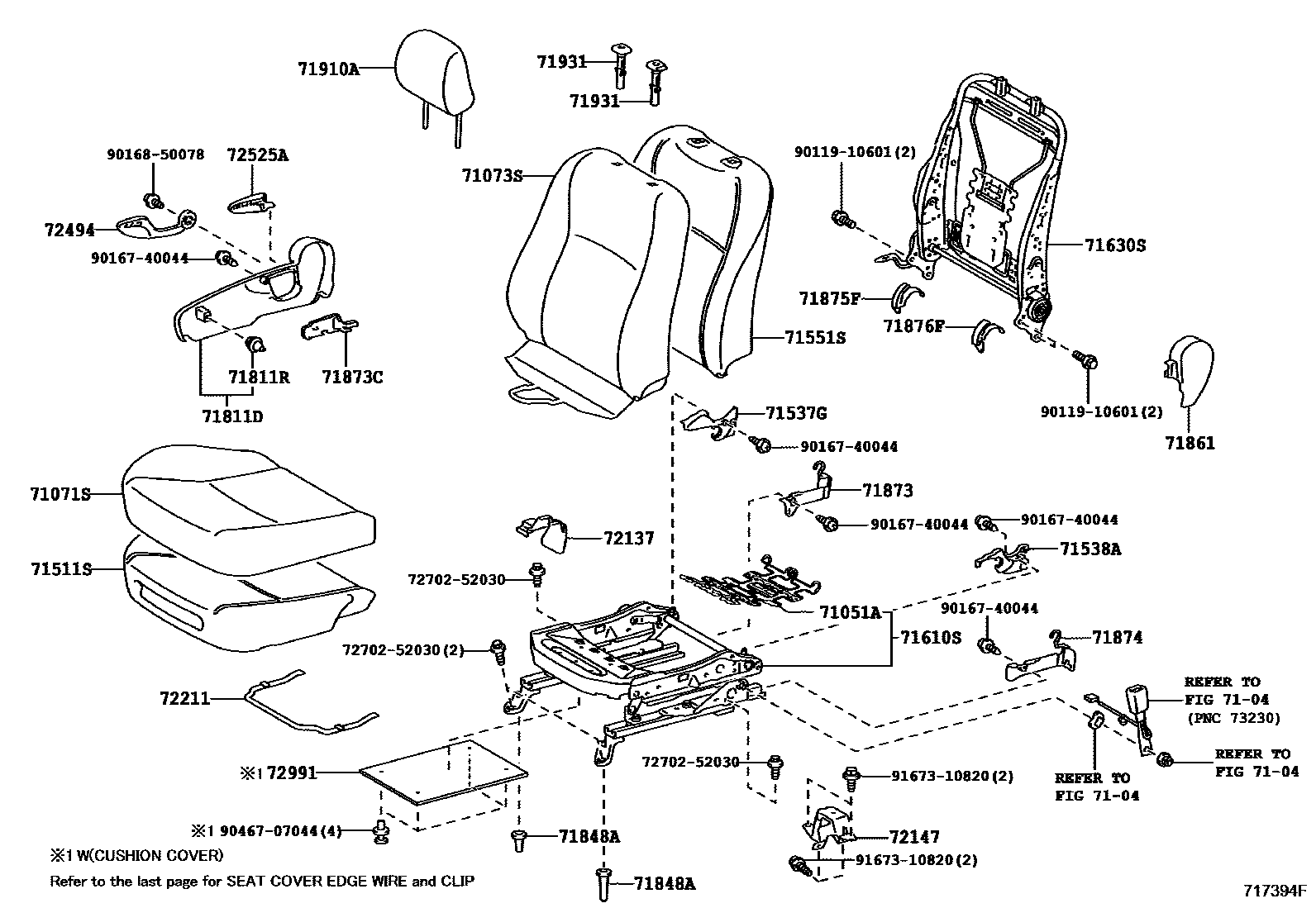

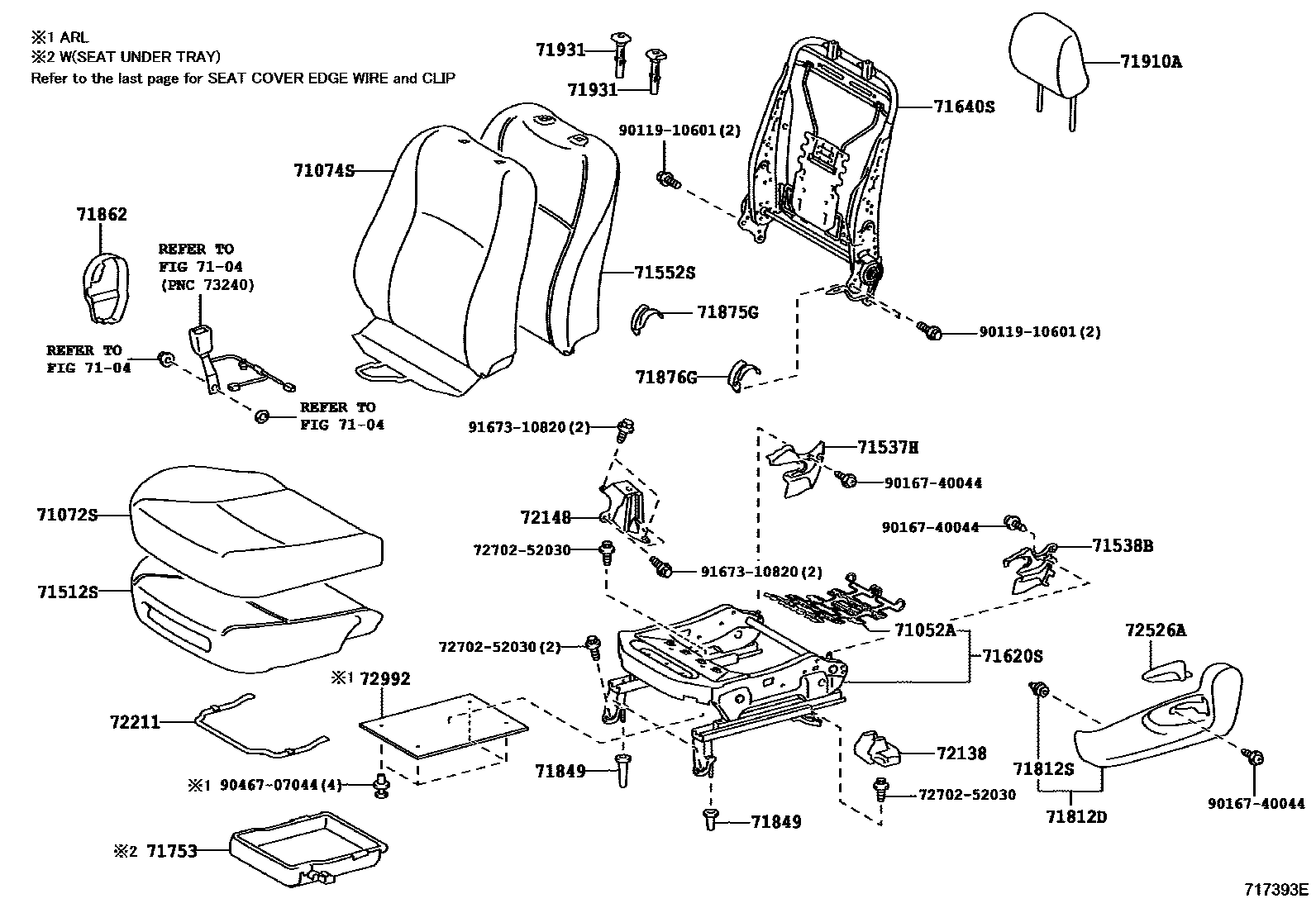

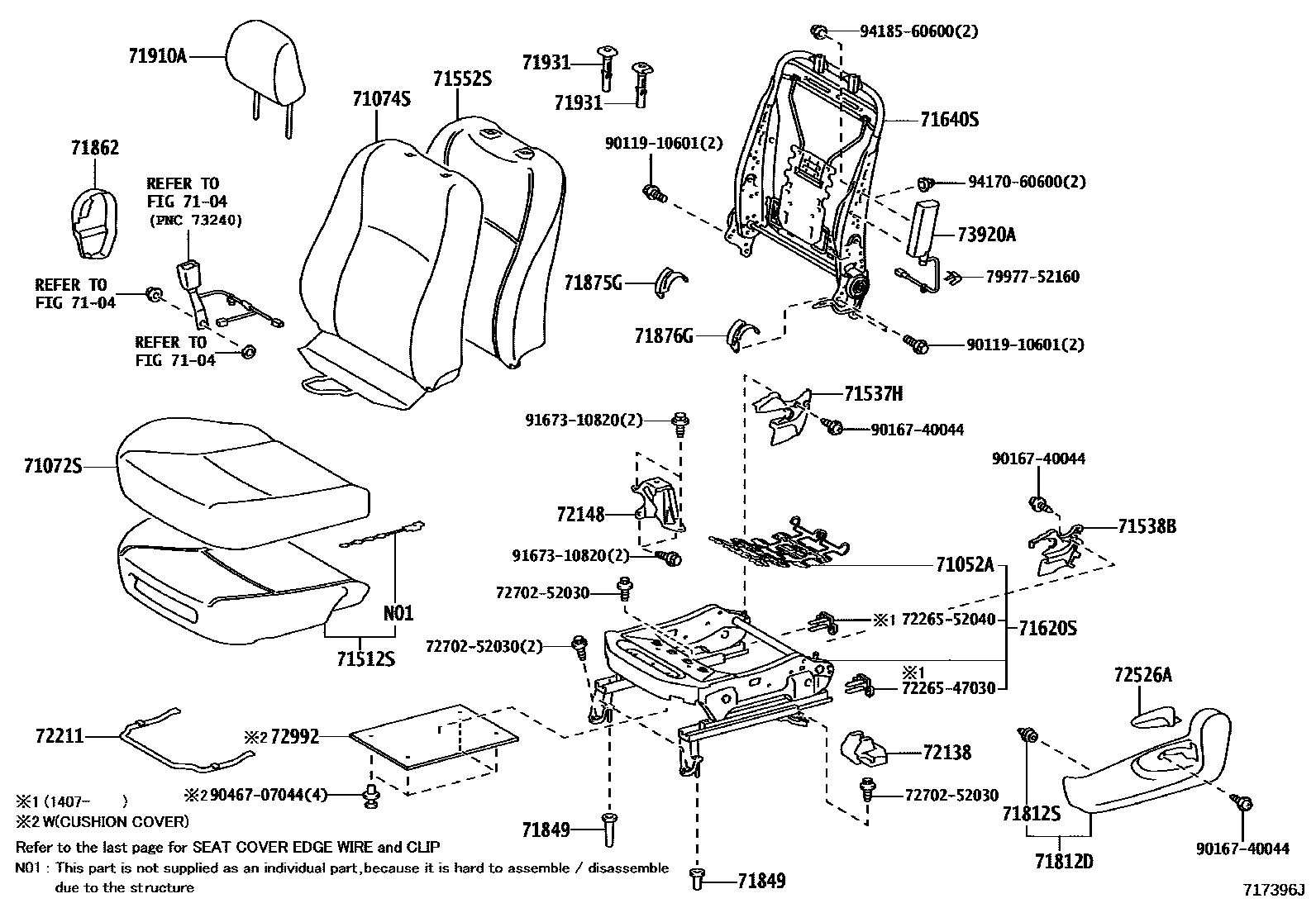

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 12 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58959H | Seat back tilt remote control lever cushion | 58959-60060 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47060 |
| 71499B | Seat cushion spring damper | 71499-28090 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-52030 · 71511-52580 · 71511-52590 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-52070 · 71512-52410 · 71512-52420 |
| 71551S | Front right seat back cushion (for split seats) | 71551-52790 · 71551-52800 · 71551-52840 · 71551-52880 · 71551-52A10 · 71551-52D20 |
| 71552S | Front left seat back cushion (for split seats) | 71551-52800 · 71552-52660 · 71552-52670 · 71552-52710 · 71552-52760 · 71552-52780 · 71552-52790 · 71552-52800 · 71552-52B00 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-52040 · 71610-52041 · 71610-52050 · 71610-52051 · 71610-52070 · 71610-52071 · 71610-52110 · 71610-52111 · 71610-52120 · 71610-52121 · 71610-52130 · 71610-52131 · 71610-52260 · 71610-52320 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-52040 · 71620-52041 · 71620-52060 · 71620-52061 · 71620-52070 · 71620-52071 · 71620-52120 · 71620-52121 · 71620-52130 · 71620-52131 · 71620-52270 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-52380 · 71630-52420 · 71630-52490 · 71630-52740 · 71630-52741 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-52160 · 71640-52200 · 71640-52250 · 71640-52270 · 71640-52450 |
| 71811R | Front seat cushion right guard panel clip | 71769-47020 |
| 71812S | Front seat cushion left guard panel clip | 71769-47020 |
| 71848A | Right seat adjuster cover | 71848-52040 · 71848-52050 |
| 71849 | left seat adjuster cover | 71848-52040 · 71848-52050 |
| 71873A | Front seat cushion lower guard | 71873-47040 |
| 71874 | Front left seat cushion lower guard | 71874-47040 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-52100 · 72147-52101 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-52100 · 72148-52101 |
| 72211 | Seat slide adjustment handle | 72211-52130 · 72211-52140 · 72211-52150 · 72211-52190 · 72211-52230 |
| 72590 | Seat back control cable assembly | 72590-52050 |
| 72991 | Front right seat cushion cover | 72991-52080 |
| 72992 | Front left seat cushion cover | 72991-52080 |
| 73910A | Front right seat airbag assembly | 73910-52180 |
| 73920A | Front left seat airbag assembly | 73920-52180 |
| 78890A | Auxiliary seat lock control cable assembly | 78890-21010 |
