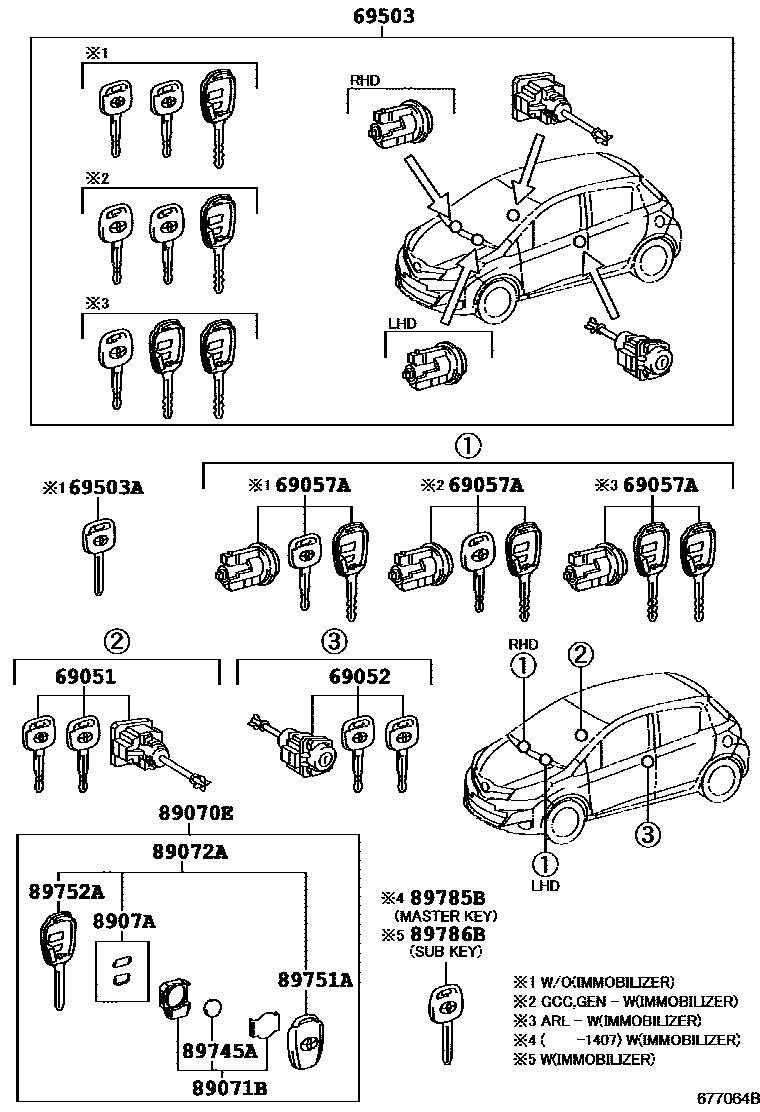

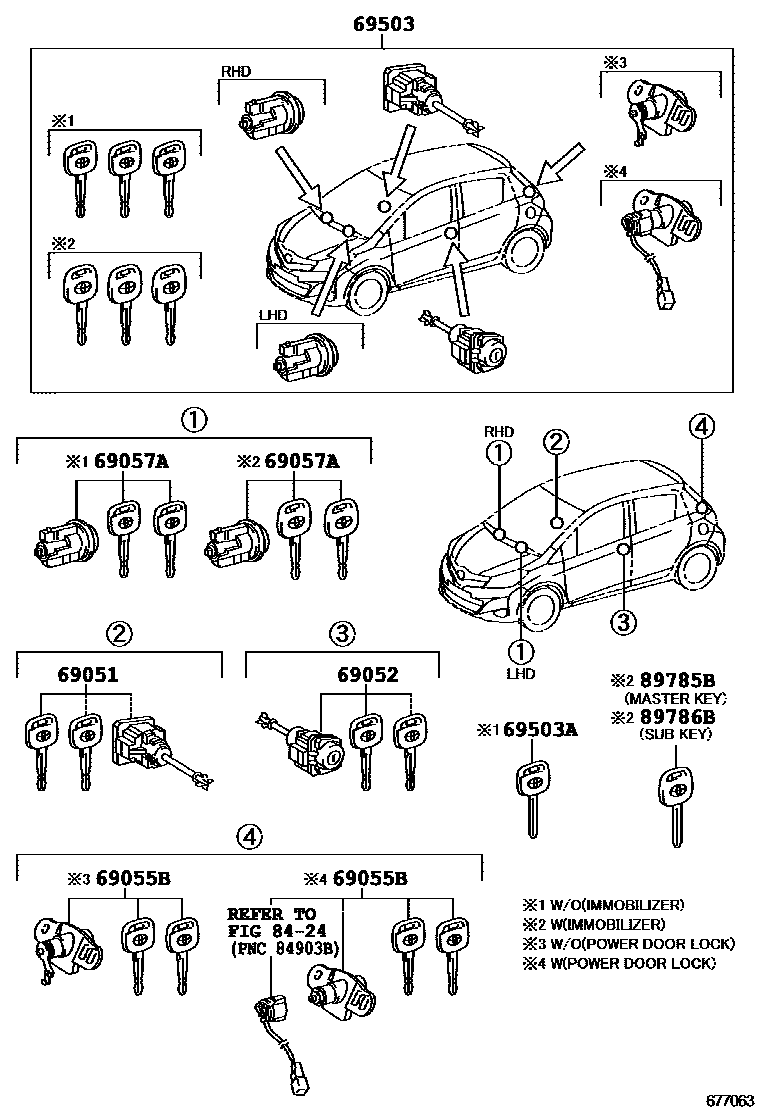

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-22380 · 69051-52490 |
| 69052 | Left door lock cylinder and key assembly | 69052-52380 |
| 69055B | Rear door lock cylinder and key assembly | 69055-52490 · 69055-52500 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-42330 · 69057-52530 · 69057-52820 · 69057-52B20 · 69057-52B70 · 69057-60610 |
| 69503 | Door lock cylinder components | 69005-52G90 · 69005-52K30 · 69005-52K70 · 69005-52K80 · 69005-52L00 · 69005-52L10 · 69005-52L40 · 69005-52P60 |
| 69503A | external tooth key | 90999-00199 |
| 89070E | Remote key assembly | 89070-52D10 · 89070-52D70 · 89070-52E00 · 89070-52F40 |
| 89071B | Remote key sub-assembly module assembly | 89071-52260 · 89071-52280 · 89071-52300 |
| 89072A | Remote key shell assembly | 89072-42400 · 89072-52540 · 89072-52550 · 89072-52820 |
| 8907A | Transmitter switch assembly | 8907A-52010 |
| 89745A | Transmitter battery | 89745-71010 |
| 89751A | Transmitter housing cover | 89751-42090 · 89751-52130 · 89751-52250 |
| 89752A | transmitter housing | 89752-42050 · 89752-52070 · 89752-52080 · 89752-52190 |
| 89785B | transceiver key master transmitter | 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-42040 · 89786-60220 |
