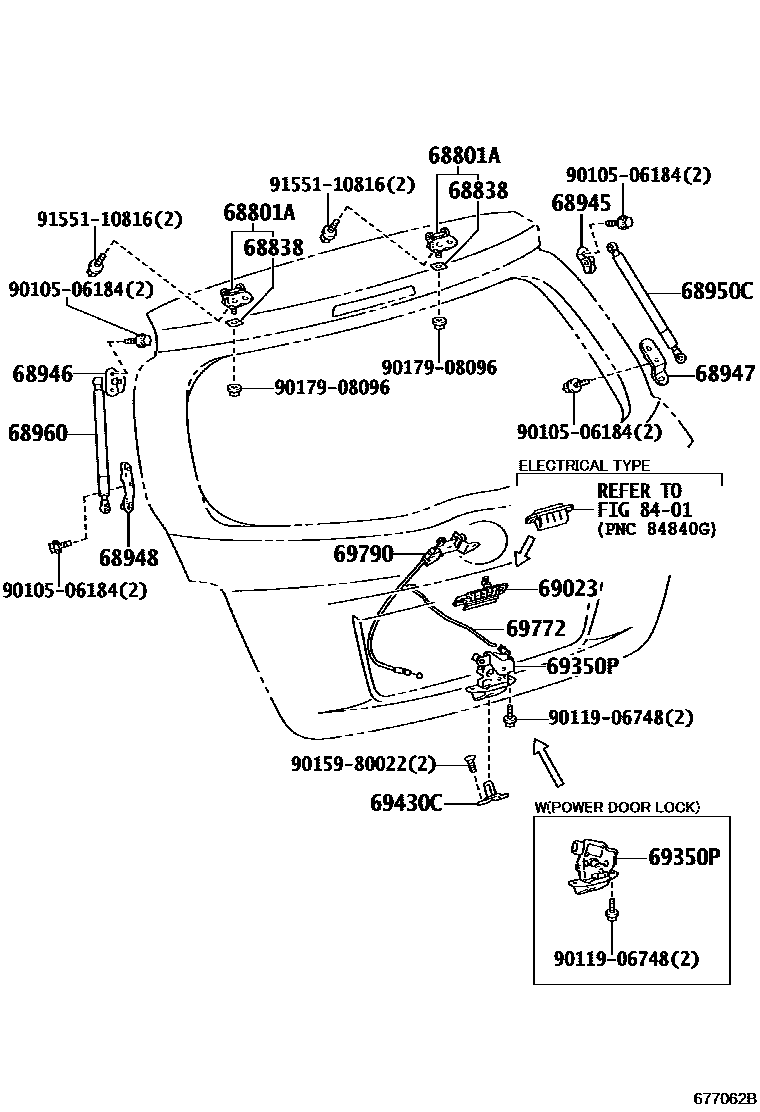

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68801-52210 · 68801-74020 |
| 68838 | Back door hinge No. 1 gasket | 68838-74020 · 68838-74030 · 68838-74040 |
| 68945 | Back door right damping stay upper bracket | 68945-52110 · 68945-52140 |
| 68946 | Rear door left damping strut upper bracket | 68945-52110 · 68946-52090 |
| 68947 | Back door right damping strut lower bracket | 68947-52020 · 68947-52040 |
| 68948 | Rear door left damping strut lower bracket | 68948-52020 · 68948-52040 |
| 68950C | Back door right support rod assembly | 68950-0W640 · 68950-0W641 · 68950-0W650 · 68950-0W651 · 68950-0W671 · 68950-0WC50 |
| 68960 | Back door left support rod assembly | 68960-0W620 · 68960-0W621 · 68960-0W630 · 68960-0W631 · 68960-0W651 · 68960-0WC50 |
| 69023 | Rear door outer handle sub-assembly | 69023-52020 |
| 69350P | Back door with door control light switch lock assembly | 69350-52370 · 69350-52390 · 69350-52391 |
| 69430C | Back door lock assembly | 69430-52050 |
| 69772 | Rear door lock control lever | 69772-52010 |
| 69790 | Rear door lock control assembly | 69790-52030 |
