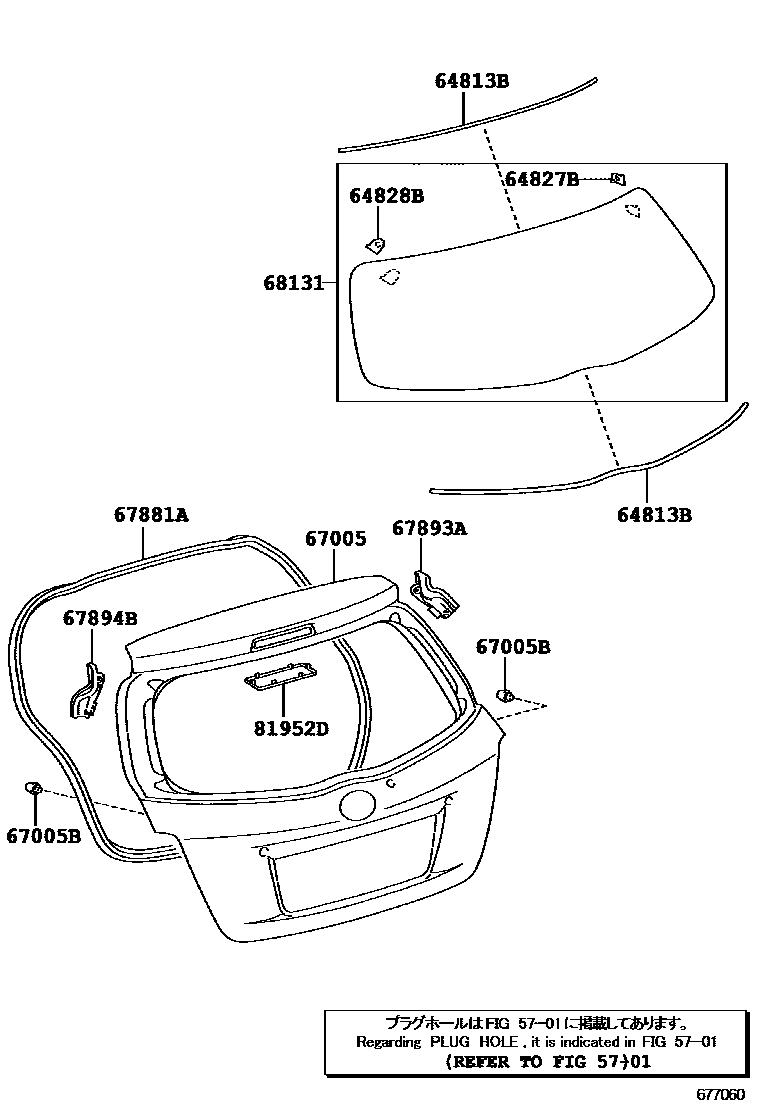

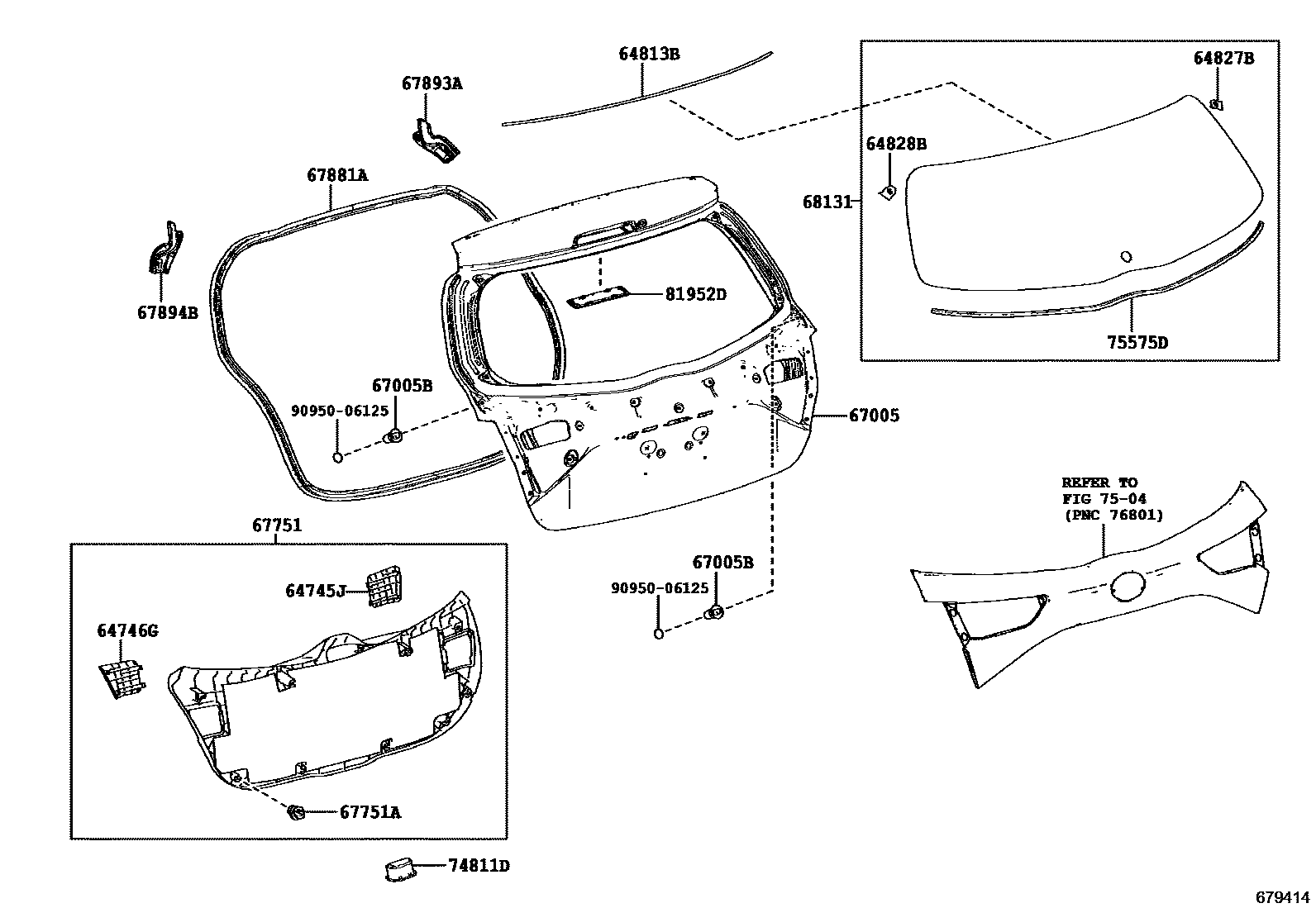

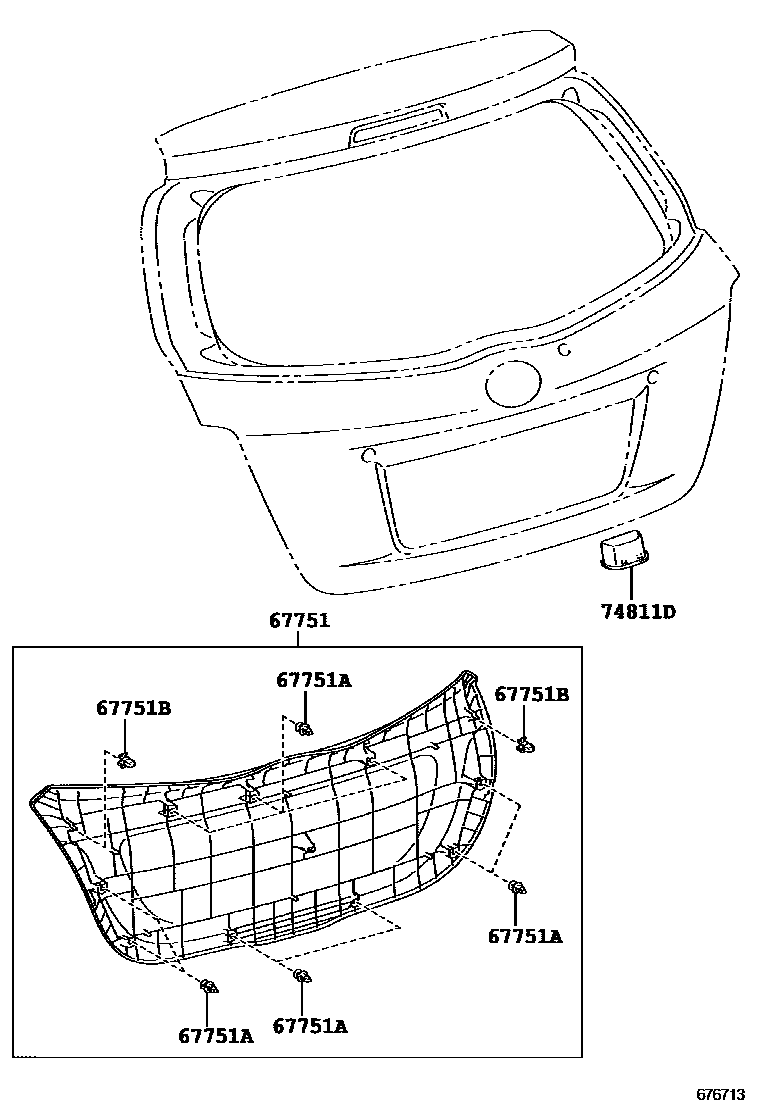

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64813B | Back window glass adhesive seal | 56117-50140 |
| 64827B | Catch on the right side of the back window glass | 64827-52090 |
| 64828B | Catch on the left side of the back window glass | 64828-52090 |
| 67005 | Rear door panel sub-assembly | 67005-52C20 · 67005-52C40 · 67005-52C60 · 67005-52C80 · 67005-52E20 · 67005-52F80 · 67005-52F90 |
| 67005B | Cushion pad (for back door panel) | 90541-09146 |
| 67751A | Clip (for rear door trim panel) | 90467-10161 |
| 67751B | Fixings (for rear door trim panel) | 67771-58010 |
| 67881A | Back door seal | 67881-52180 · 67881-52210 |
| 67893A | Back door panel No. 1 protective piece | 67893-52090 · 67893-52091 |
| 67894B | Back door panel No. 2 protective piece | 67894-52090 · 67894-52091 |
| 68131 | back door glass | 68105-52600 · 68105-52610 · 68105-52620 · 68105-52690 · 68105-52700 · 68105-52720 |
| 75575D | Protective strip under rear window | 75575-52040 |
| 81952D | rear light cover | 81952-52020 |
