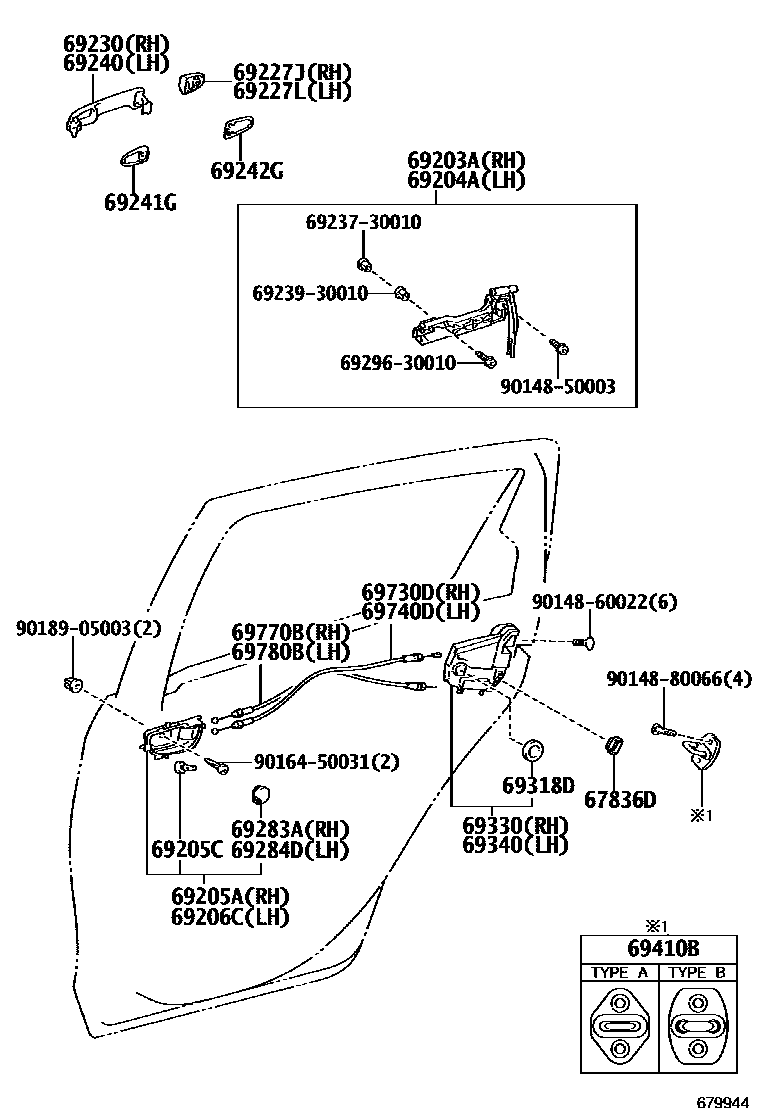

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-12040 · 67836-33030 · 67836-60010 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-52070 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-52090 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69241G | Rear door front exterior handle pad | 69241-52020 |
| 69242G | Rear door rear outer handle pad | 69242-52030 |
| 69318D | door lock harness seal | 69318-47010 |
| 69330 | Right rear door door lock assembly | 69050-52190 · 69050-52260 · 69330-52210 |
| 69340 | Left rear door lock assembly | 69060-52200 · 69060-52290 · 69340-52220 |
| 69410B | Rear door lock plate assembly | 69410-20110 · 69410-33010 · 69410-47010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-52170 · 69730-52250 |
| 69740D | Left rear door lock remote control cable assembly | 69730-52170 · 69730-52250 |
| 69770B | Right rear door inner lock cable assembly | 69770-52090 · 69770-52130 |
| 69780B | Left rear door inner lock cable assembly | 69770-52090 · 69770-52130 |
