Toyota YARIS 后门板和后门玻璃 — Figure 6705

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 29 PNC and OE references.

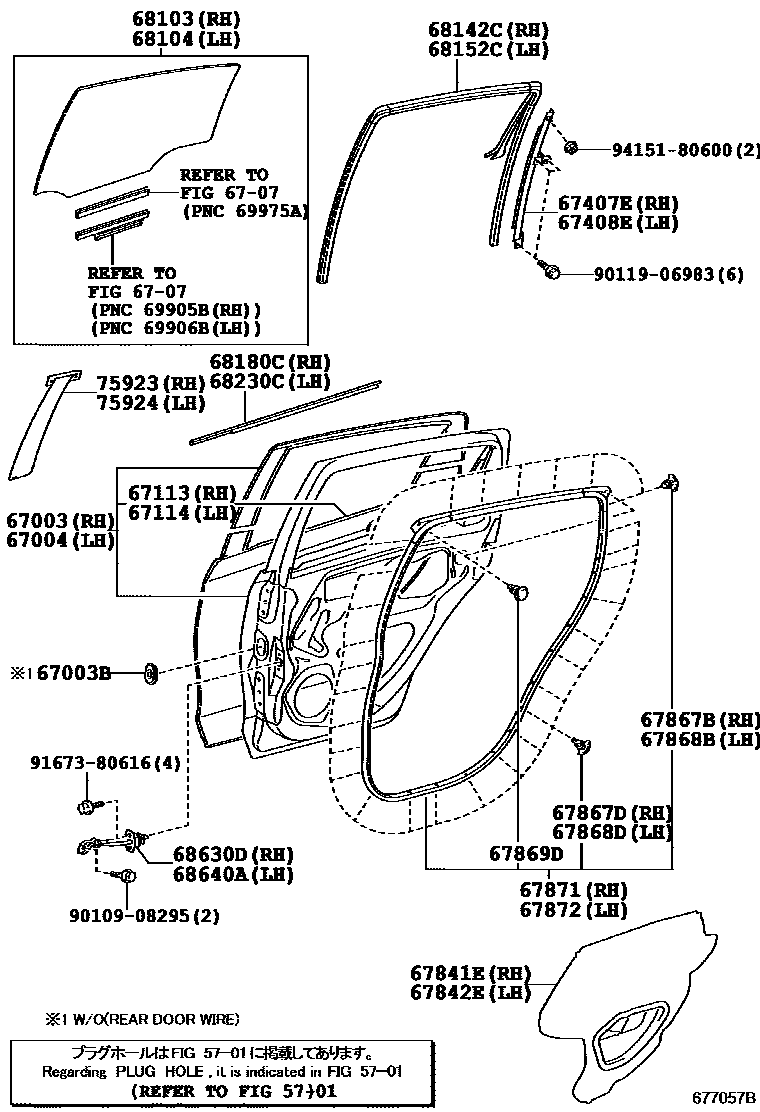

Toyota YARIS 后门板和后门玻璃 EPC diagram — 677057B
后门板和后门玻璃 — 677057B (201108 – 999999)

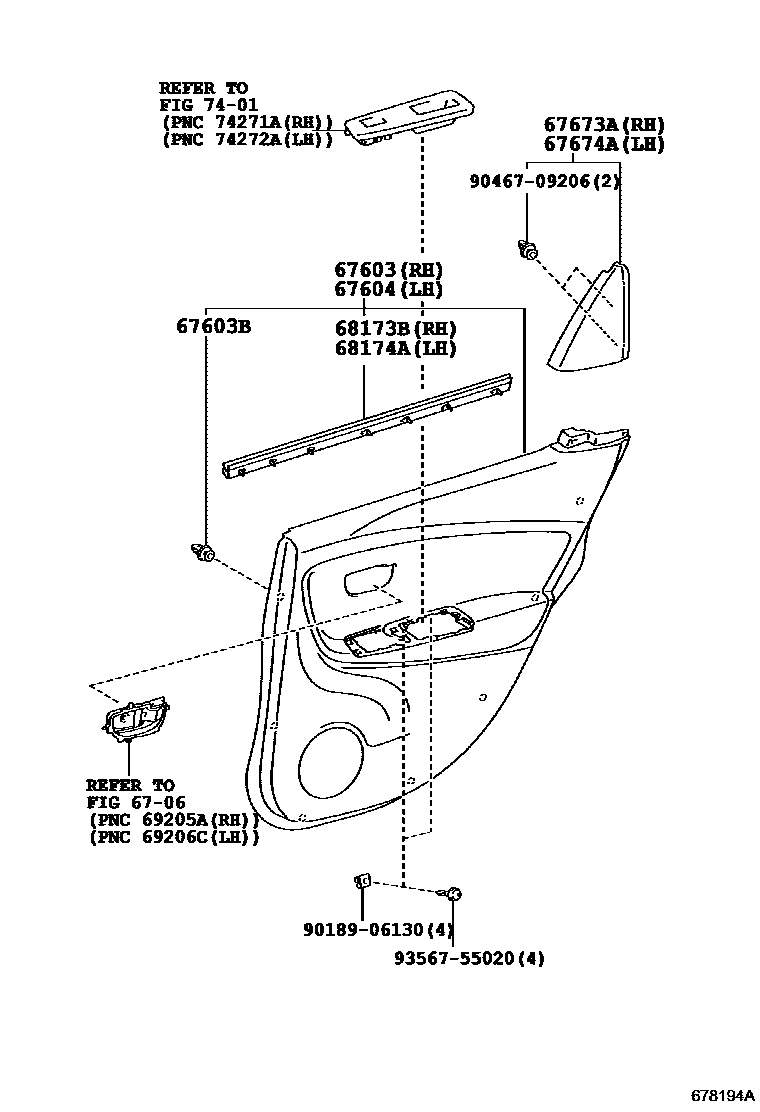

Toyota YARIS 后门板和后门玻璃 EPC diagram — 678194A
后门板和后门玻璃 — 678194A (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-52280
67003BSeals (for rear door panels)82819-52380
67004Left rear door panel sub-assembly67004-52440
67113Right rear door outer panel67113-52210
67114Left rear door outer panel67114-52230
67407ERight rear door window divider sub-assembly67407-52170
67408ELeft rear door window divider sub-assembly67408-52170
67603BCatch (for rear door trim panel)90467-09206
67841ERight rear door access hole cover67841-52300 · 67841-52310
67842ELeft rear door access hole cover67841-52300 · 67841-52310
67867BDoor seal strip clip (for rear door)67867-52020
67867DRight rear door seal strip fixing67867-12150
67868BDoor glass seal strip clip (for rear door)67867-52010
67868DLeft rear door seal strip fixing67867-12150
67869DCar door seal strip clip90467-06084
67871Right rear door sealing strip67871-52180 · 67871-52181
67872Left rear door sealing strip67872-52200 · 67872-52201
68103Right rear door glass sub-assembly68130-52350 · 68130-52360
68104Left rear door glass sub-assembly68140-52350 · 68140-52360
68142CRight rear door glass lift slot68142-52150
68152CLeft rear door glass lift slot68152-52160
68173BRight rear door glass inner sealing strip68173-52160
68174ALeft rear door glass inner sealing strip68174-52170
68180CRight rear door glass outer sealing strip assembly68180-52160 · 68180-52161
68230CLeft rear door glass outer sealing strip assembly68230-52160 · 68230-52161
68630DRight rear door opening limiter assembly68630-52110
68640ALeft rear door opening limiter assembly68630-52110
75923No. 2 right side light-shielding film75923-52120
75924No. 2 left shading film75924-52120
