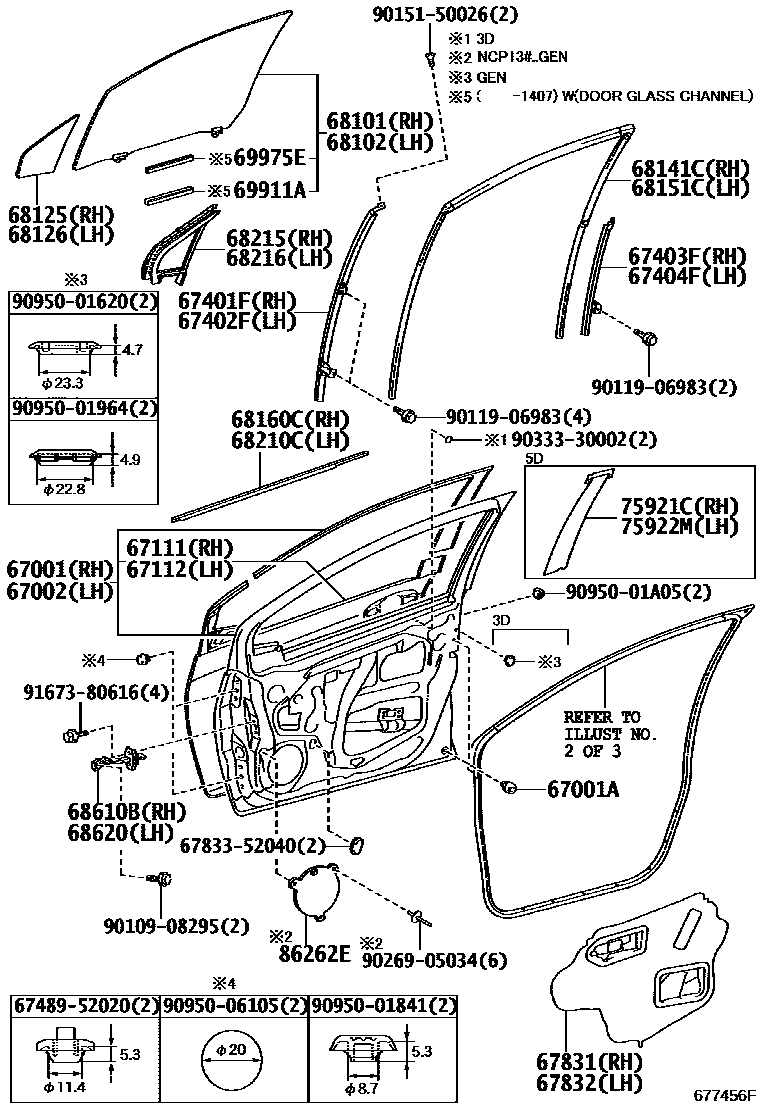

Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-52510 · 67001-52530 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-52490 · 67002-52510 |
| 67111 | Outer right front door panel | 67111-52240 · 67111-52250 |
| 67112 | Outer left front door panel | 67112-52230 · 67112-52240 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-52160 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-52150 · 67402-52170 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-52240 · 67403-52250 · 67403-52270 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-52210 · 67404-52220 · 67404-52230 |

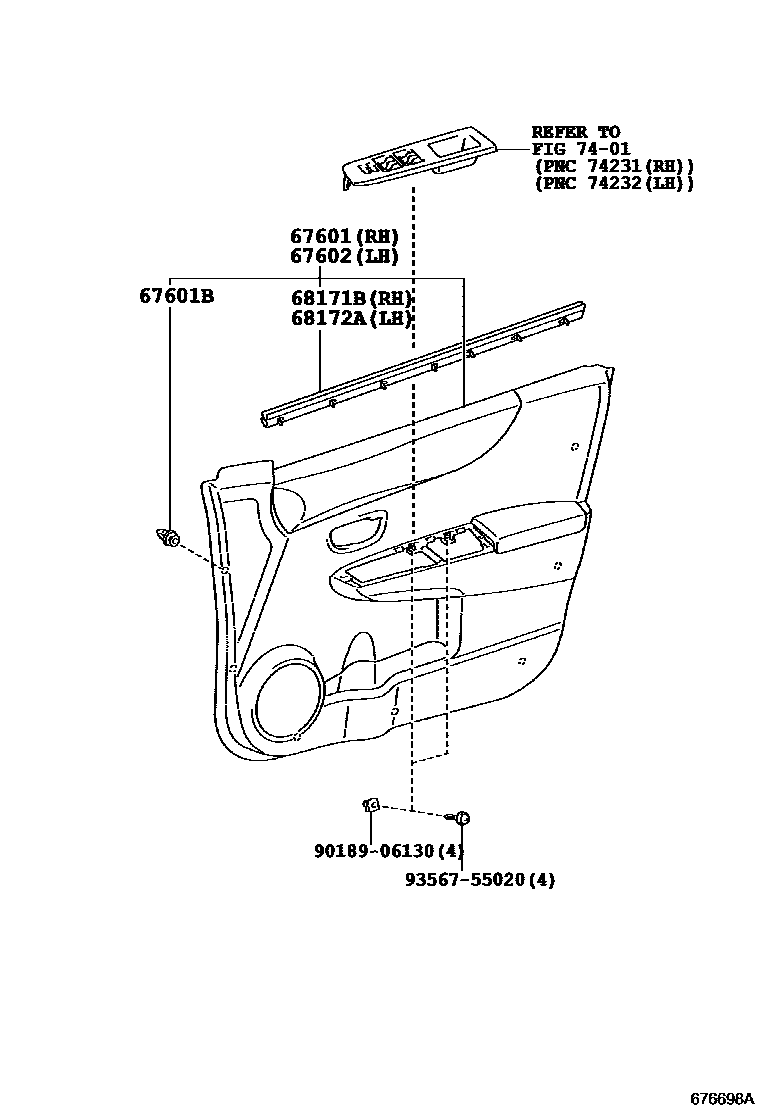

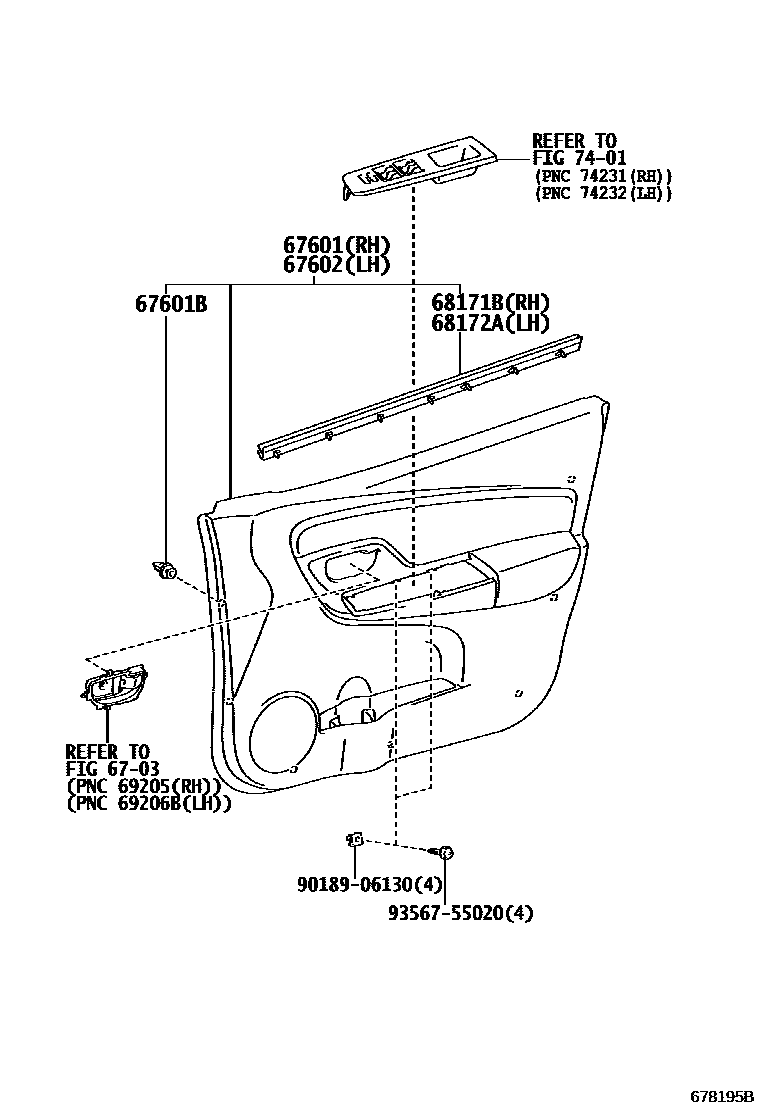

| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67831 | Right front door access hole cover | 67831-52400 · 67831-52410 · 67831-52450 |
| 67832 | Left front door access hole cover | 67832-52260 · 67832-52290 · 67832-52320 |

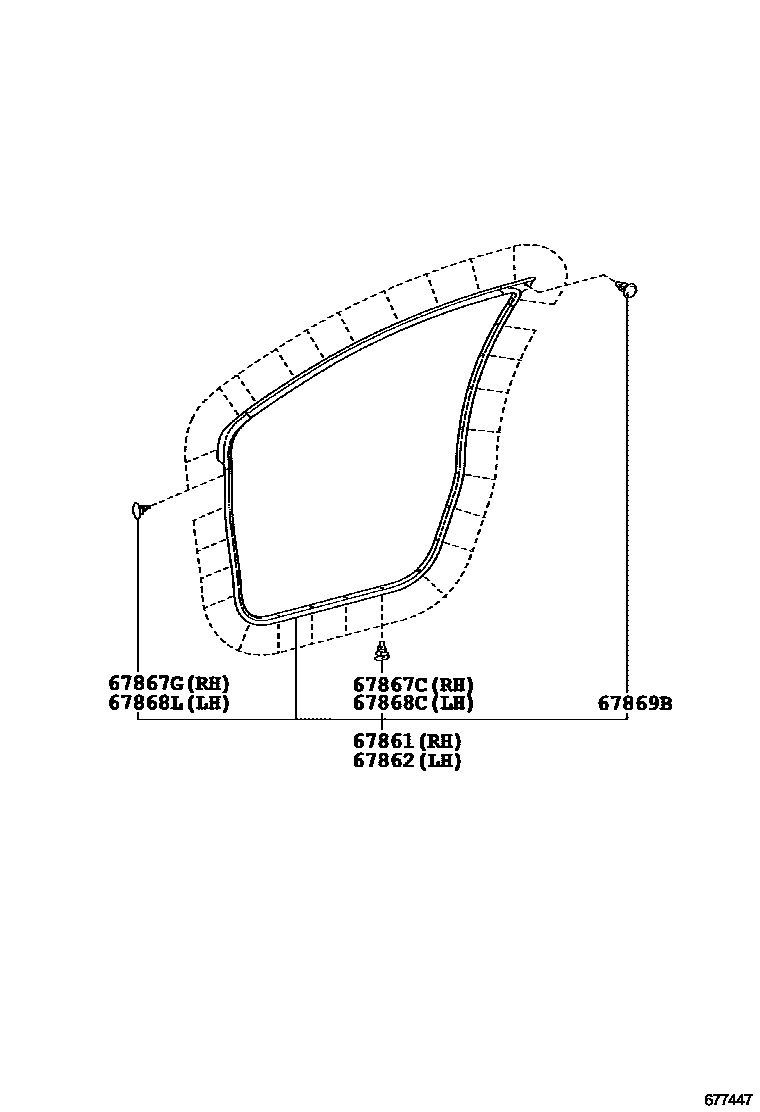

| 67861 | Right front door seal | 67861-52230 · 67861-52231 · 67861-52240 · 67861-52241 |
| 67862 | Left front door seal | 67862-52220 · 67862-52221 · 67862-52230 · 67862-52231 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-52030 · 67867-52040 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-52030 · 67867-52040 |
| 67869B | Front door seal strip clip | 90467-06084 |
| 68101 | Right front door glass sub-assembly | 68110-52310 · 68110-52320 |
| 68102 | Left front door glass sub-assembly | 68120-52310 · 68120-52320 |
| 68125 | Right front door fixed window glass | 68125-52030 |
| 68126 | Left front door fixed window glass | 68126-52030 |
| 68141C | Right front door glass lift channel | 68141-52240 · 68141-52241 · 68141-52250 · 68141-52330 |
| 68151C | Left front door glass lift channel | 68151-52220 · 68151-52221 · 68151-52230 · 68151-52300 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-52180 · 68160-52181 · 68160-52190 · 68160-52191 |
| 68171B | Right front door glass inner sealing strip | 68171-52210 · 68171-52220 |
| 68172A | Left front door glass inner sealing strip | 68172-52180 · 68172-52190 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-52180 · 68210-52181 · 68210-52190 · 68210-52191 |
| 68215 | Right front door fixed window seal | 68215-52020 · 68215-52060 · 68215-52061 |
| 68216 | Left front door fixed window seal | 68216-52020 · 68216-52050 · 68216-52051 |
| 68610B | Right front door opening limiter assembly | 68610-52130 · 68610-52180 |
| 68620 | Left front door opening limiter assembly | 68610-52130 · 68610-52180 |
| 69911A | No. 1 front door glass slot | 69955-47010 |
| 69975E | No. 1 front door glass groove filler | 69975-47010 |
| 75921C | No. 1 right side light-shielding film | 75921-52130 |
| 75922M | No. 1 left shading film | 75922-52130 |
| 86262E | front speaker cover | 86262-50010 |
