Toyota YARIS 侧梁 — Figure 6101

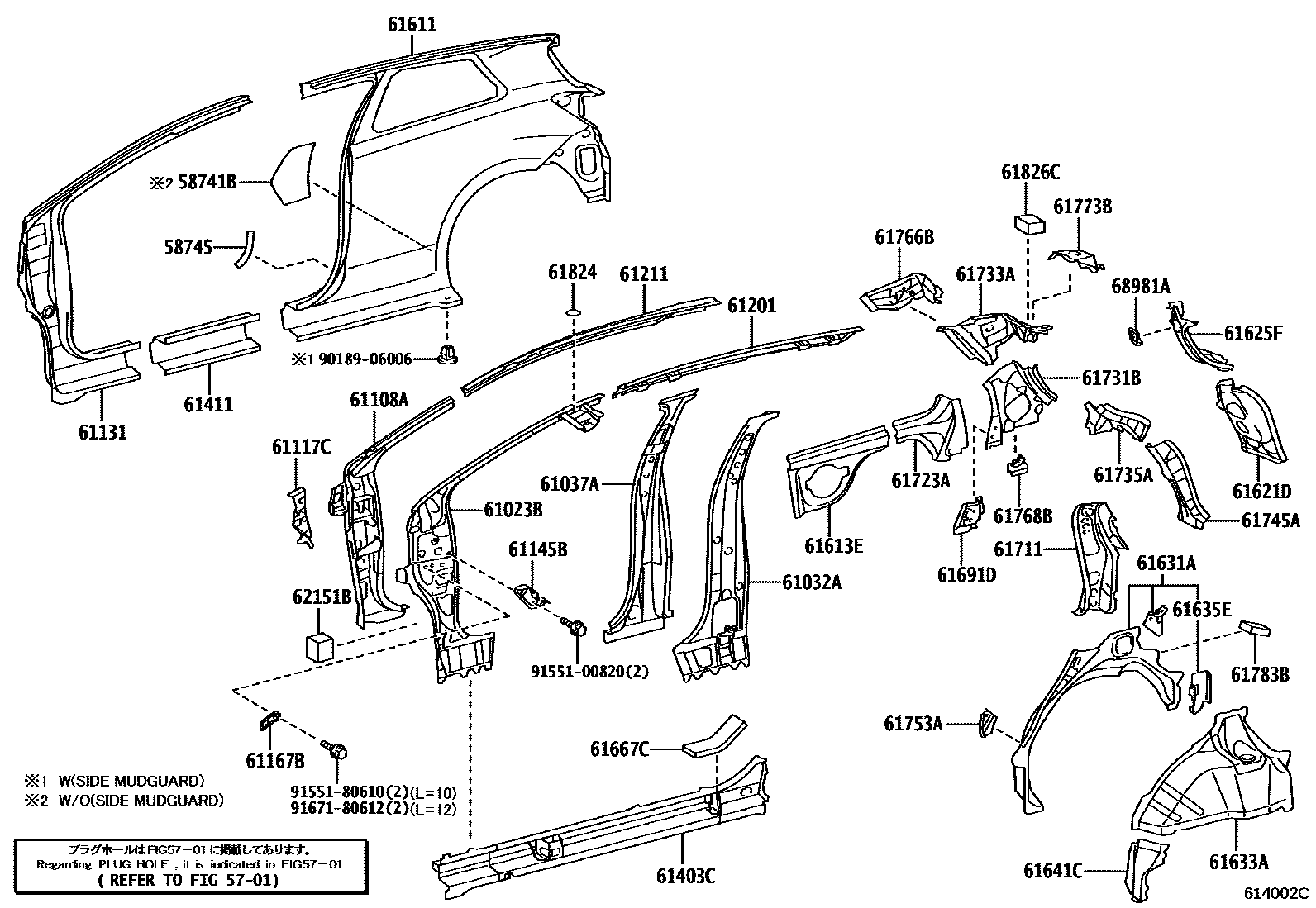

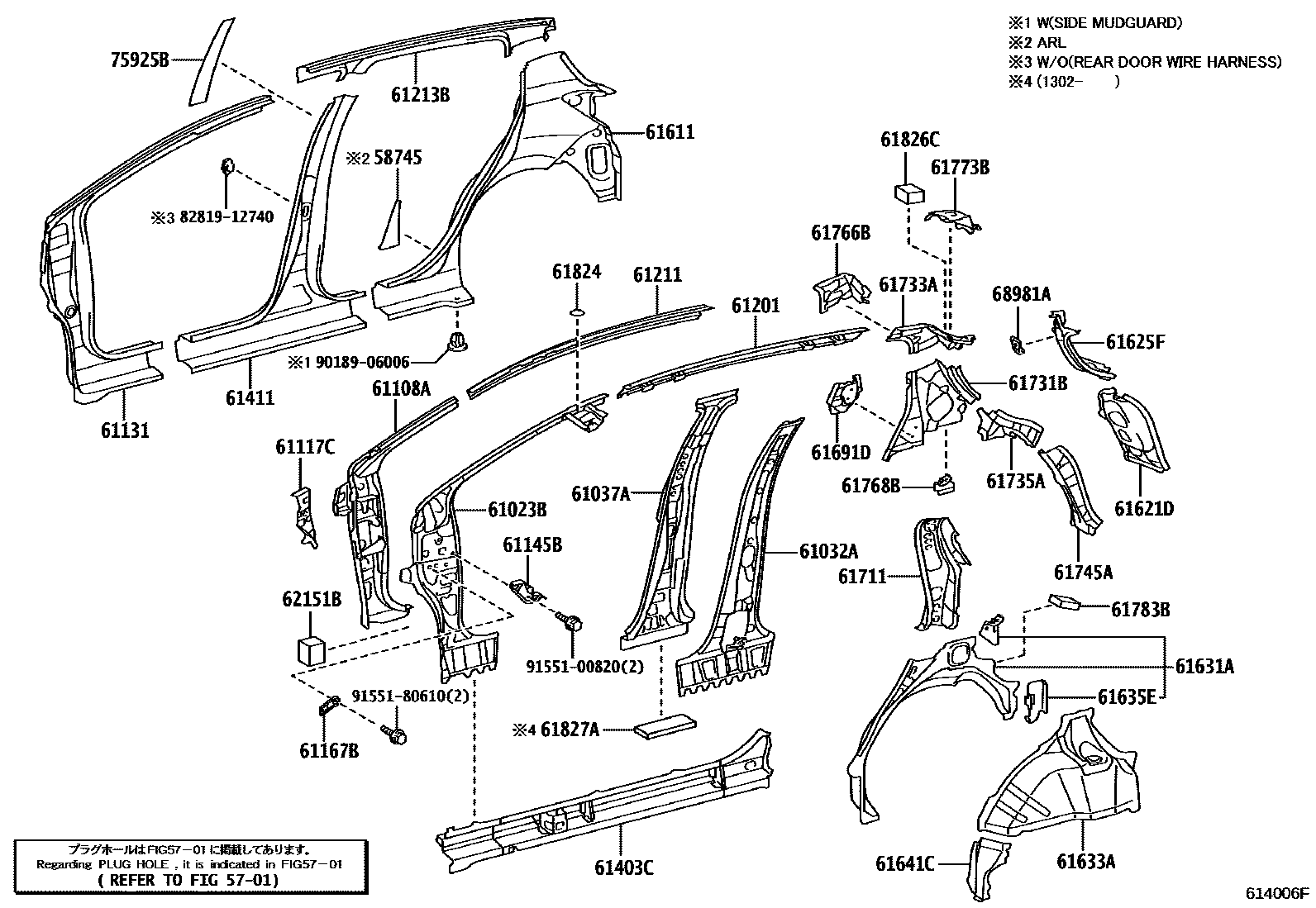

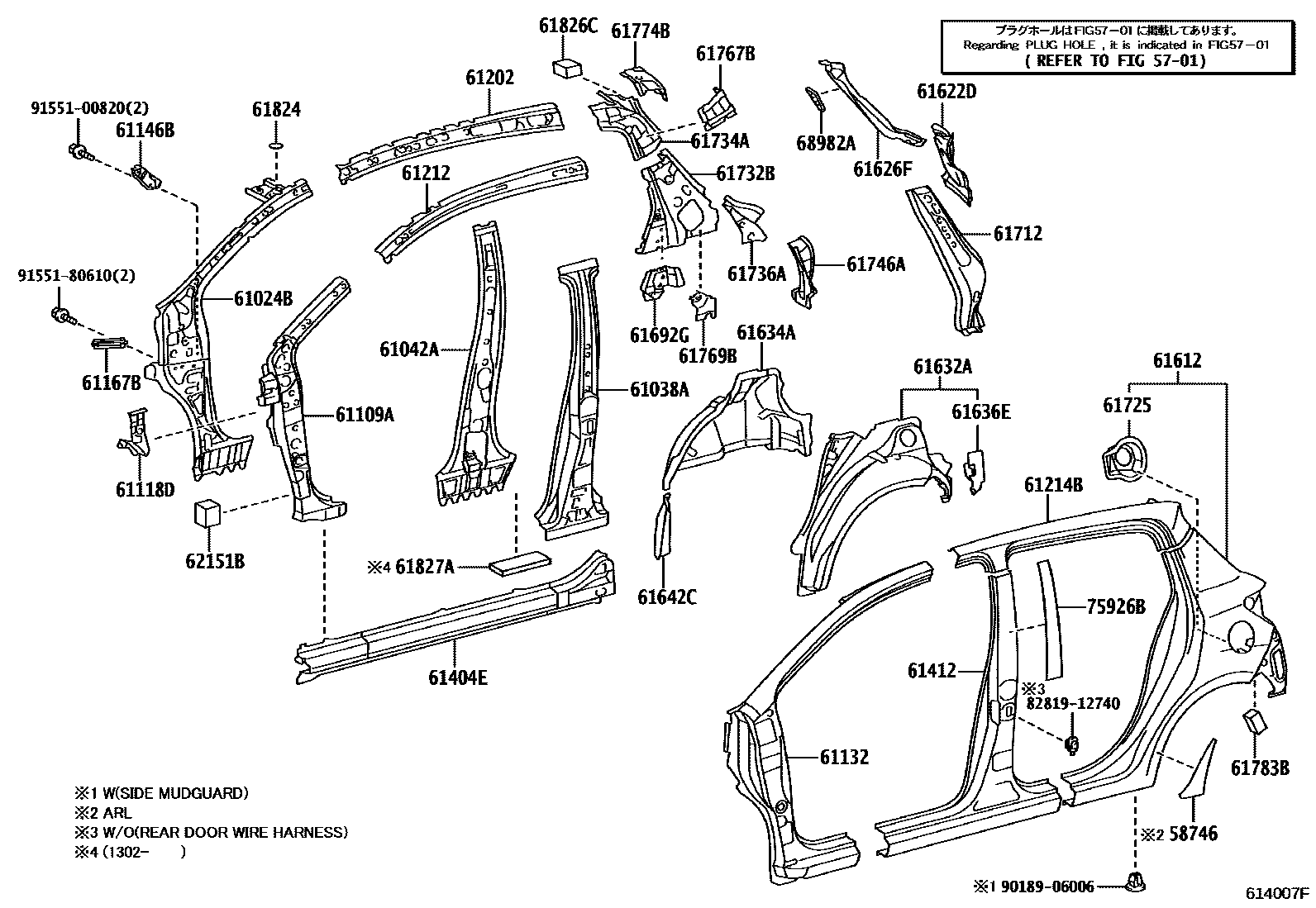

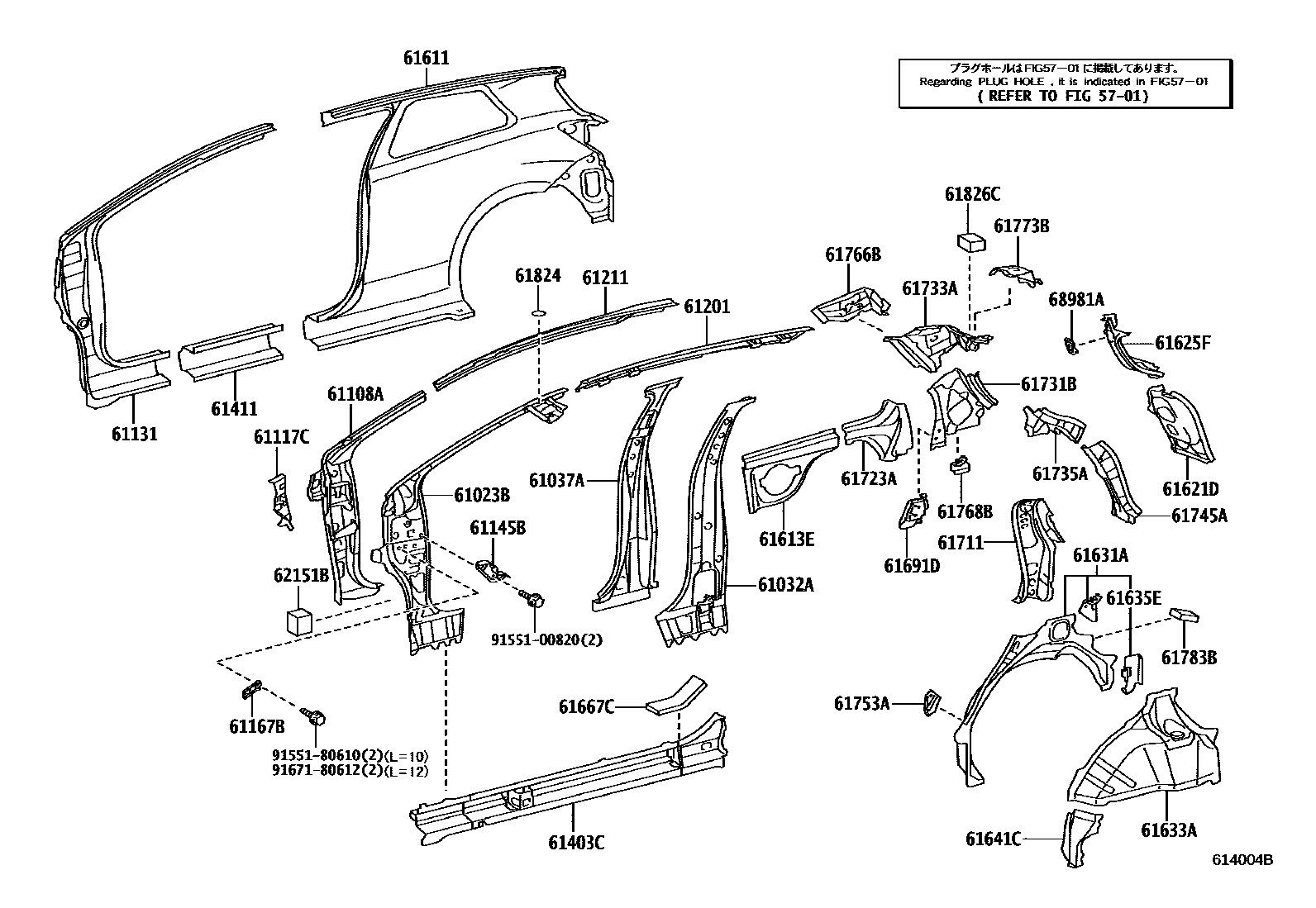

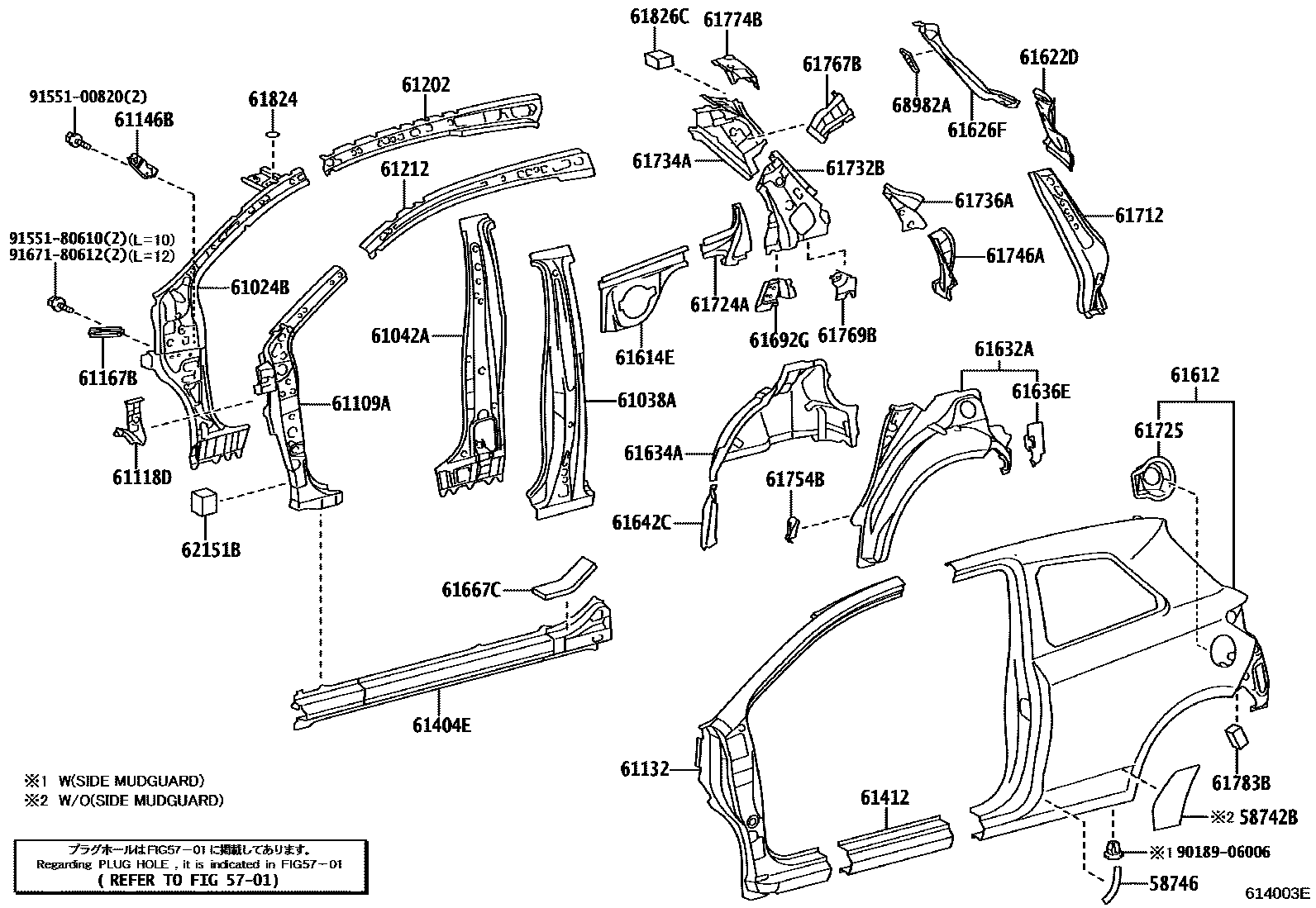

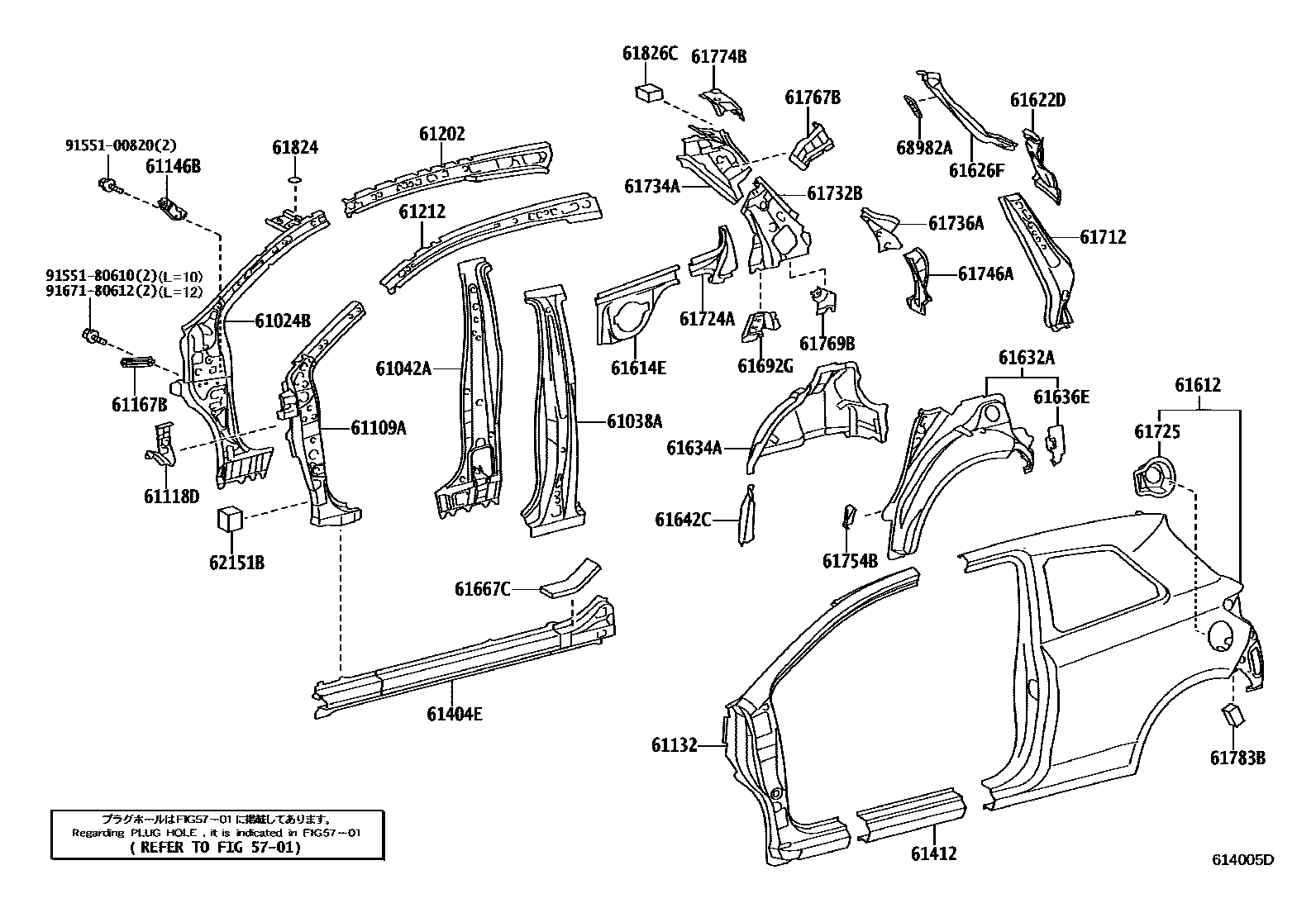

Toyota YARIS EPC diagram 6101, 侧梁, with 6 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-52360 |
| 58742B | Left side enclosure protection panel | 58742-52350 |
| 58745 | Right front side panel protector | 58741-52330 · 58745-52060 |
| 58746 | Left front side panel protector | 58742-52320 · 58746-52070 |
| 61023B | Right body inner front pillar sub-assembly | 61023-52170 · 61023-52171 |
| 61024B | Left body inner front pillar sub-assembly | 61024-52180 · 61024-52181 |
| 61032A | No. 1 right inner column sub-assembly | 61032-52090 · 61032-52100 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-52909 · 61037-52911 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-52909 · 61038-52910 |
| 61042A | No. 1 left inner column sub-assembly | 61042-52080 · 61042-52090 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-52904 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-52904 |
| 61117C | Side panel to right front quarter panel | 61117-52020 · 61117-52021 |
| 61118D | Side panel to left front quarter panel | 61118-52020 · 61118-52021 |
| 61131 | Right body outer front upper pillar | 61131-52300 · 61131-52310 · 61131-52380 · 61131-52390 |
| 61132 | Left body outer front upper pillar | 61132-52270 · 61132-52280 · 61132-52340 · 61132-52350 |
| 61145B | Right body front pillar lower corner panel | 61145-52060 · 61145-52090 |
| 61146B | Left body front pillar lower corner panel | 61146-52070 · 61146-52100 |
| 61167B | Body front pillar lower bracket | 61167-52020 · 61167-52040 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-52110 · 61201-52120 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-52100 · 61202-52110 |
| 61211 | Roof right outer longitudinal beam | 61071-52020 · 61211-52180 |
| 61212 | Roof left outer longitudinal beam | 61072-52020 · 61212-52180 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-52190 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-52190 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-52200 · 61403-52210 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-52200 · 61404-52210 |
| 61411 | Right door outer sill panel | 61411-52280 · 61411-52290 · 61411-52300 · 61411-52310 |
| 61412 | Left door outer sill panel | 61412-52290 · 61412-52300 · 61412-52310 · 61412-52320 |
| 61611 | Right side hoarding | 61601-52570 · 61601-52580 · 61601-52610 · 61601-52620 |
| 61612 | left side panel | 61602-52590 · 61602-52600 · 61602-52630 · 61602-52640 · 61602-52720 · 61602-52730 |
| 61613E | Right side inner panel | 61613-52060 |
| 61614E | Left side inner panel | 61614-52040 |
| 61621D | Back door right opening slot | 61621-52160 · 61621-52200 |
| 61622D | Rear door left opening slot | 61622-52160 · 61622-52200 |
| 61625F | Extension on right side panel | 61625-52150 |
| 61626F | Extension on left side panel | 61626-52150 |
| 61631A | Right wheel cover outer panel | 61631-52908 |
| 61632A | Left side wheel cover outer panel | 61632-52905 · 61632-52908 |
| 61633A | Right wheel housing lining panel | 61607-52330 |
| 61634A | Left side wheel housing lining panel | 61608-52370 |
| 61635E | Right wheel housing extension | 61635-52110 |
| 61636E | Left side wheel housing extension | 61636-52110 · 61636-52111 |
| 61641C | Right front side wheel housing corner panel | 61641-52100 |
| 61642C | Left front side wheel housing corner panel | 61642-52100 |
| 61667C | No. 1 side panel seal | 61667-52080 |
| 61691D | Rear right seat back lock buckle reinforcement | 61691-52010 · 61691-52020 |
| 61692G | Rear left seat back lock buckle reinforcement | 61692-52010 · 61692-52020 |
| 61711 | Roof right side outer panel | 61711-52180 |
| 61712 | Roof left outer panel | 61712-52210 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-52010 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-52010 |
| 61725 | Fuel inlet | 61725-52120 · 61725-52160 |
| 61731B | Roof right inner panel | 61731-52240 · 61731-52250 |
| 61732B | Roof left inner panel | 61732-52290 · 61732-52300 |
| 61733A | Right front roof inner panel | 61733-52040 · 61733-52050 |
| 61734A | Left front roof inner panel | 61734-52030 · 61734-52040 |
| 61735A | Right rear roof inner panel | 61735-52110 |
| 61736A | Left rear roof inner panel | 61736-52110 |
| 61745A | Back door opening lower right reinforcement | 61745-52120 |
| 61746A | Rear door opening lower left reinforcement | 61746-52120 |
| 61753A | Side panel lower fixings | 61753-52020 |
| 61754B | Left side decorative panel lower fixing piece | 61754-52020 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-52150 · 61766-52160 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-52170 · 61767-52180 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-52200 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-52200 |
| 61773B | Back door upper right opening frame | 61773-52020 |
| 61774B | Back door upper left opening frame | 61774-52020 |
| 61783B | No. 1 rear fender outer panel pad | 61783-52040 |
| 61824 | Noise Control Panel No. 1 | 61824-12060 · 61824-52010 |
| 61826C | No. 3 silencer panel gasket | 61826-52040 · 62151-20160 |
| 61827A | Noise Control Panel No. 4 | 61826-52030 |
| 62151B | Front cowl side silencer pads | 62151-52030 |
| 68981A | Back door right side support rod fixing | 68981-52090 · 68981-52130 |
| 68982A | Back door left support rod fixing | 68982-52060 · 68982-52090 |
| 75925B | No. 3 right side light-blocking film | 75925-52110 |
| 75926B | No. 3 left shading film | 75926-52110 |
