Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 20 PNC and OE references.

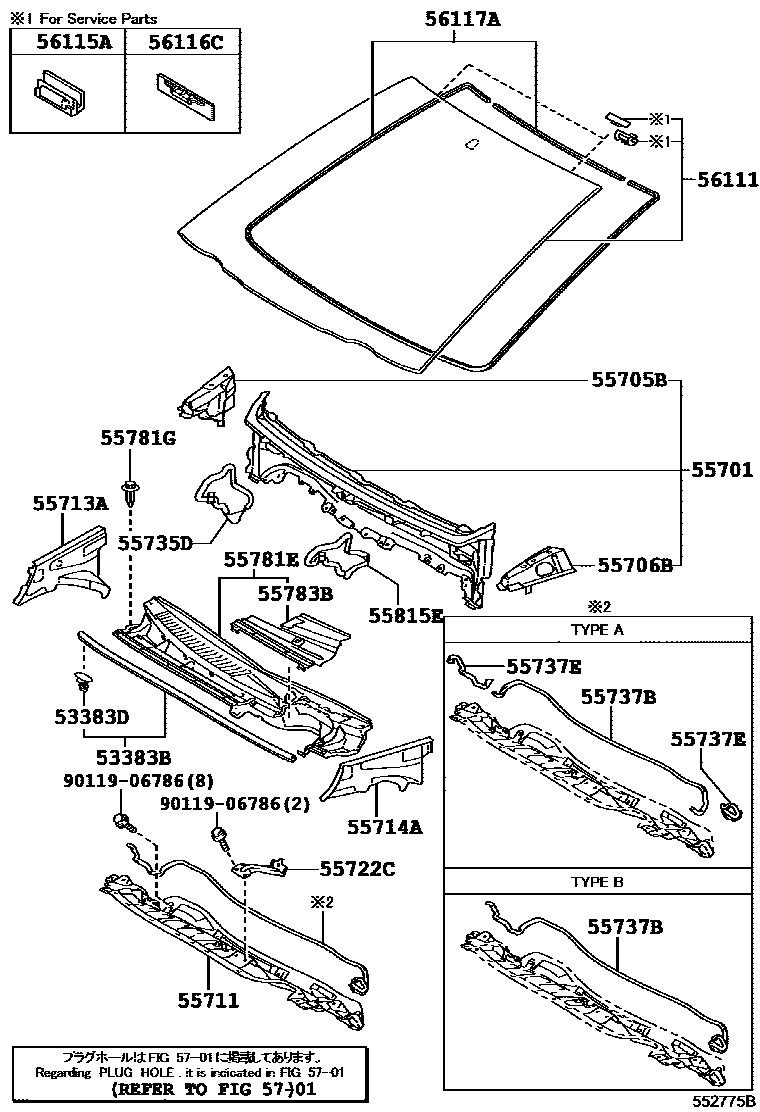

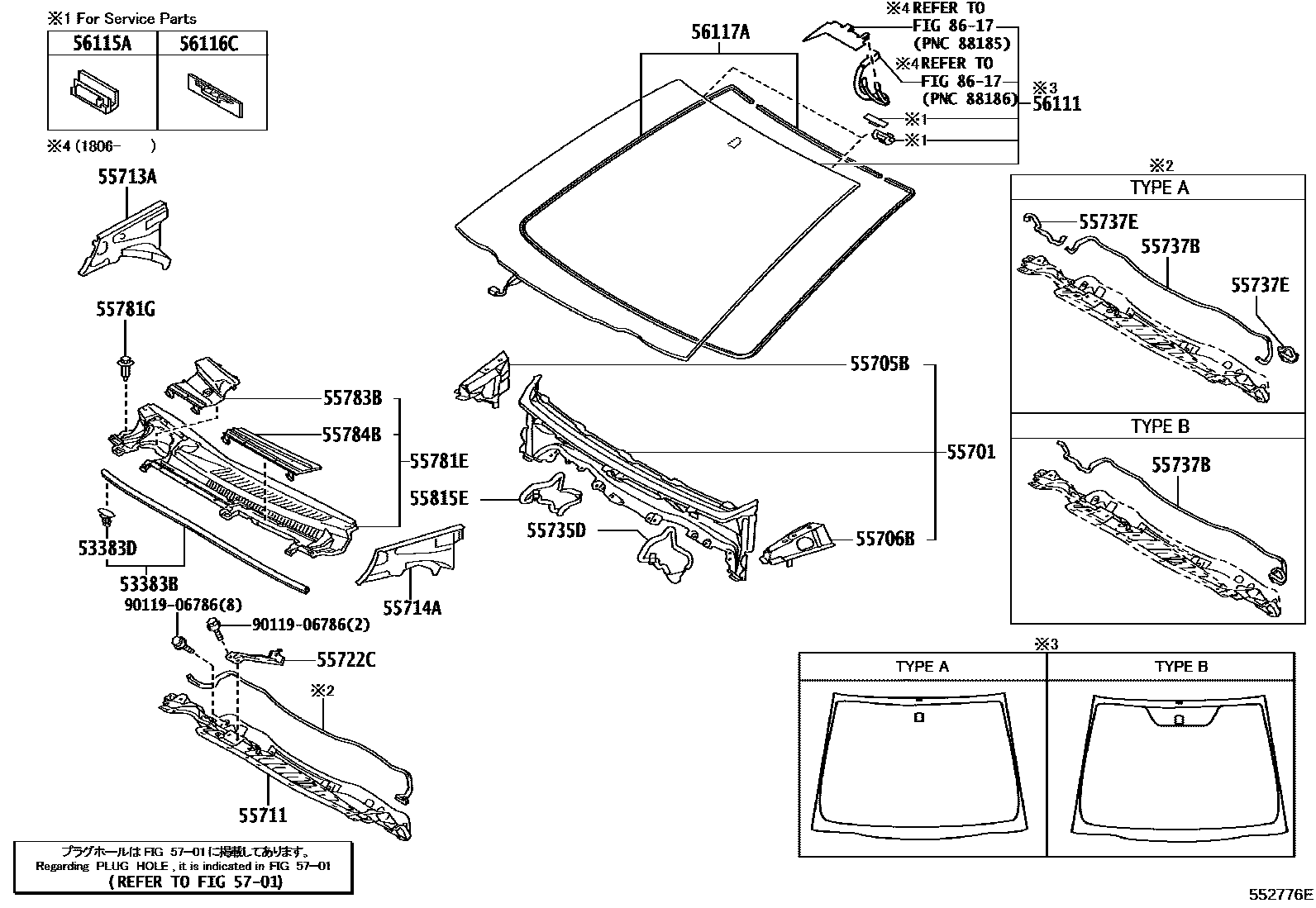

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-52130 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55701 | Front apron sub-assembly | 55700-52280 · 55700-52290 · 55700-52340 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-52150 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-52150 |
| 55711 | Front outer panel | 55701-52270 · 55701-52280 · 55701-52370 |
| 55713A | Right front wall upper side panel | 55713-52130 |
| 55714A | Left front wall upper side panel | 55714-52130 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-52110 · 55722-52120 |
| 55735D | Front air door right seal | 55735-52090 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-52010 · 55737-74010 |
| 55737E | No. 2 heater duct splash guard seal | 55737-52050 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-52181 · 55708-52241 · 55708-52350 · 55708-52370 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-52280 · 55783-52290 · 55783-52340 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-52110 |
| 55815E | No. 1 front vent seal | 55815-52040 · 55815-52070 |
| 56111 | windshield | 56101-52550 · 56101-52610 · 56101-52B60 · 56101-52C70 · 56101-52E60 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |

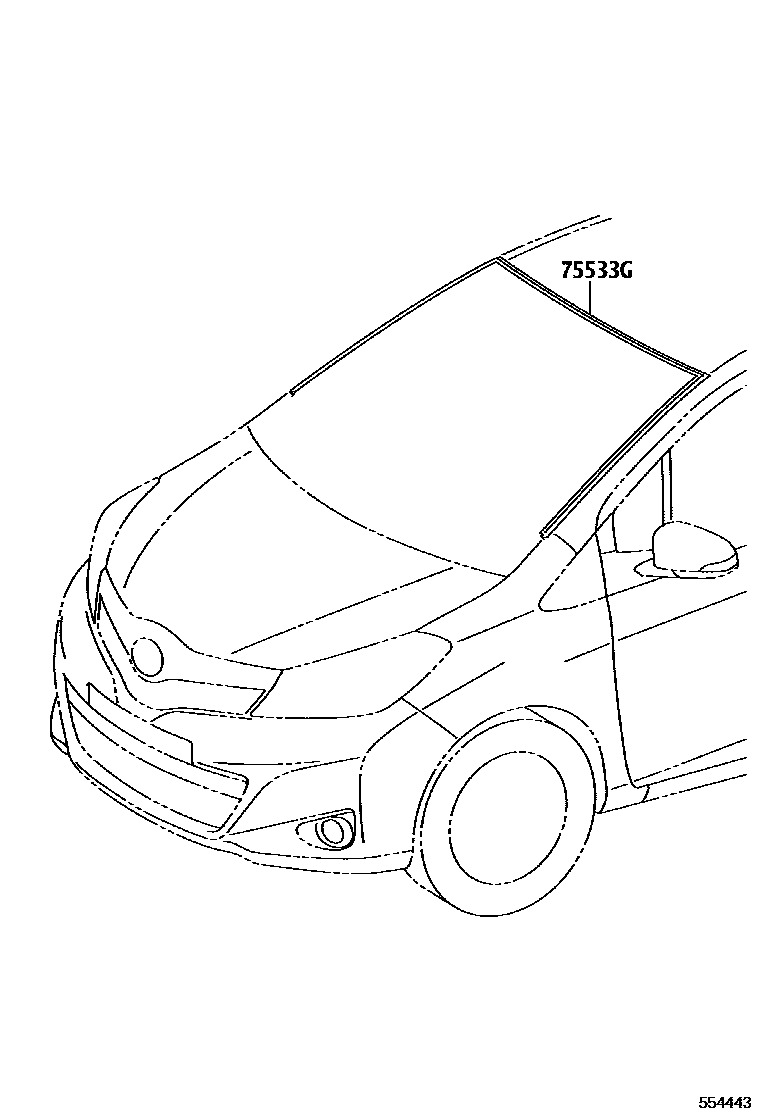

| 75533G | Windshield outer protective strip | 75533-52200 · 75533-52201 |
