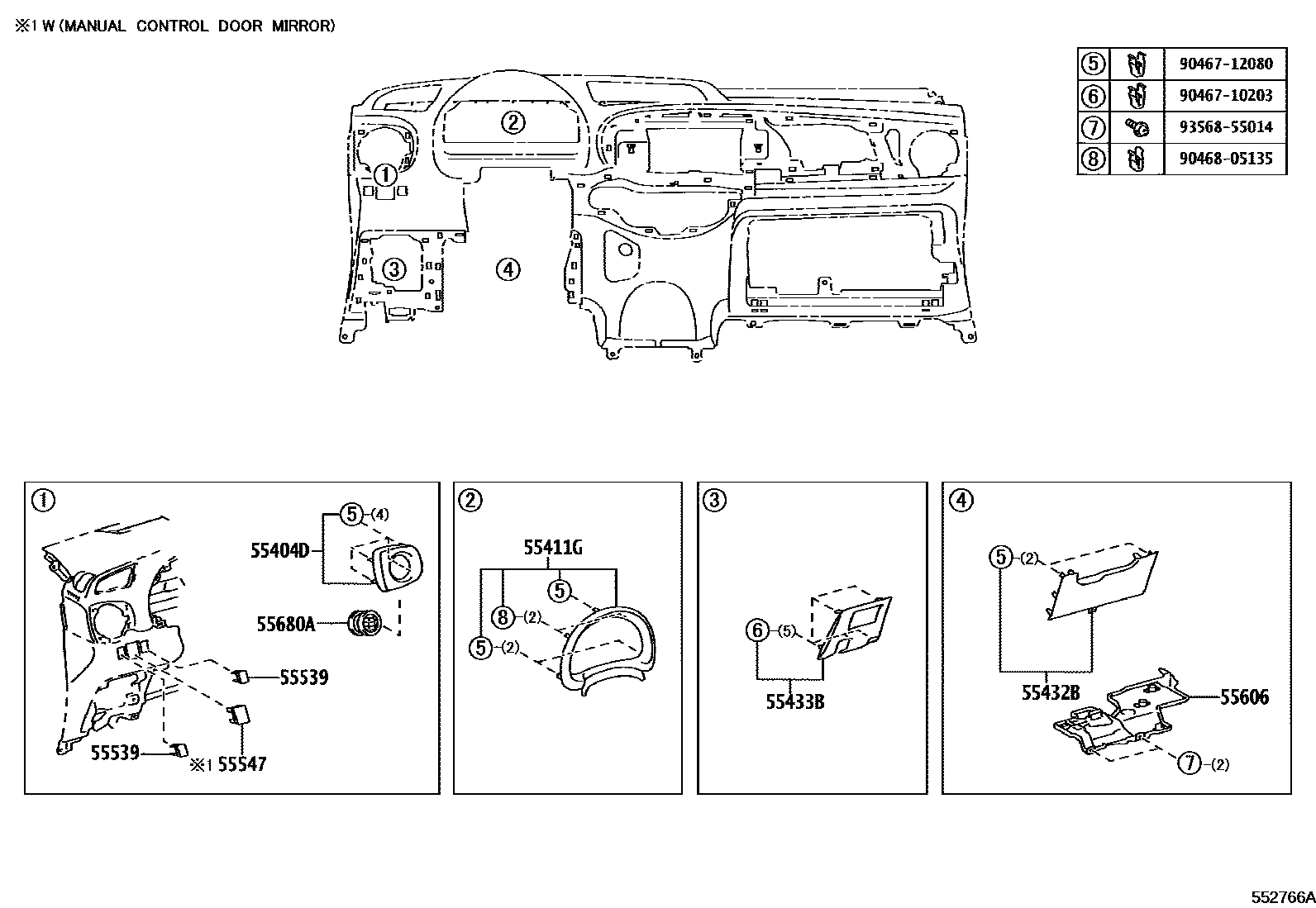

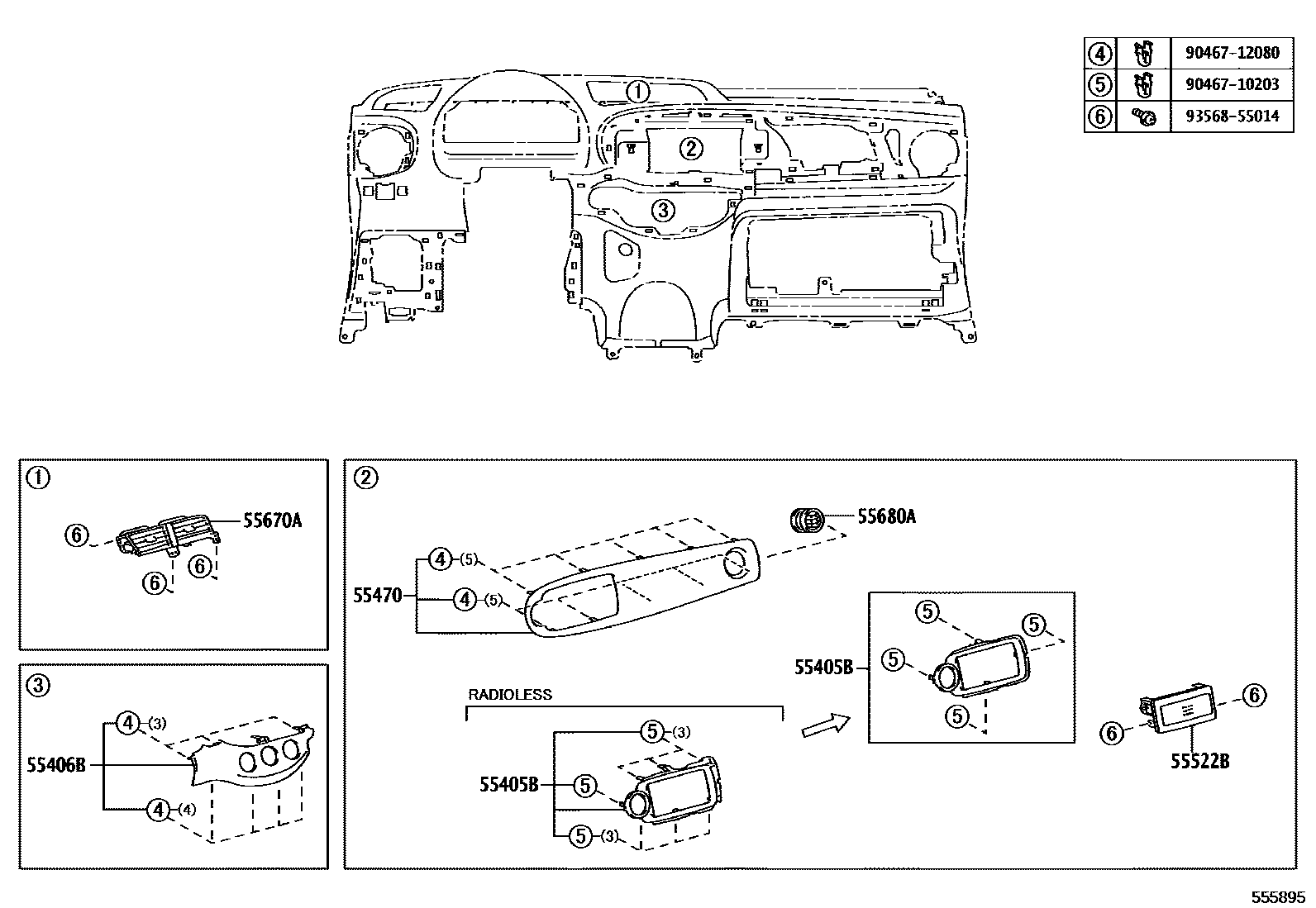

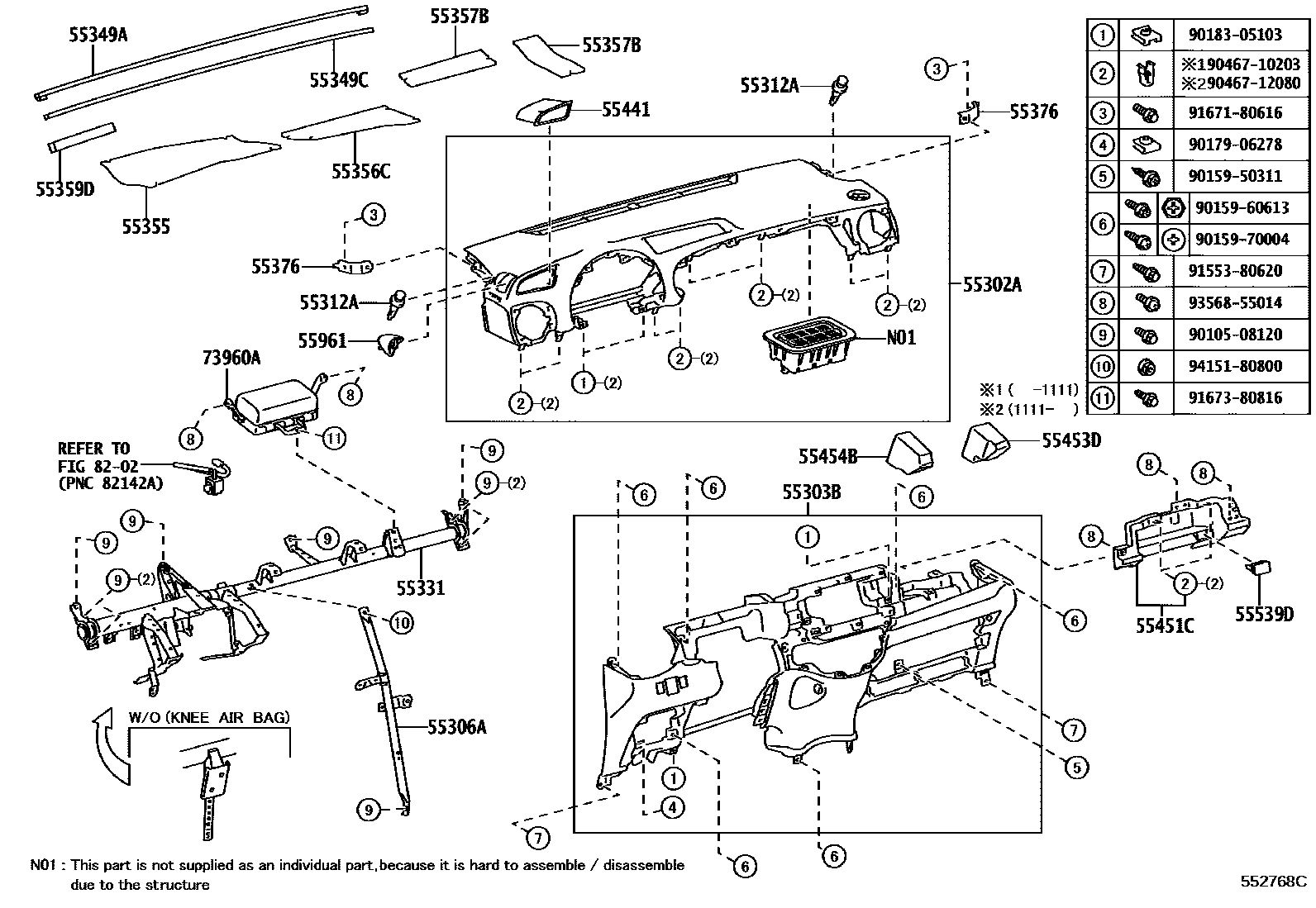

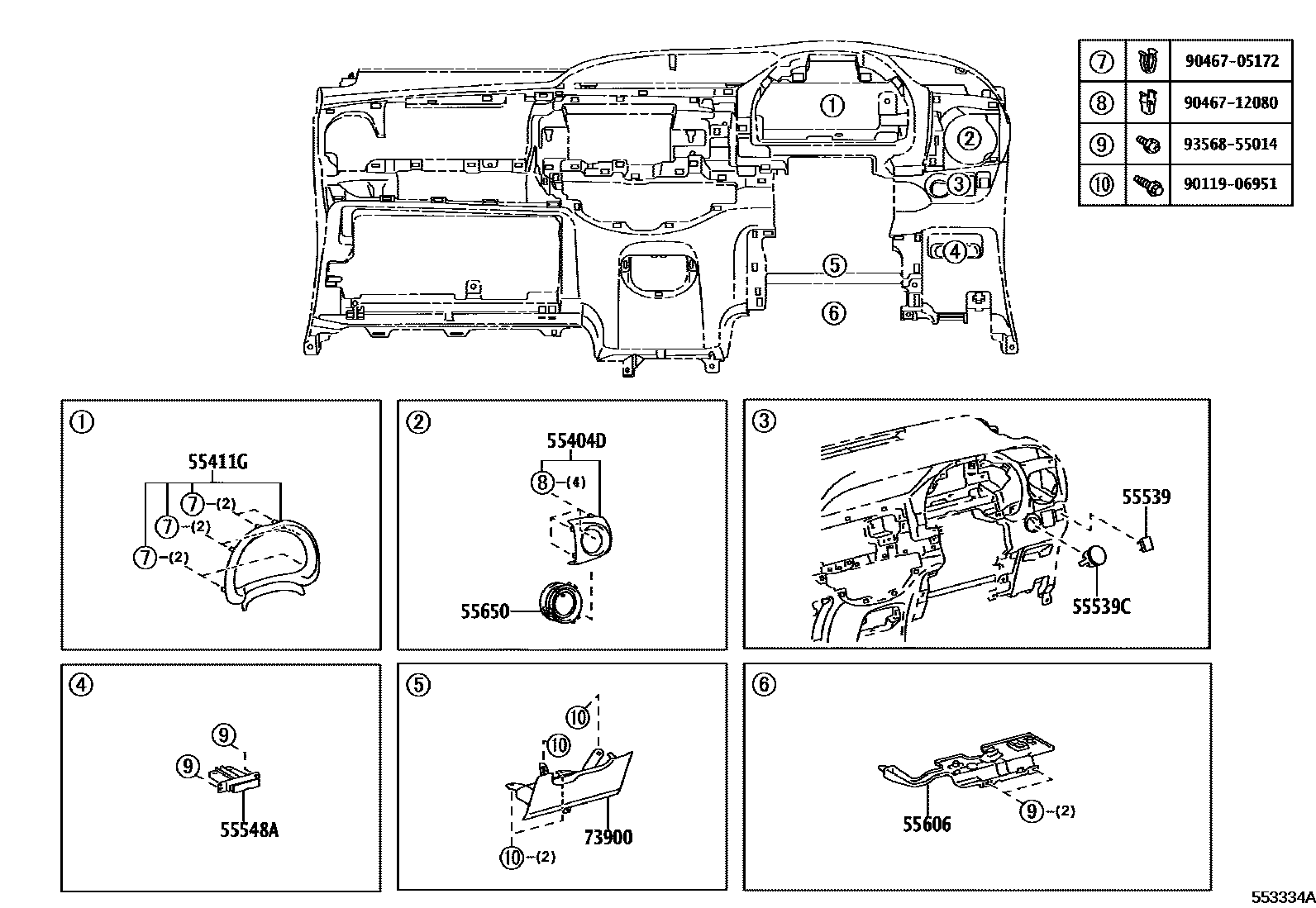

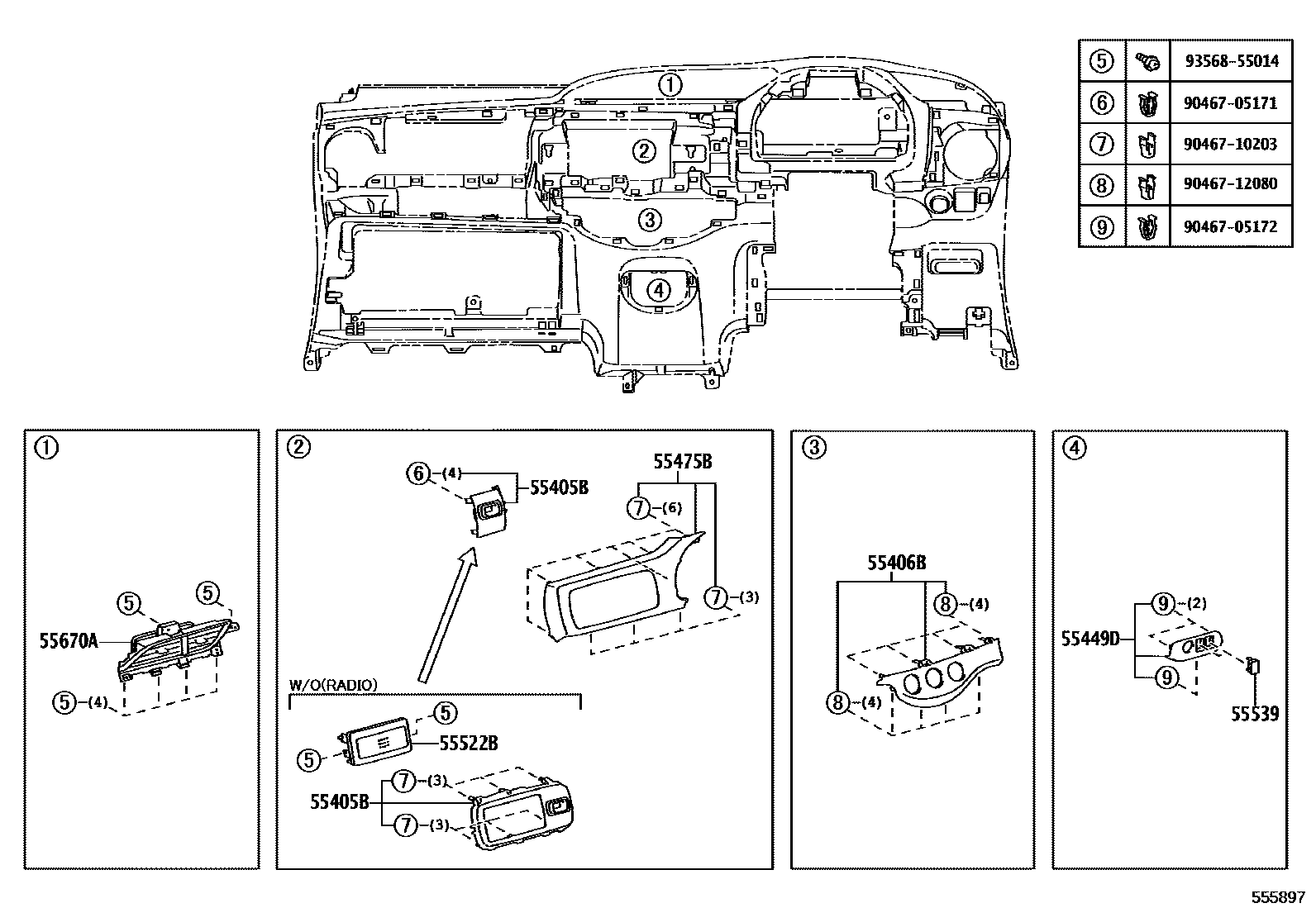

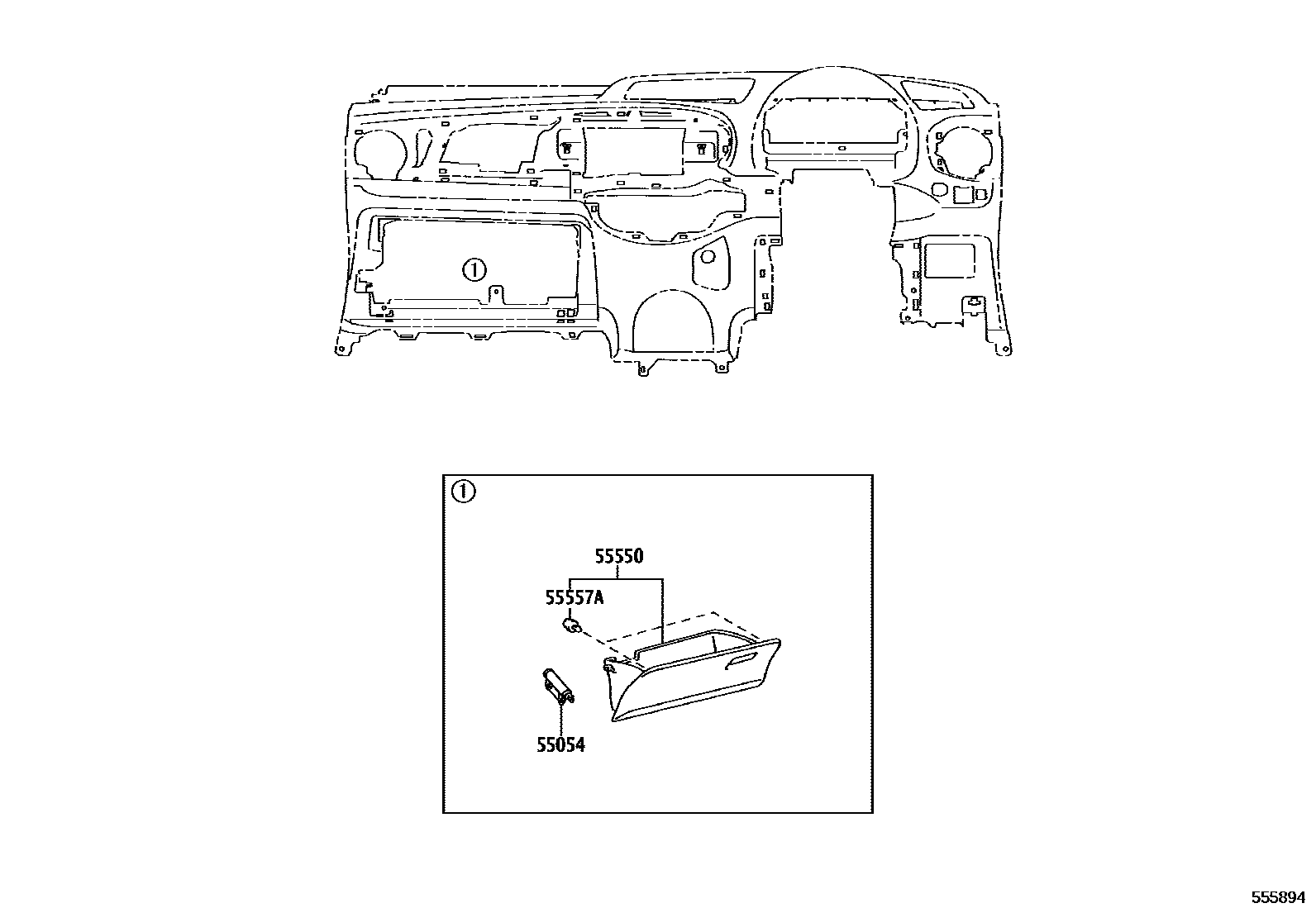

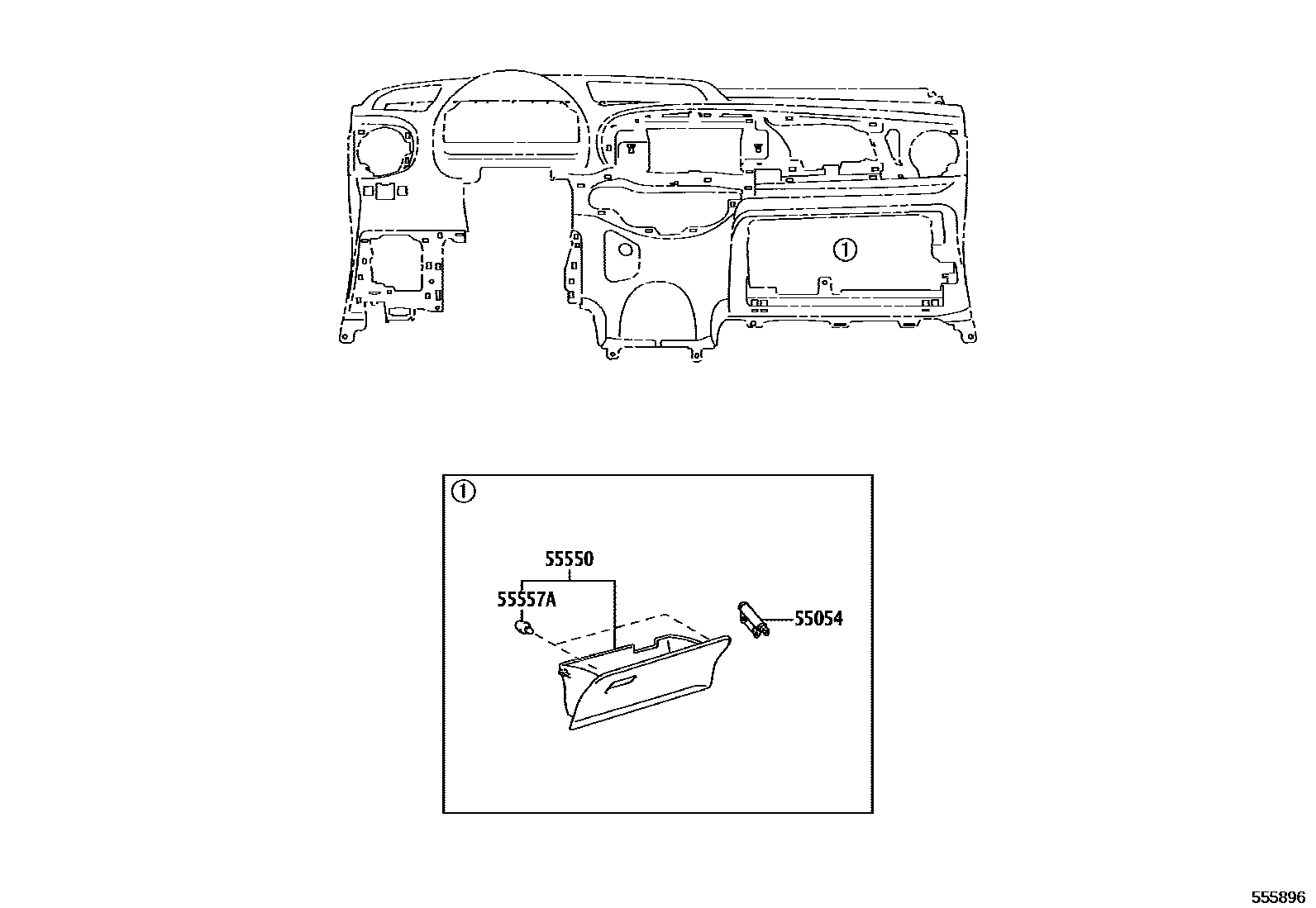

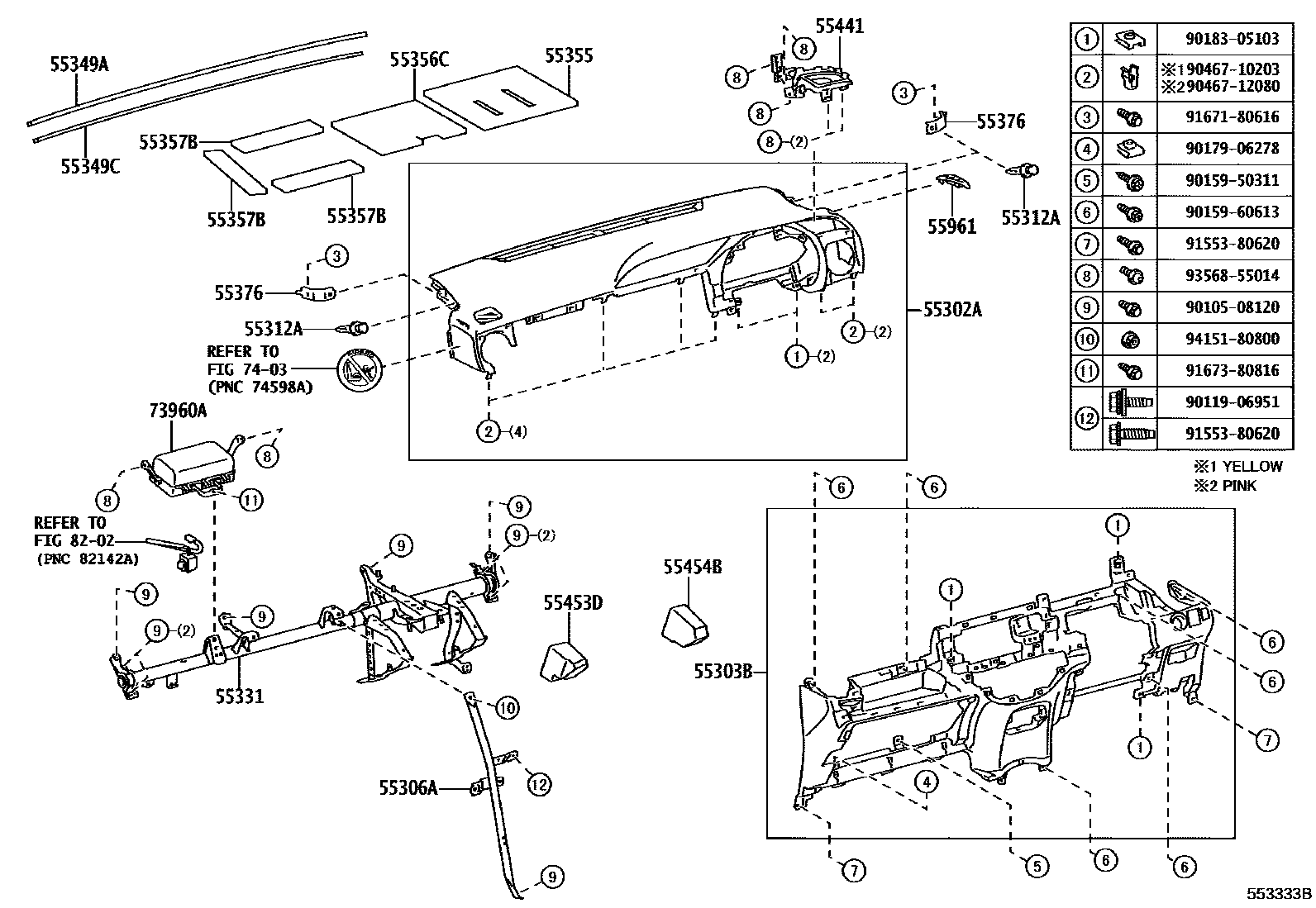

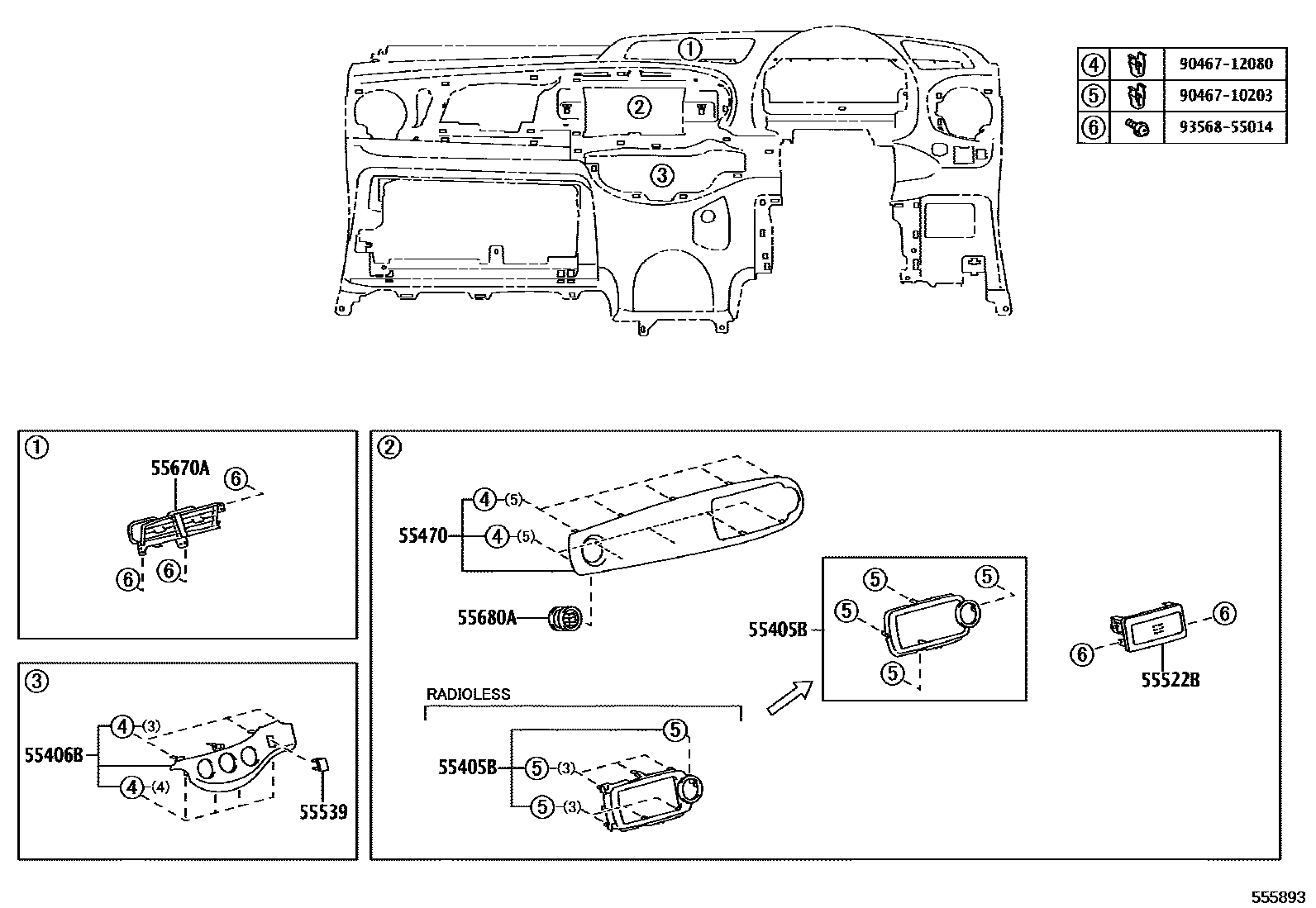

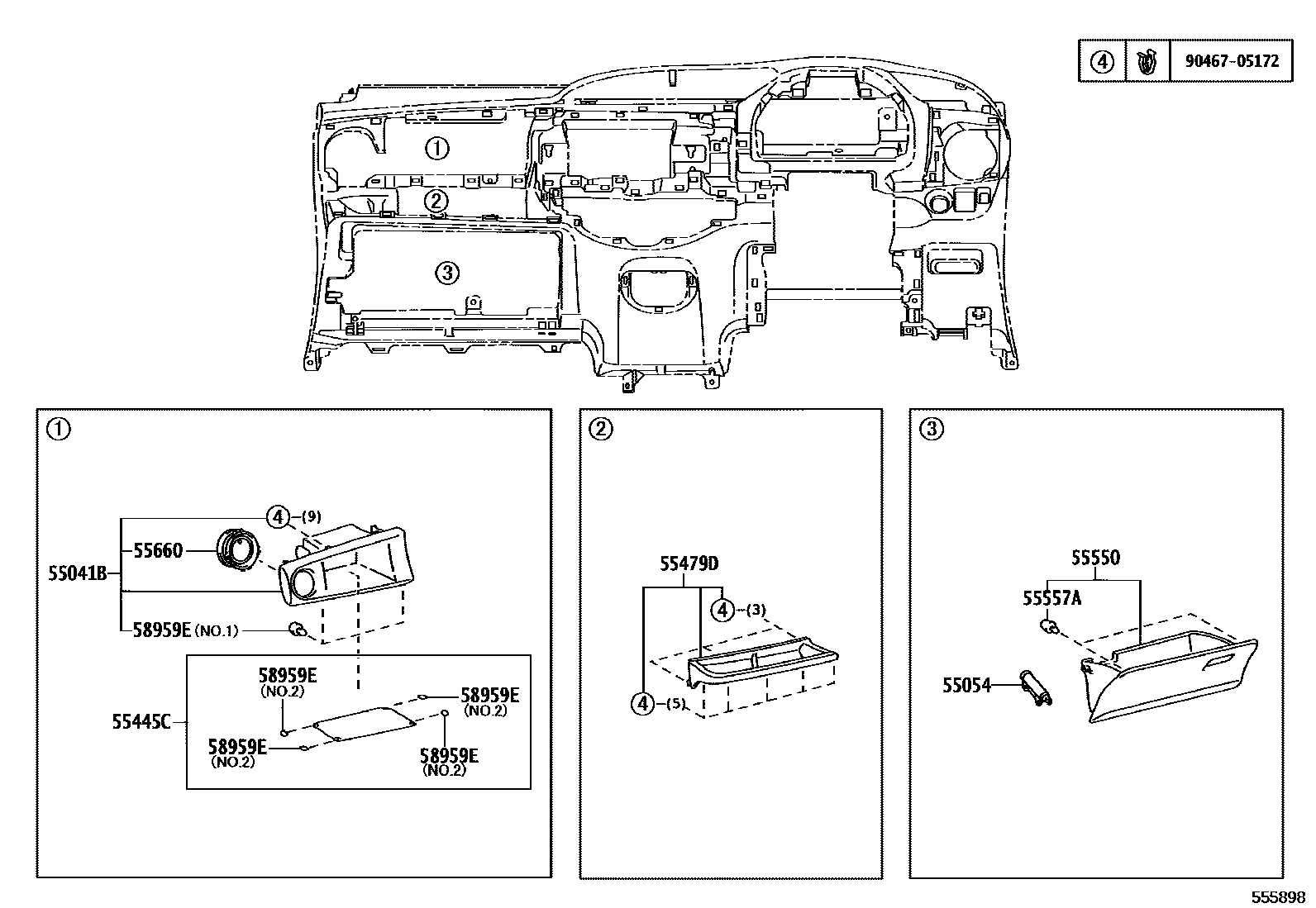

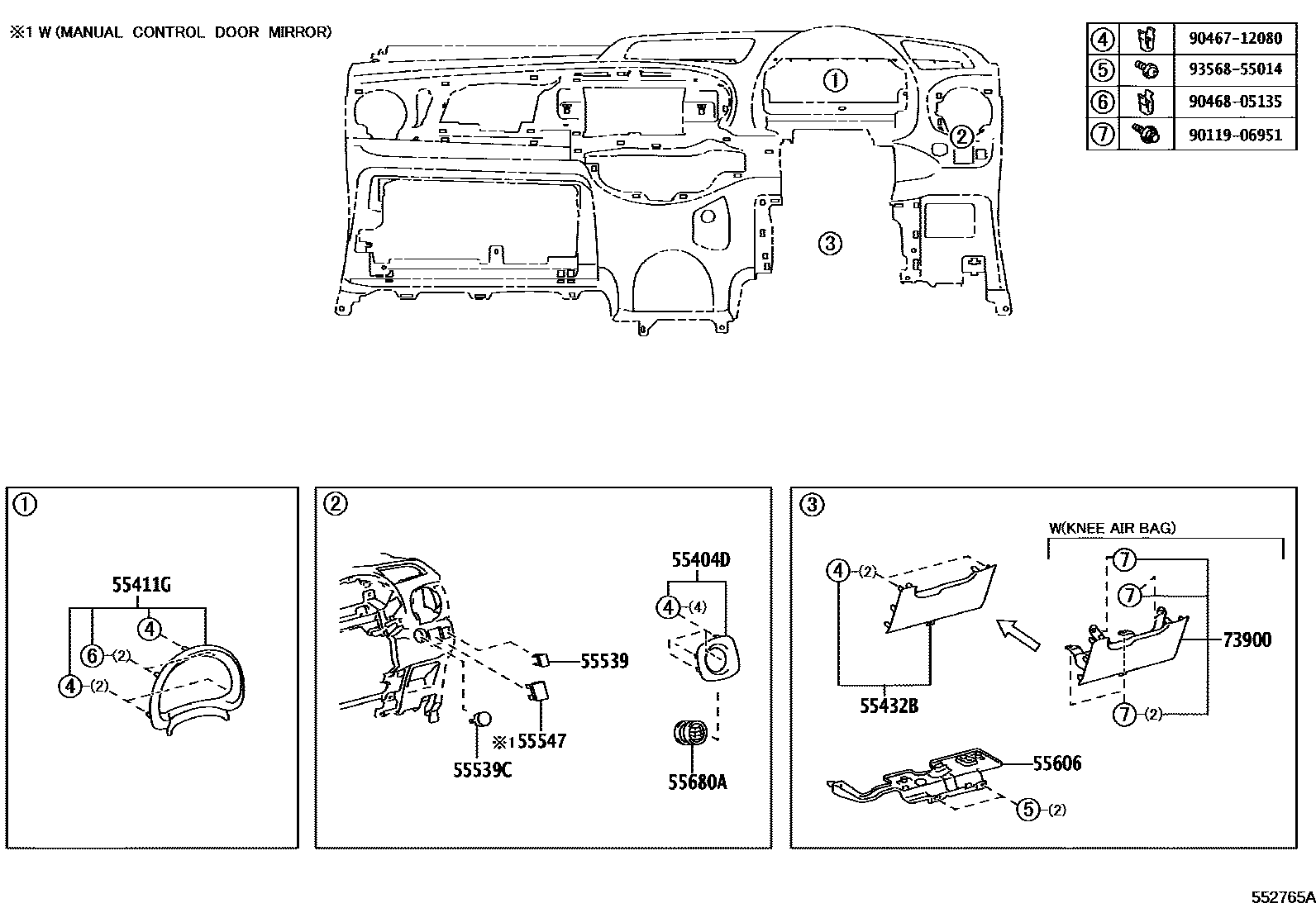

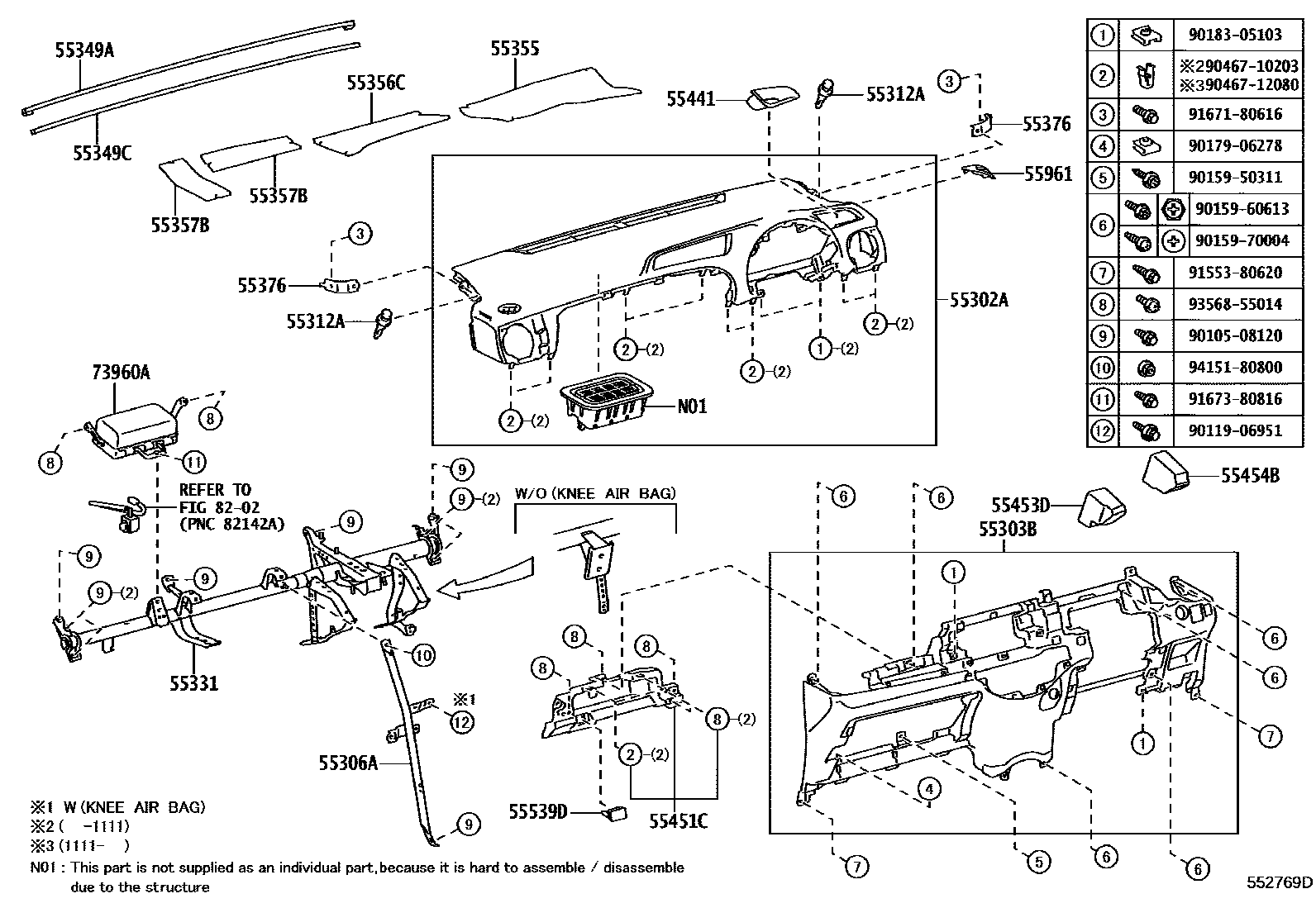

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 12 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-52160 · 55306-52180 · 55306-52260 · 55306-52370 · 55306-52371 · 55306-52390 · 55306-52391 |
| 55312A | Dashboard clip | 52161-16010 |
| 55331 | Dashboard reinforcement | 55330-52600 · 55330-52620 · 55330-52640 · 55330-52740 · 55330-52741 |
| 55349A | Dashboard cushion | 55349-52140 · 55349-52141 · 55349-52160 · 55349-52161 · 55349-52270 |
| 55349C | Dashboard cushion | 55349-52150 · 55349-52151 · 55349-52170 · 55349-52171 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52180 · 55355-52181 · 55355-52270 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-52190 · 55356-52191 · 55356-52250 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-52160 · 55357-52161 · 55357-52200 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-52190 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-52110 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-52860 · 55405-52B30 · 55405-52B40 · 55405-52B90 · 55405-52D60 · 86451-52010 |
| 55445C | Dashboard storage box chassis | 55445-52250 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-52120 · 55453-52130 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-52110 · 55454-52120 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-52050 · 55606-52060 |
| 58959E | Armrest box cover cushion | 58959-52010 · 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-52150 · 73960-52151 · 73960-52152 · 73960-52370 |
