Toyota YARIS 发动机盖和前翼子板 — Figure 5302

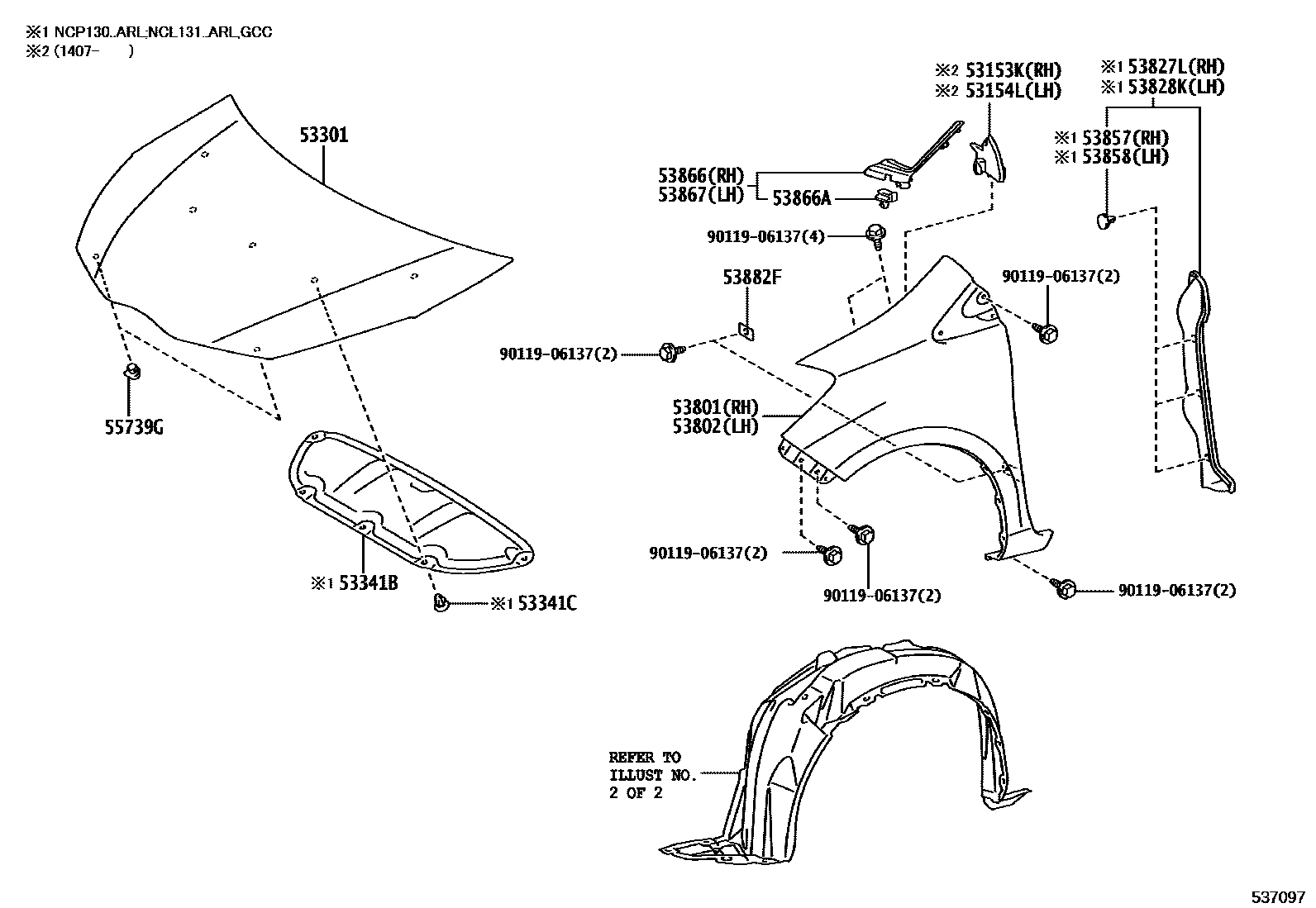

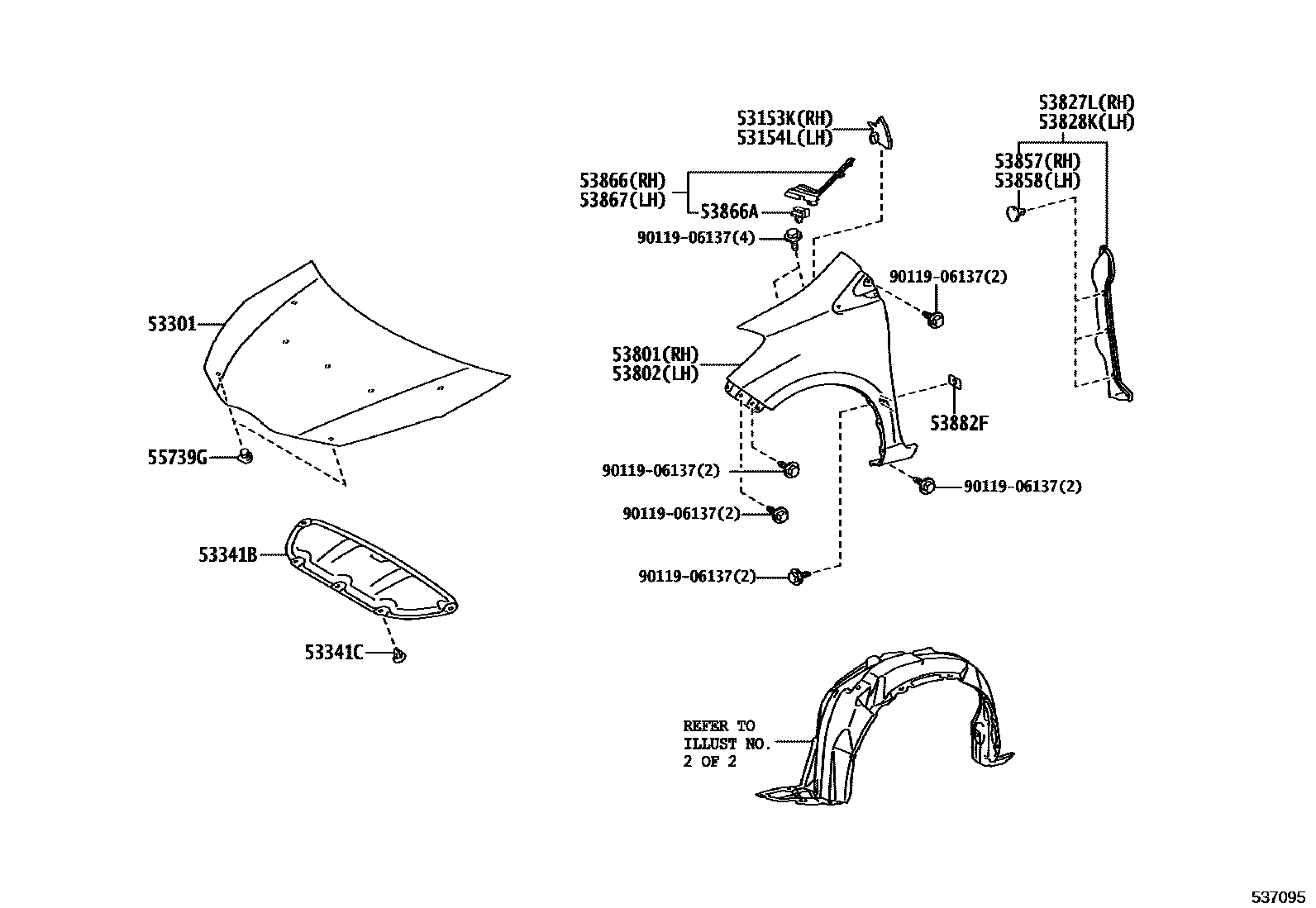

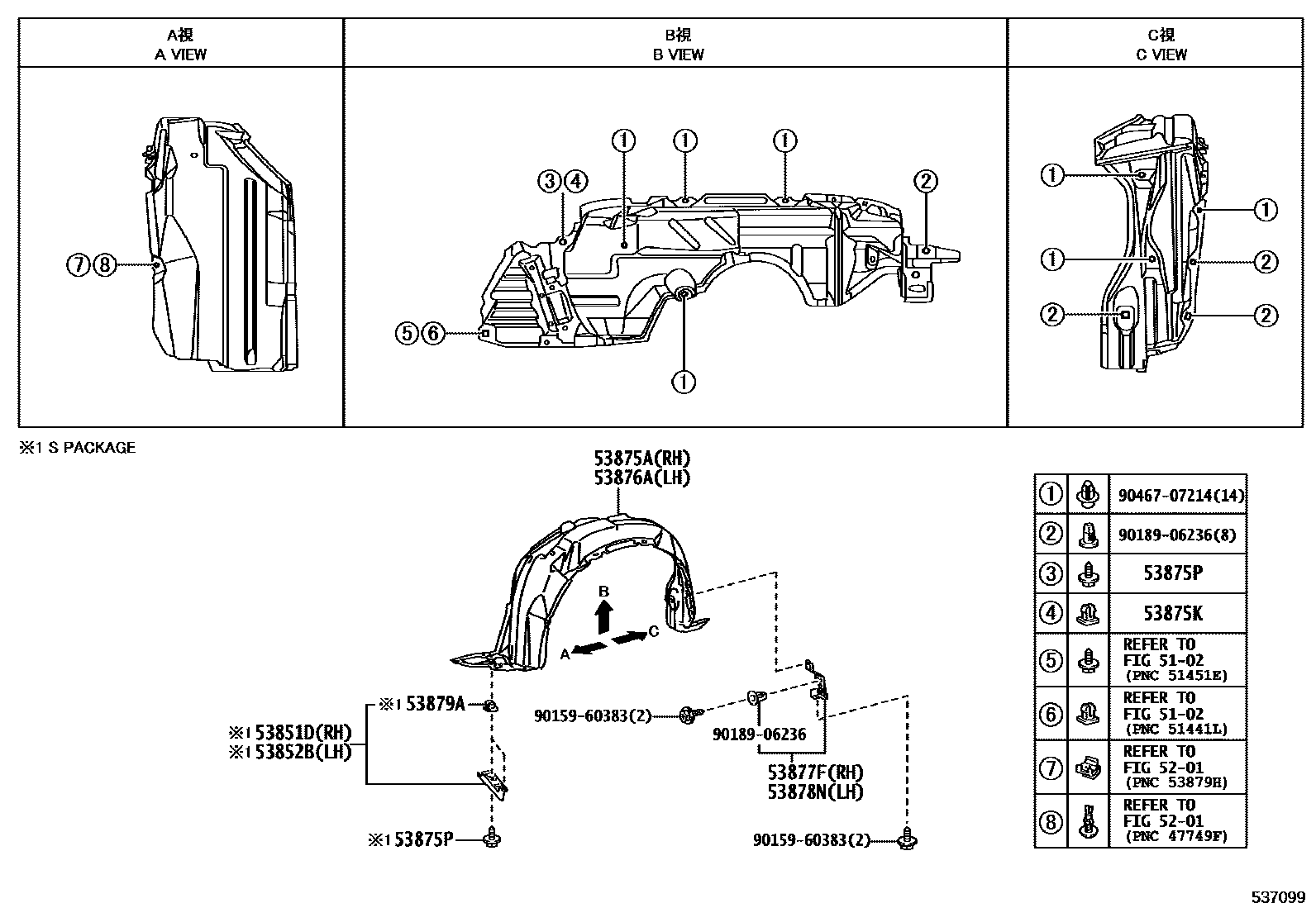

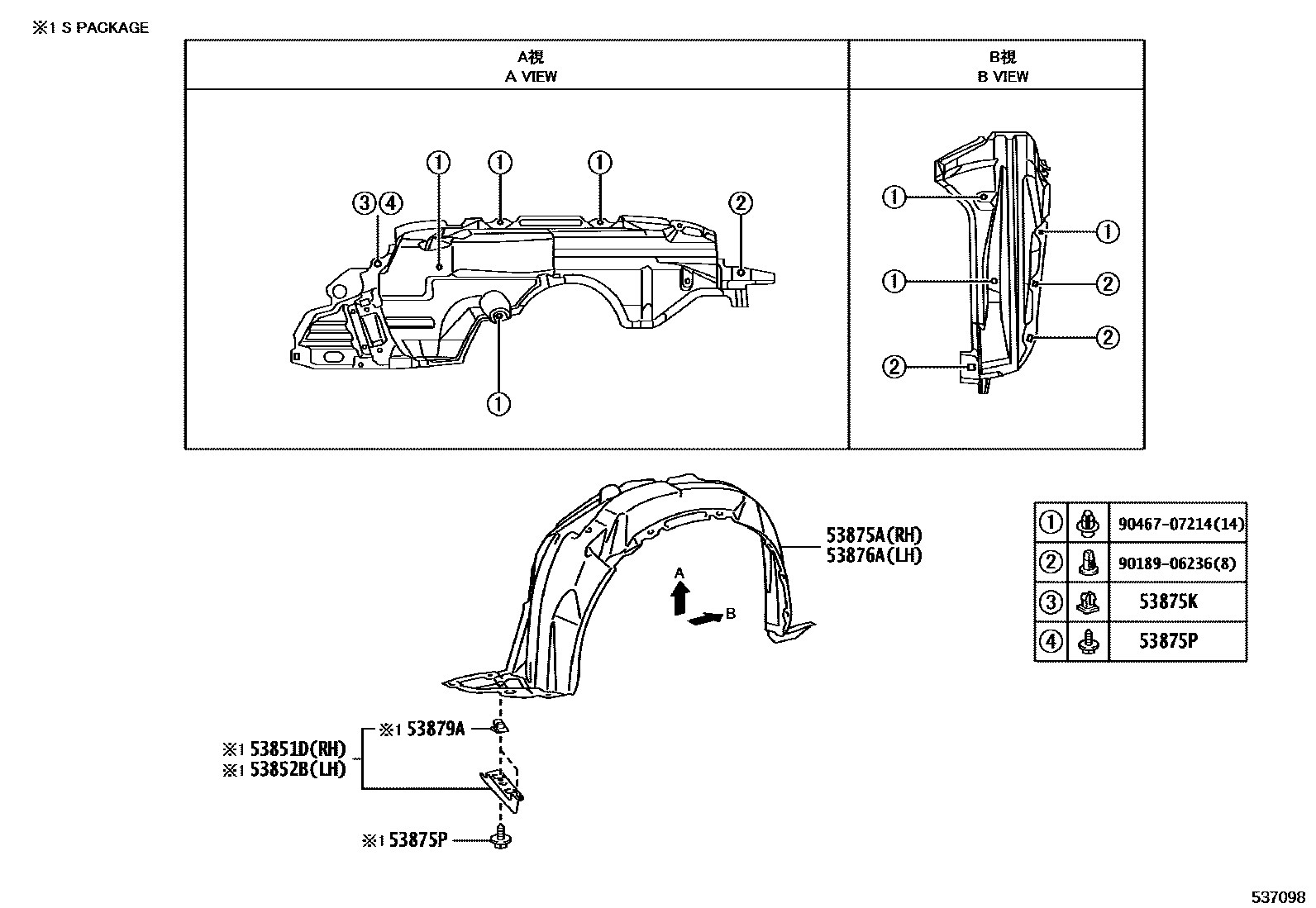

Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153K | Radiator grille right deflector | 53153-52030 |
| 53154L | Radiator grille left deflector | 53154-52030 |
| 53301 | Engine cover sub-assembly | 53301-52310 |
| 53341B | engine cover gasket | 53341-52180 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53801 | Right front fender sub-assembly | 53811-52370 · 53811-52380 · 53811-52550 · 53811-52560 |
| 53802 | Left front fender sub-assembly | 53812-52340 · 53812-52350 · 53812-52550 · 53812-52560 |
| 53827L | Right front fender side panel protector | 53827-52150 |
| 53828K | Left front fender side panel protector | 53828-52160 |
| 53851D | Right front fender outer panel pad | 53851-52170 |
| 53852B | Left front fender exterior panel pad | 53852-52160 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53866 | Right front fender to cowl side seal | 53866-52090 · 53866-52140 |
| 53866A | Clip (for front fender to cowl side seal) | 55799-52020 |
| 53867 | Left front fender to cowl side seal | 53867-52090 · 53867-52160 |
| 53875A | Right front fender lining | 53805-52070 · 53805-52080 · 53875-52290 · 53875-52430 |
| 53875K | screw seal | 90189-06237 |
| 53875P | Screw No. 1 | 90159-60488 |
| 53876A | Left front fender lining | 53806-52060 · 53806-52070 · 53876-52290 · 53876-52430 |
| 53877F | Right front fender lining bracket | 53877-52050 |
| 53878N | Left front fender lining bracket | 53878-52060 |
| 53879A | Front fender lining fixing parts | 53879-17020 |
| 53882F | front fender seal | 53882-16030 |
| 55739G | Engine cover stop | 55738-52060 |
