Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 3 images and 5 PNC and OE references.

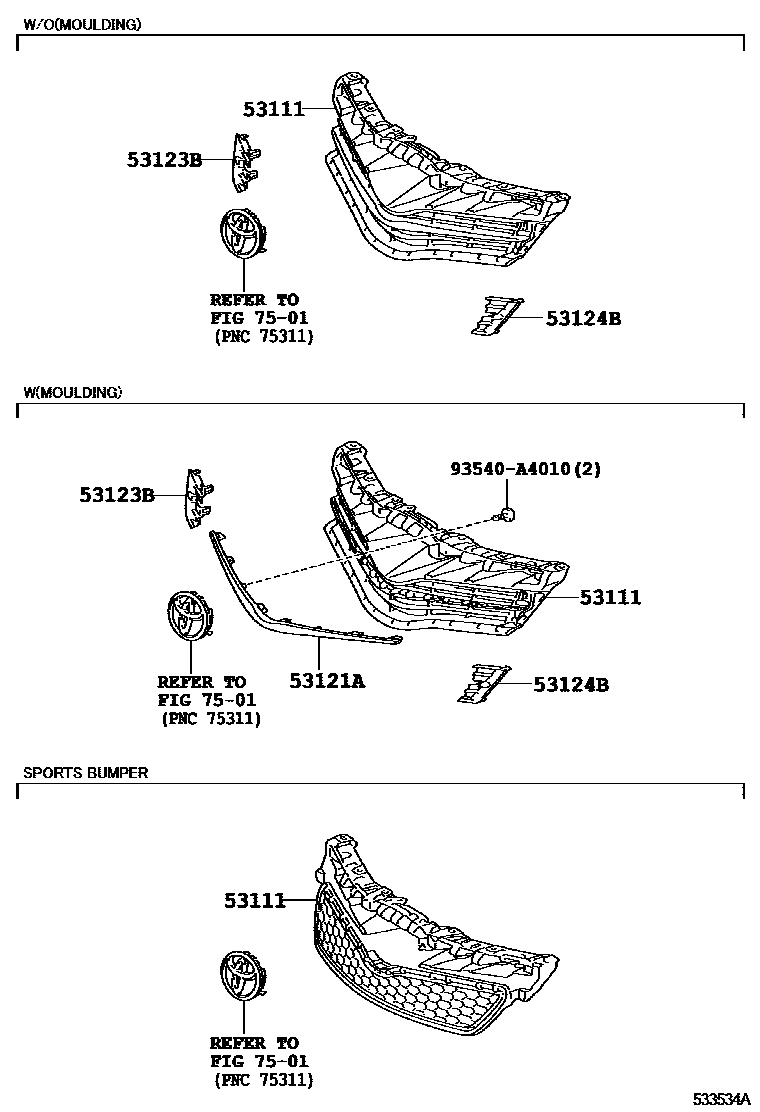

Toyota YARIS radiator grille EPC diagram — 533534A
radiator grille — 533534A (201108 – 201407)

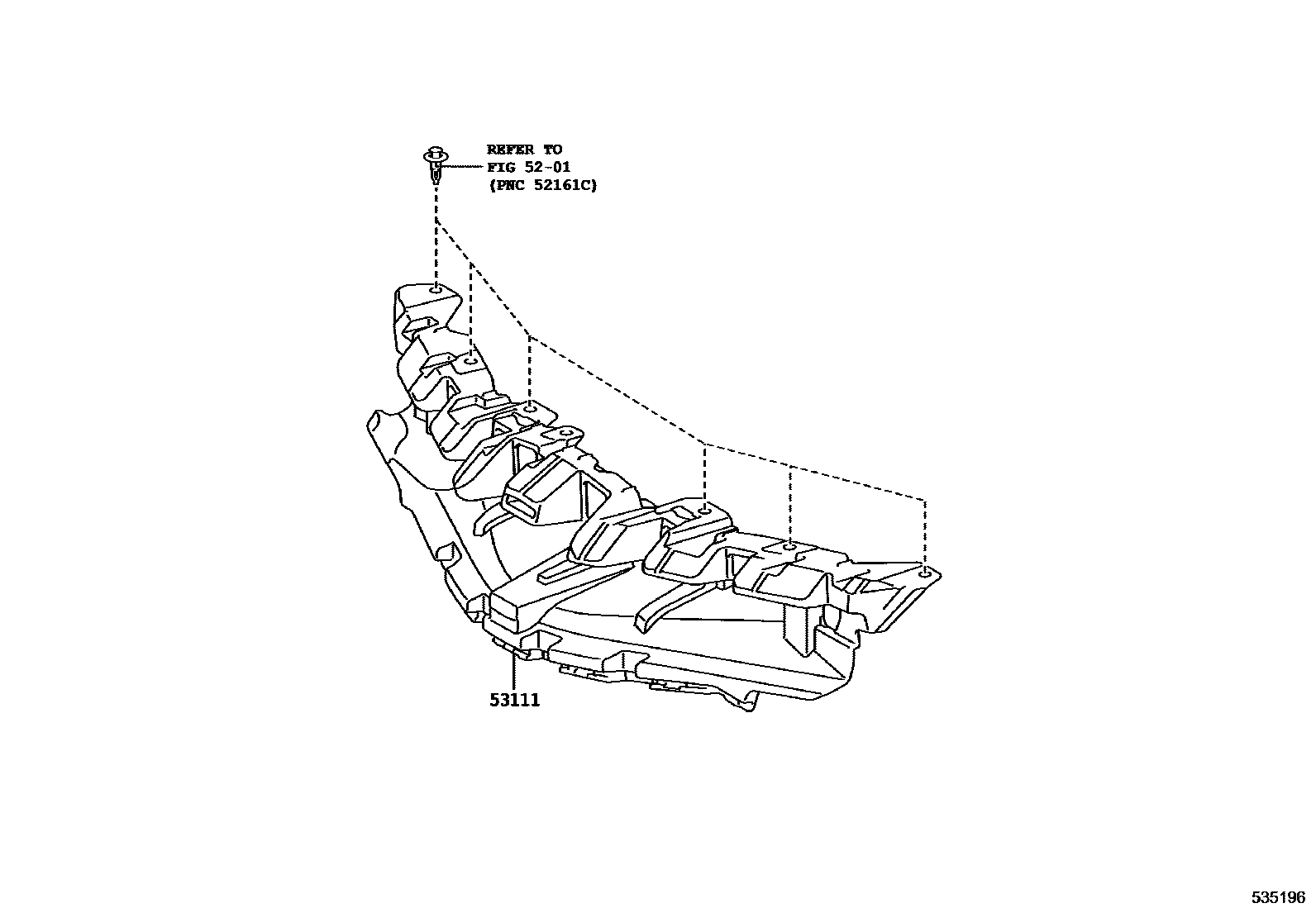

Toyota YARIS radiator grille EPC diagram — 535196
radiator grille — 535196 (201701 – 999999)

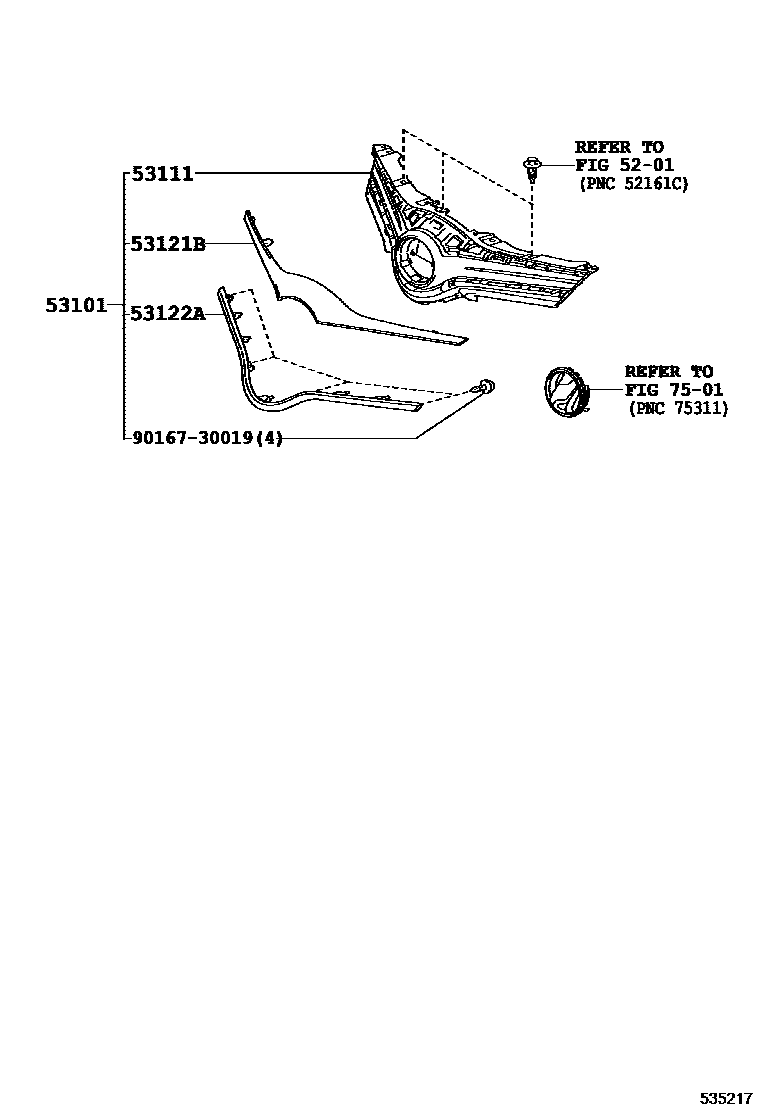

Toyota YARIS radiator grille EPC diagram — 535217
radiator grille — 535217 (201407 – 201701)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-52500 · 53111-52620 · 53111-52640 · 53111-52680 · 53111-52790
53121ARadiator grille protection strip53121-52130
53122ARadiator grille lower protective strip53121-52150
53123BProtective strip on the right side of the radiator grille53123-52030
53124BRadiator grille left protective strip53124-52030
