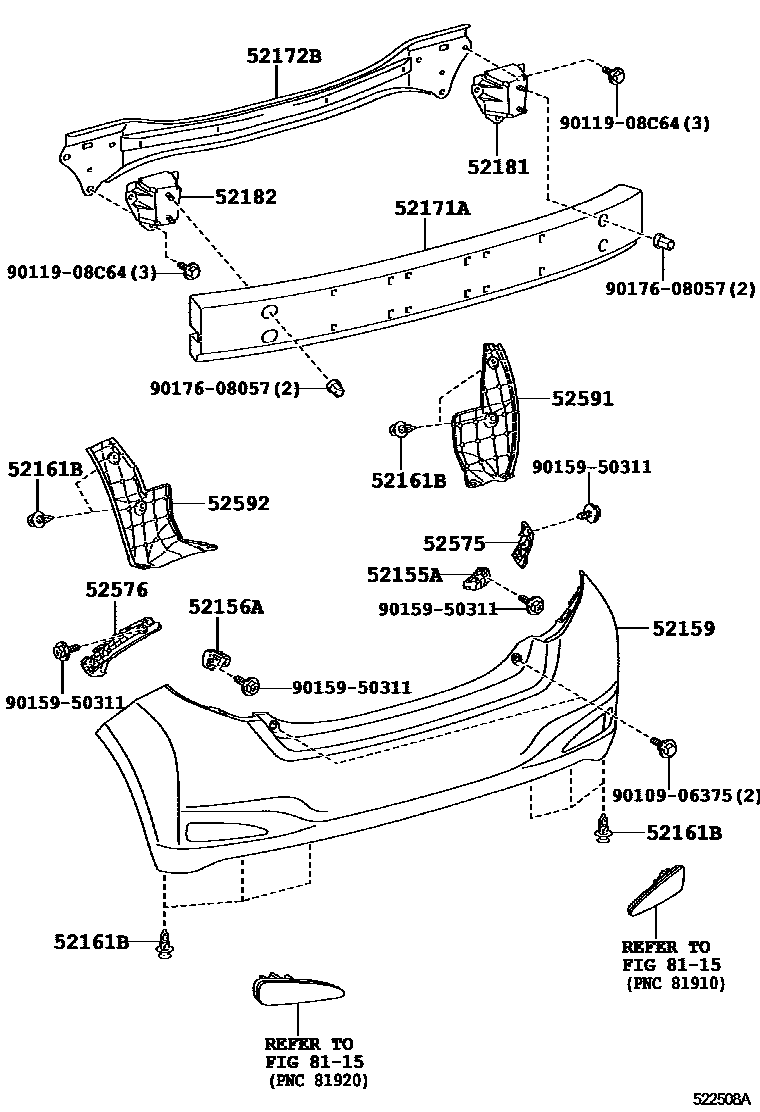

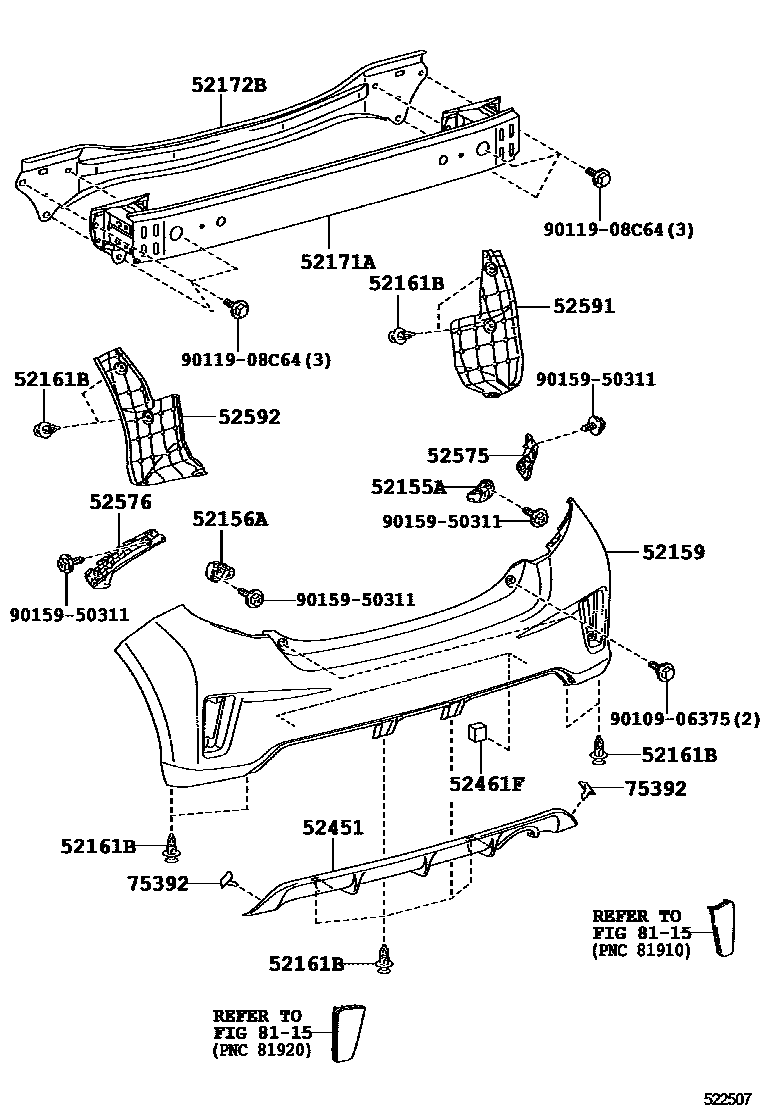

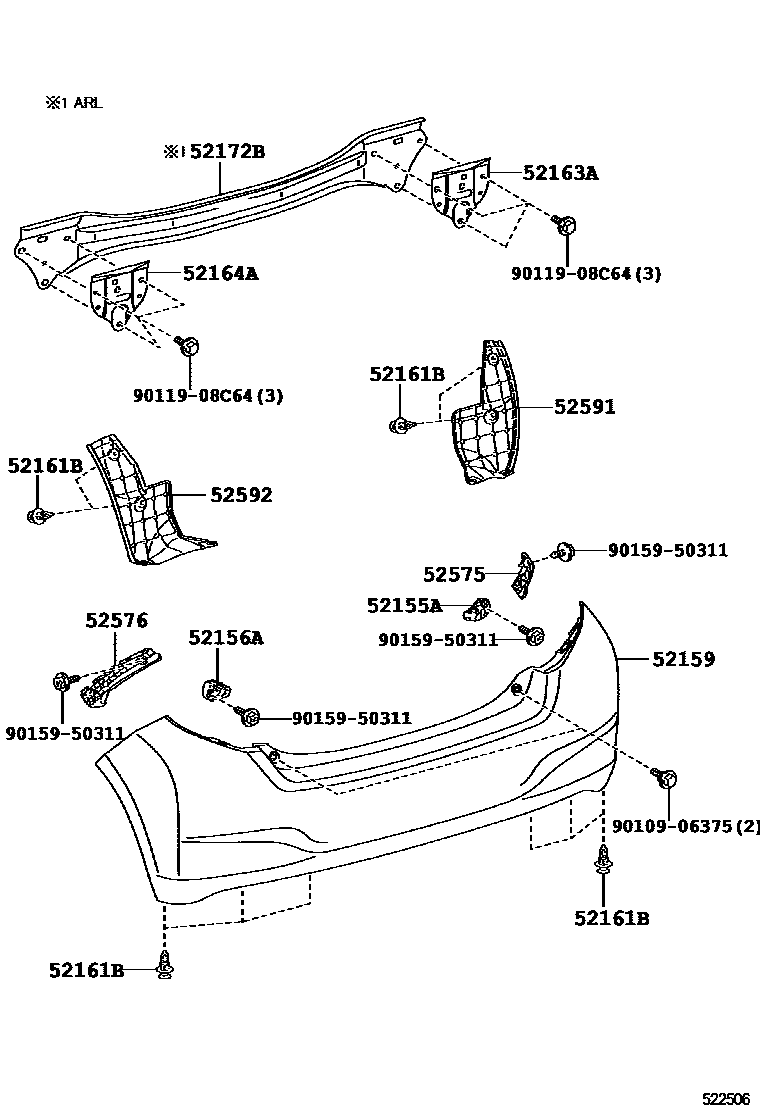

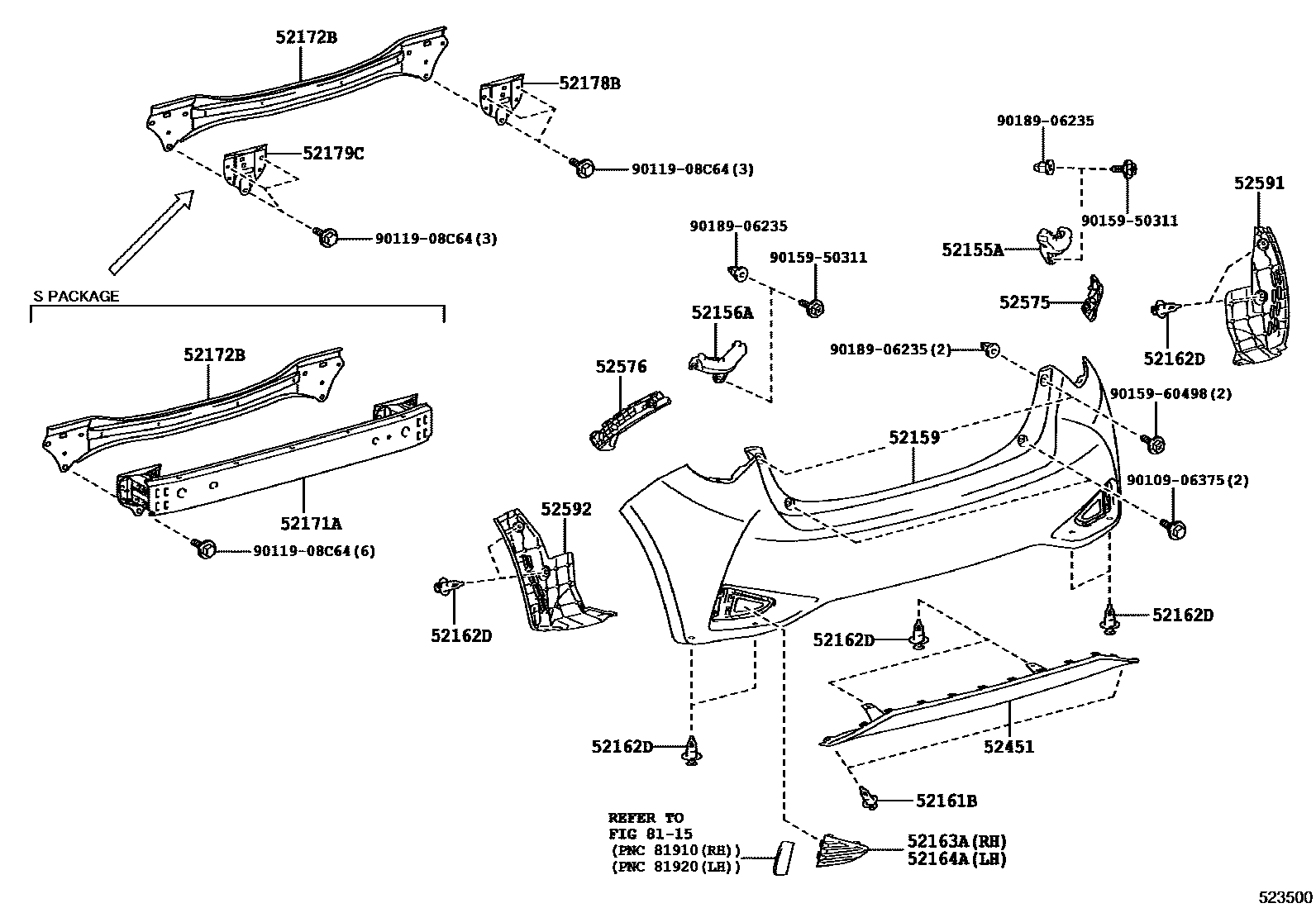

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-52120 · 52155-52150 |
| 52156A | Rear bumper left bracket | 52156-52120 · 52156-52150 |
| 52159 | rear bumper cover | 52159-52957 · 52159-52966 · 52159-52967 · 52159-52983 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-52080 · 52163-52120 |
| 52164A | Rear bumper left fender | 52164-52080 · 52164-52120 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-52150 · 52171-52090 |
| 52172B | Rear bumper reinforcement No. 2 | 52172-52020 |
| 52178B | No. 1 rear bumper reinforcement plate | 52163-52080 |
| 52179C | No. 2 rear bumper reinforcement plate | 52164-52080 |
| 52181 | Rear bumper right arm | 52181-52160 |
| 52182 | Rear bumper left arm | 52182-52160 |
| 52451 | Rear bumper anti-impact parts | 52453-52010 · 52453-52050 · 52453-52060 |
| 52461F | rear bumper lining | 52462-52030 |
| 52575 | Rear bumper right side fixing bracket | 52575-52170 · 52575-52171 · 52575-52210 |
| 52576 | Rear bumper left side fixing bracket | 52576-52150 · 52576-52151 · 52576-52190 |
| 52591 | Rear bumper right seal | 52591-52300 · 52591-52320 · 52591-52380 |
| 52592 | Rear bumper left seal | 52592-52290 · 52592-52310 · 52592-52370 |
| 75392 | External protective strip fixings | 75392-35200 |
