Toyota YARIS 前保险杠及附件 — Figure 5201

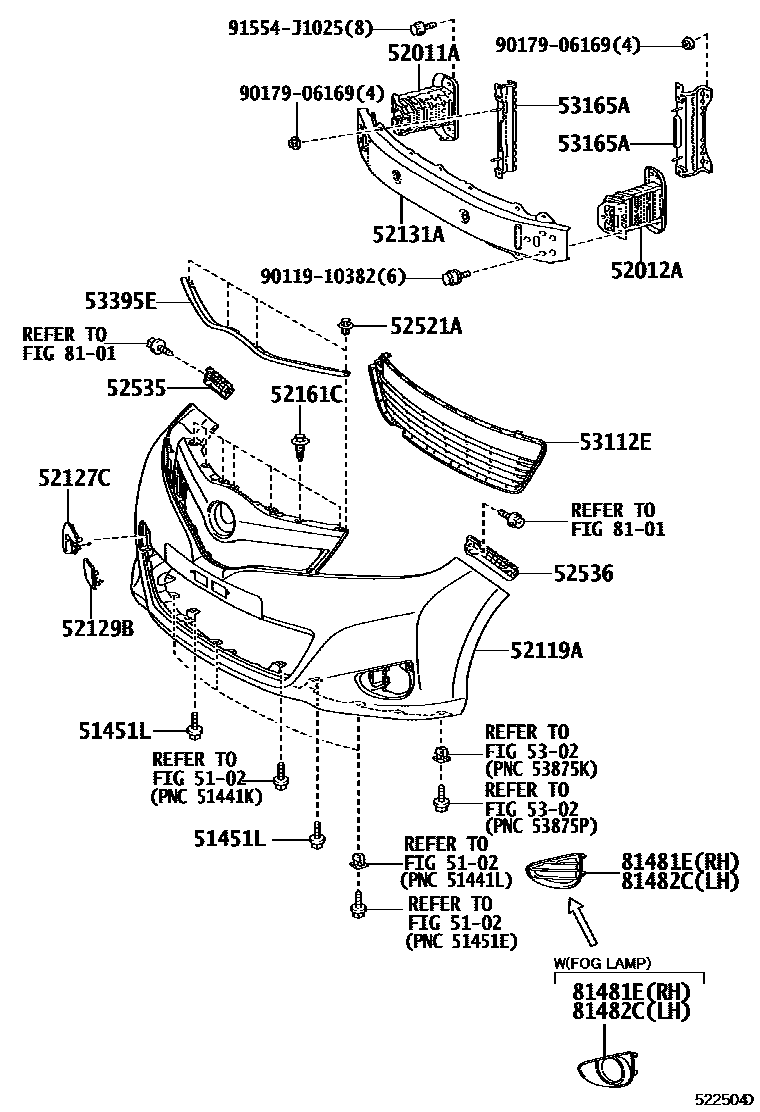

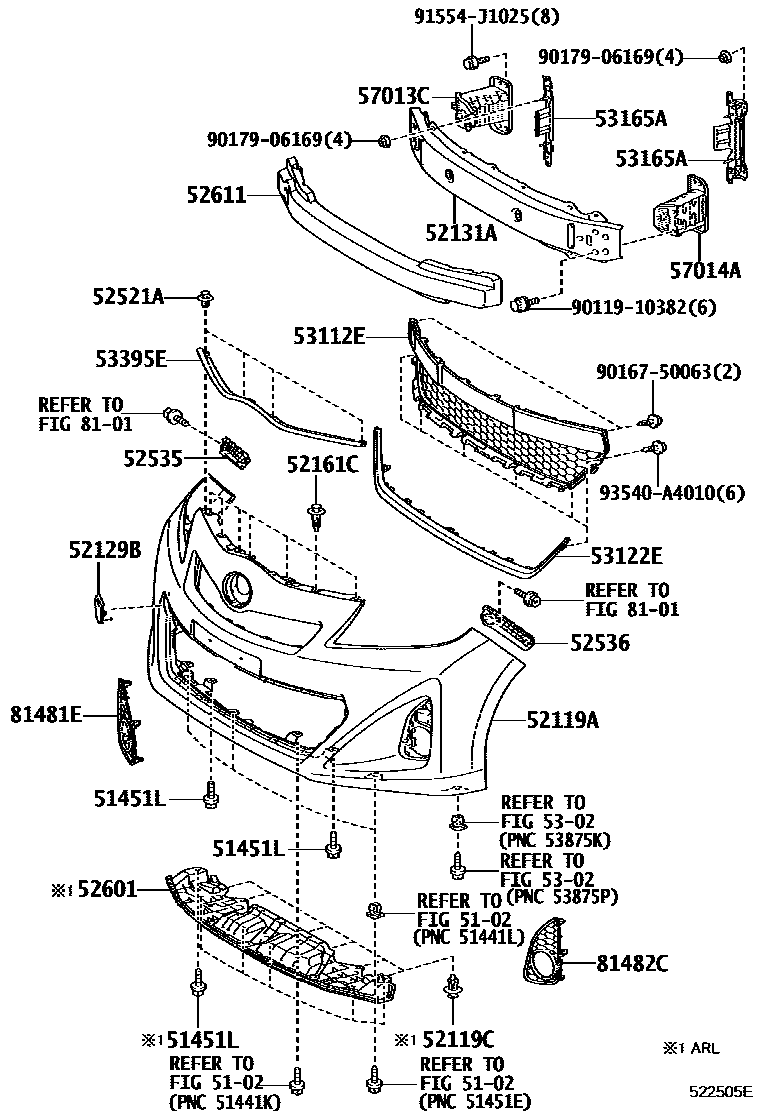

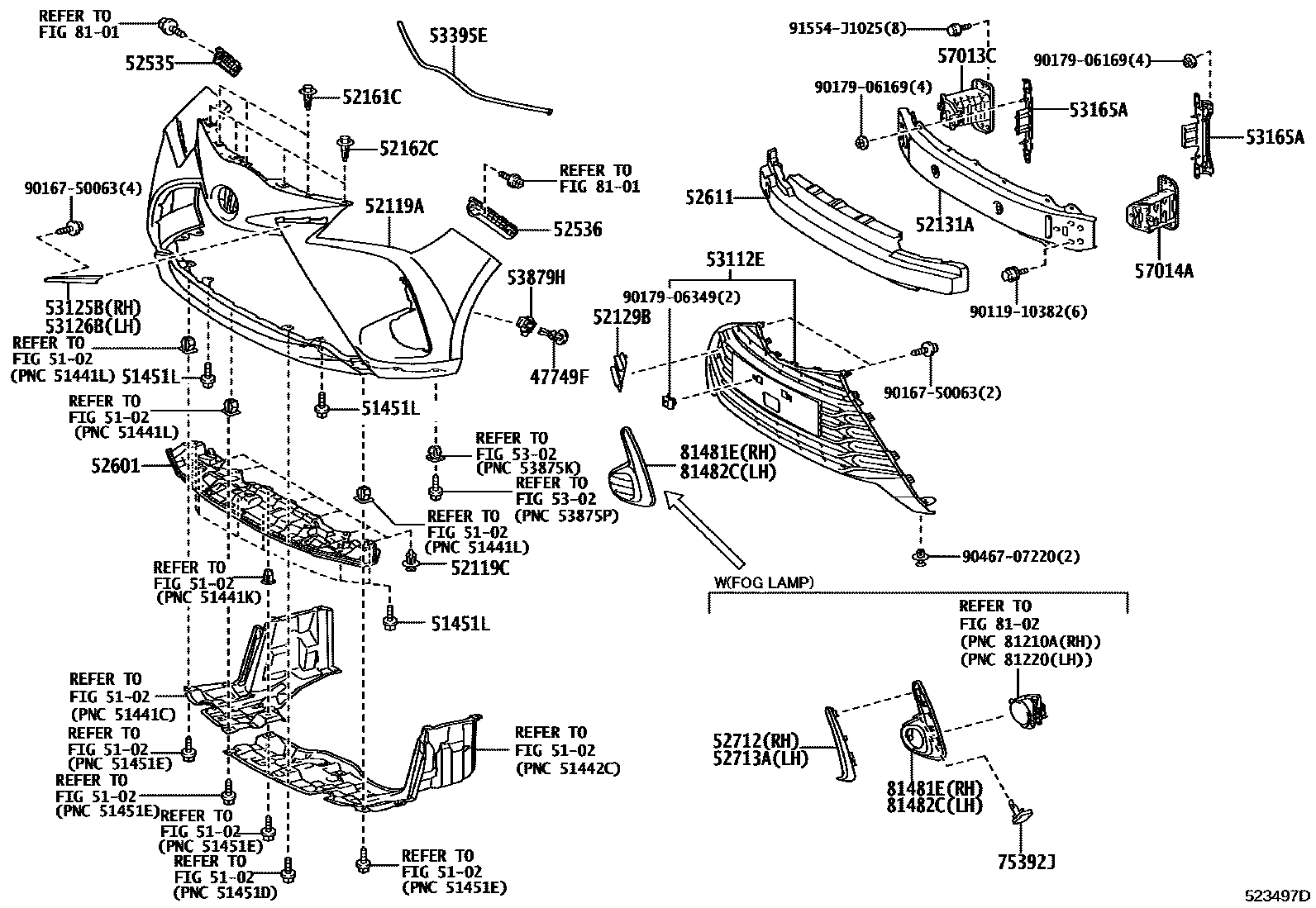

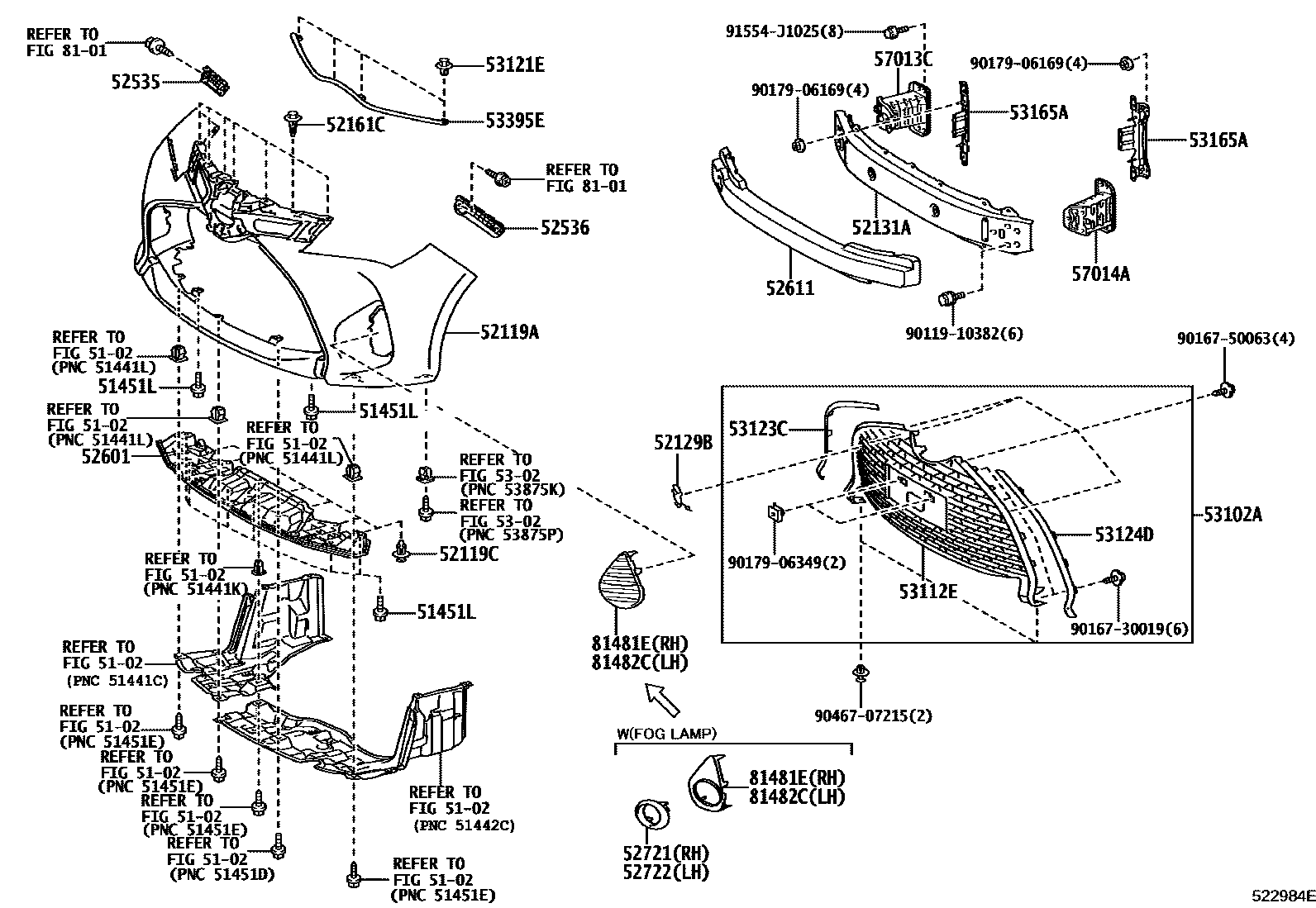

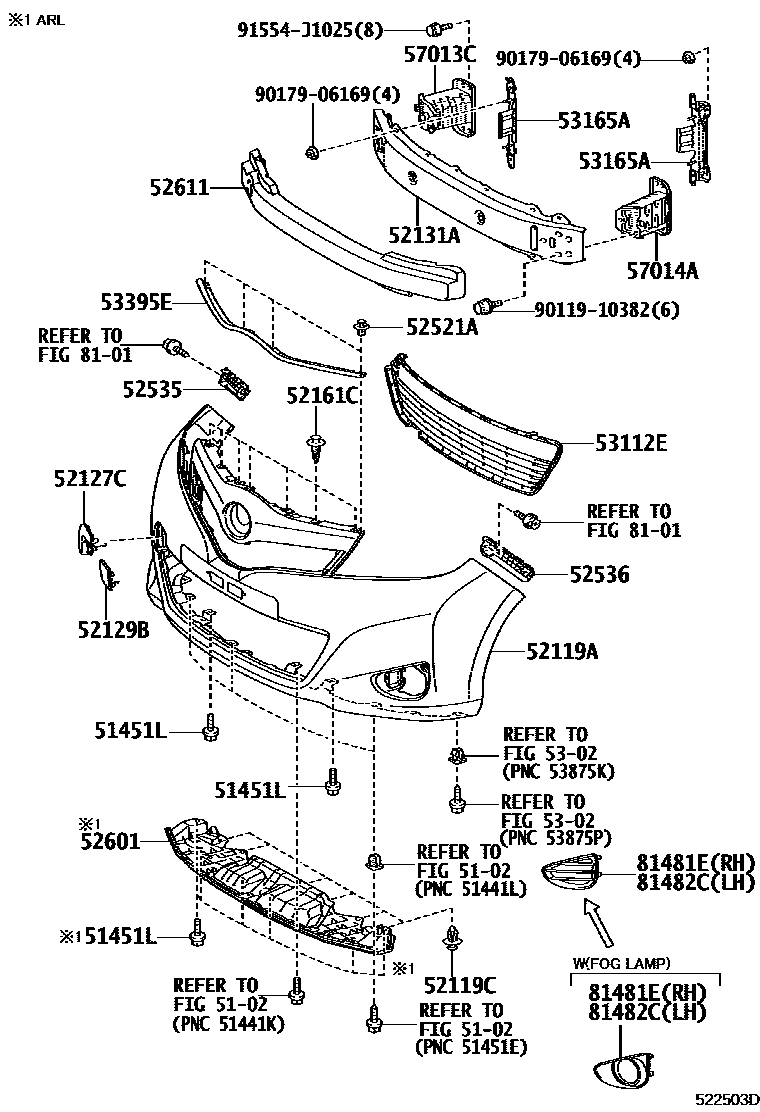

Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-50090 |
| 51451L | Bolt No. 1 | 90119-06767 |
| 52011A | Front bumper right arm sub-assembly | 52011-52020 · 52011-52021 |
| 52012A | Front bumper left arm sub-assembly | 52012-52020 |
| 52119A | front bumper cover | 52119-52965 · 52119-52972 · 52119-52973 · 52119-52994 · 52119-5A955 |
| 52119C | Front bumper cover clip | 90467-10216 |
| 52127C | Front bumper hole cover | 52127-52931 |
| 52129B | Front bumper lower cover | 52129-52090 · 52129-52100 · 52129-52130 · 52129-52160 |
| 52131A | Front bumper reinforcement | 52131-52250 |
| 52161C | front bumper insert | 52161-16010 |
| 52162C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-52110 · 52535-52111 |
| 52536 | Front bumper left fixed bracket | 52536-52080 · 52536-52081 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-52010 · 52601-52020 · 52601-52050 |
| 52611 | front bumper energy absorber | 52611-52090 · 52611-52231 · 52611-52360 |
| 52712 | Front bumper right side protective strip | 52712-52150 |
| 52713A | Front bumper left protective strip | 52713-52140 |
| 52721 | Front bumper right extension protection strip | 52721-52120 |
| 52722 | Front bumper left extended section protective strip | 52722-52020 |
| 53102A | Radiator lower grille sub-assembly | 53102-52060 · 53102-52080 |
| 53112E | No. 1 radiator lower grille | 53112-52260 · 53112-52300 · 53112-52440 · 53112-52520 |
| 53122E | Radiator grille lower protective strip | 53122-52030 |
| 53123C | Radiator grille lower right protective strip | 53123-52060 · 53123-52110 |
| 53124D | Radiator grille lower left protective strip | 53124-52060 · 53124-52110 |
| 53125B | Radiator grille right center protective strip | 53125-52050 |
| 53126B | Radiator grille left middle protective strip | 53126-52050 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-52020 · 53164-52030 · 53164-52060 · 53165-52030 |
| 53395E | Engine cover to front end plate seal | 53395-52040 · 53395-52090 · 53395-52130 |
| 53879H | Front fender lining fixing parts | 53879-50020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-52010 · 57013-52011 · 57013-52021 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-52010 · 57014-52020 |
| 75392J | External protective strip fixings | 75392-35200 |
| 81481E | Right fog light cover | 81481-52360 · 81481-52380 · 81481-52390 · 81481-52530 · 81481-52540 · 81481-52670 · 81481-52750 |
| 81482C | Left fog light cover | 81482-52300 · 81482-52320 · 81482-52330 · 81482-52450 · 81482-52460 · 81482-52570 · 81482-52640 |
