Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102

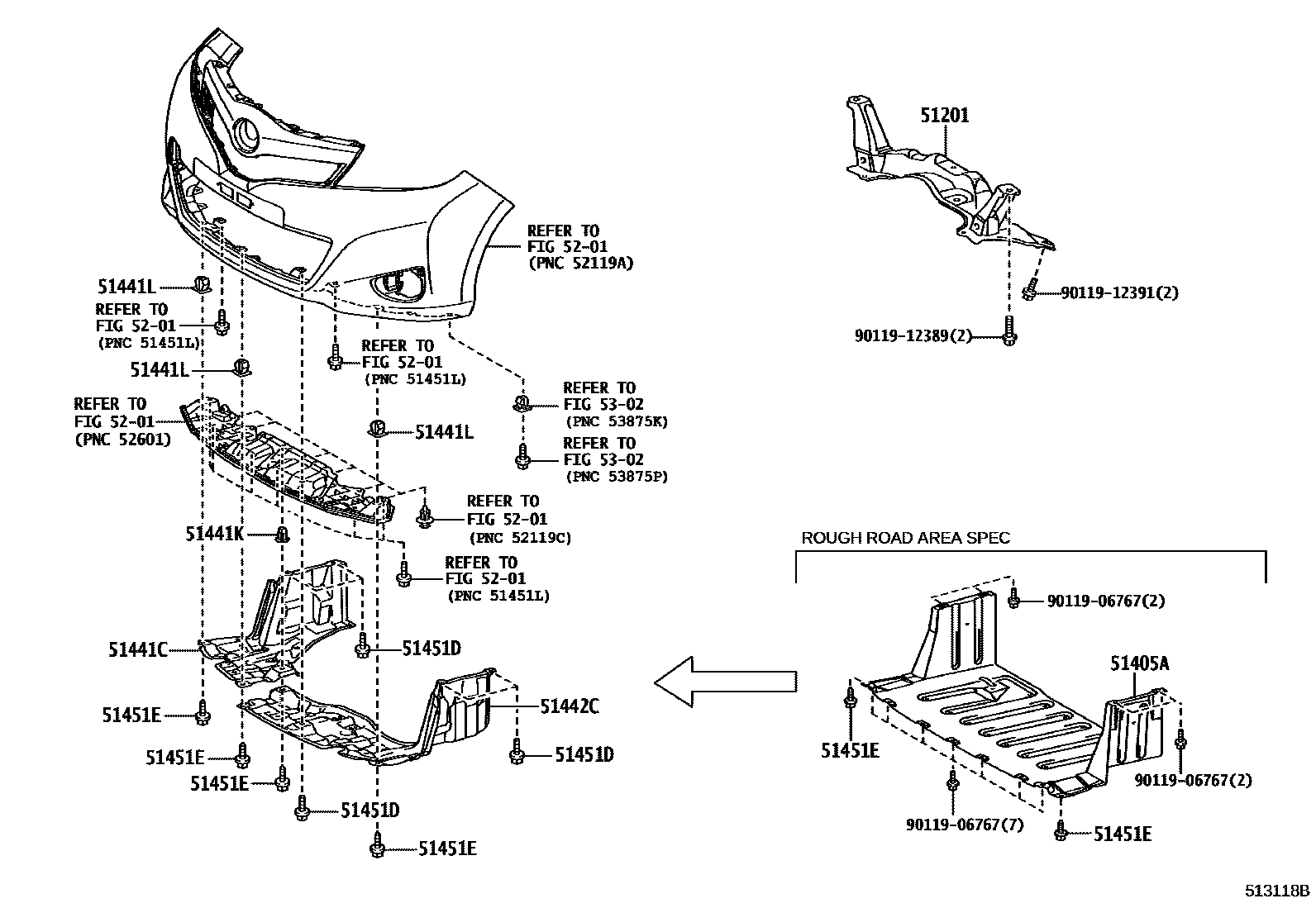

Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-52083 · 51201-52084 · 51201-52085 · 51201-52086 · 51201-52087 |
| 51405A | No. 1 engine bottom cover sub-assembly | 51405-52050 |
| 51441C | Engine right bottom cover | 51441-52180 · 51441-52330 |
| 51441K | Gasket (for engine underhood) | 90189-06076 |
| 51441L | No. 2 gasket (for engine undercover) | 90189-06237 |
| 51442C | Engine left bottom cover | 51442-52090 · 51442-52160 |
| 51451D | Screw No. 1 | 90119-06767 |
| 51451E | No. 2 screw | 90159-60383 |
