Toyota YARIS 制动助力器和真空管 — Figure 4703

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 12 PNC and OE references.

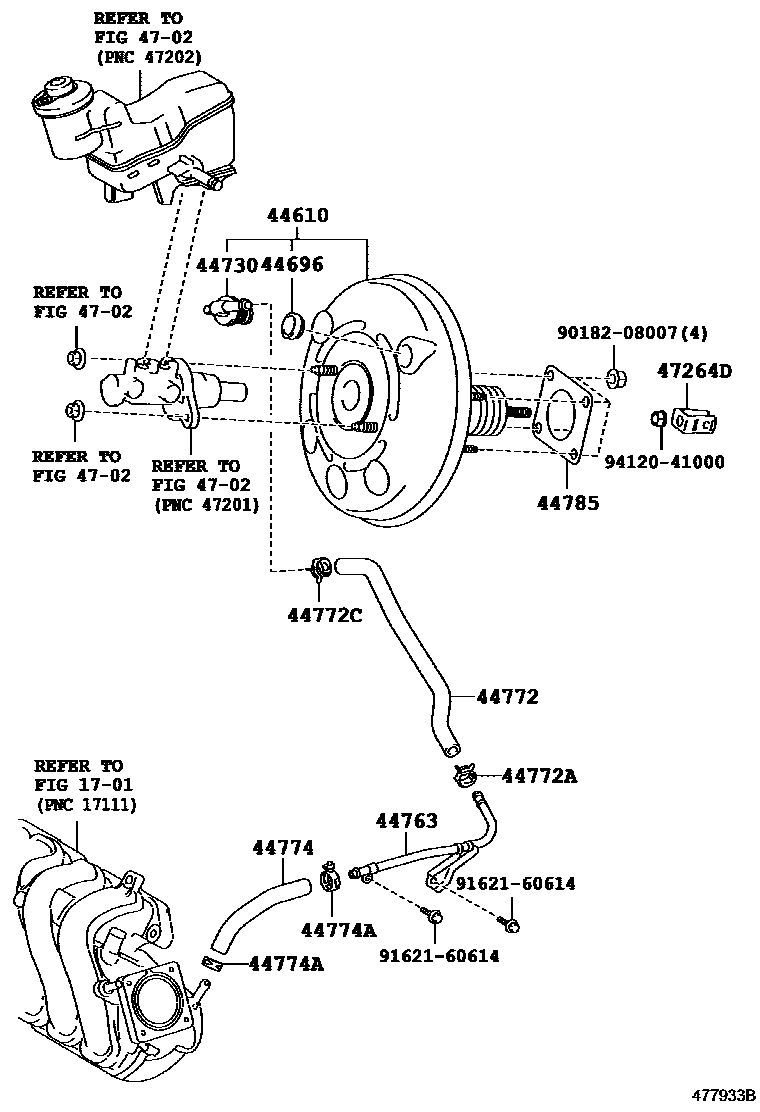

Toyota YARIS 制动助力器和真空管 EPC diagram — 477933B
制动助力器和真空管 — 477933B (201108 – 999999)

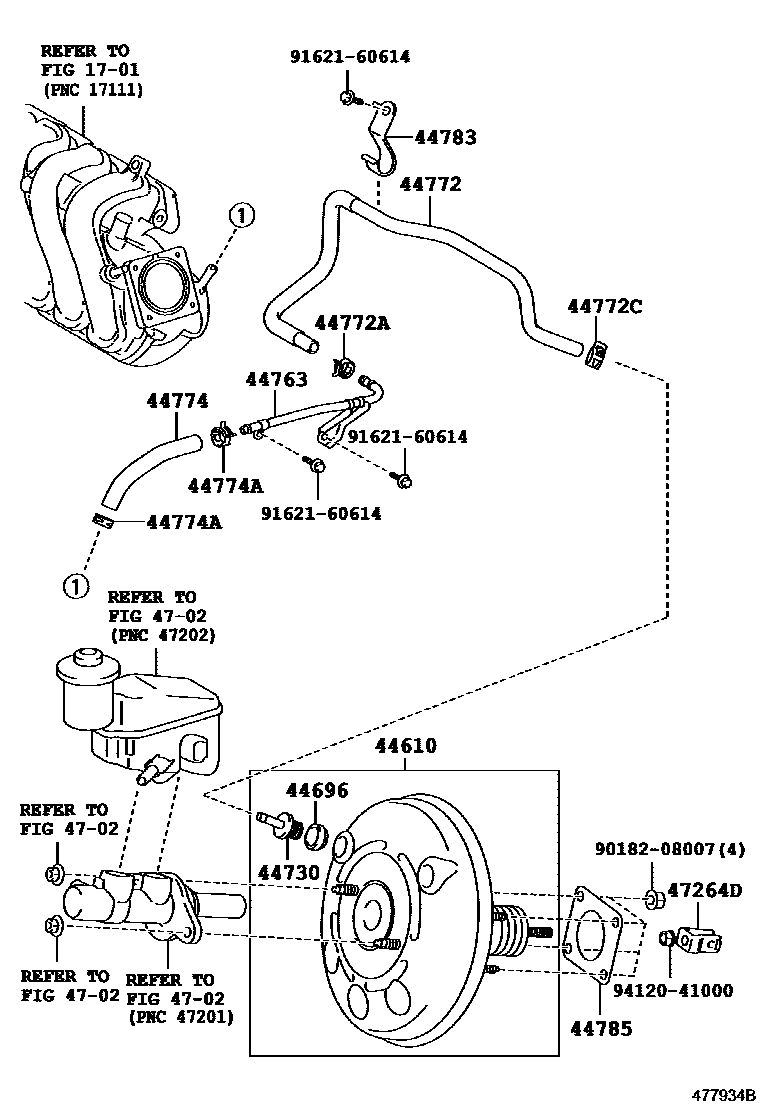

Toyota YARIS 制动助力器和真空管 EPC diagram — 477934B
制动助力器和真空管 — 477934B (201108 – 201407)

PNC and OE references

PNCPart nameOE numbers
44610brake booster assembly44610-52A60 · 44610-52A90 · 44610-52B60 · 44610-52E50 · 44610-52F50
44696One-way valve seal90480-24439
44730Vacuum check valve assembly (for brake)44730-20170 · 44730-60070
44763booster vacuum tube44763-52080
44772Hoses (check valve to connector tube)44772-52170 · 44772-52180
44772AClip (for check valve to connector tube)96133-41500
44772CClip (for check valve to brake booster hose)90467-16014
44774Hoses (joints to connector tubes)95446-09130
44774AClip (for fitting to connector tube hose)96133-41500 · 96136-41801
44783Vacuum hose clamp44783-52070
44785brake booster pad44785-16020
47264DBrake master cylinder push rod U-shaped clamp47264-52040
