Toyota YARIS Brake Pedal & Bracket — Figure 4701

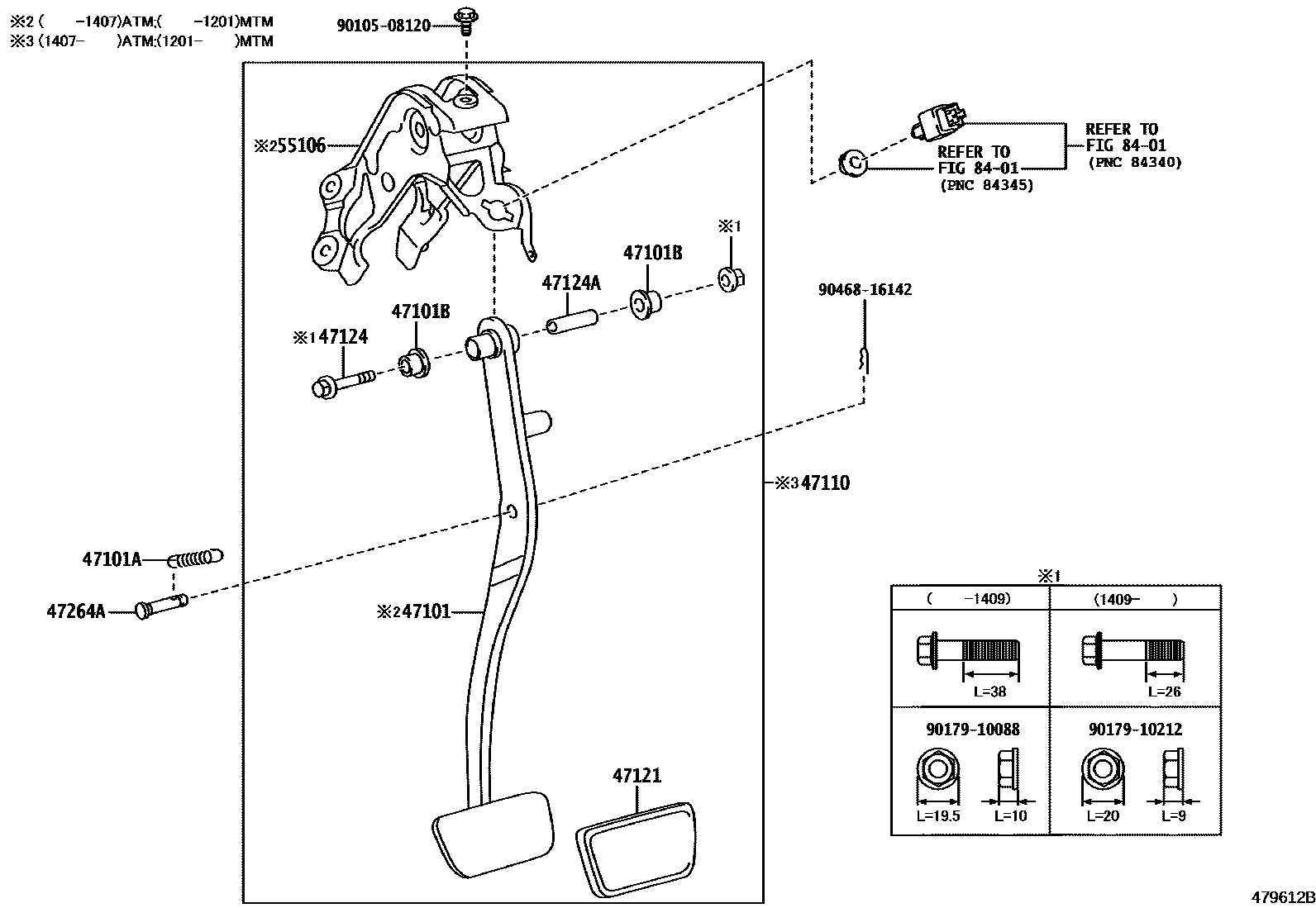

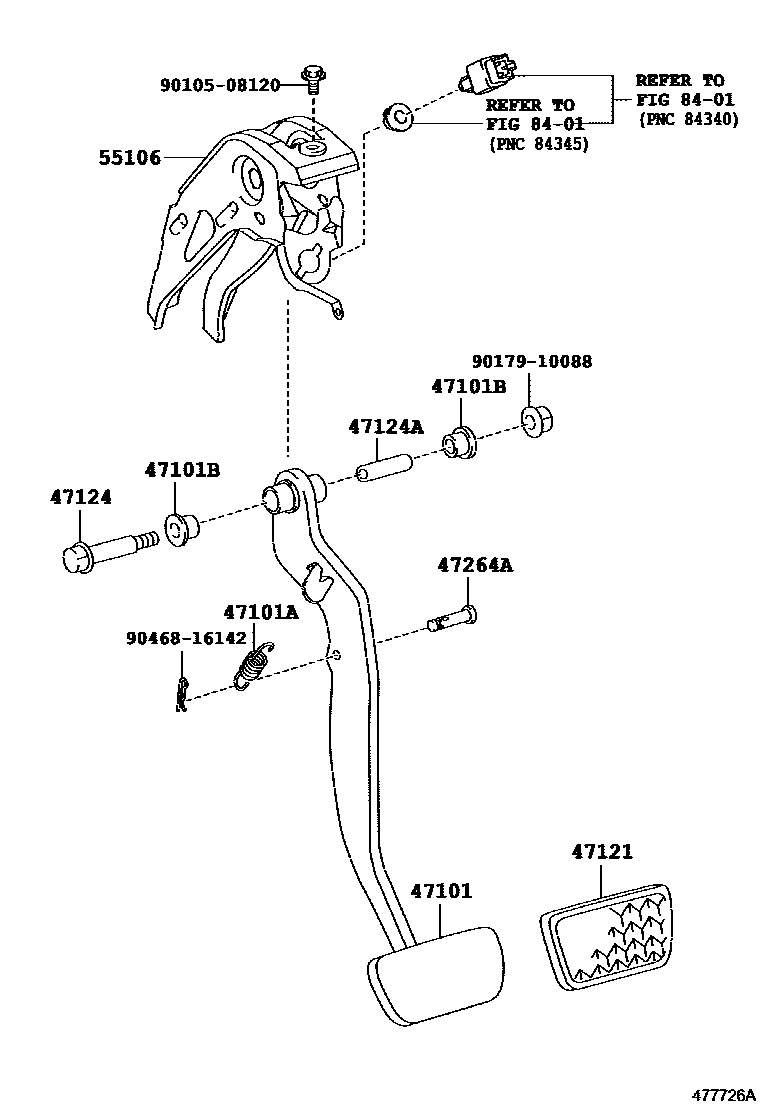

Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-52230 · 47101-52240 · 47101-52241 · 47101-52251 · 47101-52261 |
| 47101A | Spring (for brake pedal return) | 90506-14077 · 90506-14088 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47110 | Brake pedal bracket assembly | 47110-52261 · 47110-52400 · 47110-52410 |
| 47121 | brake pedal pad | 31321-52010 · 31321-52020 · 47121-52010 · 47121-52020 |
| 47124 | brake pedal shaft | 90105-10444 · 91552-81055 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47264A | Pin (for push rod) | 90249-08051 |
| 55106 | Brake pedal bracket sub-assembly | 55106-52131 · 55106-52161 |
