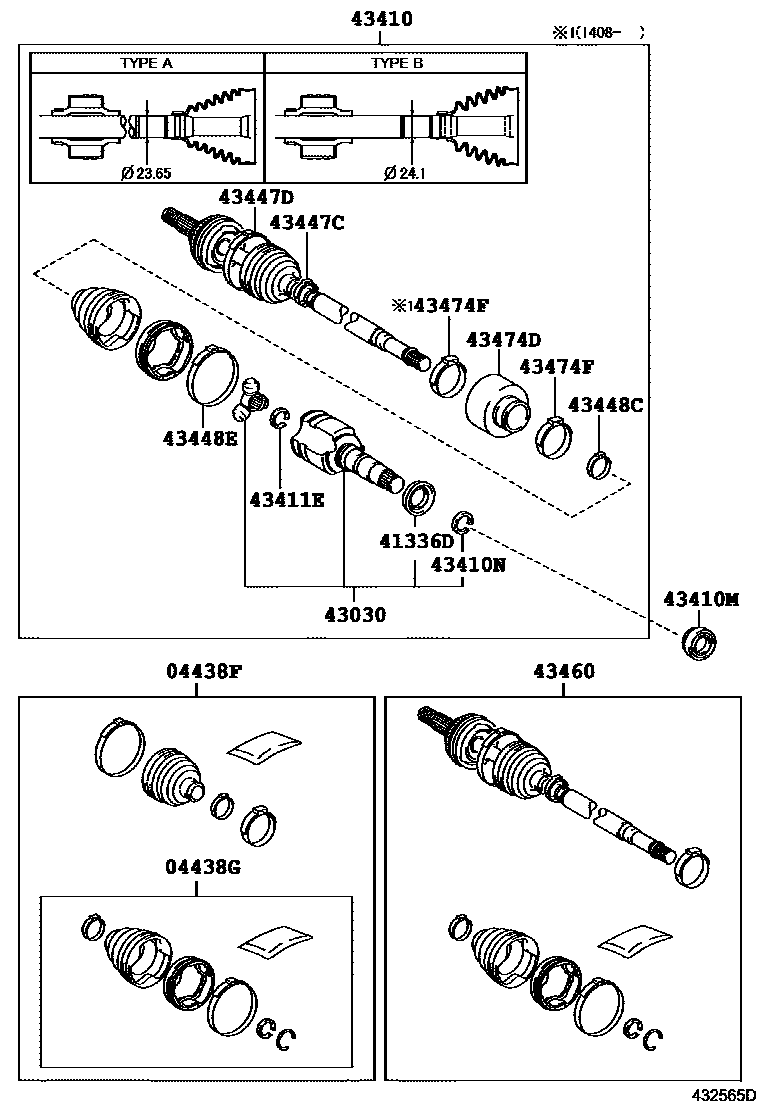

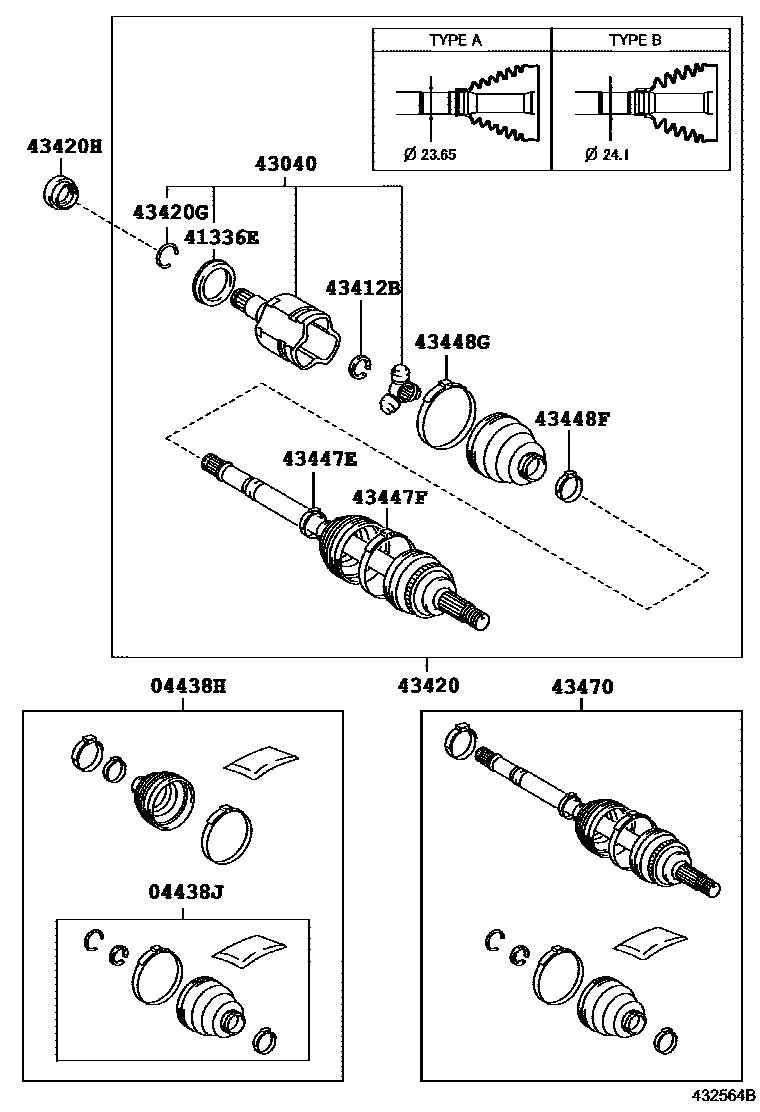

Toyota YARIS Front Drive Shaft — Figure 4302
Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-52690 · 04427-52691 · 04427-52890 · 04427-52891 · 04427-52894 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-52140 · 04437-52191 · 04437-52192 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-52690 · 04427-52890 · 04427-52894 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-52140 · 04437-52191 · 04437-52192 |
| 41336D | Right front driveshaft dust cover | 41336-12010 |
| 41336E | Left front driveshaft dust cover | 41336-12010 |
| 43030 | Right front drive shaft inner universal joint assembly | 43403-10011 · 43403-16020 |
| 43040 | Left front drive shaft inner universal joint assembly | 43403-10011 · 43403-16020 |
| 43410 | Right front driveshaft assembly | 43410-52201 · 43410-52210 · 43410-52211 |
| 43410M | Front drive shaft right oil seal | 90311-34023 · 90311-34031 · 90311-34039 · 90311-34045 · 90311-34053 |
| 43410N | Hole snap ring (for right front driveshaft) | 90521-26004 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-16020 · 90520-22001 · 90520-22029 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-16020 · 90520-22001 · 90520-22029 |
| 43420 | Left front drive shaft assembly | 43420-52201 · 43420-52210 · 43420-52211 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 |
| 43420H | Front drive shaft left oil seal | 90311-34026 · 90311-34030 · 90311-34042 · 90311-34044 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-52240 · 42345-52260 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-52230 · 42345-52250 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-52240 · 42345-52260 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-52230 · 42345-52250 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-16140 · 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16150 · 90949-01146 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-16140 · 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16150 · 90949-01146 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-59316 · 43460-59317 · 43460-59416 · 43460-59666 · 43460-59669 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-59336 · 43470-59696 · 43470-59776 |
| 43474D | Right front driveshaft shock absorber | 43474-52030 · 43474-52040 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-12090 · 42345-14010 |
