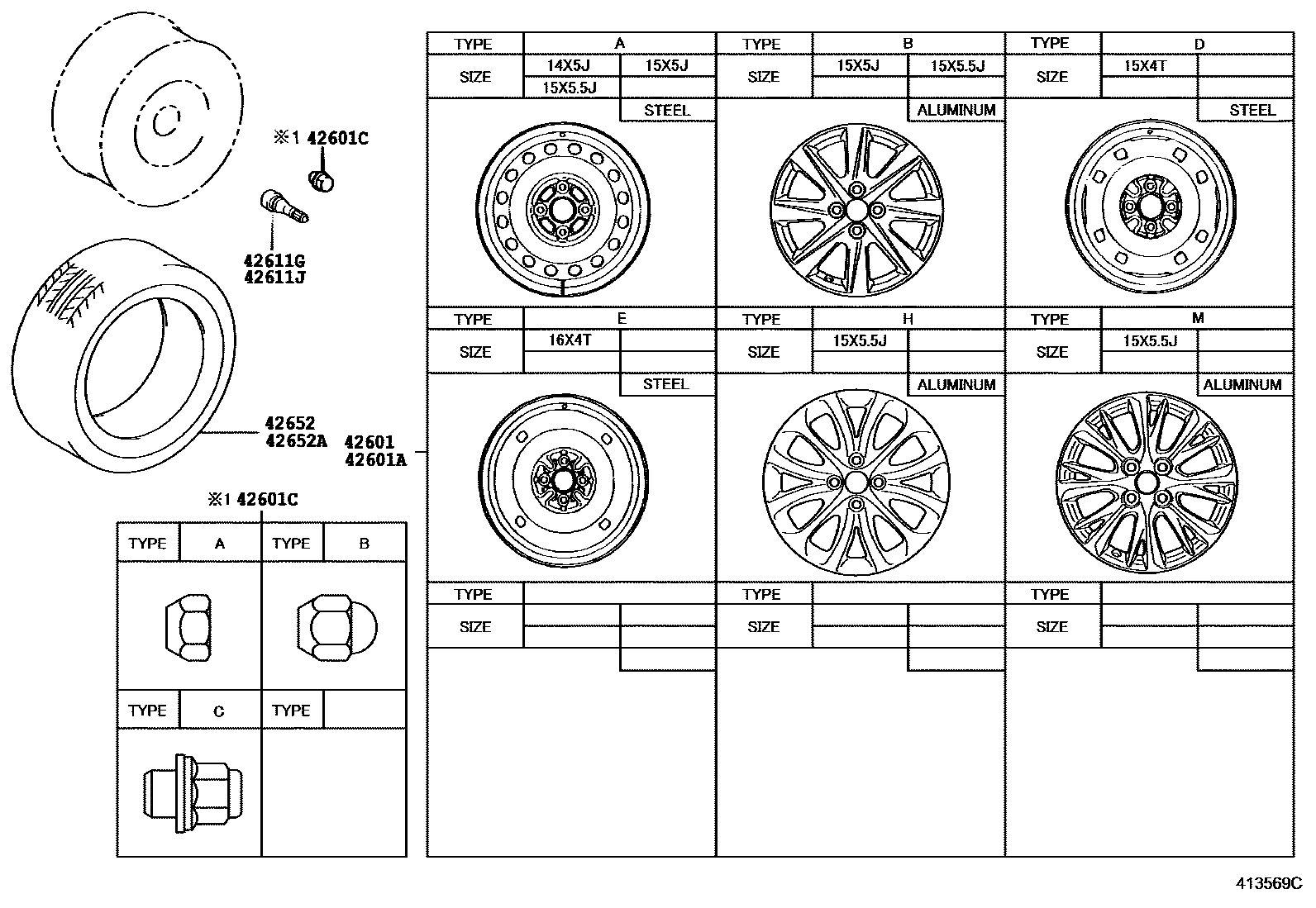

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-52493 · 42611-52750 · 42611-52760 · 42611-52770 · 42611-52780 · 42611-52790 · 42611-52810 · 42611-52860 · 42611-52880 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A020 · 42611-52400 · 42611-52760 · 42611-52780 · 42611-52810 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

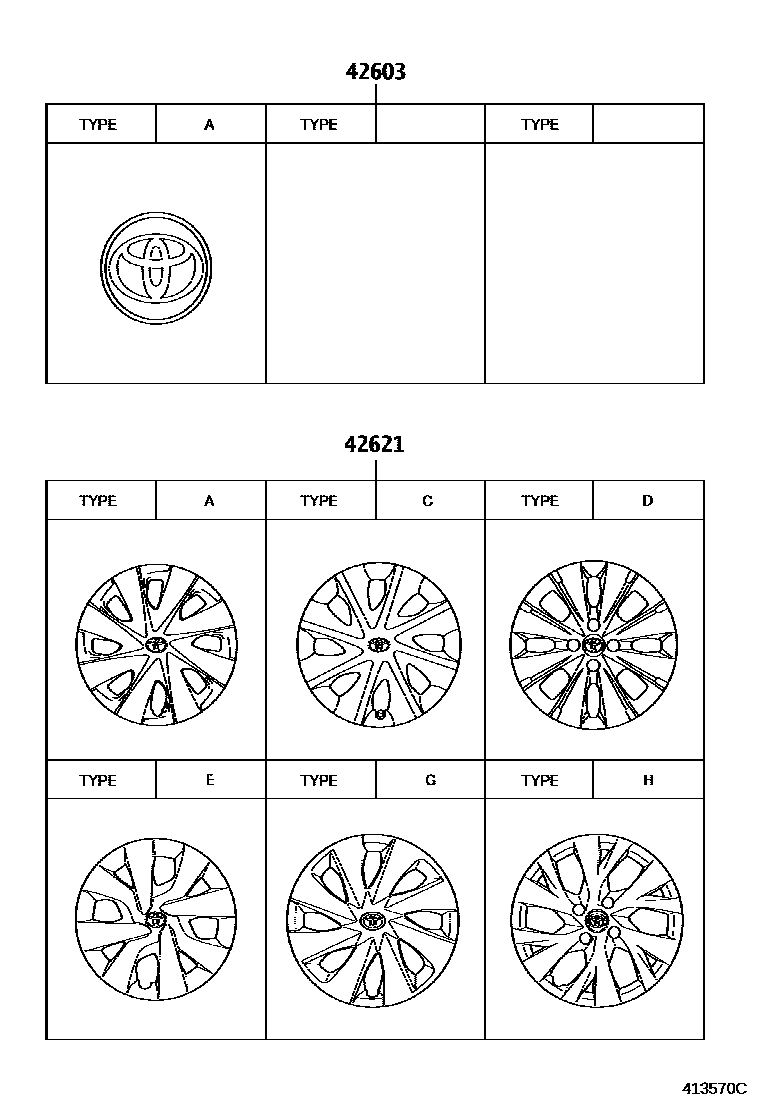

| 42603 | Wheel hub decorative parts sub-assembly | 42603-52150 · 42603-52170 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-52450 · 42602-52451 · 42602-52480 · 42602-52500 · 42602-52520 · 42602-52630 · 42602-52640 |
| 42652 | tires | 42652-52610 · 42652-52671 · 42652-52672 · 42652-52681 · 42652-52682 · 42652-52710 · 42652-52800 · 42652-52801 · 42652-52D70 · 42652-52E00 · 42652-52E10 · 42652-52E11 · 42652-52E40 · 42652-52E41 · 42652-52G70 |
| 42652A | Tire (for Spare Wheel) | 42652-13120 · 42652-52610 · 42652-52671 · 42652-52672 · 42652-52681 · 42652-52682 · 42652-52710 · 4265A-52020 |
