Toyota YARIS 节气阀连杆和阀杆(ATM) — Figure 3513

Toyota YARIS EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 2 images and 16 PNC and OE references.

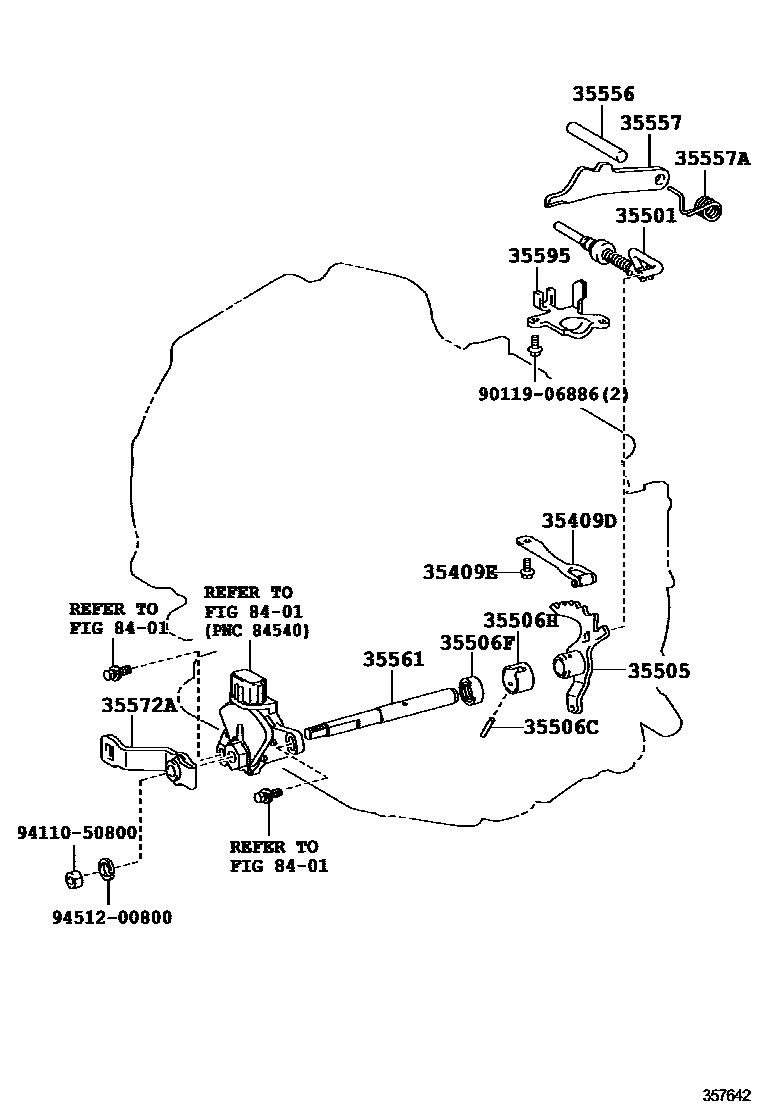

Toyota YARIS 节气阀连杆和阀杆(ATM) EPC diagram — 357642
节气阀连杆和阀杆(ATM) — 357642 (201108 – 999999)

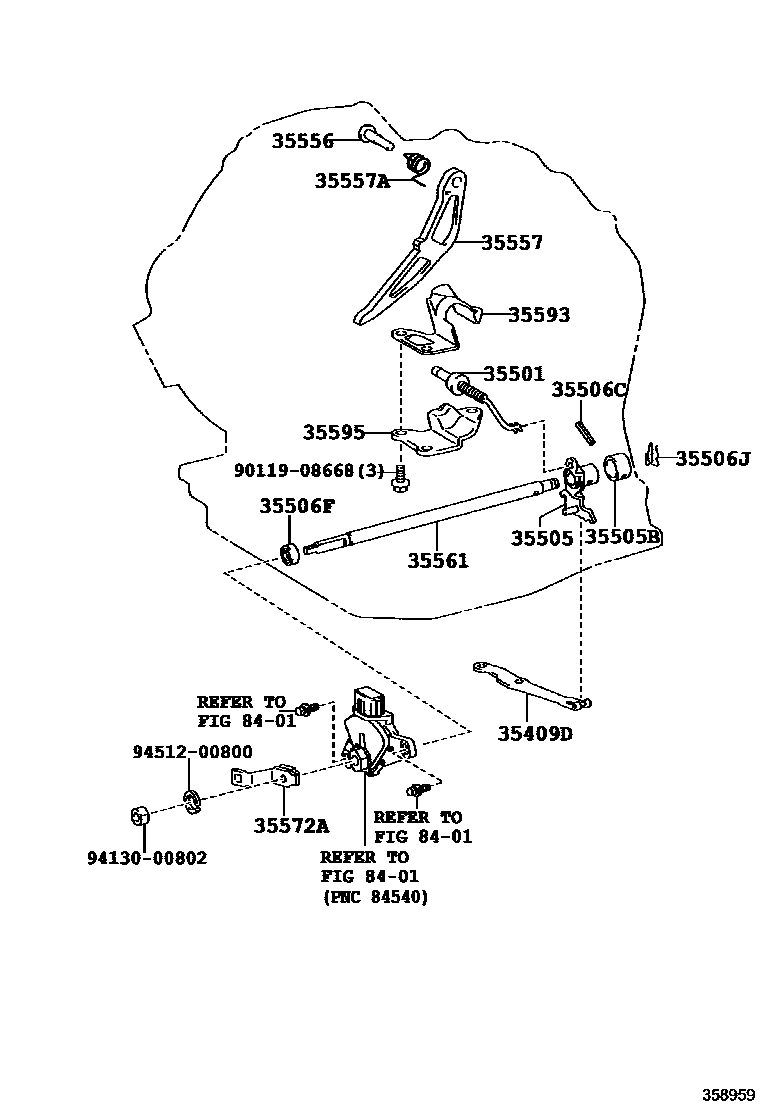

Toyota YARIS 节气阀连杆和阀杆(ATM) EPC diagram — 358959
节气阀连杆和阀杆(ATM) — 358959 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
35409DManual lock spring sub-assembly35409-52010 · 35409-52020
35409EBolt (for manual locking spring)90105-06261
35501Parking lock lever sub-assembly35501-52010 · 35501-52021
35505Manual valve stem sub-assembly35505-12090 · 35505-20030
35505BSpacer (for manual valve stem)90560-20006
35506CSlotted spring pin (for manual valve stem shaft)90254-04011
35506FOil seal (for manual valve stem shaft)90311-12002
35506HSpacer (for manual valve stem shaft)90560-20006
35506JStop spring (for manual valve stem shaft)90524-09001
35556Parking lock pawl shaft35556-32020 · 35556-52010
35557Parking pawl35557-52010 · 35557-52021
35557ATorsion spring (for parking pawl)90949-03084 · 90949-03089
35561Manual valve stem shaft35561-52010 · 35561-52020
35572Atransmission control lever35572-52030 · 35572-52080
35593Cam guide bushing35593-52010
35595Parking lock pawl bracket35595-52010 · 35595-52020
