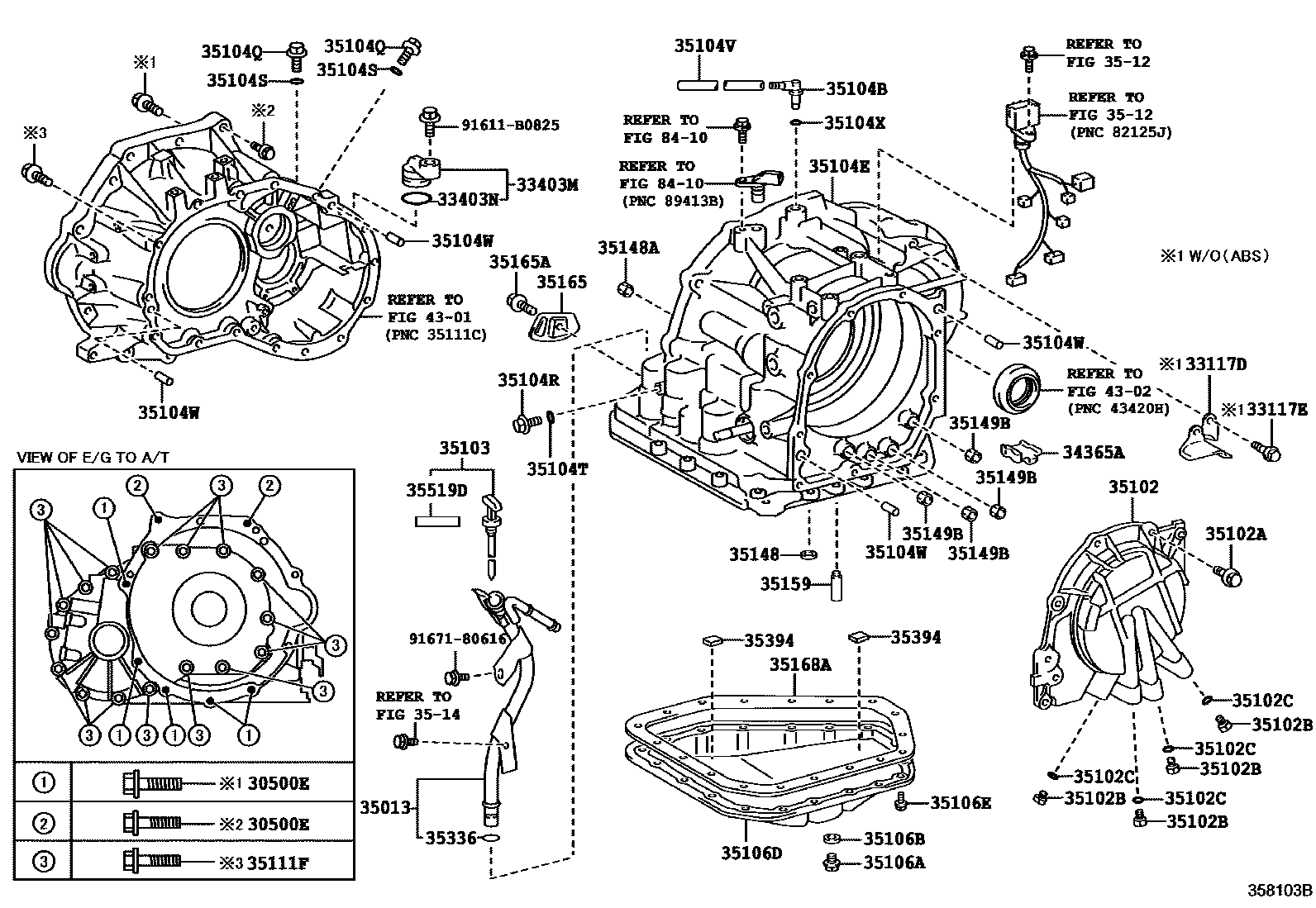

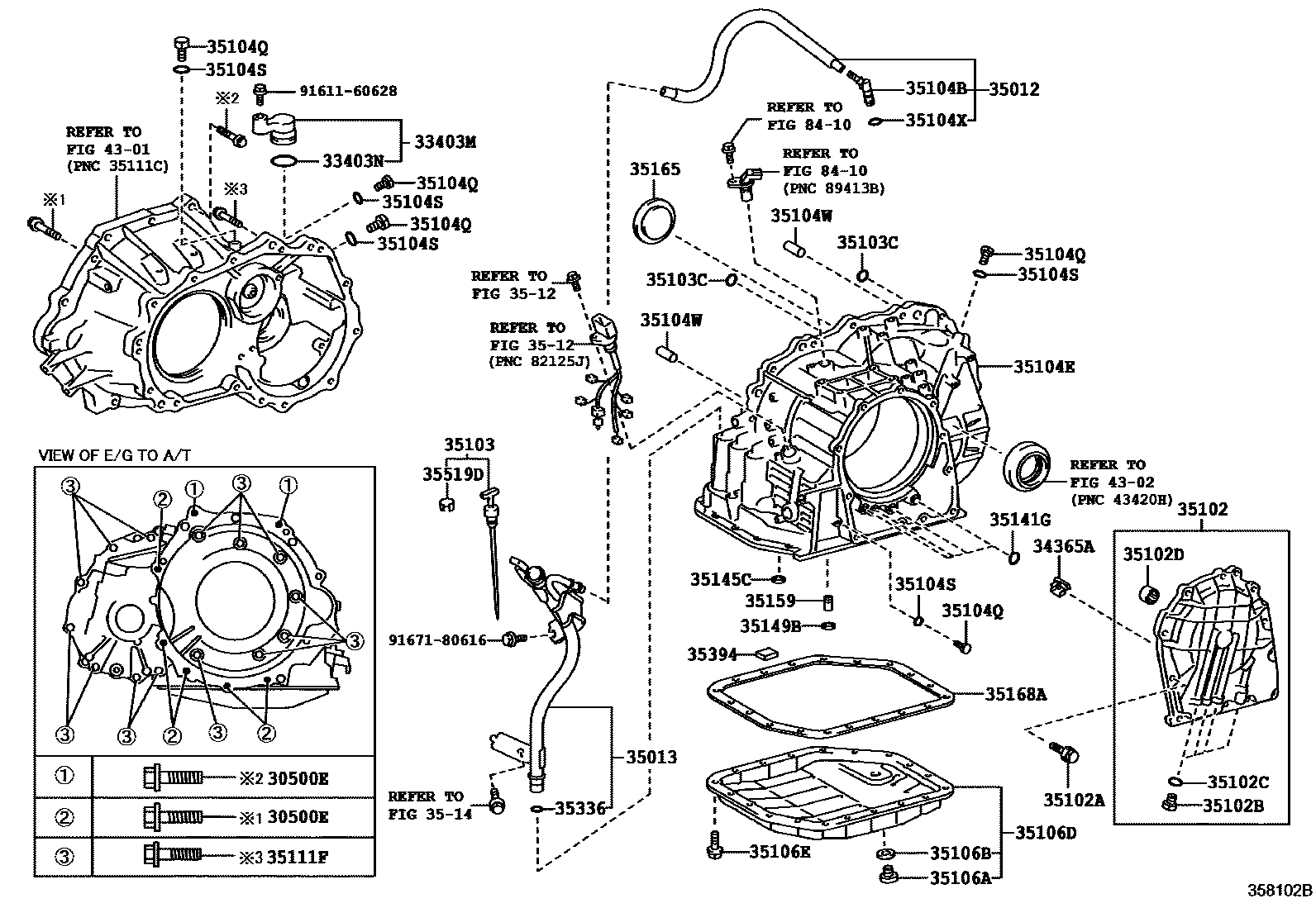

Toyota YARIS 变速器壳和油底壳(ATM) — Figure 3503
Toyota YARIS EPC diagram 3503, 变速器壳和油底壳(ATM), with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 91612-61045 |
| 33117D | automatic transmission guard plate | 33117-52010 |
| 33117E | Bolts (for automatic transmission guard) | 91621-G0818 |
| 33403M | Speedometer driven gear hole cover sub-assembly (ATM) | 33403-20230 · 33403-35230 |
| 33403N | O-ring (for automatic transmission speedometer driven gear hole cover) | 96711-24018 · 96711-24030 |
| 34365A | Outer race retainer | 34365-52012 · 34365-52020 |
| 35012 | Transmission breather hose sub-assembly | 35012-12010 |
| 35013 | Transmission oil pipe sub-assembly | 35013-52140 · 35013-52150 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-52020 · 35102-52030 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90105-08365 · 90105-08375 |
| 35102B | Screw plug (for transmission axle rear cover) | 90341-08001 |
| 35102C | O-ring (for transmission axle rear cover screw plug) | 90301-06196 |
| 35102D | Needle roller bearing (for transmission axle rear cover) | 90364-14007 |
| 35103 | Transmission oil level scoring assembly | 35103-52140 · 35103-52160 |
| 35103C | O-ring | 90301-06008 · 90301-06024 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03156 · 90930-03166 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-52032 · 35104-52090 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104R | No. 2 screw plug (for transmission axle housing) | 90341-08001 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104T | O-ring (for transmission axle housing plug No. 2) | 90301-06196 |
| 35104V | Hoses (for breather plug) | 90447-11039 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10017 · 90250-10034 |
| 35104X | O-ring (for breather plug) | 90301-06005 · 90301-06021 · 90301-08015 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10011 · 90341-18016 · 90341-18023 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 · 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-52020 · 35106-52030 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-08071 |
| 35141G | O-ring (for automatic transmission) | 90301-10018 · 90301-10189 |
| 35145C | Transmission axle housing gasket | 35145-21010 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35145-60020 |
| 35148A | Governor oil supply pipe gasket No. 2 | 35148-12010 |
| 35149B | Transaxle housing second gear brake pad | 35149-12020 · 35149-21010 |
| 35159 | brake drum gasket | 35159-21010 · 35159-52010 |
| 35165 | No. 1 gearbox block | 35165-52010 · 35165-52030 |
| 35165A | Bolt (for gearbox block No. 1) | 90105-06049 |
| 35168A | Automatic transaxle oil pan gasket | 35168-52010 · 35168-52020 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 · 35394-48010 |
| 35519D | Automatic transmission information label | 35519-20030 · 35519-41010 |
