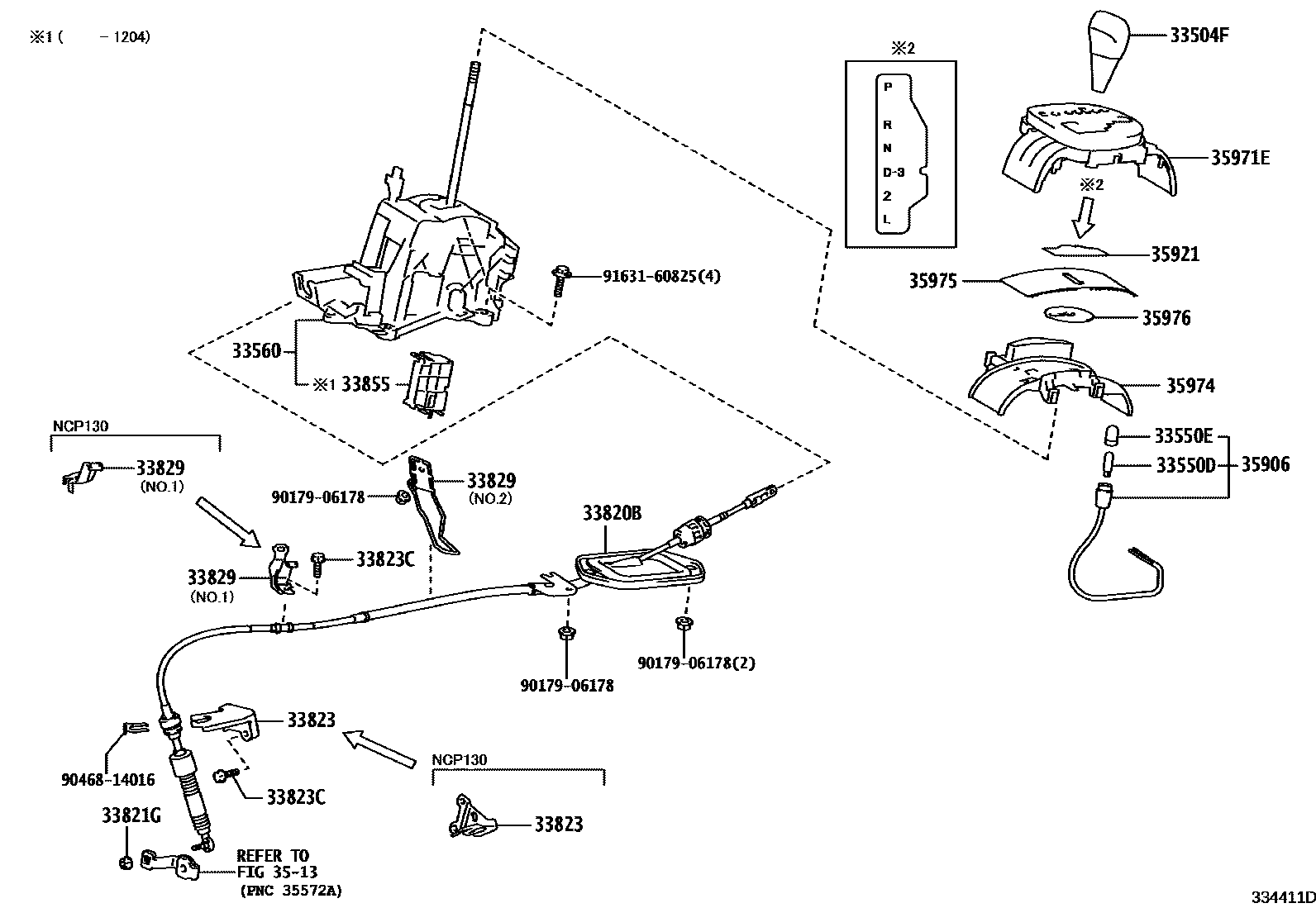

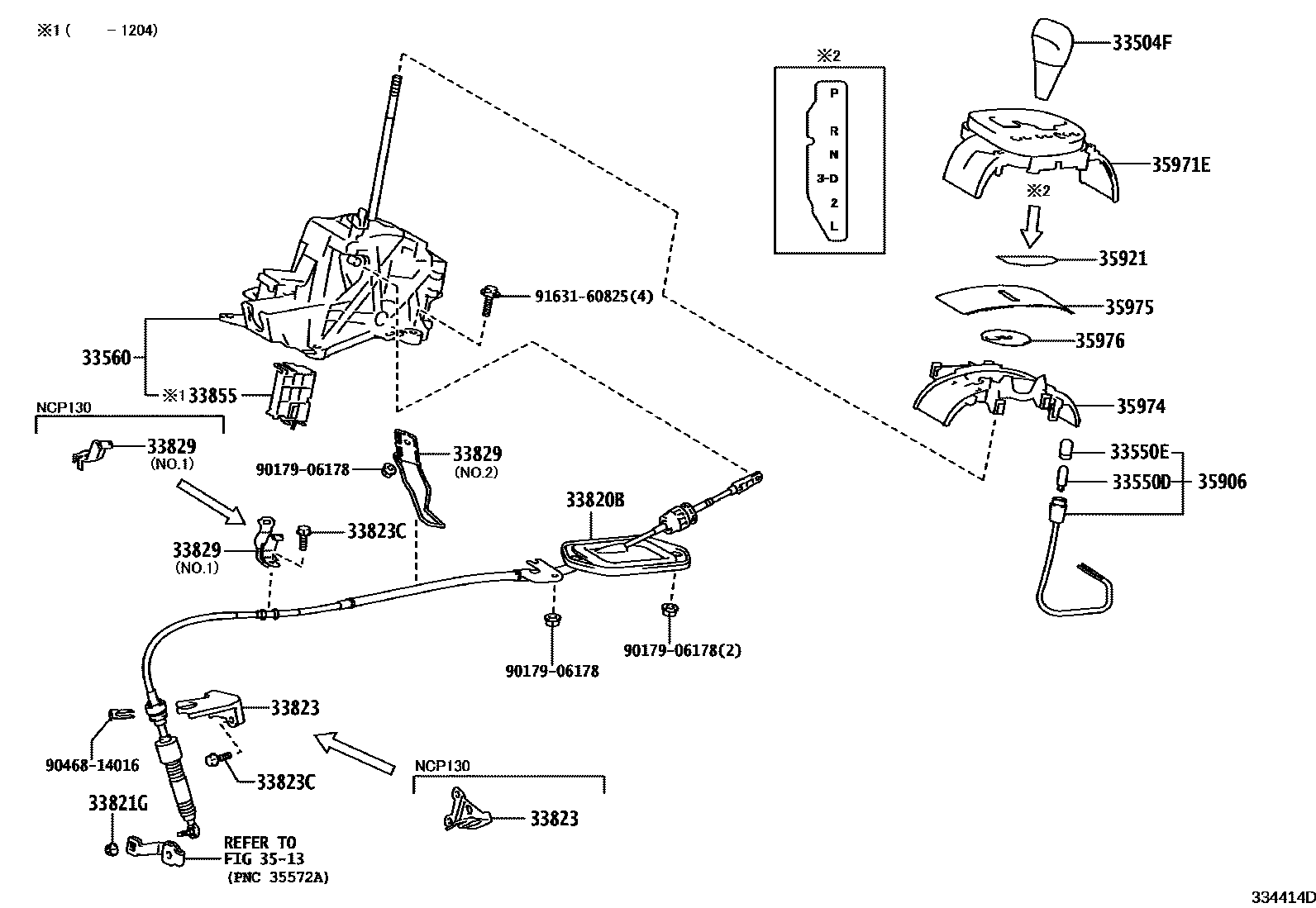

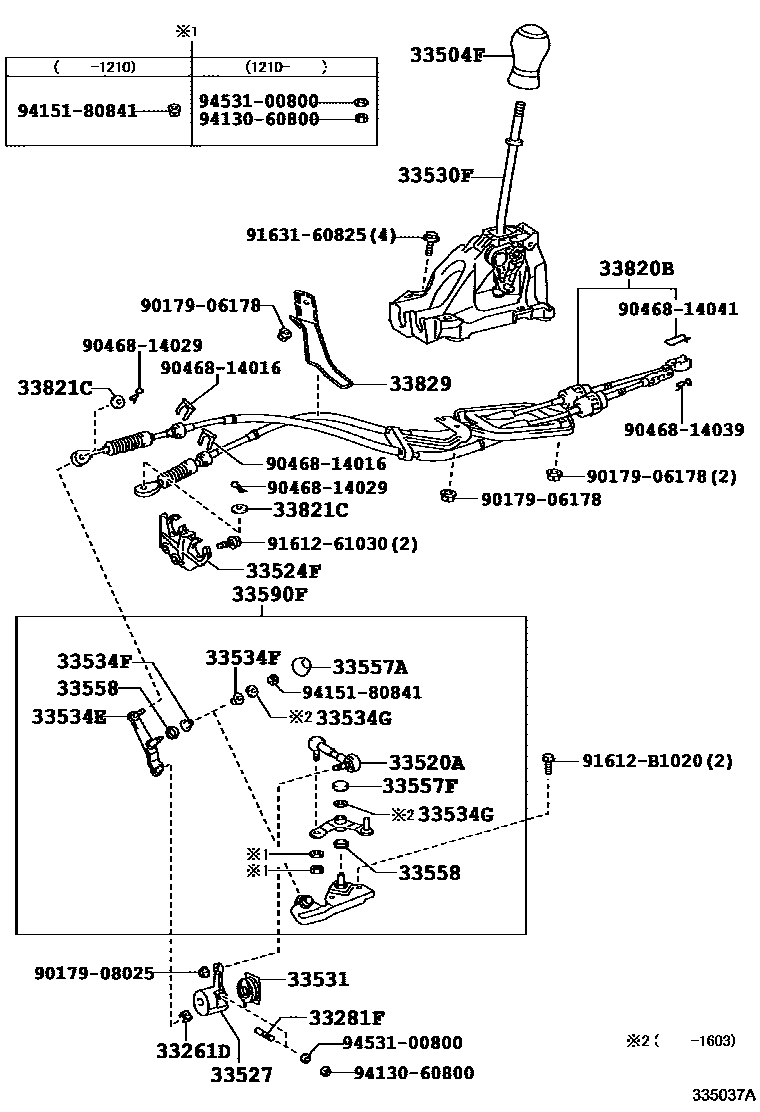

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-52050 |
| 33527 | Gear shift lever (for floor shift) | 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-52210 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534E | No. 2 gear selection right-angle lever | 33534-52020 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 35955-74010 |
| 33550E | position indicator cover | 35956-52010 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-52450 · 33560-52451 · 33560-52452 · 33560-52460 · 33560-52461 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-52030 |
| 33820B | Transmission control cable assembly | 33820-52440 · 33820-52780 · 33820-52790 · 33820-52A40 · 33820-52A50 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-52020 · 33823-52041 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-B0816 |
| 33829 | Transmission control cable bracket | 33829-52020 · 33829-52092 · 33829-52111 |
| 33855 | Shift lock unit cover | 33855-52020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-52150 · 35906-52160 |
| 35921 | control position indicator board | 35921-52160 · 35921-52170 |
| 35971E | position indicator housing | 35971-52500 · 35971-52510 · 35971-52740 · 35971-52800 |
| 35974 | Position indicator light lower shell | 35974-52050 · 35974-52060 |
| 35975 | Slide cover (for position indicator light) | 35975-52140 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-52140 |
