Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307

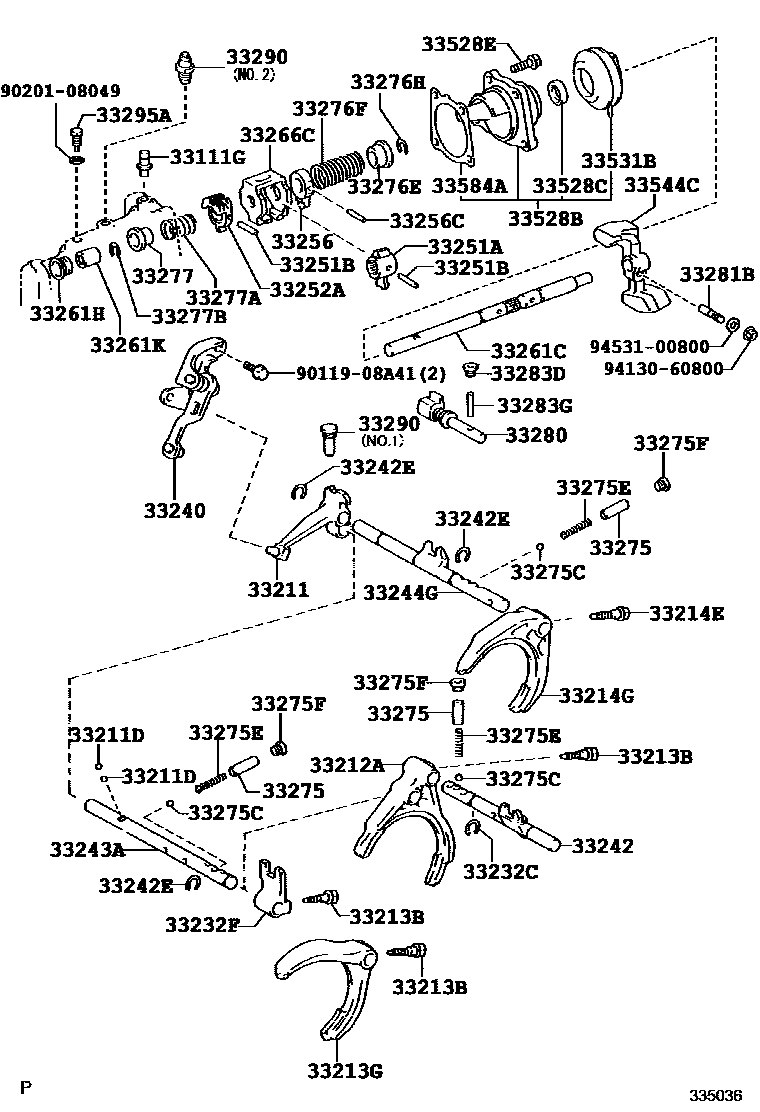

Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03133 |
| 33211 | Reverse Shift Fork | 33211-12021 |
| 33211D | Steel ball (for reverse shift fork) | 90360-06004 |
| 33212A | No. 1 shift fork | 33212-10013 |
| 33213B | Bolt (for securing shift fork) | 90105-06115 |
| 33213G | No. 2 shift fork | 33213-20050 |
| 33214E | Bolt (for shift fork lock) | 90105-06115 |
| 33214G | No. 3 shift fork | 33214-20050 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 |
| 33232F | No. 1 transmission guide block | 33232-20030 |
| 33240 | Reverse shift arm bracket assembly | 33240-16020 |
| 33242 | No. 1 shift fork shaft | 33205-52010 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-20070 |
| 33244G | No. 3 shift fork shaft | 33244-52030 |
| 33251A | Internal shift lever No. 1 | 33251-52040 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-12040 · 33252-12041 |
| 33256 | Internal gear selector | 33256-12022 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-05016 |
| 33261C | shift lever shaft | 33261-52111 · 33261-52112 |
| 33261H | Oil seal (for shift lever shaft) | 90310-15004 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90369-15003 |
| 33266C | shift interlock plate | 33266-02020 · 33266-20020 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-12207 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-12022 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-17040 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-12011 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-16190 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33280 | Reverse gear positioning pin assembly | 33280-12061 |
| 33281B | Shift lever lock pin (for outer shift lever) | 33281-16020 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33290 | No. 1 locking steel ball assembly | 33290-12011 · 33290-52040 |
| 33295A | Reverse gear positioning shaft | 33295-52010 |
| 33528B | control shaft cover | 33506-17081 |
| 33528C | Oil seal (for control shaft cover) | 90311-18013 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 · 91612-61025 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12030 |
| 33544C | Gear shifter damper | 33544-52071 |
| 33584A | Shift lever stopper gasket | 33584-12060 |
