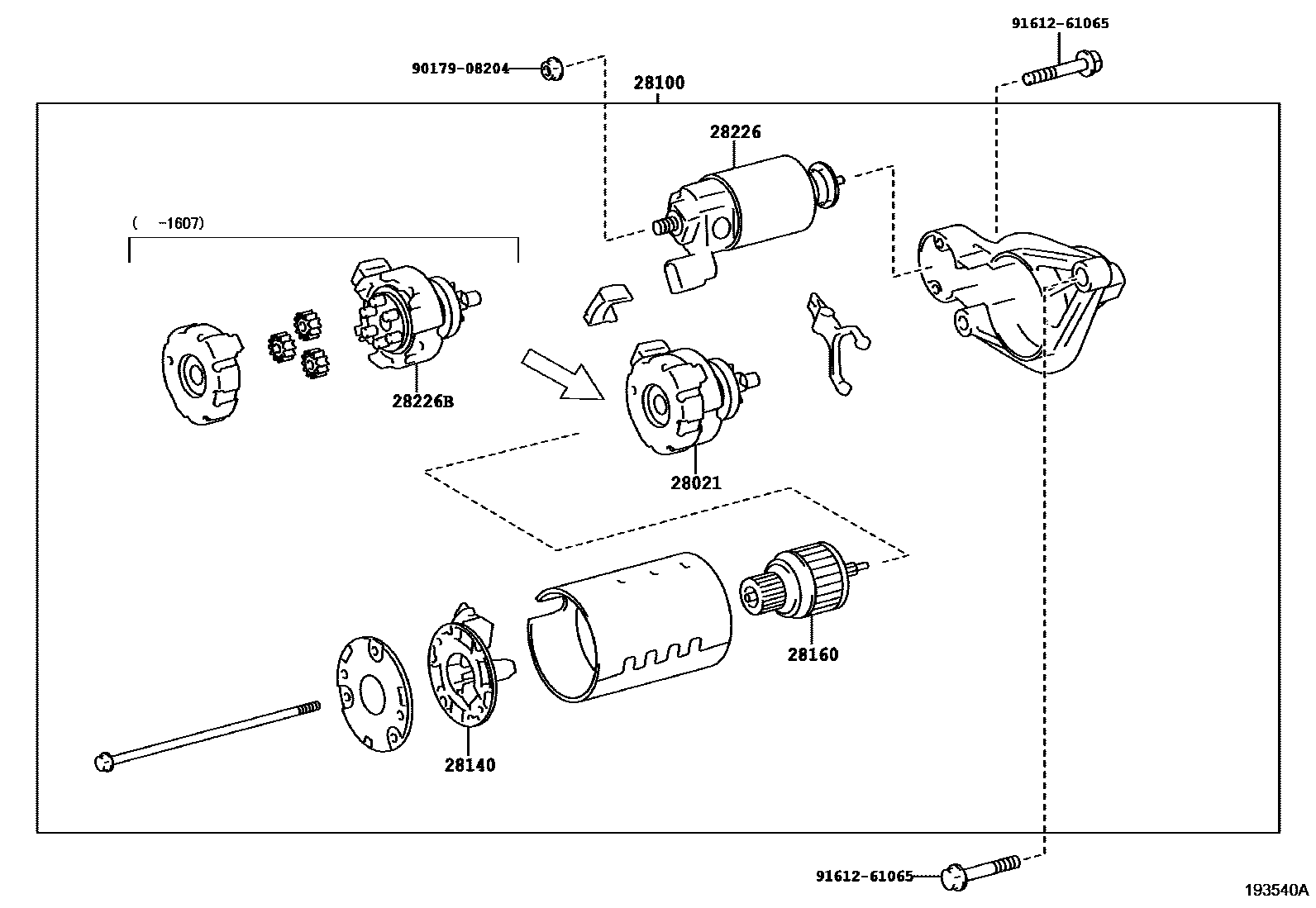

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21070 · 28021-21140 |
| 28100 | Starter assembly | 28100-21070 · 28100-21140 |
| 28140 | Starter brush holder assembly | 28140-21070 |
| 28160 | Starter armature assembly | 28160-21070 · 28160-47180 |
| 28226 | battery terminal starter assembly | 28226-21080 · 28226-21081 · 28226-47180 |
| 28226B | starter magnetic switch | 28226-21070 |
