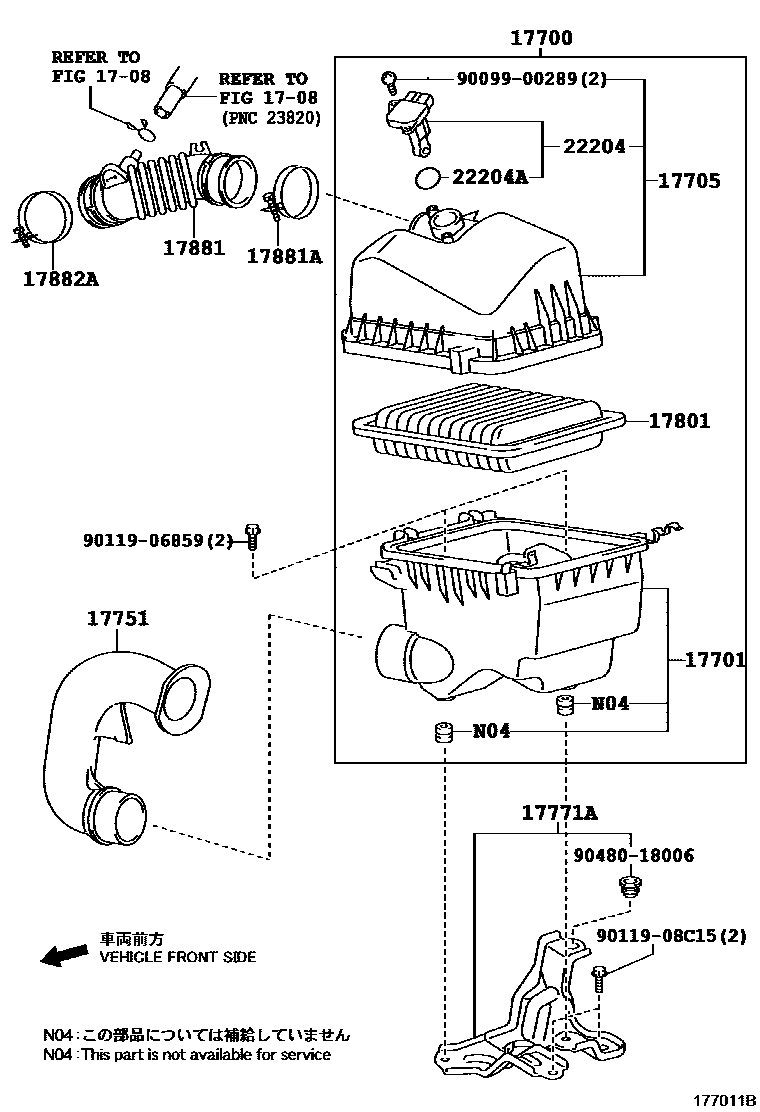

Toyota YARIS Air Cleaner — Figure 1703
Toyota YARIS EPC diagram 1703, Air Cleaner, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-21120 |
| 17701 | Air filter housing sub-assembly | 17701-21100 |
| 17705 | Air filter cover sub-assembly | 17705-21090 |
| 17751 | No. 1 air filter air inlet | 17751-21160 |
| 17771A | air filter bracket | 17771-21050 · 17771-21060 |
| 17801 | Air filter element sub-assembly | 17801-21050 |
| 17881 | No. 1 air cleaner hose | 17880-21091 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10690 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10690 |
| 22204 | Intake air flow meter assembly | 22204-0C020 · 22204-22010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
