Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 1 images and 3 PNC and OE references.

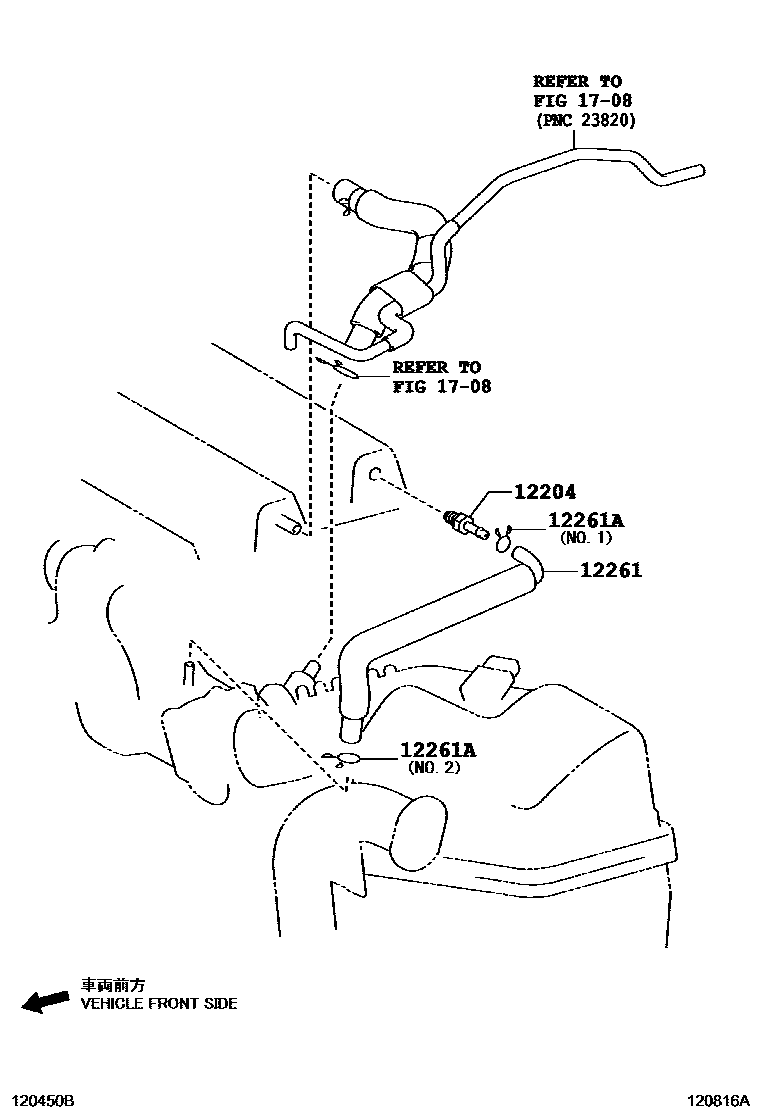

Toyota YARIS Ventilation Hose EPC diagram — 120816A
Ventilation Hose — 120816A (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21012 · 12204-21013
12261Ventilation Hose12261-21030
12261AClip or clip (for vent hose)90466-23003 · 90467-15120
