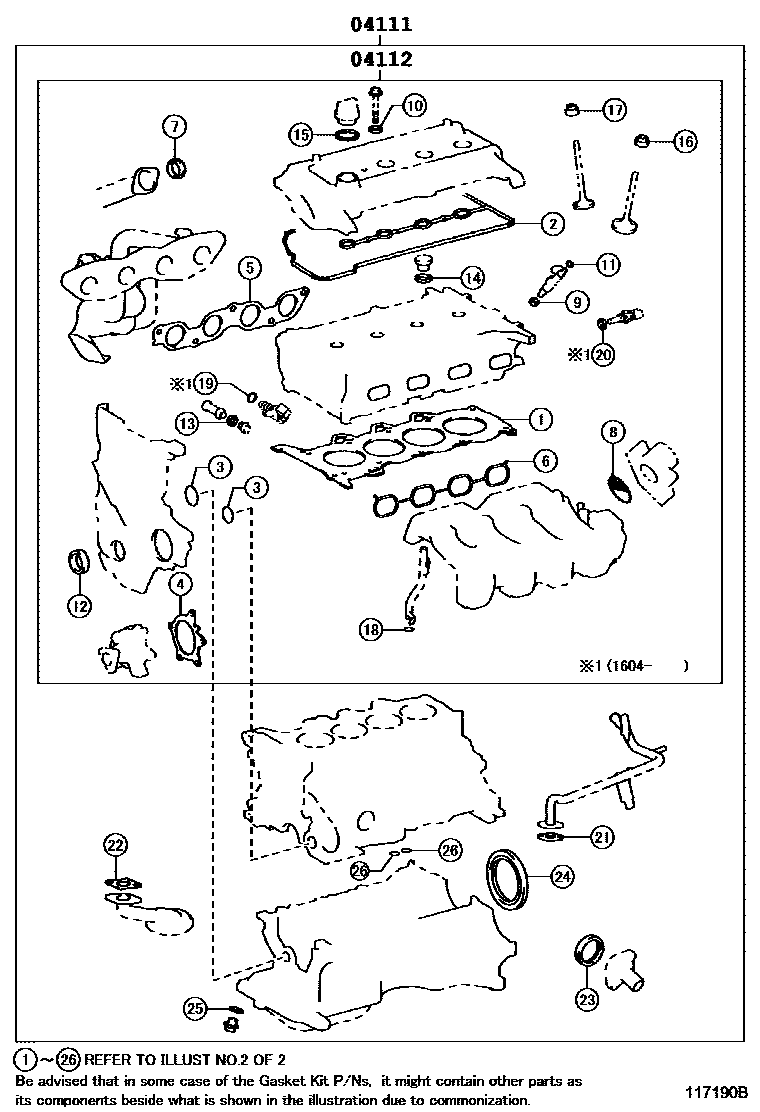

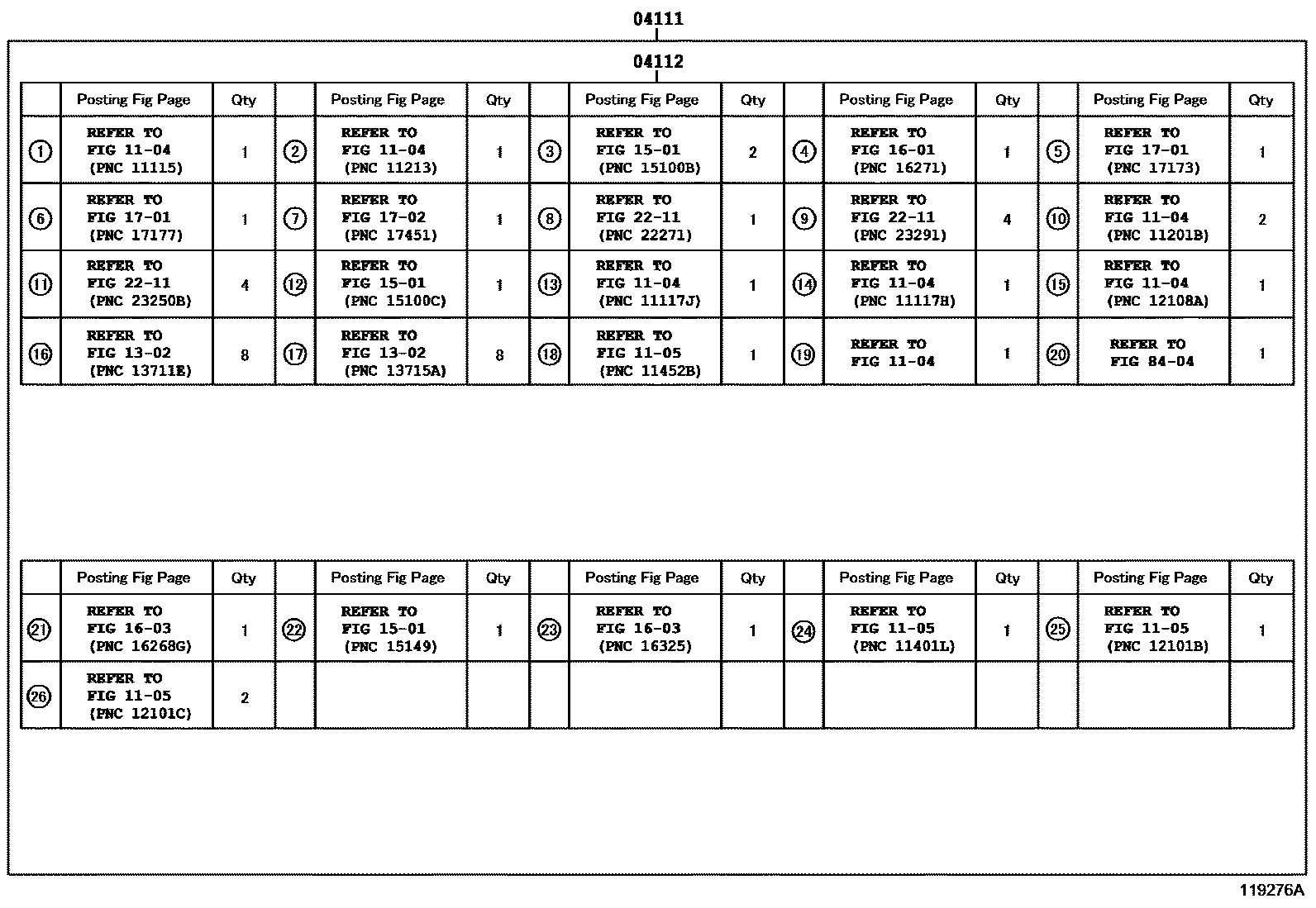

Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103
Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-21234 · 04111-21235 · 04111-21236 · 04111-21237 · 04111-21238 · 04111-21239 · 04111-21360 · 04111-21361 · 04111-21362 · 04111-21363 · 04111-21370 · 04111-21371 · 04111-21372 |
| 04112 | Engine valve grinding pad assembly | 04112-21233 · 04112-21234 · 04112-21235 · 04112-21236 · 04112-21237 · 04112-21238 · 04112-21239 · 04112-21350 · 04112-21351 · 04112-21352 · 04112-21353 · 04112-21370 |
