Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

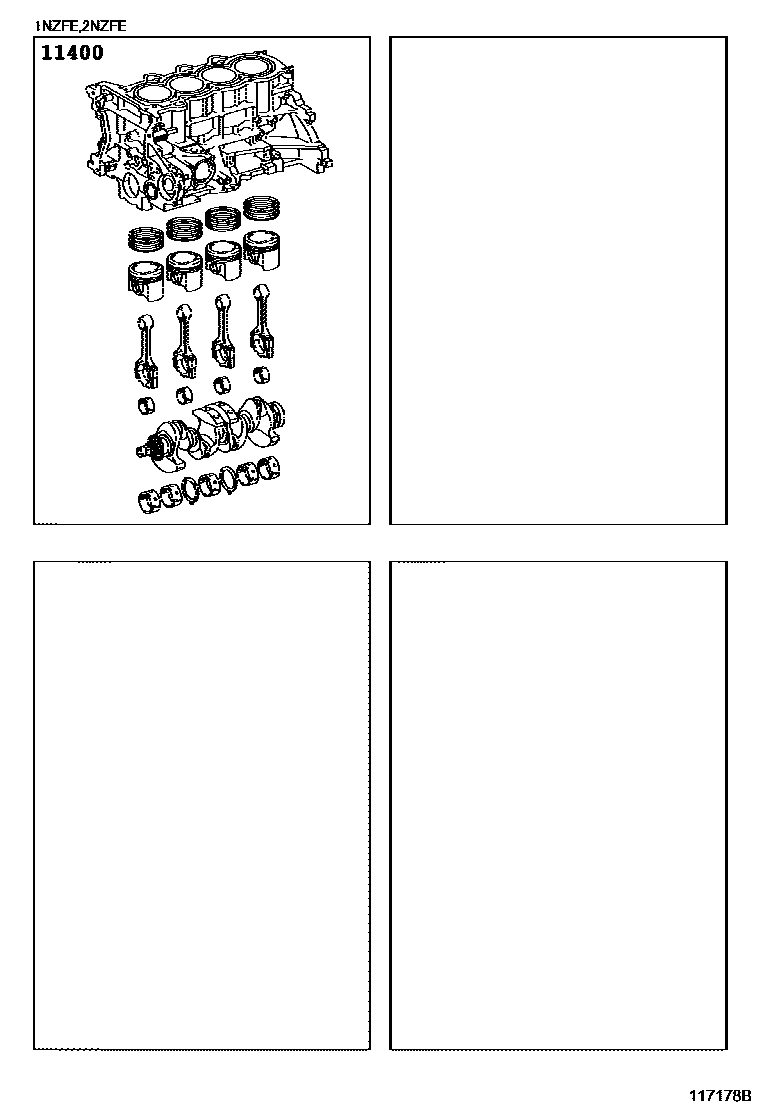

Toyota YARIS Short Block Assembly EPC diagram — 117178B
Short Block Assembly — 117178B (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-21150 · 11400-21220 · 11400-21411 · 11400-21470
