Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719

Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 1 PNC and OE references.

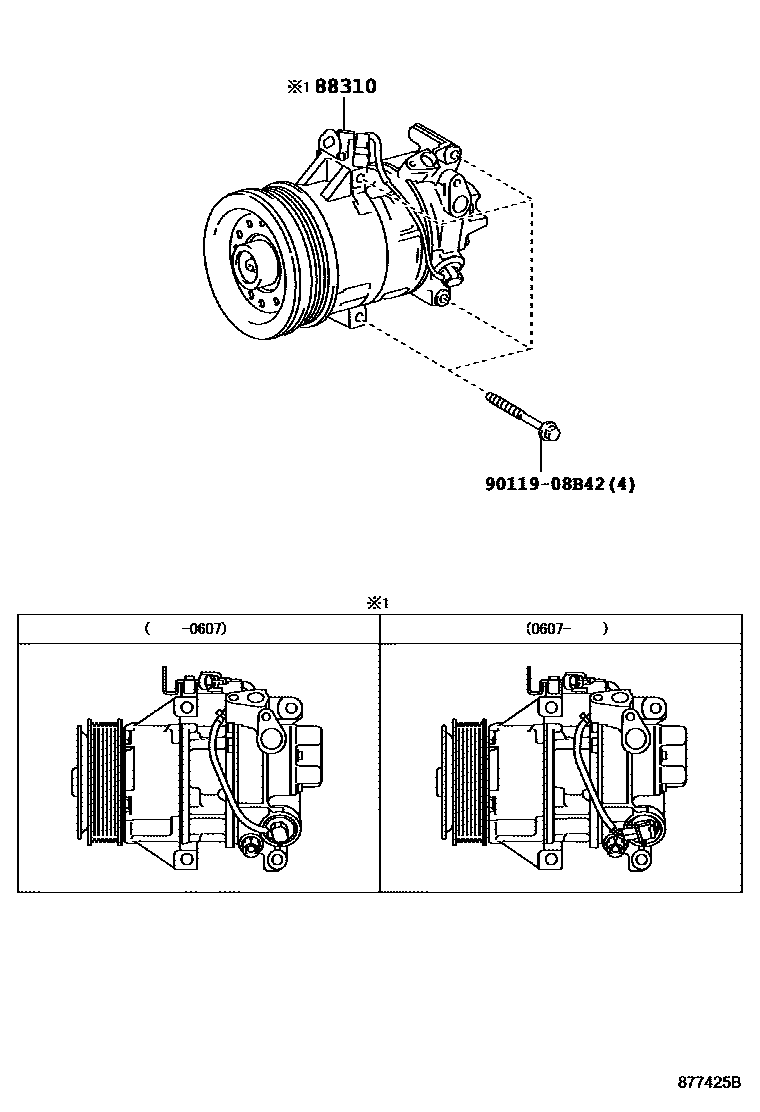

Toyota YARIS Heating & Air Conditioning - Compressor EPC diagram — 877425B
Heating & Air Conditioning - Compressor — 877425B (200508 – 999999)

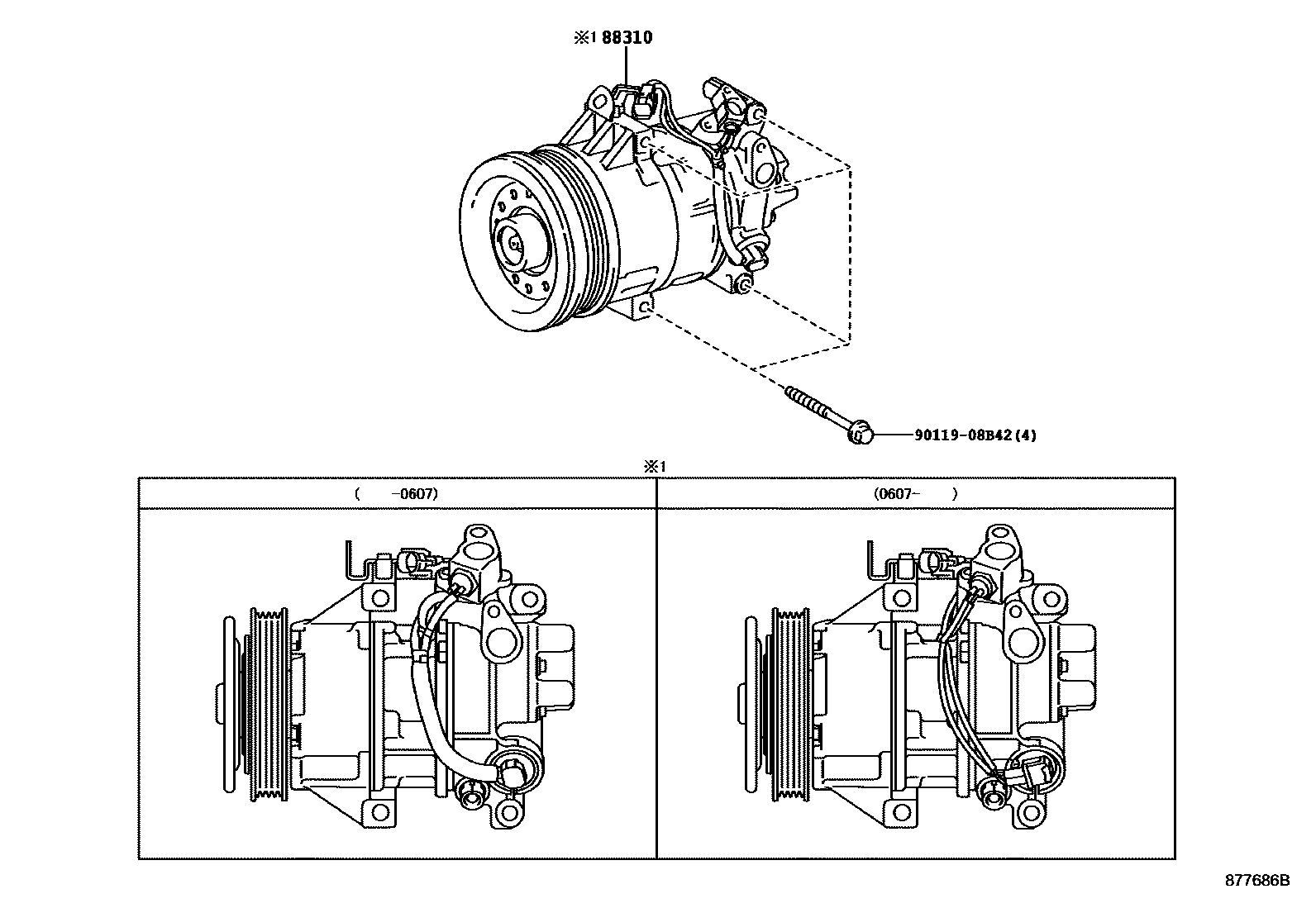

Toyota YARIS Heating & Air Conditioning - Compressor EPC diagram — 877686B
Heating & Air Conditioning - Compressor — 877686B (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
88310Compressor assembly with pulley88310-52490 · 88310-52491 · 88310-52492 · 88310-52550 · 88310-52551
