Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

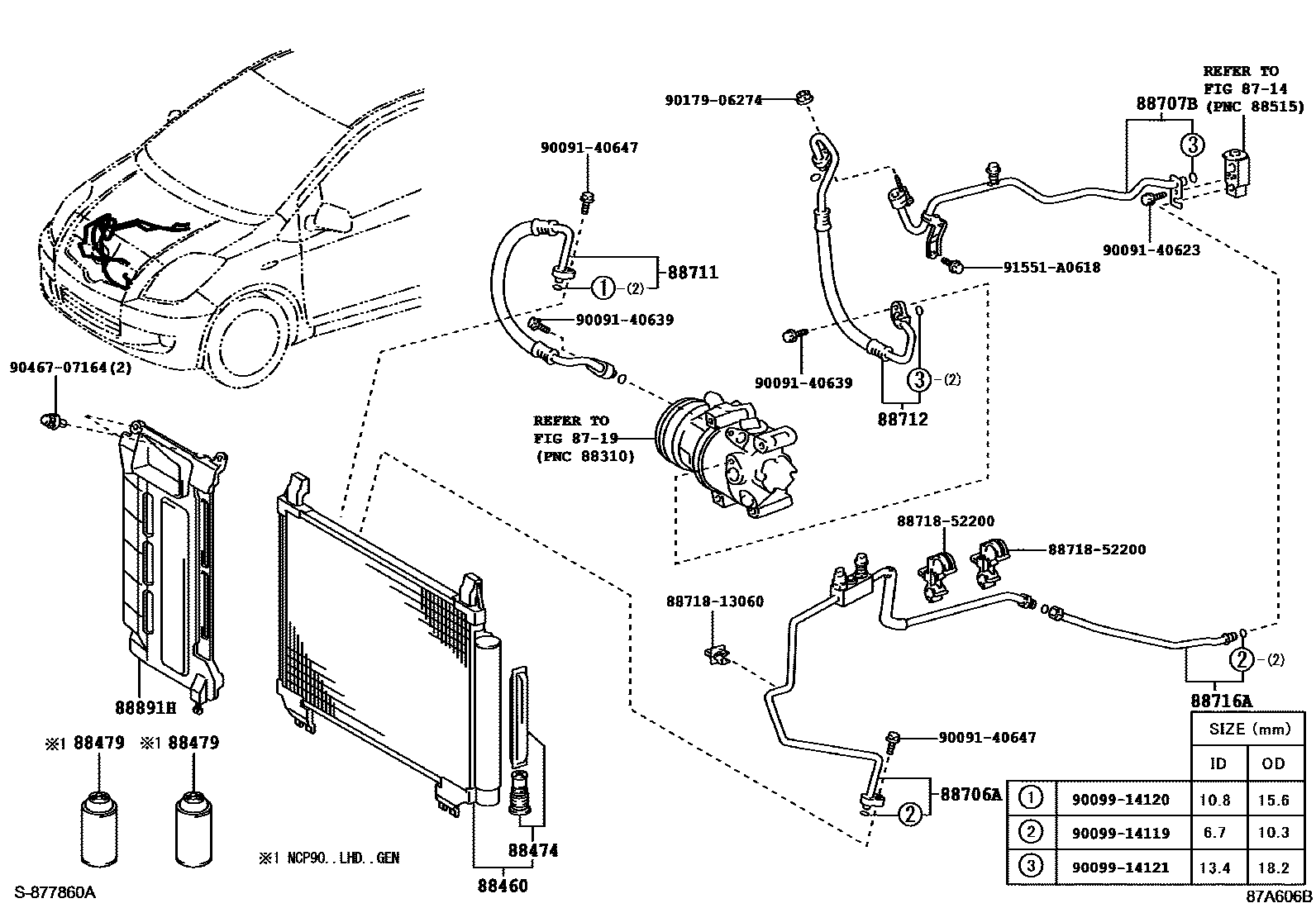

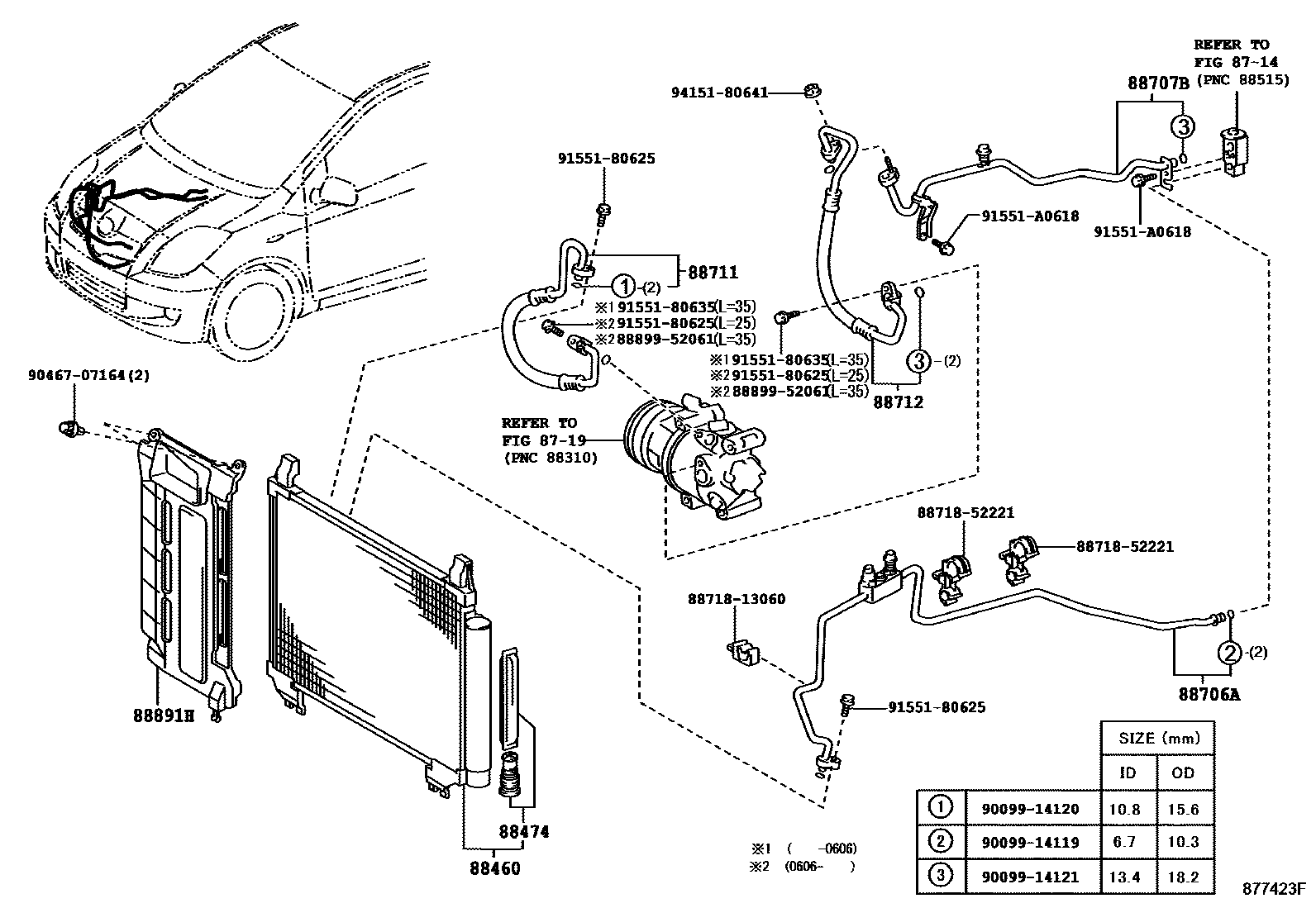

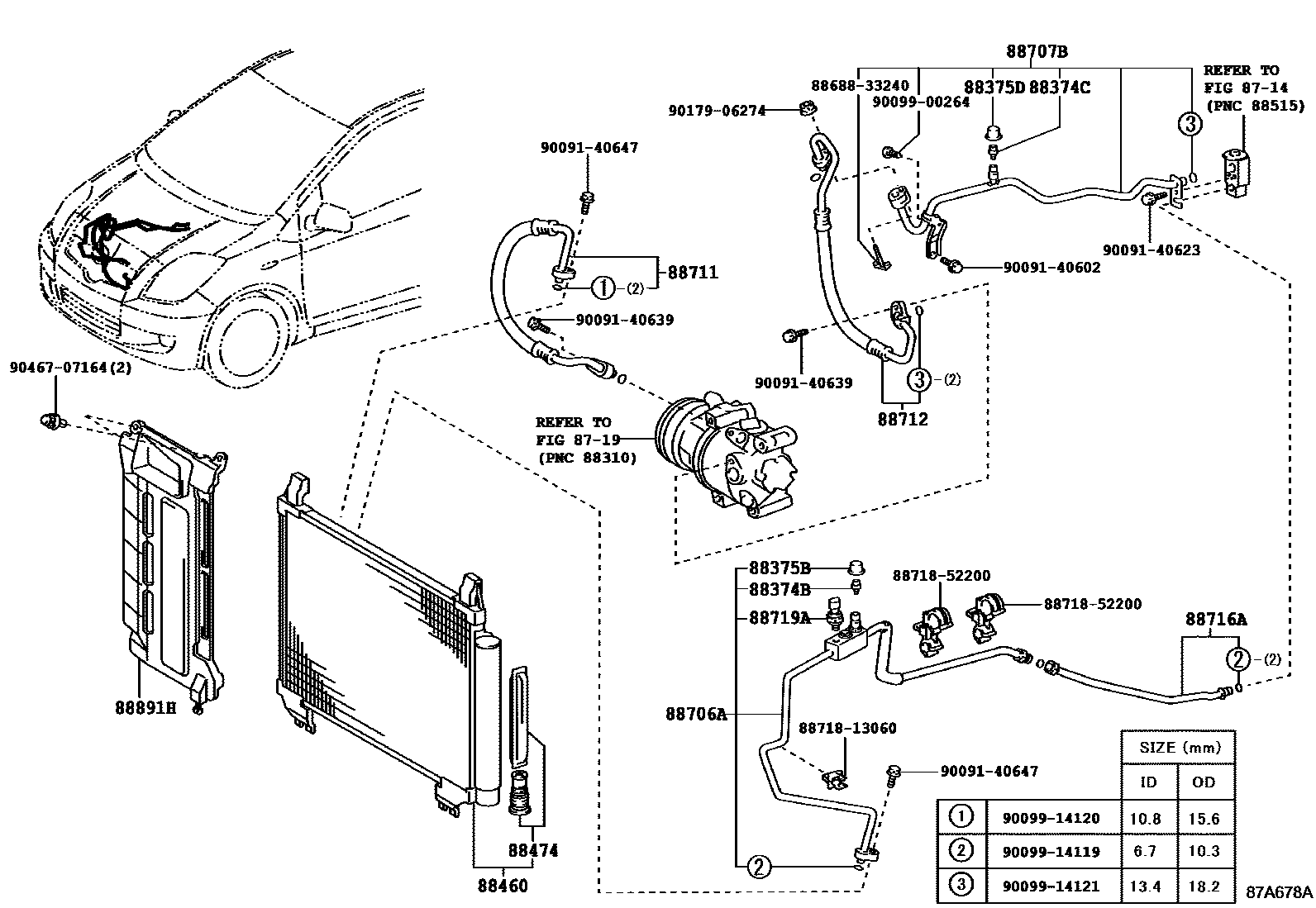

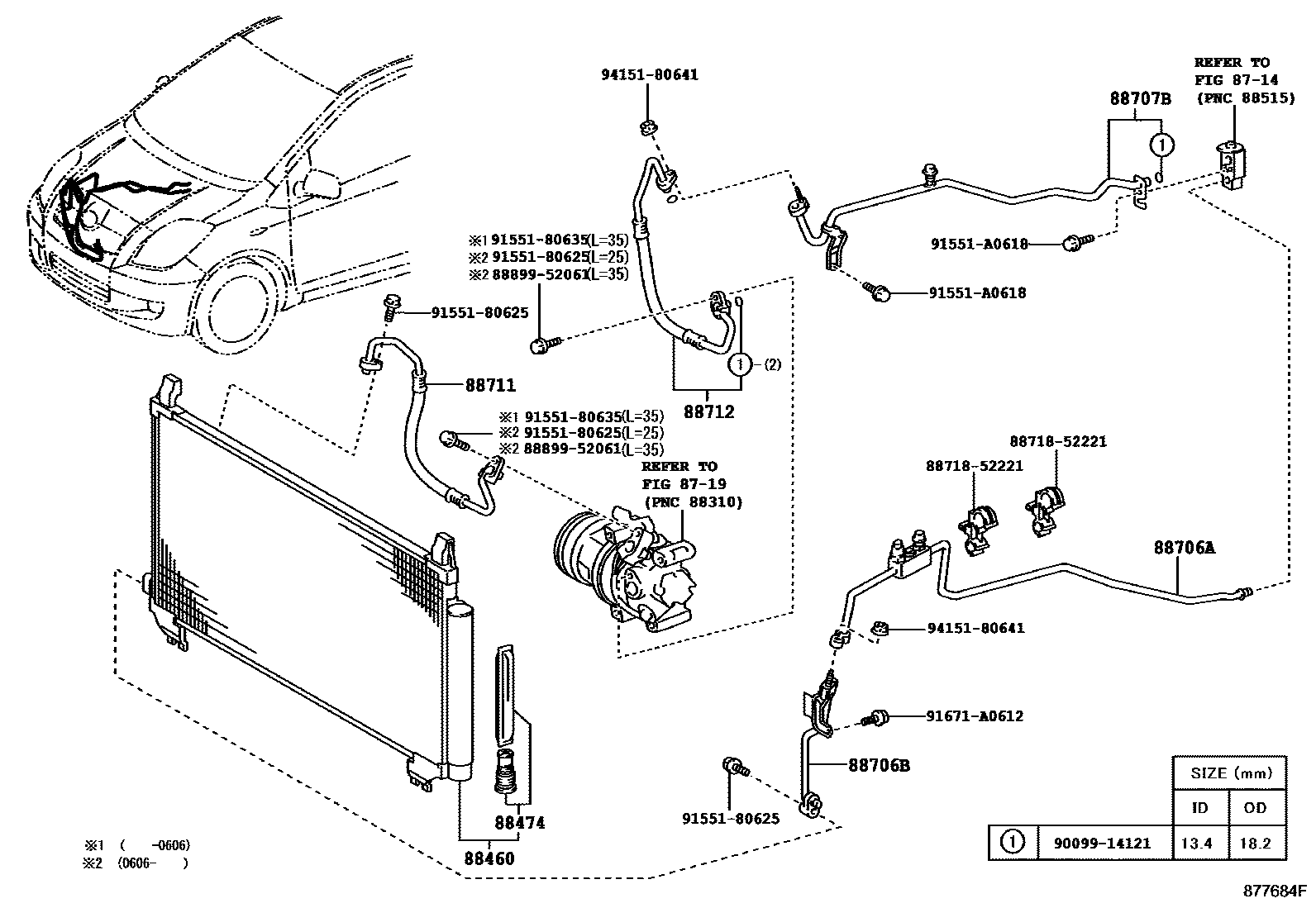

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-52100 · 88460-52110 · 88460-52130 |
| 88474 | cooler dryer | 88474-12030 · 88474-17010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02008 |
| 88706A | Liquid pipe A sub-assembly | 88706-52390 · 88706-52440 · 88706-52450 |
| 88706B | Liquid pipe B sub-assembly | 88706-52410 |
| 88707B | Suction pipe B sub-assembly | 88707-52100 · 88707-52110 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-52230 · 88711-52260 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-52280 · 88712-52320 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-52510 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
| 88891H | Cooler cover No. 1 | 88891-52050 · 88891-52051 |
