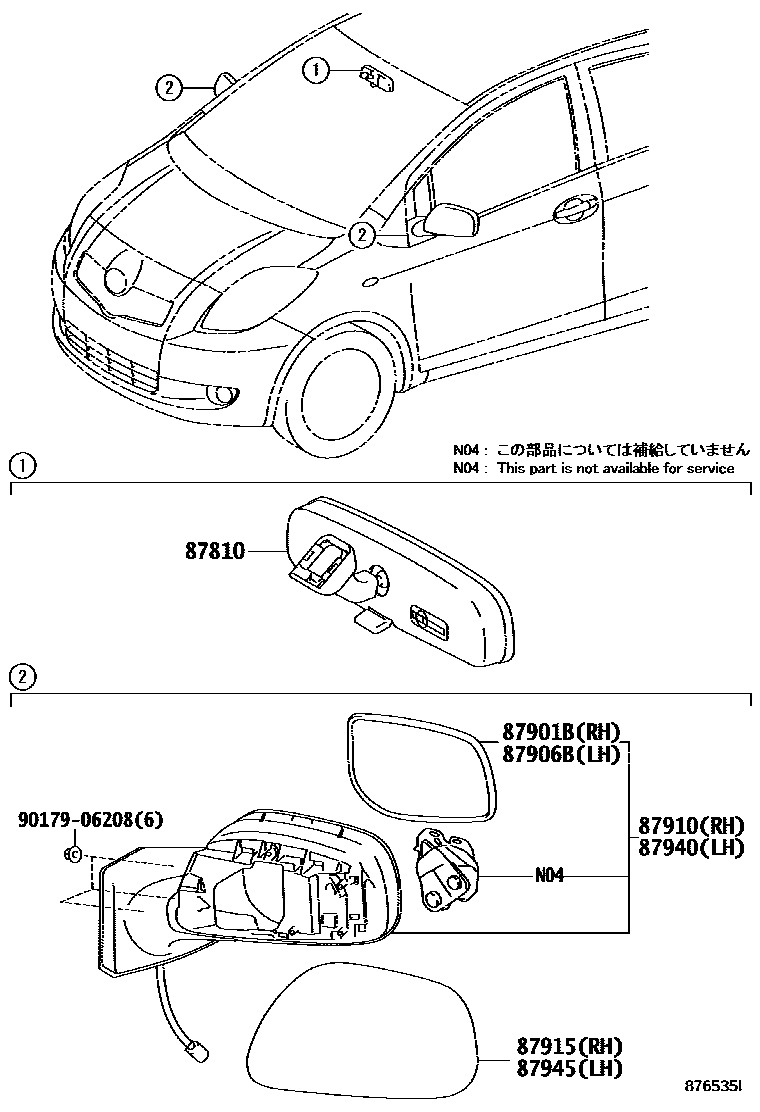

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-52040 · 87810-52041 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-52640 · 87931-52710 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-52620 · 87961-52690 |
| 87910 | Right exterior rearview mirror assembly | 87910-52560 · 87910-52640 · 87910-52650 · 87910-52690 · 87910-52700 · 87910-52710 |
| 87915 | Right exterior rearview mirror cover | 87915-52030 · 87915-52110 |
| 87940 | Left exterior rearview mirror assembly | 87940-52600 · 87940-52620 · 87940-52630 · 87940-52670 · 87940-52680 · 87940-52690 |
| 87945 | Left exterior rearview mirror cap | 87945-52050 · 87945-52110 |
