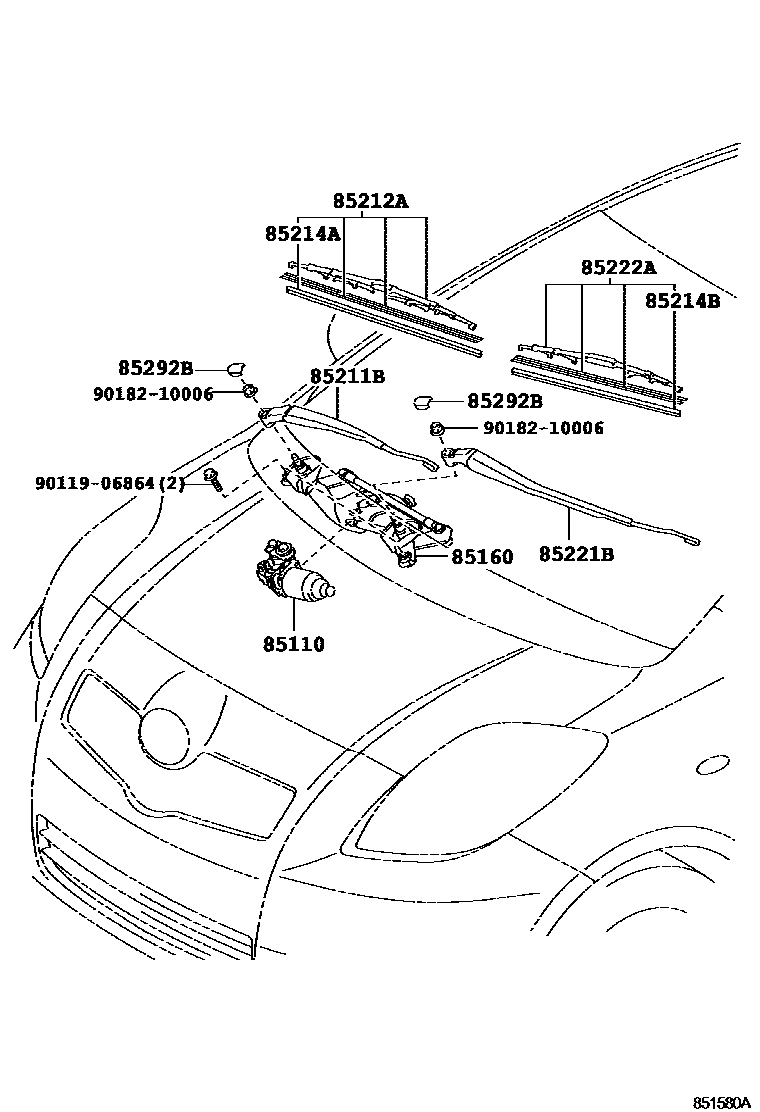

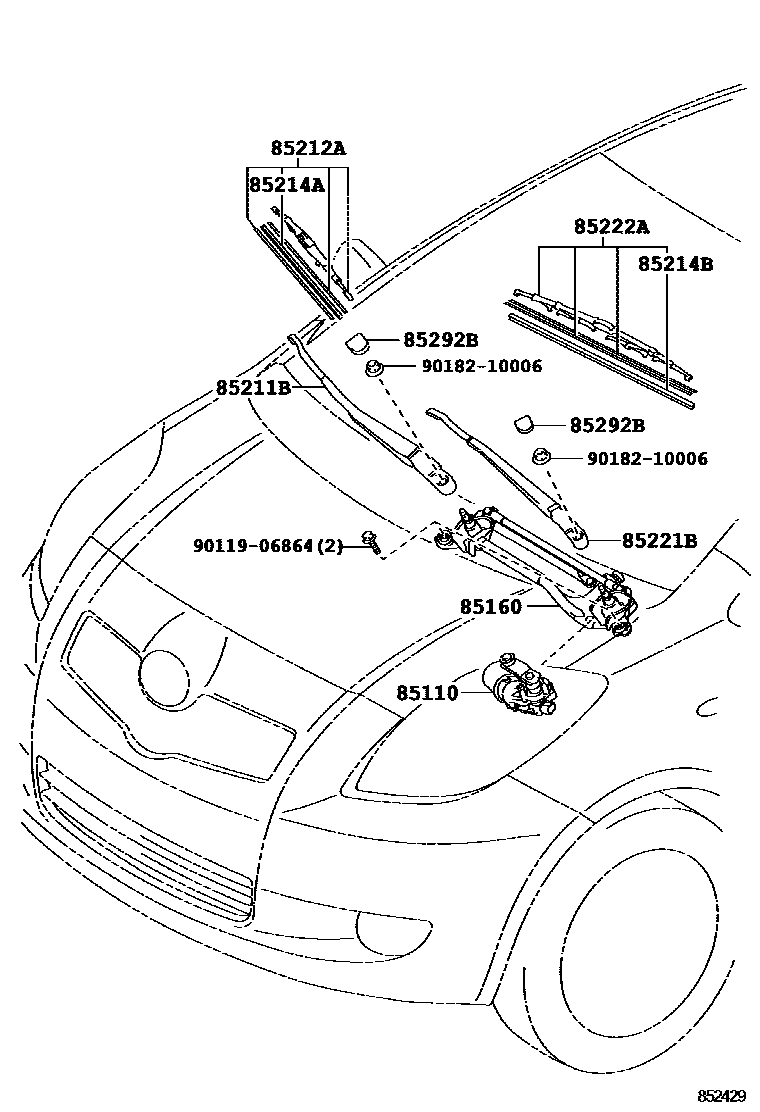

Toyota YARIS 挡风玻璃刮水器 — Figure 8501
Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-1A080 · 85110-52280 · 85110-52380 · 85110-52490 |
| 85160 | Windshield wiper connecting rod assembly | 85150-52230 · 85150-52280 |
| 85211B | Right front wiper arm | 85211-52210 · 85211-52230 |
| 85212A | Right front wiper blade | 85212-30370 · 85212-44031 · 85212-44032 |
| 85214A | Right wiper rubber strip | 85214-50100 · 85214-68010 · 85214-68011 |
| 85214B | Left wiper rubber strip | 85214-50100 · 85214-68010 · 85214-68011 |
| 85221B | Left front wiper arm | 85221-52210 · 85221-52230 |
| 85222A | Left front wiper blade | 85222-24080 · 85222-68010 · 85222-68011 |
| 85292B | Front wiper arm cap | 85292-13010 |
