Toyota YARIS 后牌照灯 — Figure 8113

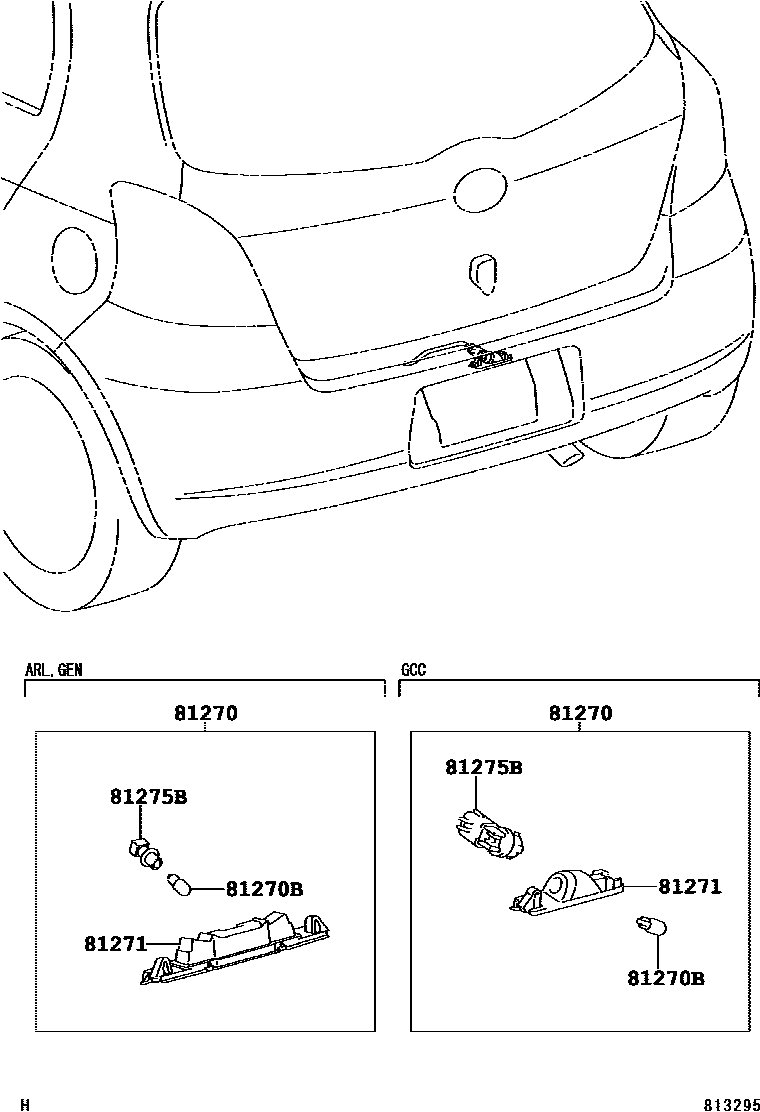

Toyota YARIS EPC diagram 8113, 后牌照灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-0D011 · 81270-52010 |
| 81270B | Bulb (for license plate light) | 90981-WB006 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-0D010 · 81271-52010 |
| 81275B | License plate light lamp holder plug | 90069-81012 · 90075-60005 · 90075-60080 |
