Toyota YARIS 挡泥板和扰流板 — Figure 7601

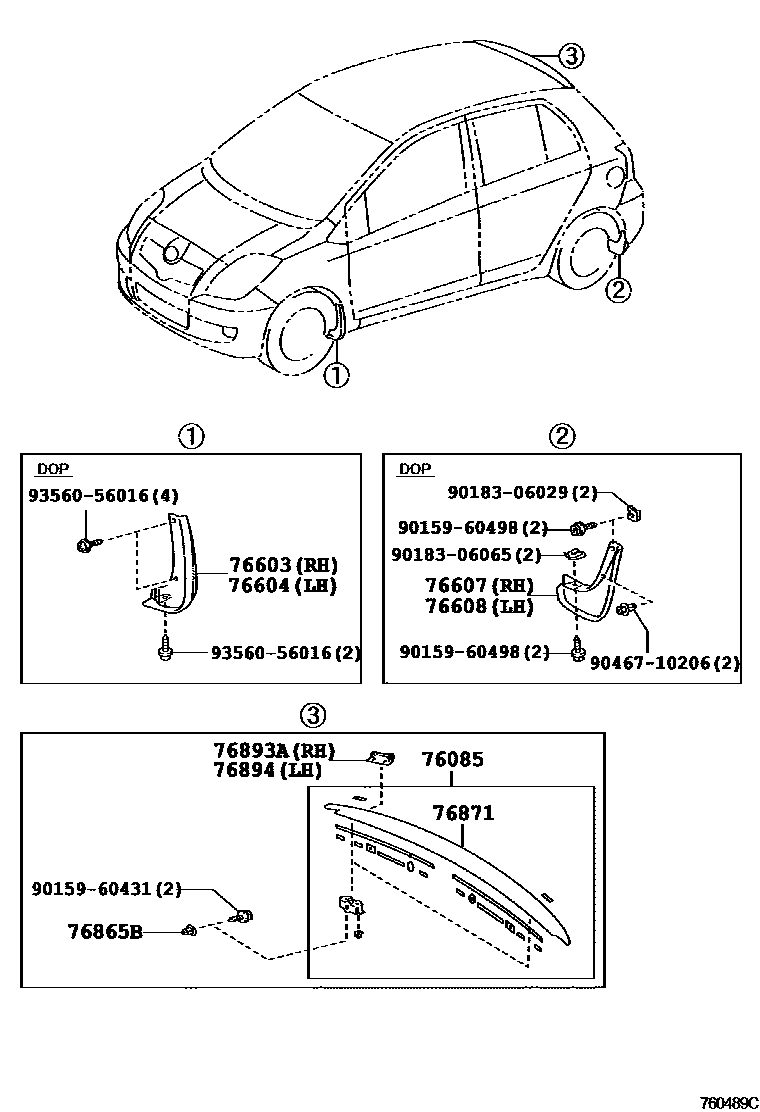

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76603 | Right front fender fender sub-assembly | 76621-52060 |
| 76604 | Left front fender fender sub-assembly | 76622-52060 |
| 76607 | Right rear side fender sub-assembly | 76625-52090 · 76625-52160 |
| 76608 | Left rear side fender sub-assembly | 76626-52090 · 76626-52160 |
| 76865B | Rear spoiler fixings | 76865-52030 |
