Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 9 PNC and OE references.

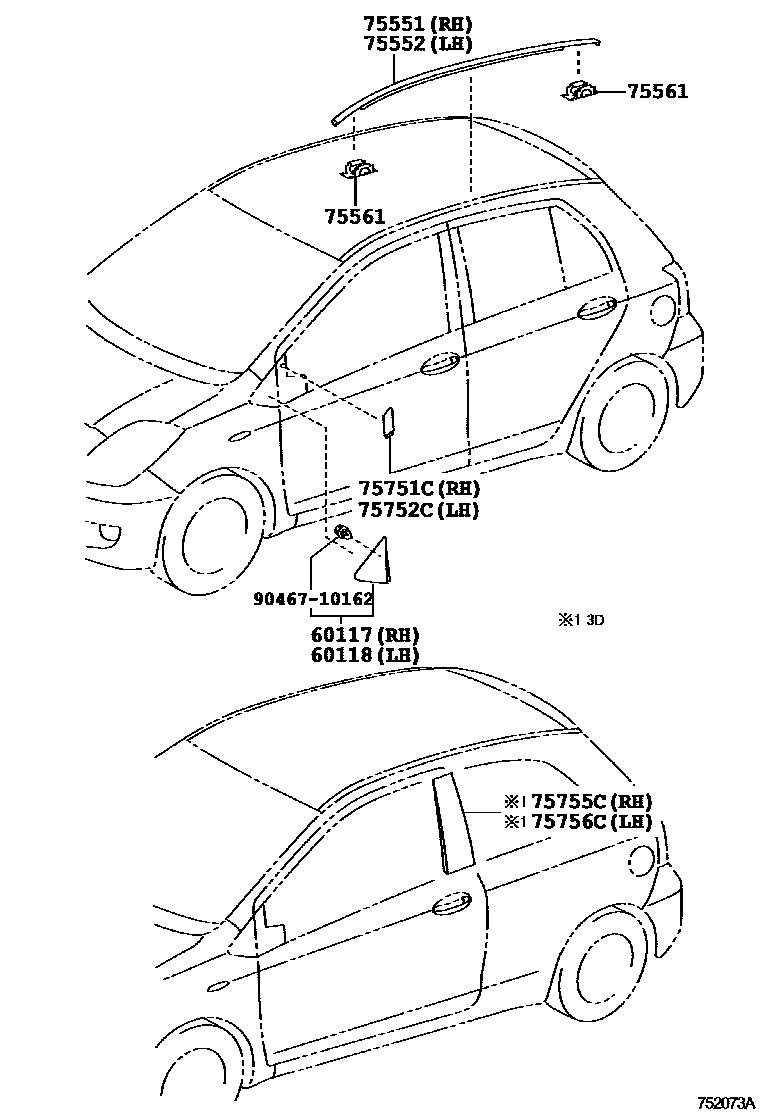

Toyota YARIS 侧防护条 EPC diagram — 752073A
侧防护条 — 752073A (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-52030
60118Left front pillar upper cover sub-assembly60118-52030
75551Drainage groove side decorative strip on the right side of the roof75551-52130
75552Drainage groove side decorative strip on the left side of the roof75551-52130
75561No. 1 roof drain channel side decorative strip clip75561-52040
75751CRight front door window frame front protective strip75751-52020 · 75751-52030
75752CLeft front door window frame front protective strip75752-52010 · 75752-52020
75755CRight front door window frame rear protective strip75755-52030
75756CLeft front door window frame rear protective strip75756-52020
